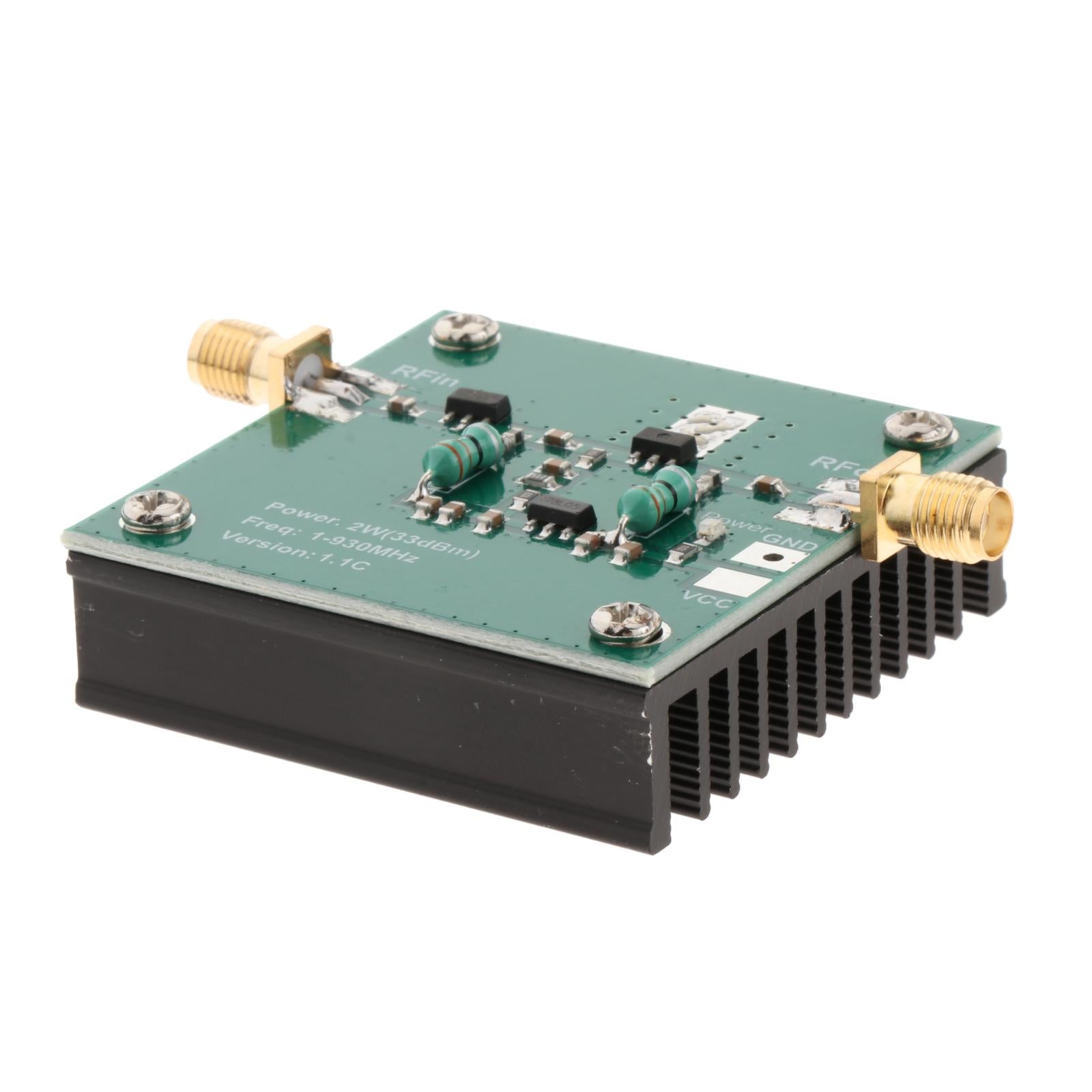

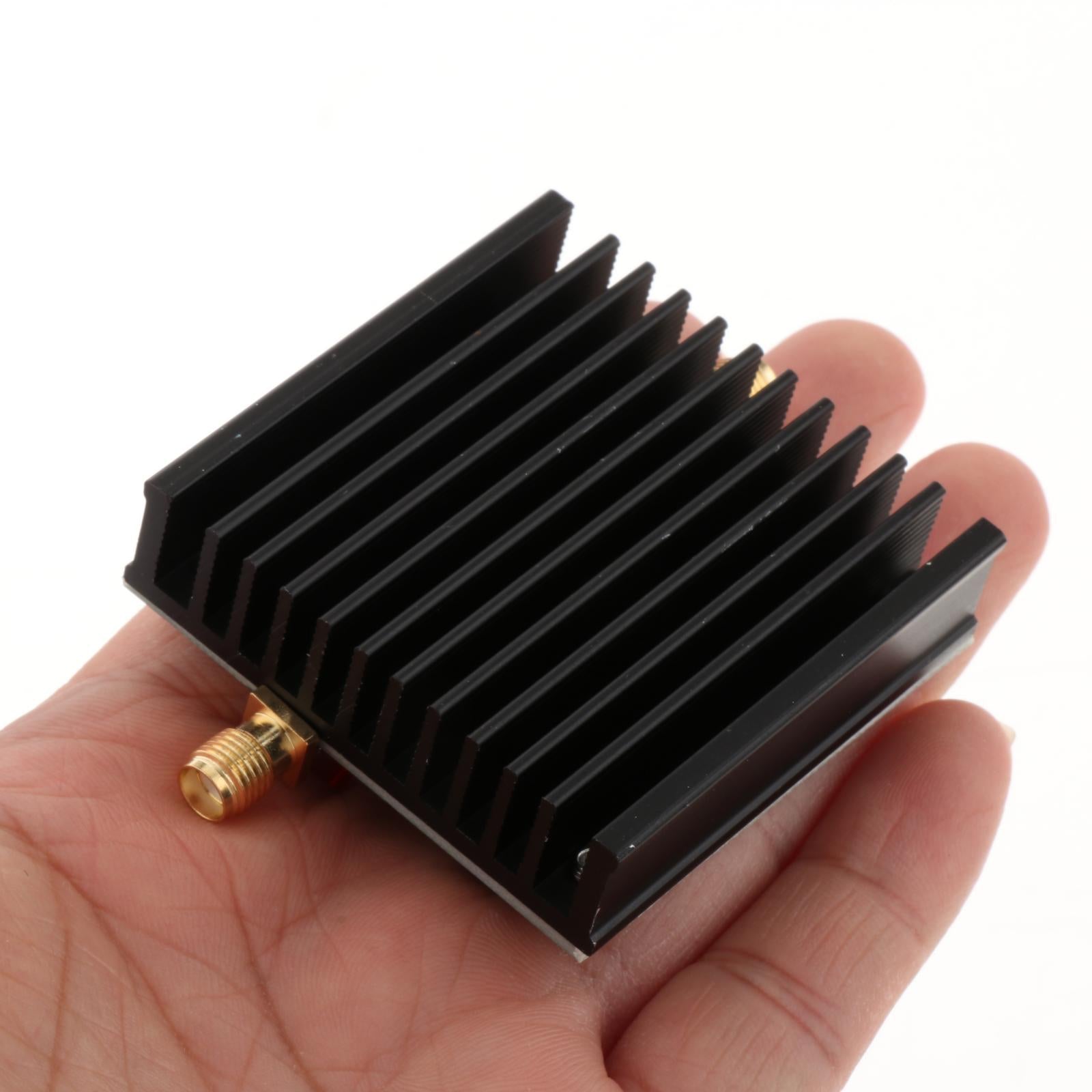

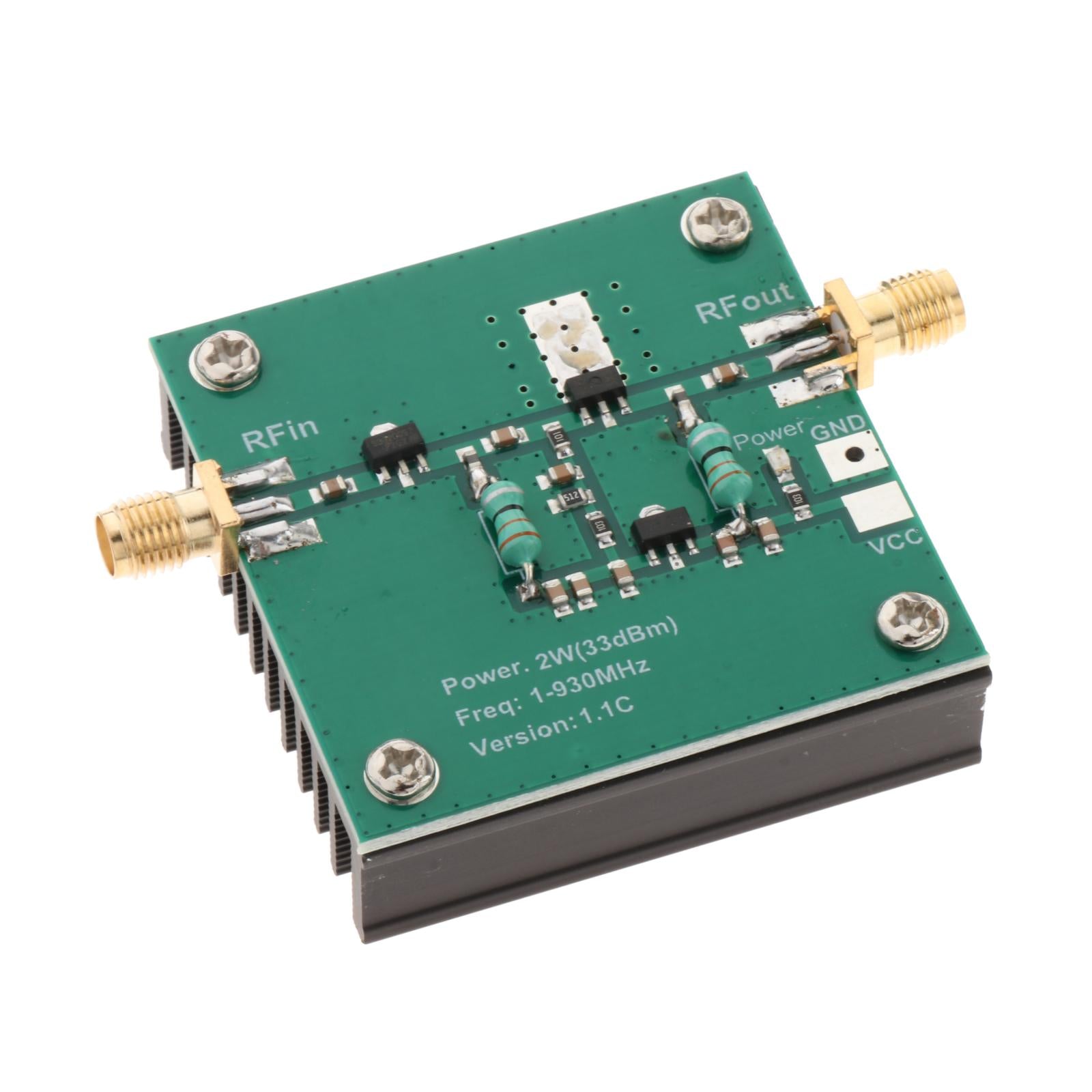

1-930MHz RF Amplifier Signal Power Amplifier Module for Radio Transmission

Description:

The broadband RF power amplifier small, suitable for all types of radio transmission, such as: FM shortwave radio remote control, FM FM radio transmitter, amateur radio 135-175MHz, 380-470MHz transmitter to use.
Operating Frequency: 1--930MHz;Input power: 1mW (0dBm)
Maximum output: 2.0W (33dBm) low frequency (10 MHz);1.6W (32dBm) IF end (512 MHz);1.0W (30dBm) high end (930 MHz)
0.8W (29dBm) high end (1000MHz);Operating voltage: 12V (DC);Current job: 300--400mA (determined by the output power)
RF connector: SMA female standard.

Specification:

Size(LxWxH):Approx.50x50x15mm/1.97x1.97x0.59inch

Package Includes:

1 Piece RF Broadband Power Amplifier Module

Note:

Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Due to manual measurement, there may be 1-2cm error in size.
