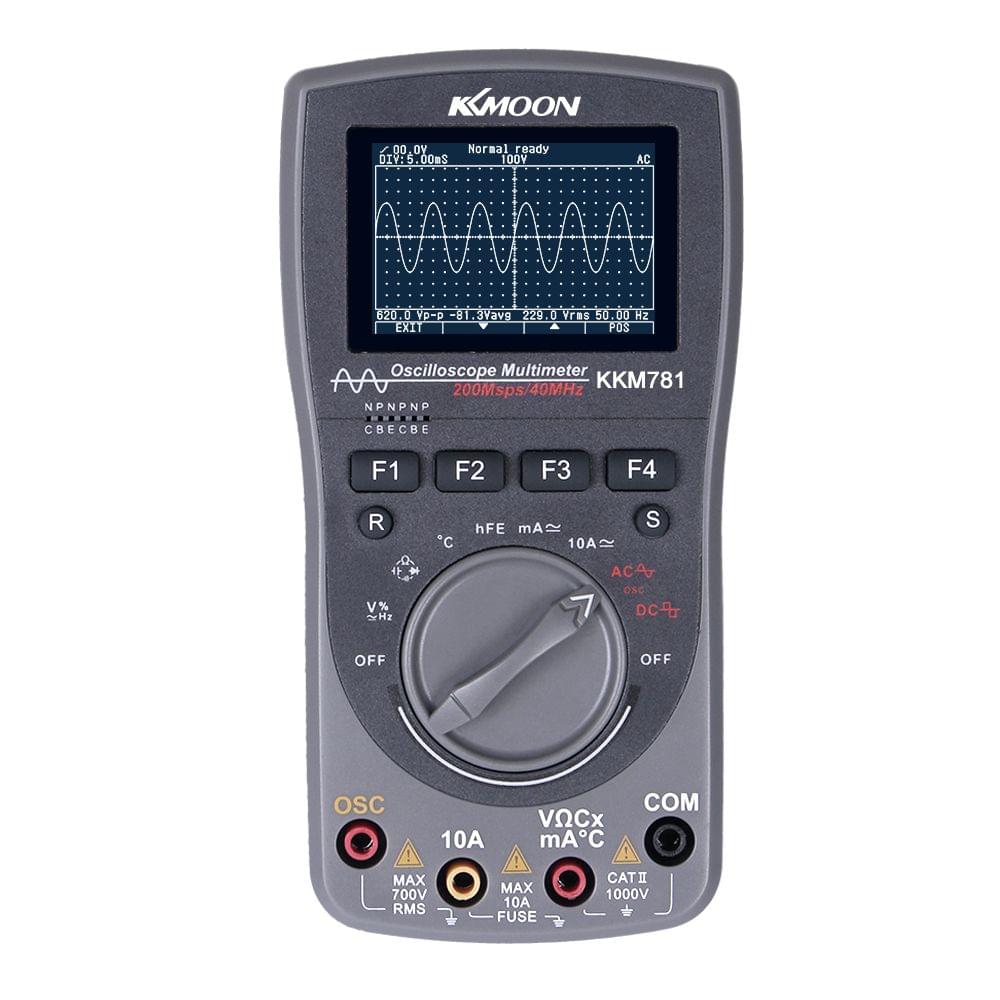

KKmoon Intelligent Digital Storage Scopemeter 2-in-1 Digital

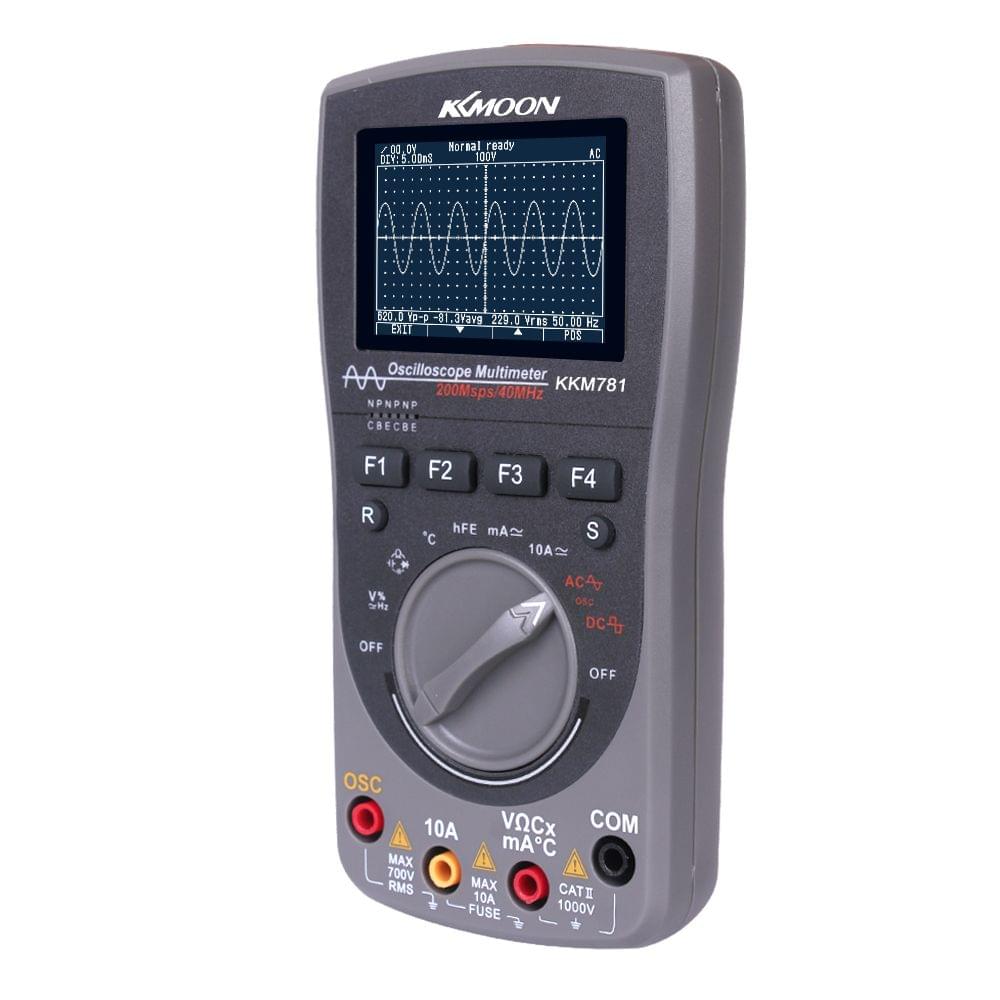

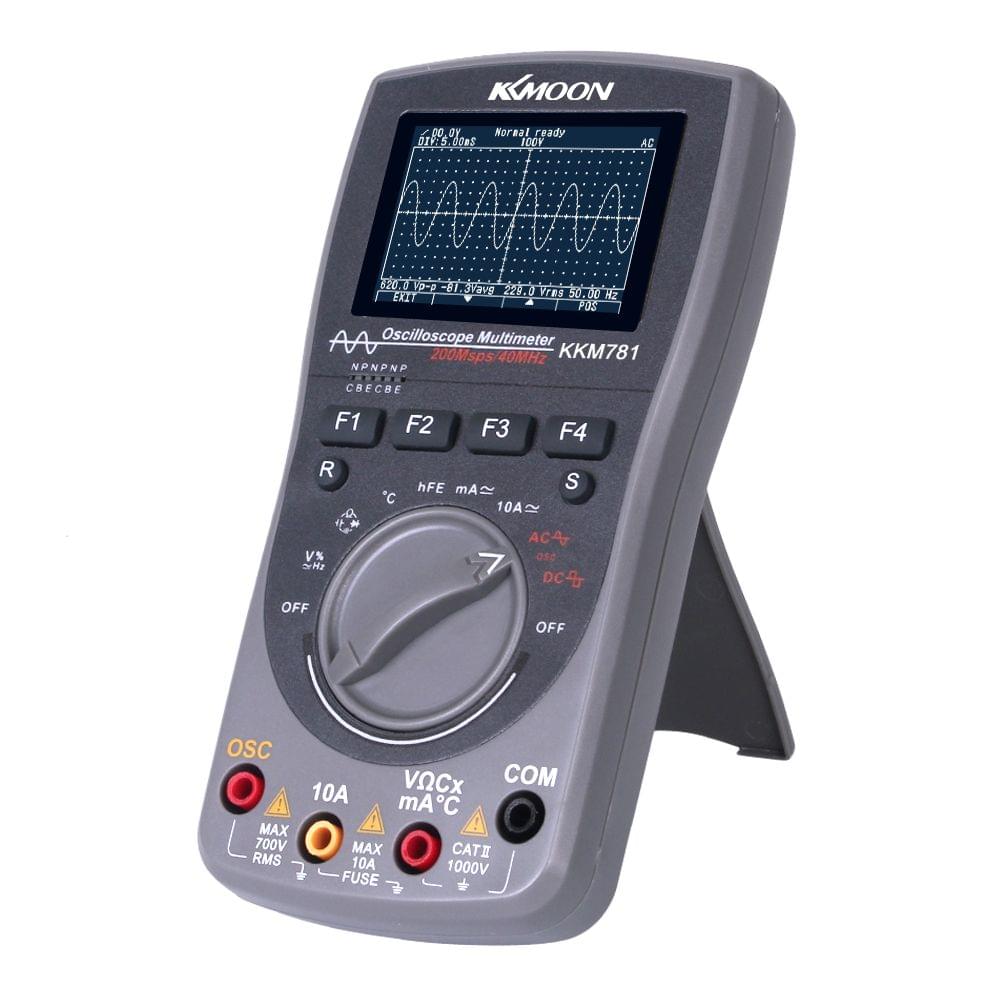

The KKM781 is an example of a combination of an oscilloscope and an auto range multimeter that combines all the features of the existing DMM with the digital oscilloscope function. Compliant with the trend small and portable handheld oscilloscope for field fault detection.Features:This is an oscilloscope and multimeter combined test instrument to improve your work efficiency.200Msps high-speed sampling 40MHz analog bandwidth 6000 digital multimeter.Rotary knob for switching oscillography with three types of waveform scanning mode i.e. automatic mode regular mode and single-time mode.Save function for data and waveform in the measurement; a total of 100 sets of data and 50 waveform can be saved.Parameters i.e. time base and waveform scanning mode can be set in measurement of waveform.TRMS measure the virtual value of waveform without taking into account the waveform parameter and distortion.REL effectively eliminate the lead resistance distributed capacitance and interference signal.The functions include DC/AC voltage/current resistance capacitance frequency temperature diode/continuity test triode.Automatic/manual switching for measuring range and display of measurement data and historic data on the same screen.Overload protection 500mA/10Adouble protective tube dual protection of the instrument.Automatic shutdown if no operations for 15 minutes: bright backlight and clear display.Higher reliability: no adjustment of potentiometer is required for panel calibration and internal storage calibration.Specifications:Material: ABSMain color: greyDisplay: LCD display 240*160dot-matrix graphics 6000 countsLCD size: 60 * 40mm / 2.4 * 1.6inBacklight: constantly onPower: 3 * 1.5V AA battery (included)Use time: more than 8 hoursInput resistance: 10M?Auto shutdown: 15 minutes or disabledOperation height: 0~2000mStorage capacity: 100/Data 50/WaveformOperation environment: 0?~+40?; 75%RHStorage environment: -10?~+60?; 90%RHItem size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3inItem weight: 210g / 7.4ouncePackage size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8inPackage weight: 460g / 1.0lbDigital storage scopemeter:Analog bandwidth: 40MHzMaximum real-time sampling rate: 200MspsVertical resolution: 8 bitsDegree of nonlinearity: 1 bitNumber of channels: 1Coupling means: DC/ACInput resistance: about 100M?Division: vertical 6.0 horizontal 24.0Range of vertical sensativity: 500mV/div~200V/divAccuracy of vertical amplitude: (5%+0.2div)Automatic zero point reference: during DC measurementTrigger level: 6div (0.1div/step)Adjustment of trigger position: 12div (0.1div/step)Cursor measurement function: dV dt I/dt (Frequency)Auto measurement accuracy: (5%+0.2div)Range of time base: 12.5ns/div~10s/divAccuracy of time base: (0.01%+0.1div)Scanning mode: auto / normal / singleSelection of trigger gradient: rising / descending edgeAutomatic setting: automatic setting of time base and vertical amplitudeAutomatic measurement function: Vp-p Vavg VrmsLength of recording: 24.0divDigital multimeter:DC voltage:Measuring range: 600.0mV/6.000V/60.00V/600.0V/1000VResolution: 0.1mV/1mV/10mV/100mV/1VUncertainty:600.0mV/6.000V/60.00V/600.0V: (1.0%rdg+10dgt)1000V: (1.5%rdg+10dgt)AC voltage true virtual value:Measuring range: 600.0mV/6.000V/60.00V/600.0V/750VResolution: 0.1mV/1mV/10mV/100mV/1VUncertainty:600.0mV/6.000V/60.00V/600.0V: 50Hz~400Hz (1.5%rdg+10dgt) 400Hz~1kHz (for reference only if it's above 1kHz) (2.0%rdg+10dgt)750V: (2.0%rdg+10dgt) (50Hz~400Hz)DC current:Measuring range: 60.00/500.0mA 6.000/10.00AResolution:60.00/500.0mA: 10?A / 100?A6.000/10.00A: 1mA / 10mAUncertainty: (1.2%rdg+10dgt)AC current true virtual value:Measuring range: 60.00/500.0mA 6.000/10.00AResolution:60.00/500.0mA: 10?A /100A6.000/10.00A: 1mA /10mAUncertainty:60.00/500.0mA: (1.5%rdg+10dgt)6.000/10.00A: 50Hz~1kHz (for reference only if it's above 1kHz)Resistance:Measuring range: 600.0?/6.000k?/60.00k?/600.0k?/6.000M?/60.00M?Resolution: 0.1?/1?/10?/100?/1k?/10k?Uncertainty:600.0?/6.000k?/60.00k?/600.0k?/6.000M?: (1.2%rdg+5dgt)60.00M?: (3.0%rdg+10dgt)Capacitance:Measuring range: 9.999nF/99.99nF/999.9nF/9.999?F/99.99?F/999.9?F/9.999mF/99.99mFResolution: 1pF/10pF/100pF/1nF/10nF/100nF/1?F/10?FUncertainty:9.999nF/99.99nF/999.9nF/9.999?F/99.99?F/999.9?F: (3.0%rdg+10dgt)9.999mF/99.99mF: (5.0%rdg+10dgt)Temperature:Measuring range: 0?~600?Resolution: 0.1?Uncertainty: (2.0%rdg+10dgt)Triode:Measuring range: 1?1999Resolution: 1Frequency:Measuring range: 9.999Hz~9.999MHzResolution: 0.001Hz~1kHzUncertainty: (1.0%rdg + 5dgt) (the signal amplitude is no smaller than 1Vp-p AC V or 20mA RMS AC A)Duty ratio:Measuring range: 0.01~99.99% (AC 500mVp-p)Diode test: open circuit voltage is about 3.0V; the maximum test current is about 2mAContinuity test: judgment of resistance: about 50?Switching of automatic measuring range: applicable to various measurement functionsReminding of over load of measuring range: O. L (over load)Measurement speed: 2.5 times/secondDynamic data window: after the main display is held the actual measurement data is constantly refreshedSpecification of fuse: 500mA/250V 10A/500VPackage list:1 * Multimeter Oscilloscope1 * Pair of Test Pens1 * Temperature Probe1 * Protective Bag1 * User Manual
