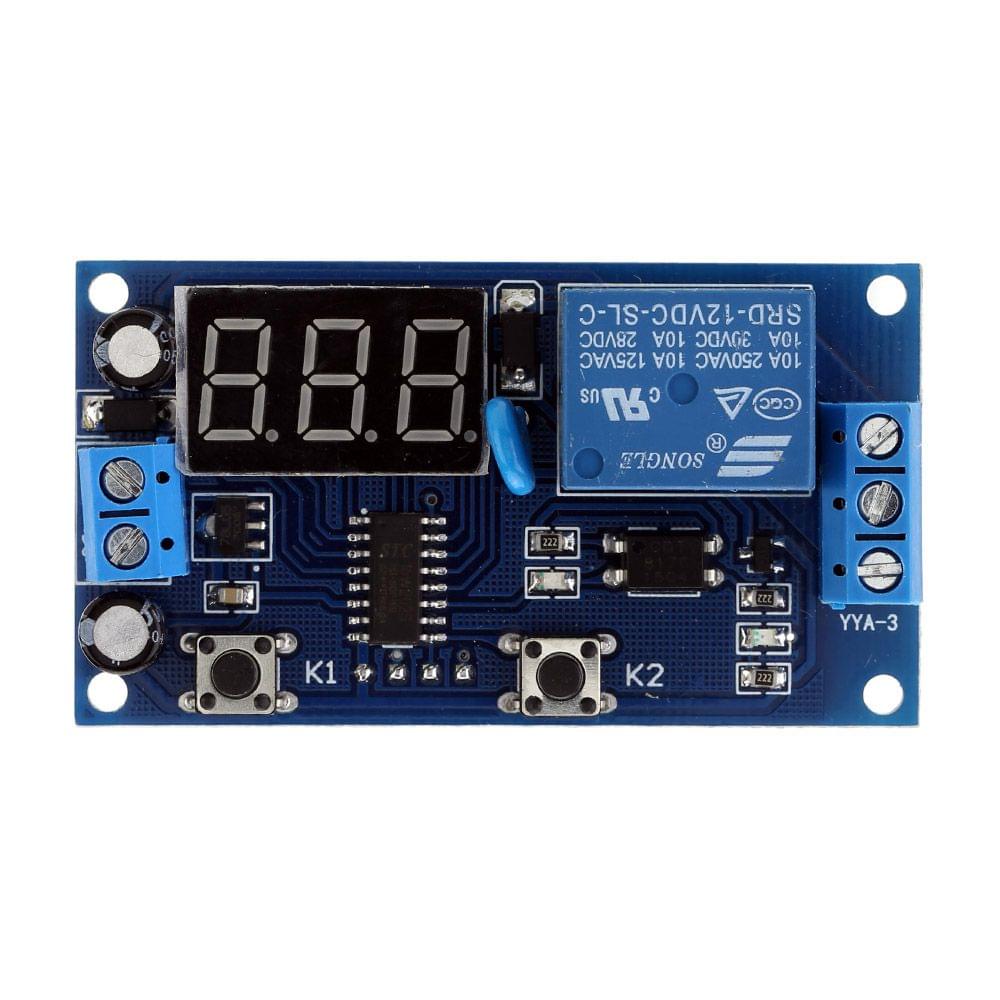

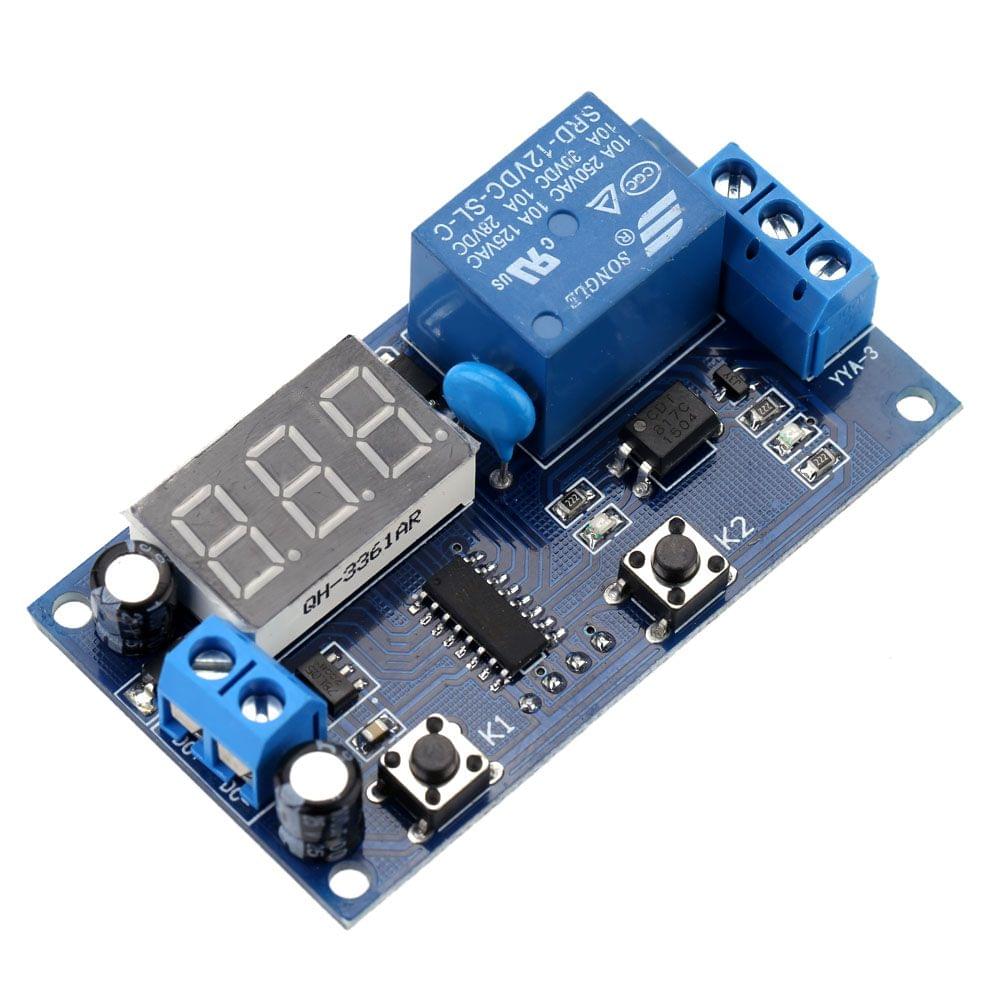

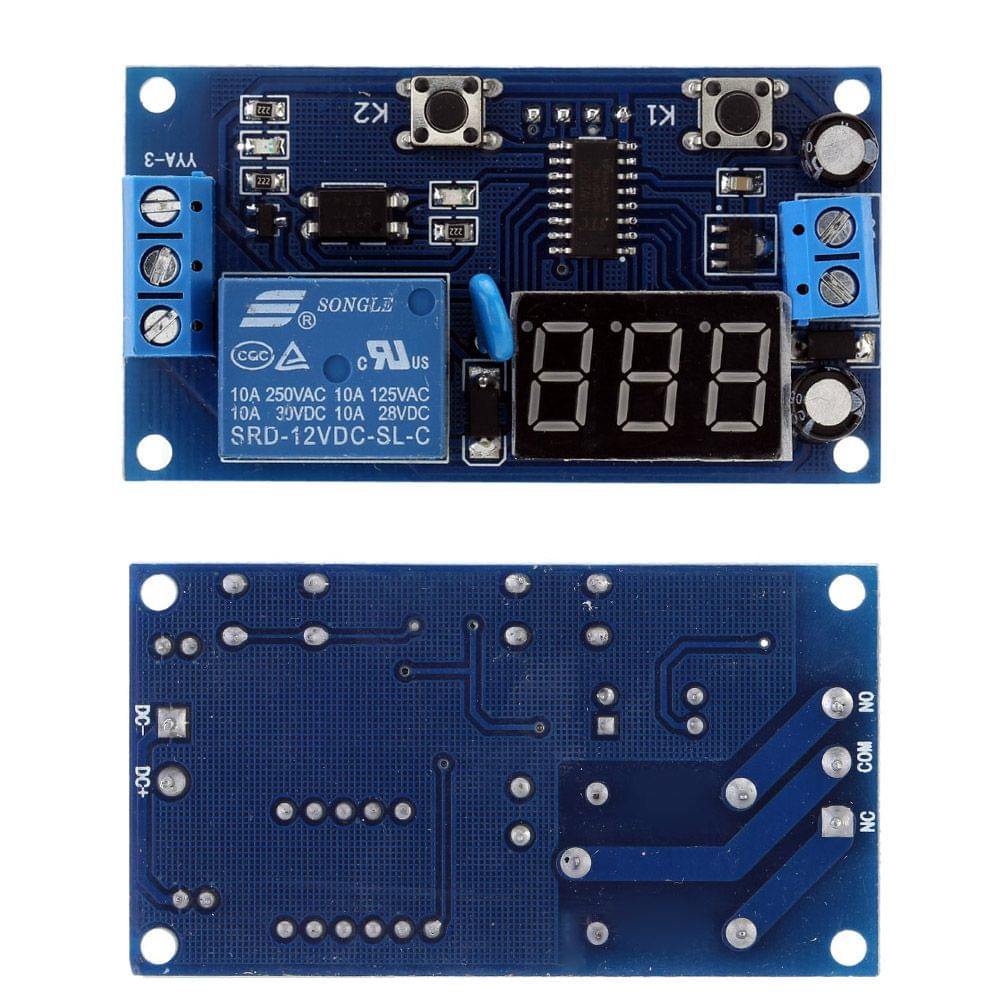

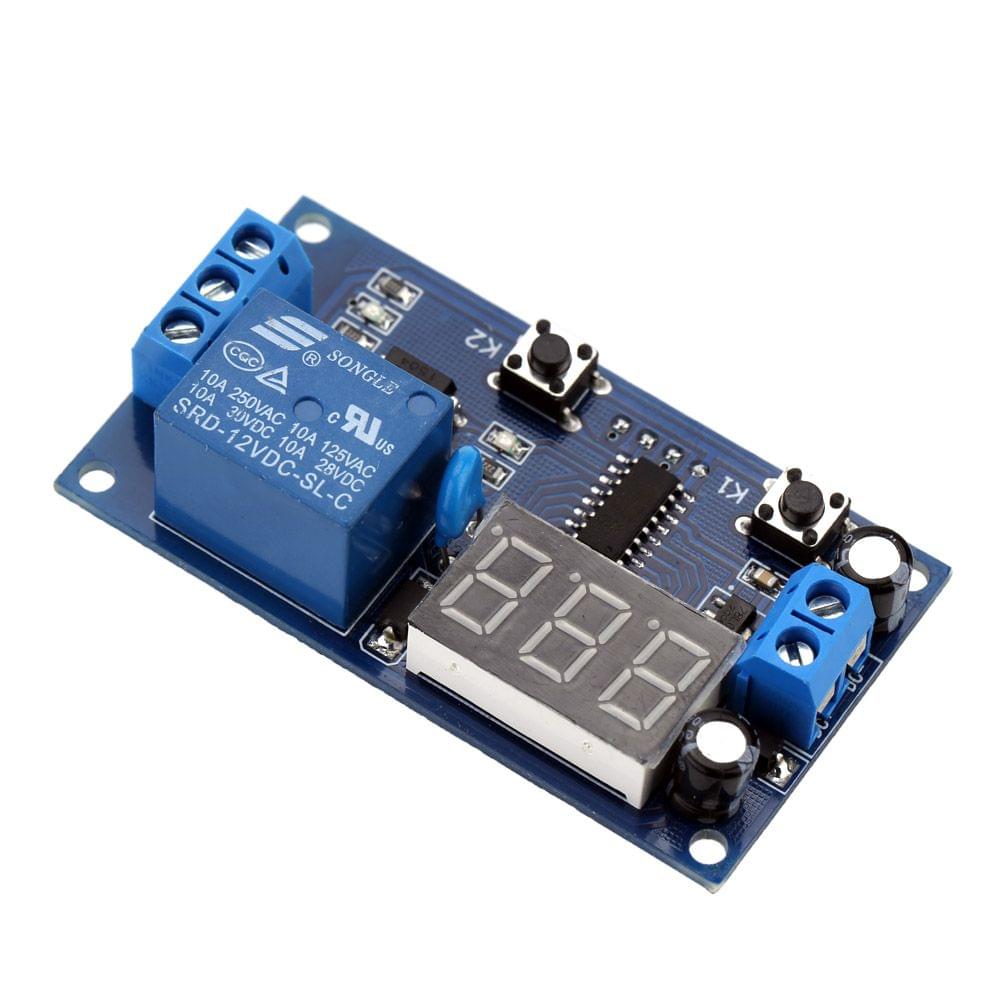

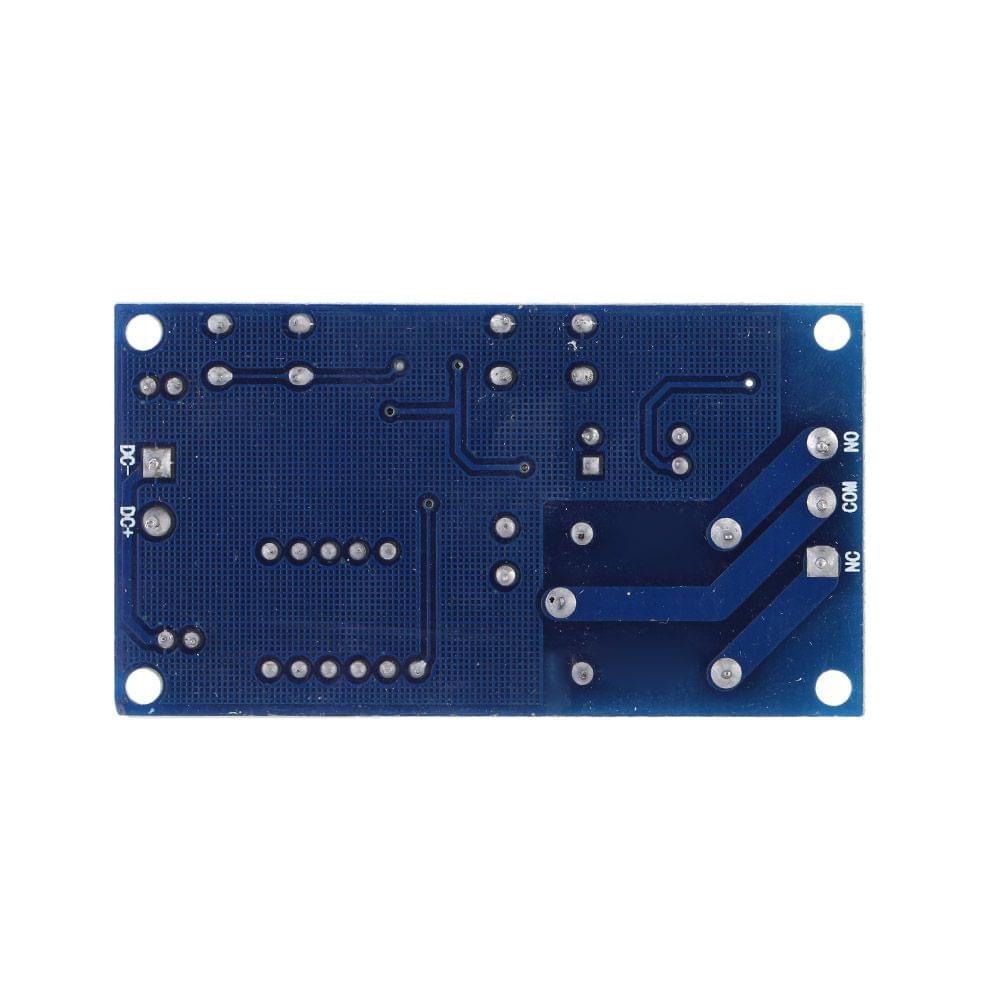

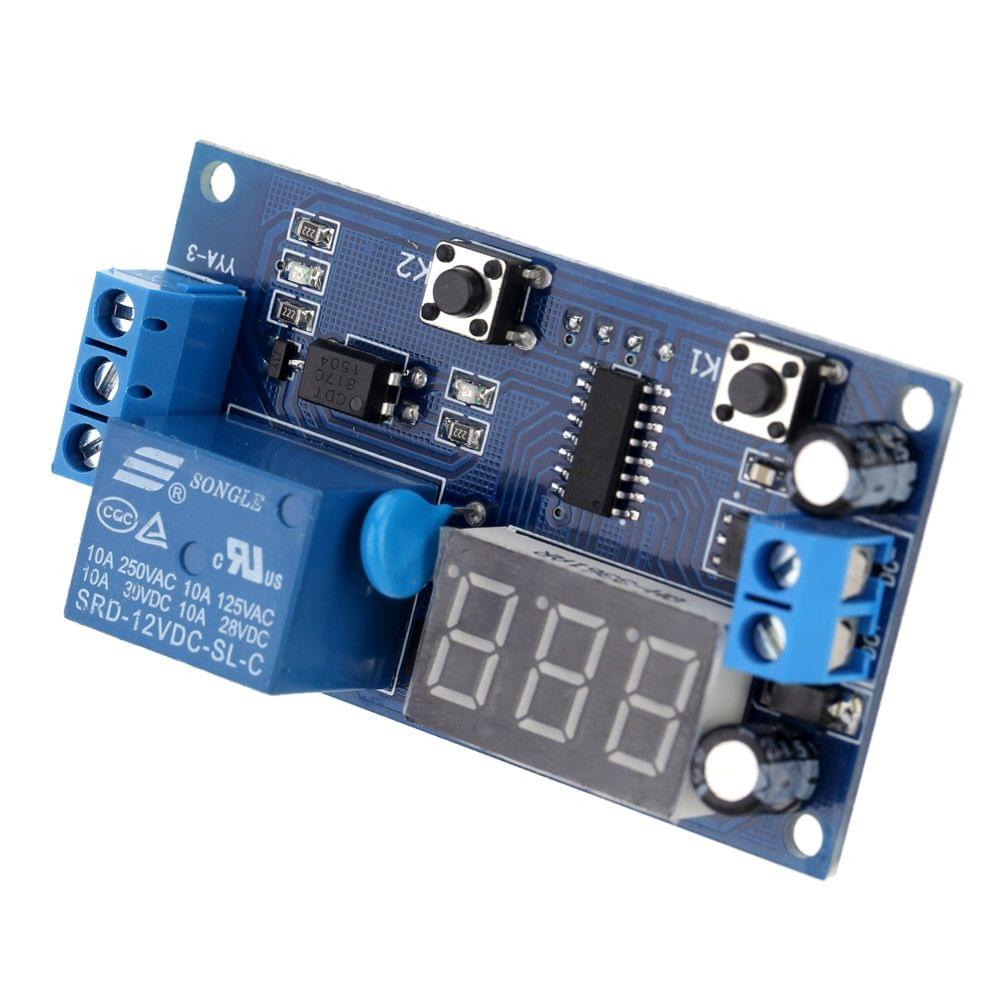

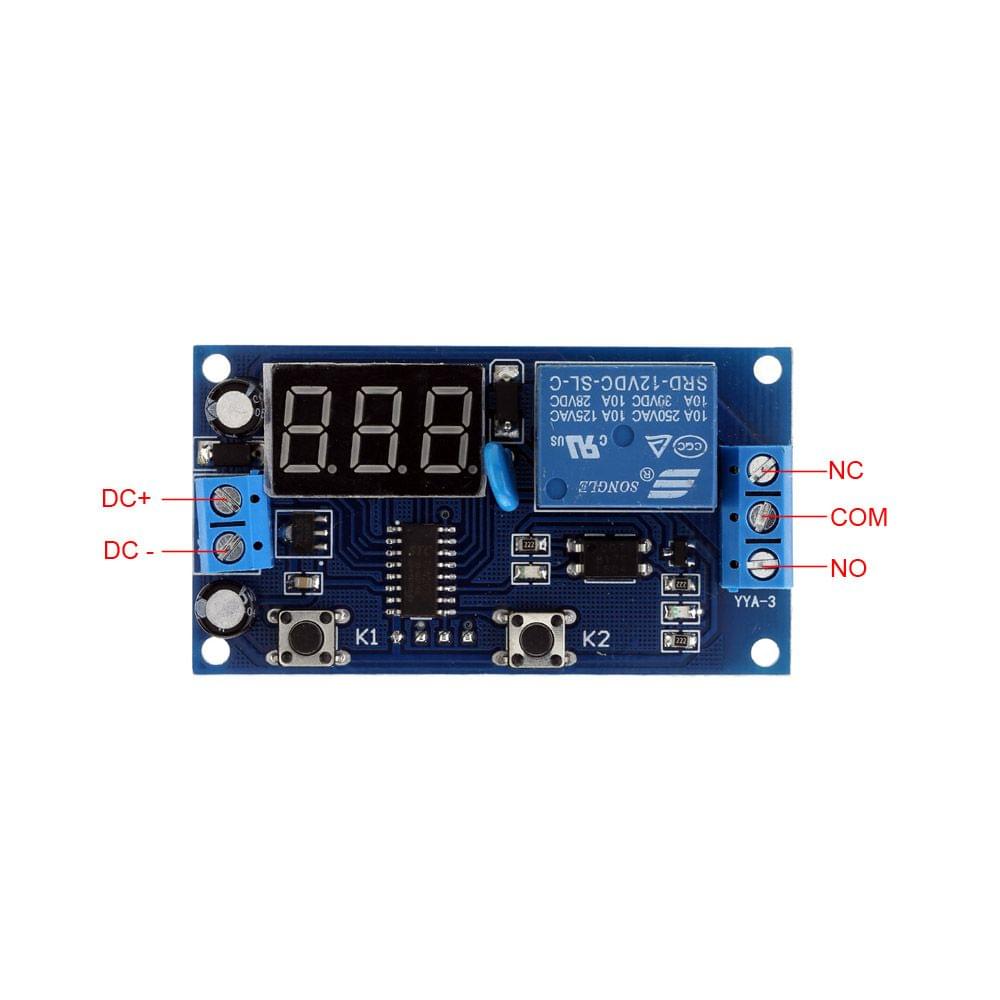

Multifunction Delay Time Module Switch Control Relay Cycle

Features:New upgrades to simplify meeting the users' needs.LED 3 digits display intelligent control time relay/delay function.The use of opto isolated input and output enhanced anti-jamming capability and consumption.The last setting parameters can be memorized after power off.To ensure stability industrial grade PCB board.Applied to control motor bulb LED light string mini pump etc.Specifications:Display: LED Digital DisplayTiming Range(Settable): 0.1~99.9 seconds; 1~999 seconds; 1~999 minutesWorking Voltage: DC 12VOutput Capacity: DC 5~30V AC 220V 10AStatic Current: 20mAWorking Current: 50mAWorking Temperature: -40-85CPCB Size: 65 * 36 * 18mm / 2.56 * 1.42 * 0.7in (L * W * H)PCB Weight: 24g / 0.87ozPackage Size: 11.5 * 7.5 * 2cm / 4.53 * 2.95 * 0.8in (L * W * H)Package List:1 * Delay Timer Module
