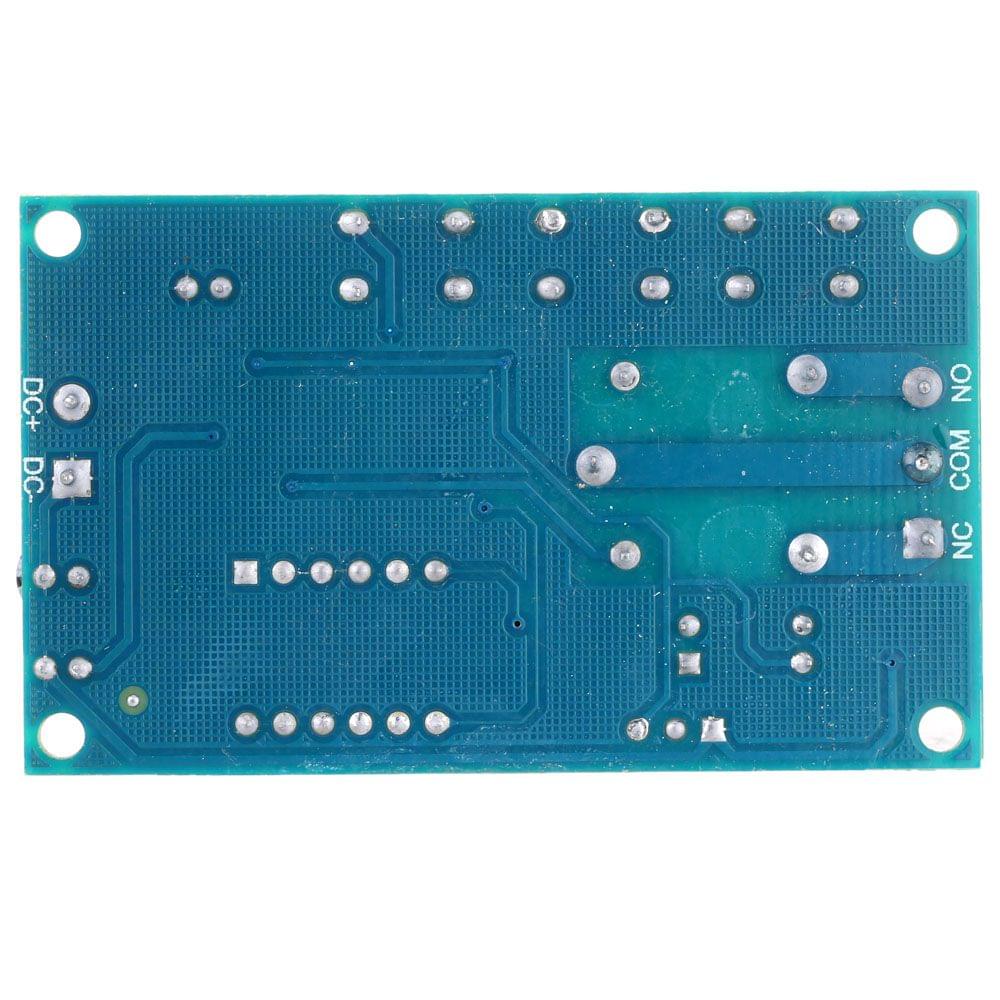

Multifunction Delay Time Module Switch Control Relay Cycle - 1

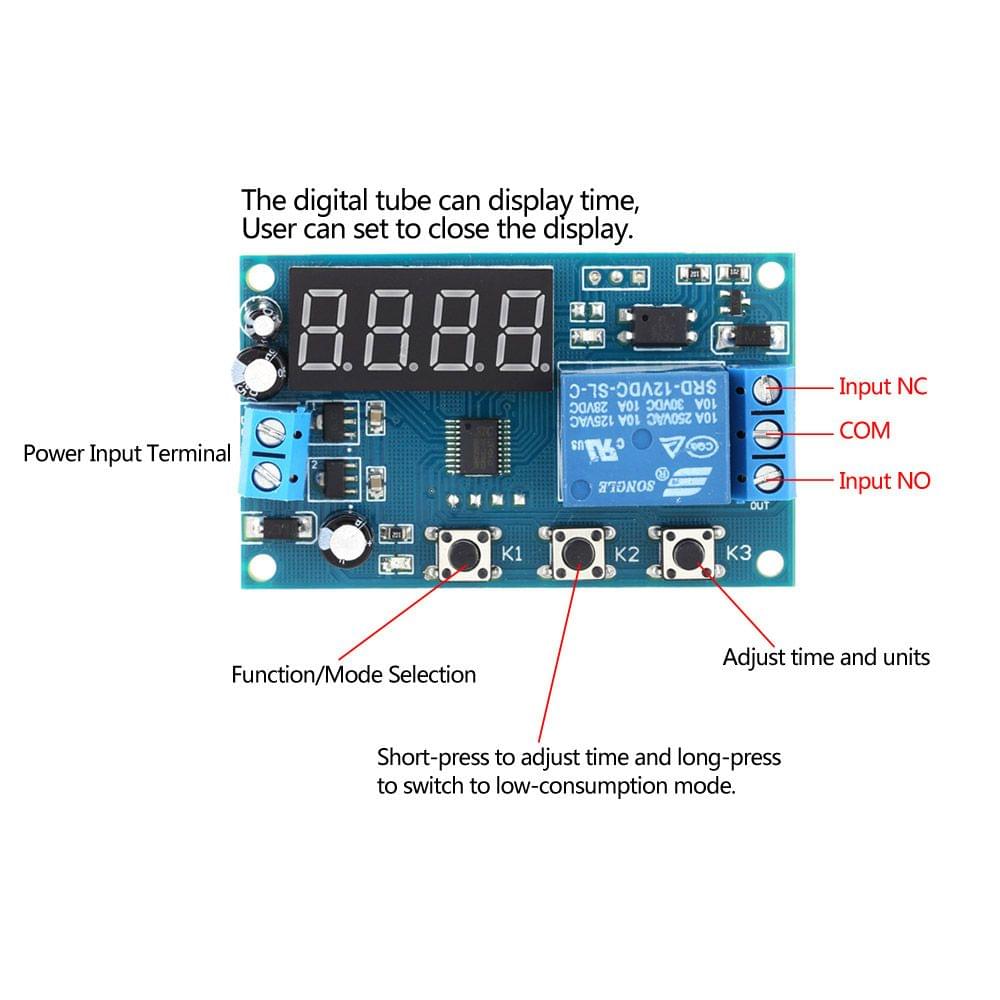

This is a delay timer module with high performance which is convenient and practical for users.Features:New upgrades to simplify meeting the users' needs.Increase the power supply anti-reverse function.LED digits display intelligent control time relay/delay function.The use of opto isolated input and output enhanced anti-jamming capability and consumption.The last setting parameters can be memorized after power off.Power saving function one-key switch can turn off the display.To ensure stability industrial grade PCB board.Working modes selection: after power on long press K1 for 2s later into the selection of modes: P1~3.P-1: Monostable trigger delay a signal to trigger relay time is up the relay disconnect;P-2: A signal trigger and countdown begins T1 seconds after the relay open T2 seconds then close;P-3: Open T1 seconds disconnect T2 seconds infinite loop. Users can set the relay time T1 and T2;Specifications:Display: LED Digital DisplayVoltage: DC 12VTiming Range(Settable): 0~999.9 seconds; 0~9999 seconds; 0~9999 minutesRelay Specification: DC 5~30V 10A or AC 220V 10AStatic Current: 20mAWorking Current: 50mAWorking Temperature: -40-85CPCB Size: 65 * 38 * 18mm / 2.56 * 1.5 * 0.7in (L * W * H)PCB Weight: 26g / 0.93ozPackage Size: 11.5 * 7.5 * 2cm / 4.53 * 2.95 * 0.8in (L * W * H)Package List:1 * Delay Timer Module
