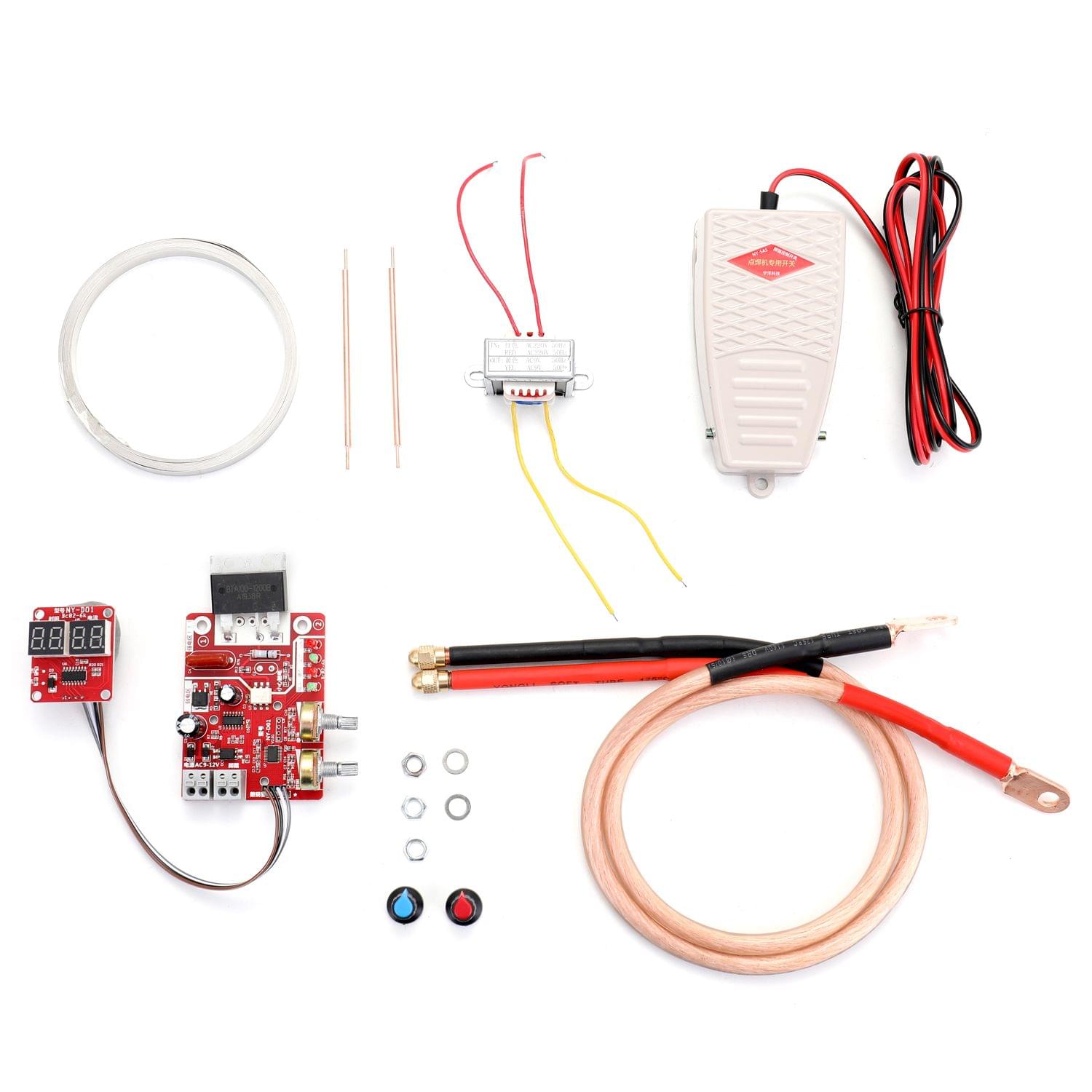

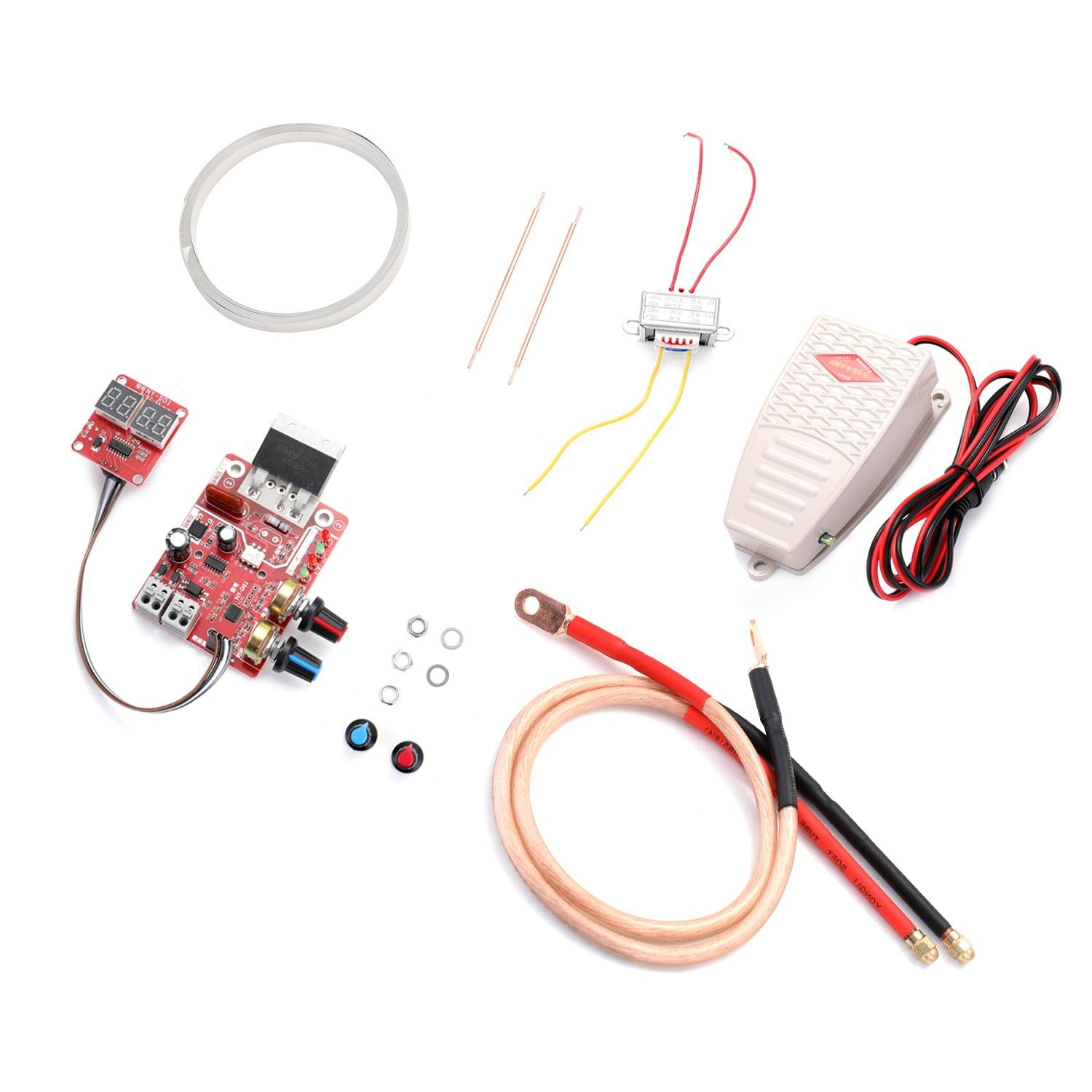

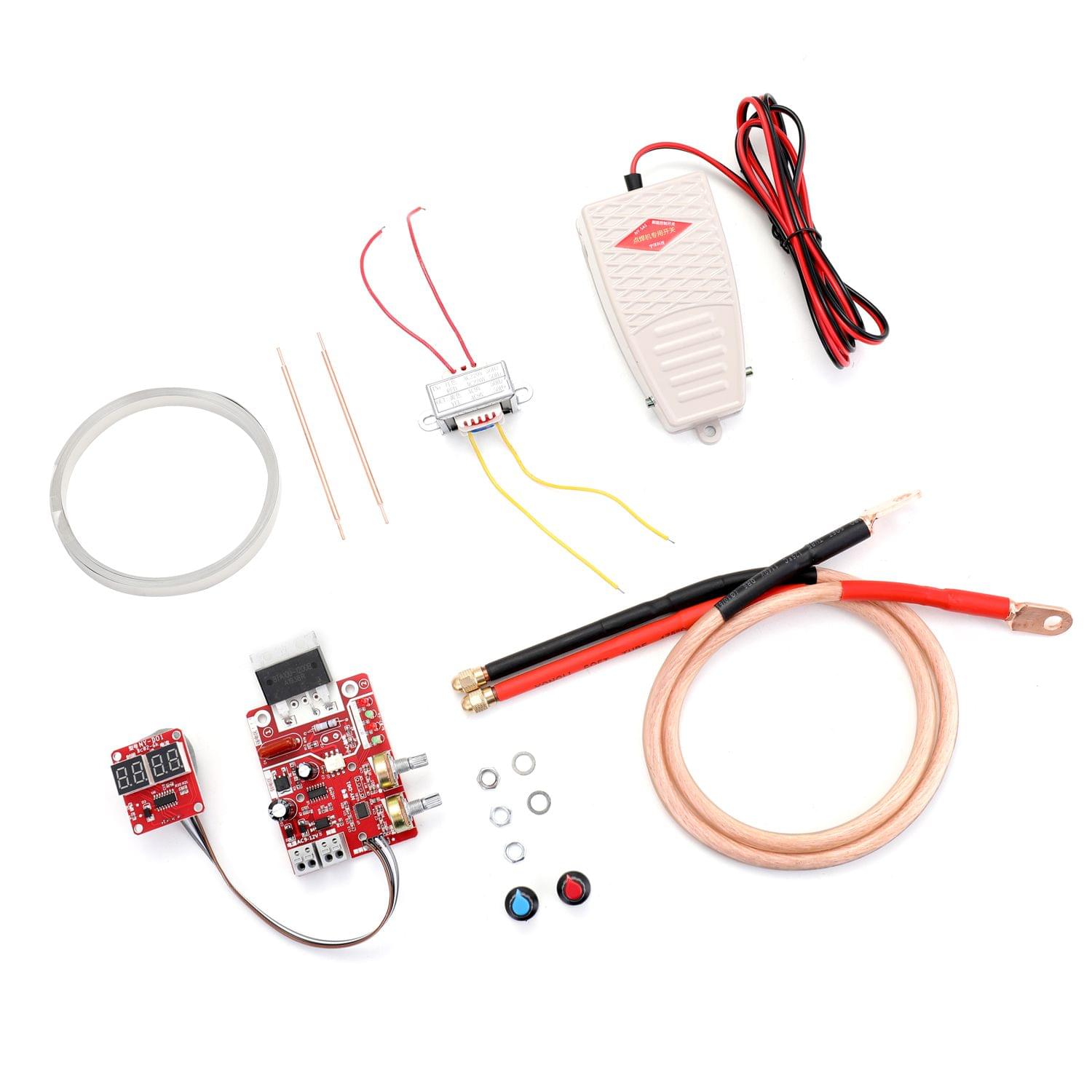

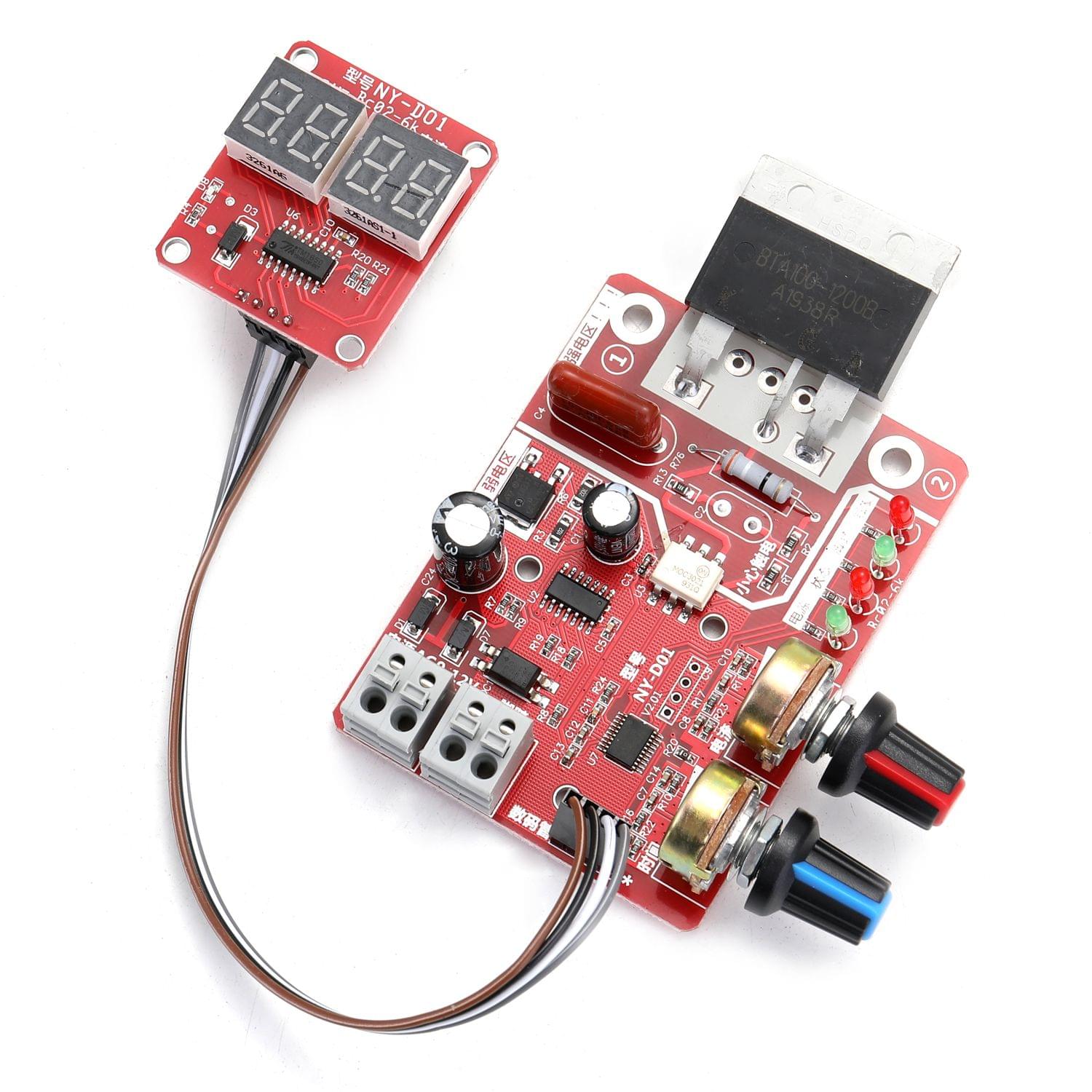

NY-D01 Battery Spot Welding Machine Set Digital Display

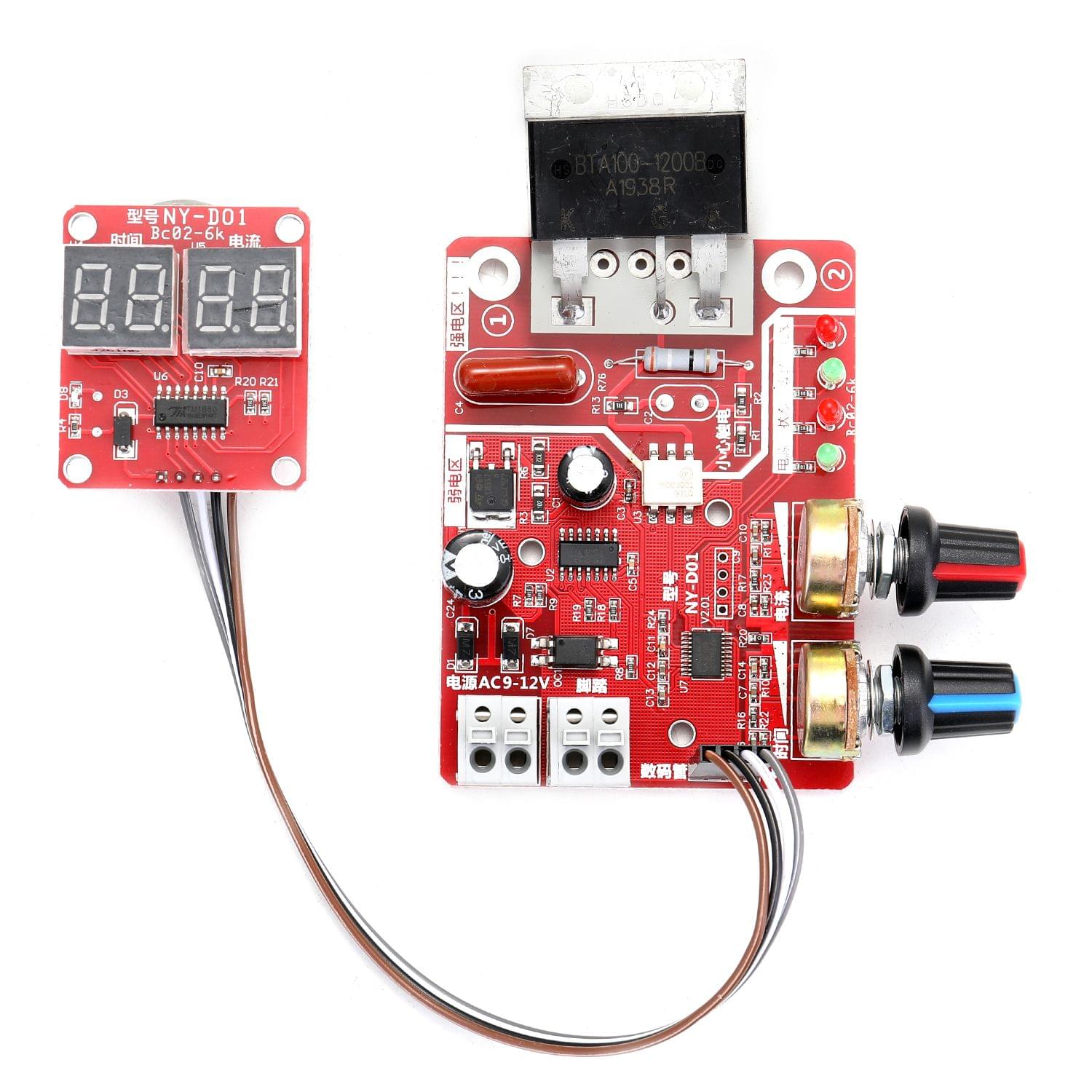

The control panel of the spot welding machine is a controller which is independently developed for the DIY or the simple resistance welding. The principle of silicon controlled phase shifting triggering is adopted to adjust the time and the current to achieve the purpose of welding. Uses of STM8 industrial microcontroller control center.Features:Uses of STM8 industrial microcontroller control center.Strong and weak electricity through optocoupler isolation safe operation.The power line and the foot switch line are adopt screw free quick connection terminal more convenient and reliable.Input time and current are using high accuracy single potentiometer to ensure reliable input.Convenient on-board powersupply state foot trigger indicator working state clearly visible.The design of reliable zerocrossing detection circuit to ensure that the SCR phase shift accuracy.The controller is compatible with 100A SCR.Digital control interface you can display the current time and current settings.Time input 1-50 unit cycle (1 cycles is 20ms) current input (30-99%)Specifications:Name: Battery Spot Welding SetModel: NY-D01Material: metal + plasticsItem weight: 757g / 1.67lbPackage size: 202 * 105 * 135mm / 7.95 * 4.13 * 5.31inPackage weight: 855g / 1.88lbPacking List:1 * 100A Control Board1 * 9V Transformer2 * 16 Square Spot Welding Pen1 * Metal Foot Pedal2 * Spot Welding Needle1 * Nickel Belt 0.15 * 8 * 10m
