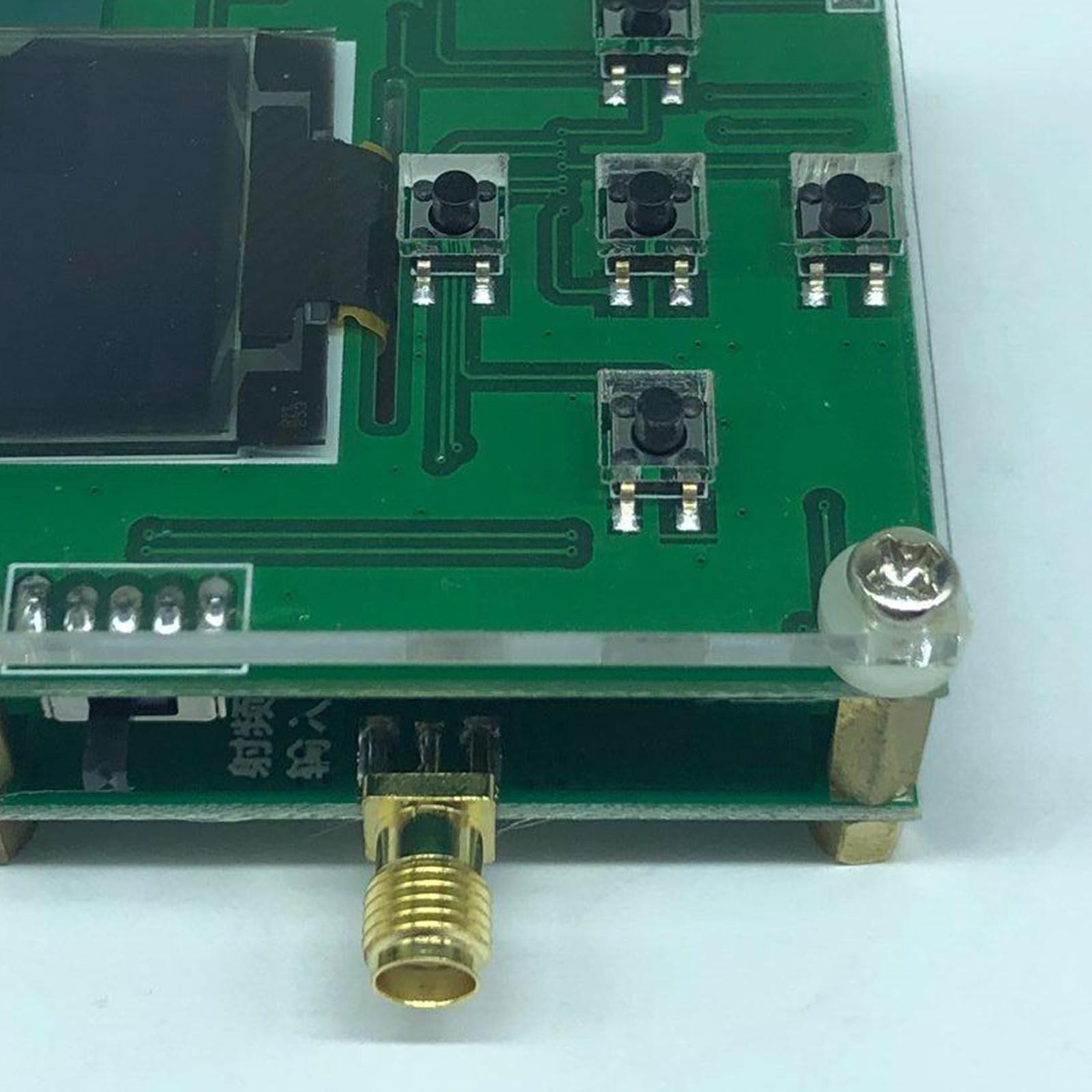

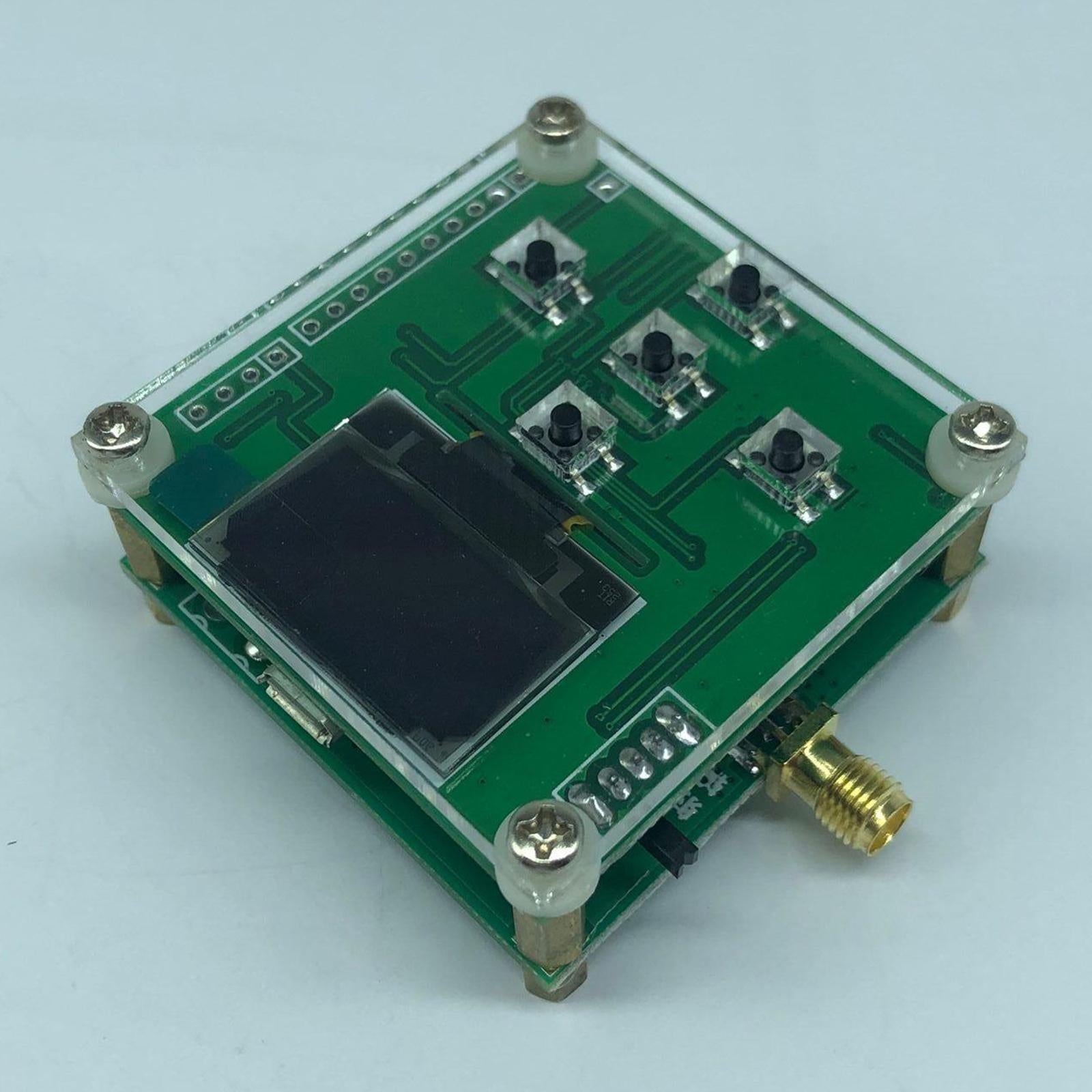

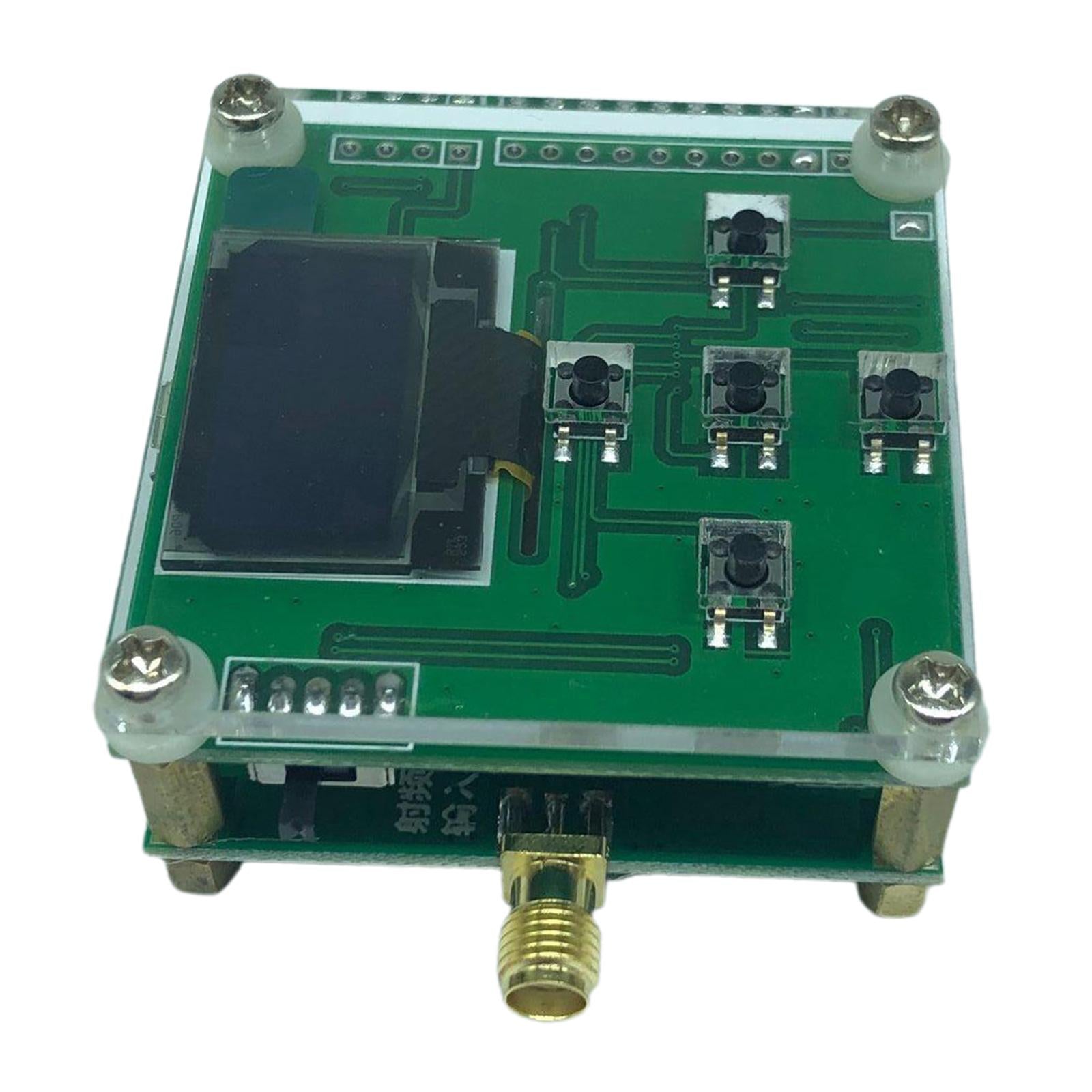

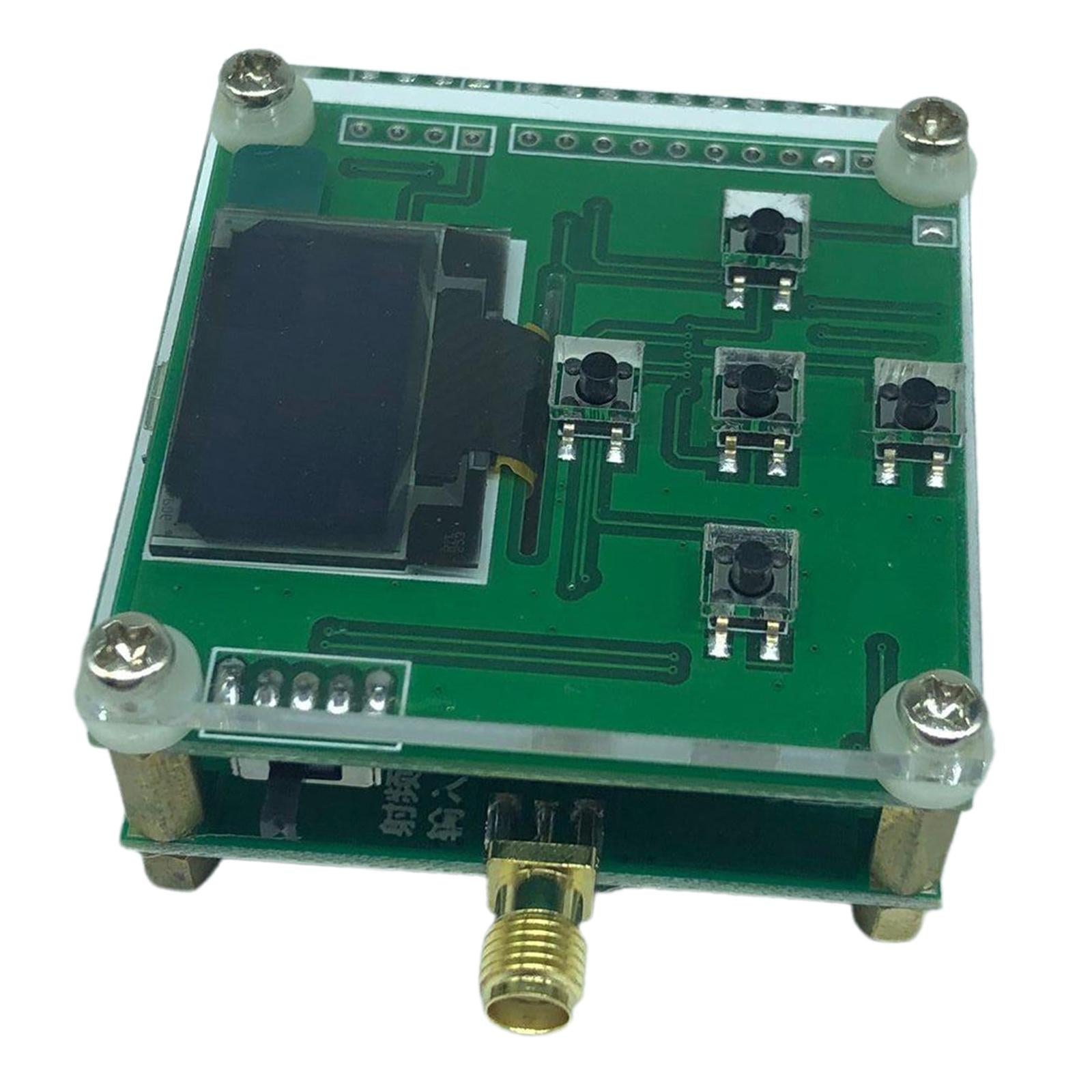

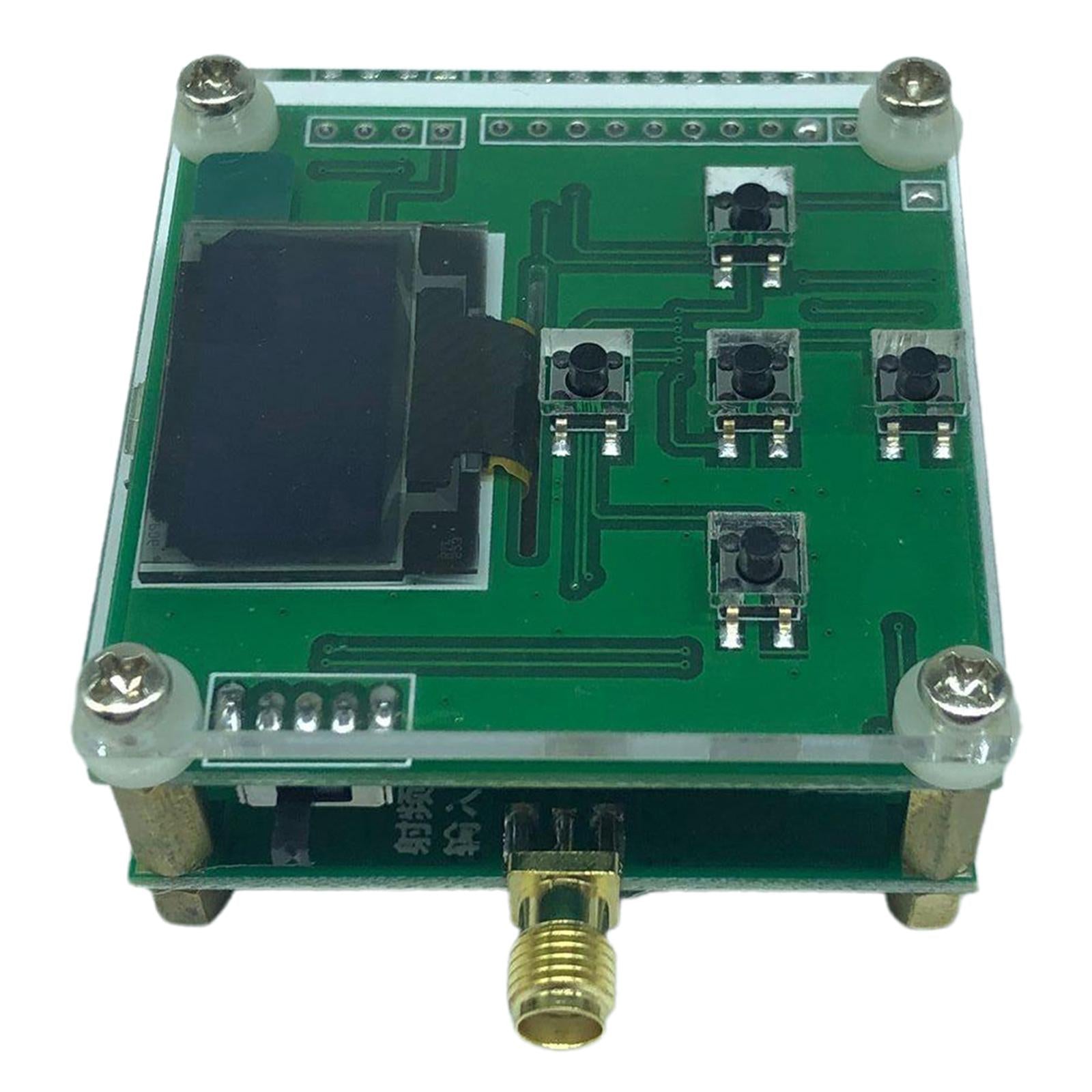

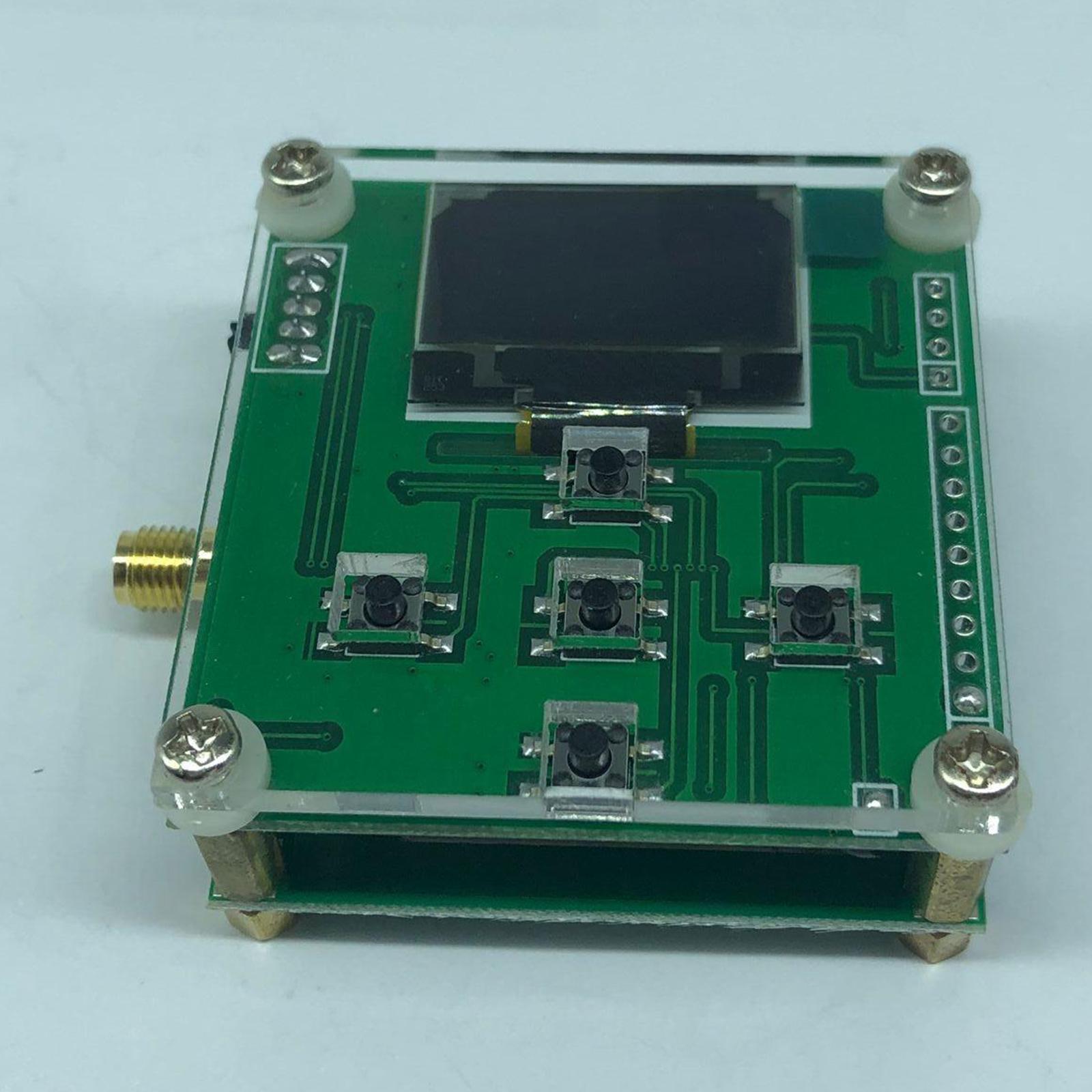

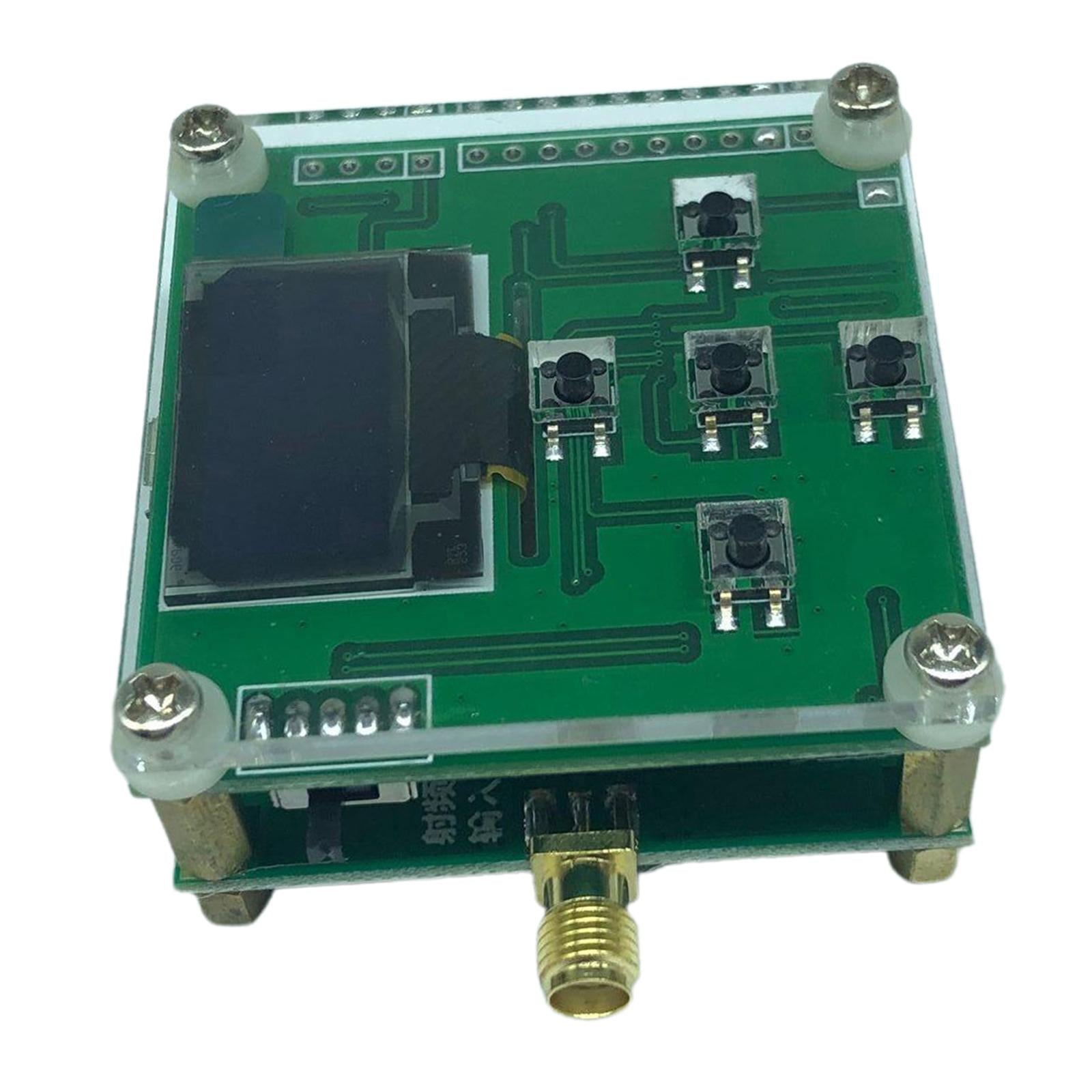

OLED Digital RF Power Meter -70~15 dBm 1-500MHz Radio Frequency Attenuation

Description:

A high-performance portable radio frequency power meter.
Equipped with 0.96 inch 128x64 pixel OLED display.
Power supplied by 5V micro-USB.
Easy to use, small size, easy to carry, stable performance, high accuracy, preset offset, wide dynamic range, fast measurement speed.
Measurement power range: -70～+15 dBm (external RF attenuator can be extended to 100dBm)
Measurement power resolution: 0.1 dBm
Measuring frequency range: 1～500 MHz
Input impedance: 50ohm
Dynamic range>80dB6
Working voltage: 5VDC (powered by micro-USB)
Working current:<50 mA8
Working temperature: -10℃～65℃
Storage temperature -40℃～65℃

Size Chart:

Size: approx. 50x50x25mm/1.97x1.97x0.98inch

Package Includes:

1 Piece Digital Display RF Power Meter

Note:

Colors might be different due to different monitor display.
Please allow slightly difference in size due to manual measurement.
