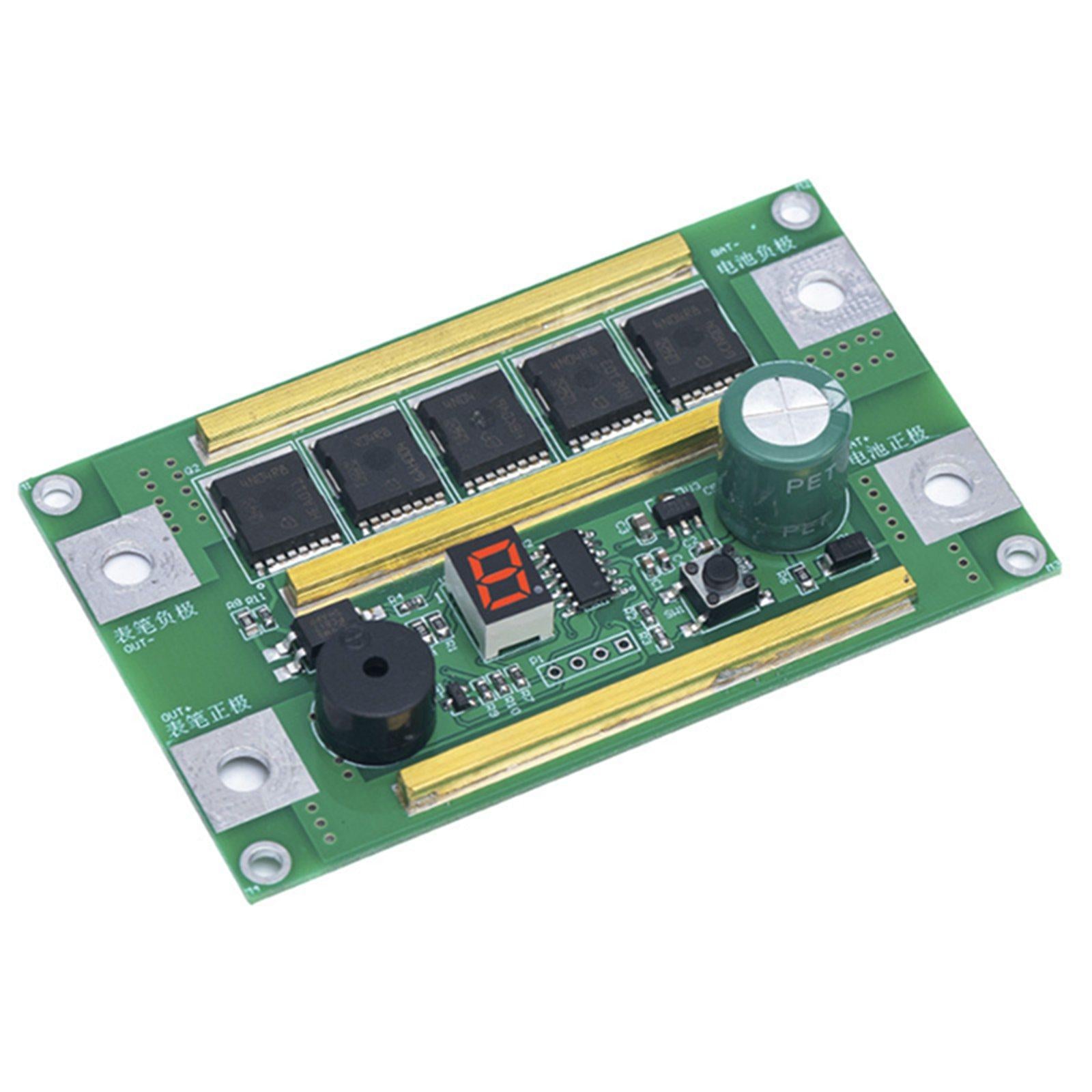

12V Portable Spot Welder PCB Circuit Board Nickel Sheet and Screws Parts

Description:

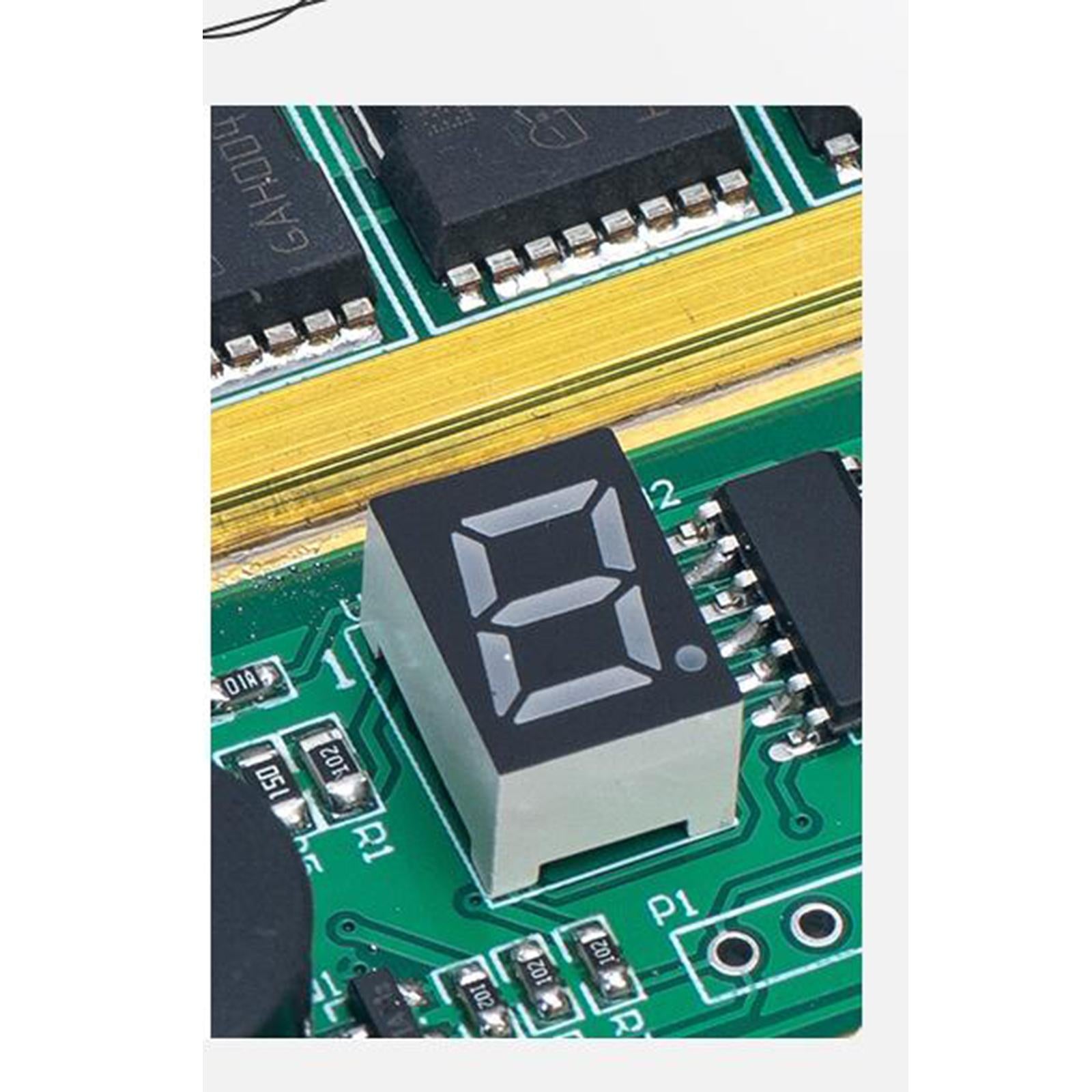

8-speed power adjustment, digital tube real-time gear display

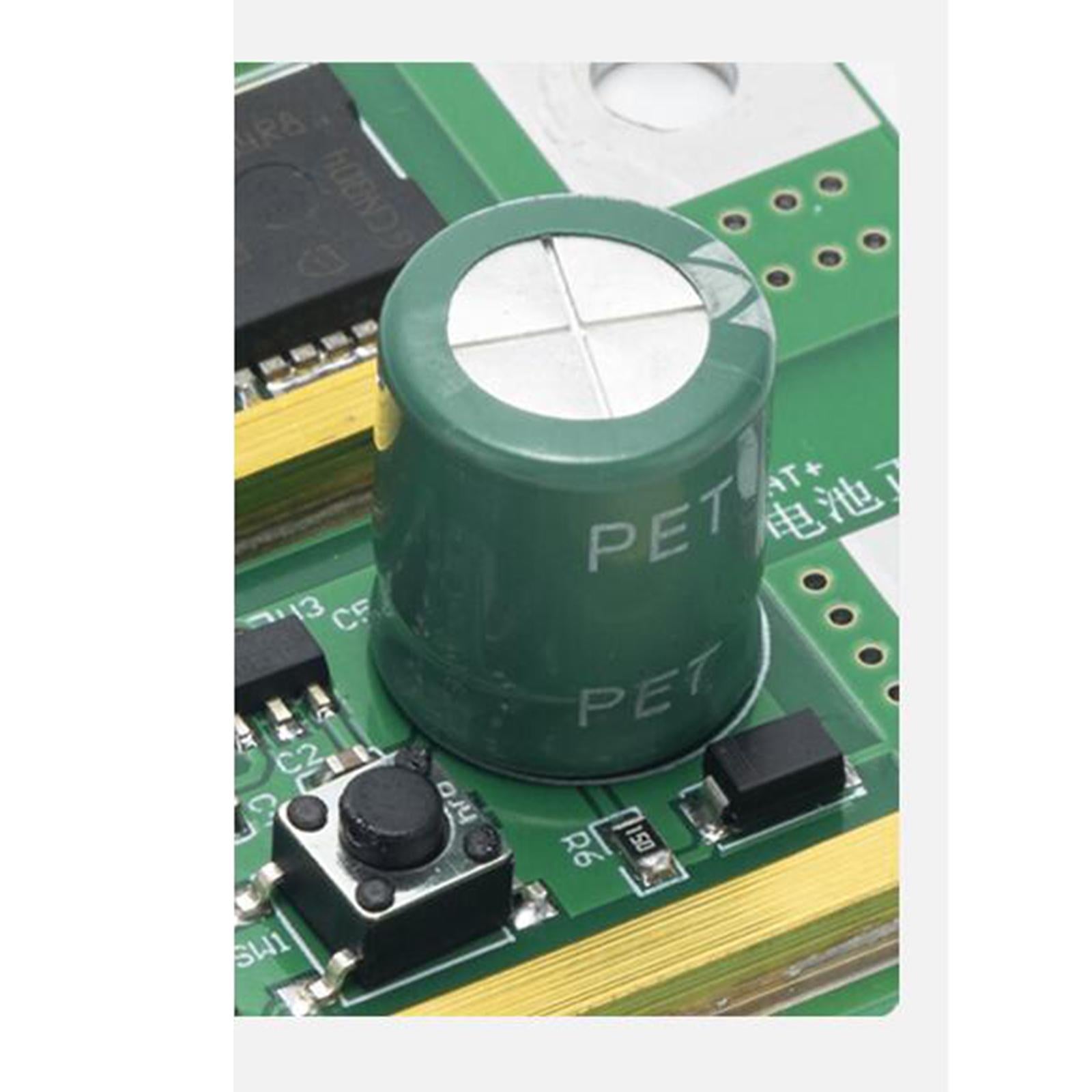

High frequency capacitor, low internal resistance, high temperature resistance 105 degrees Celsius

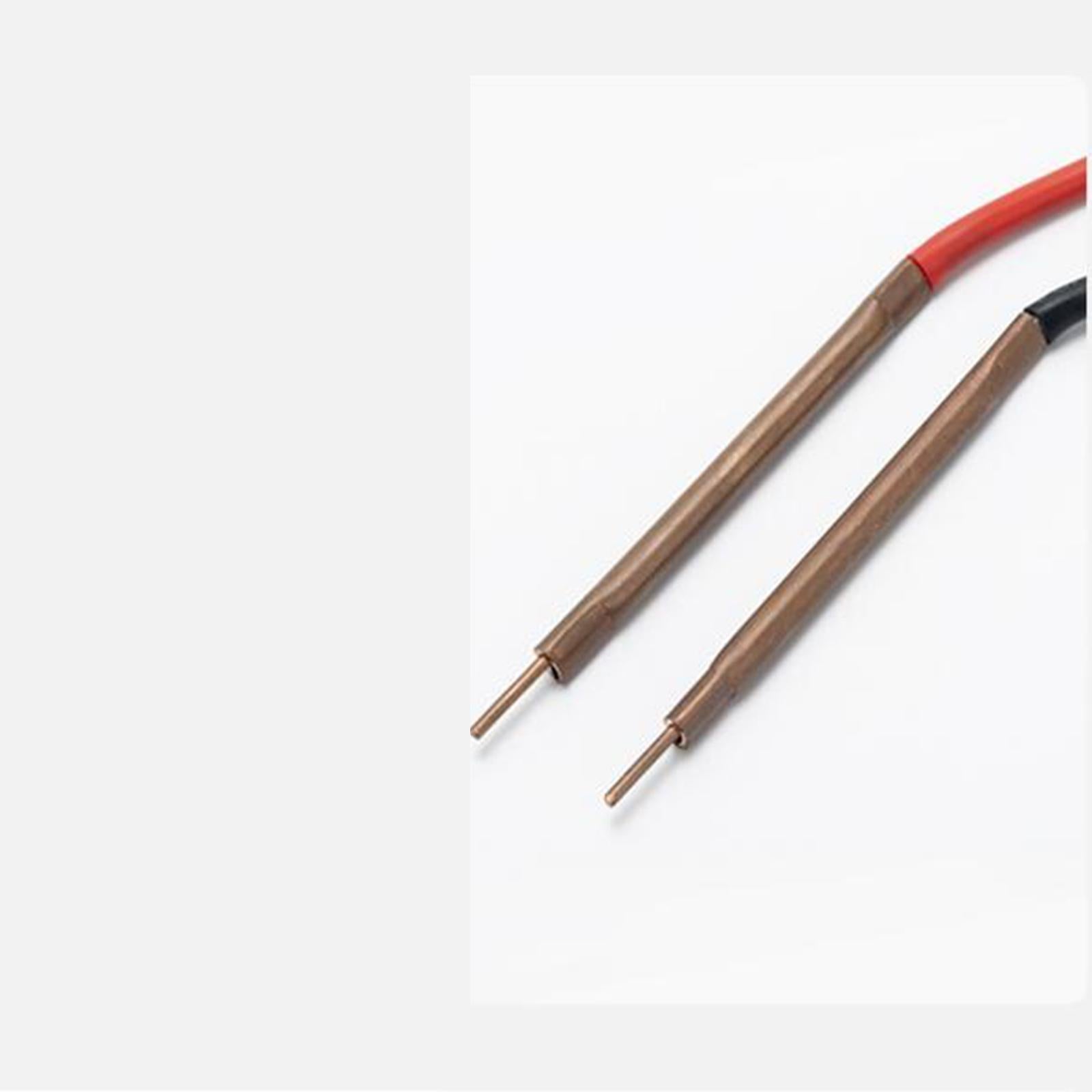

Super thick red copper tube 10AWG wire, aluminum oxide copper spot welding needle, to ensure excessive current capacity and durability, pure copper conduction and heat conduction, greatly improving spot welding efficiency
Note: 1. After the system is powered on, the digital tube displays 0, and welding is not possible at this time. You need to adjust the output power through the button (1-8 speed)

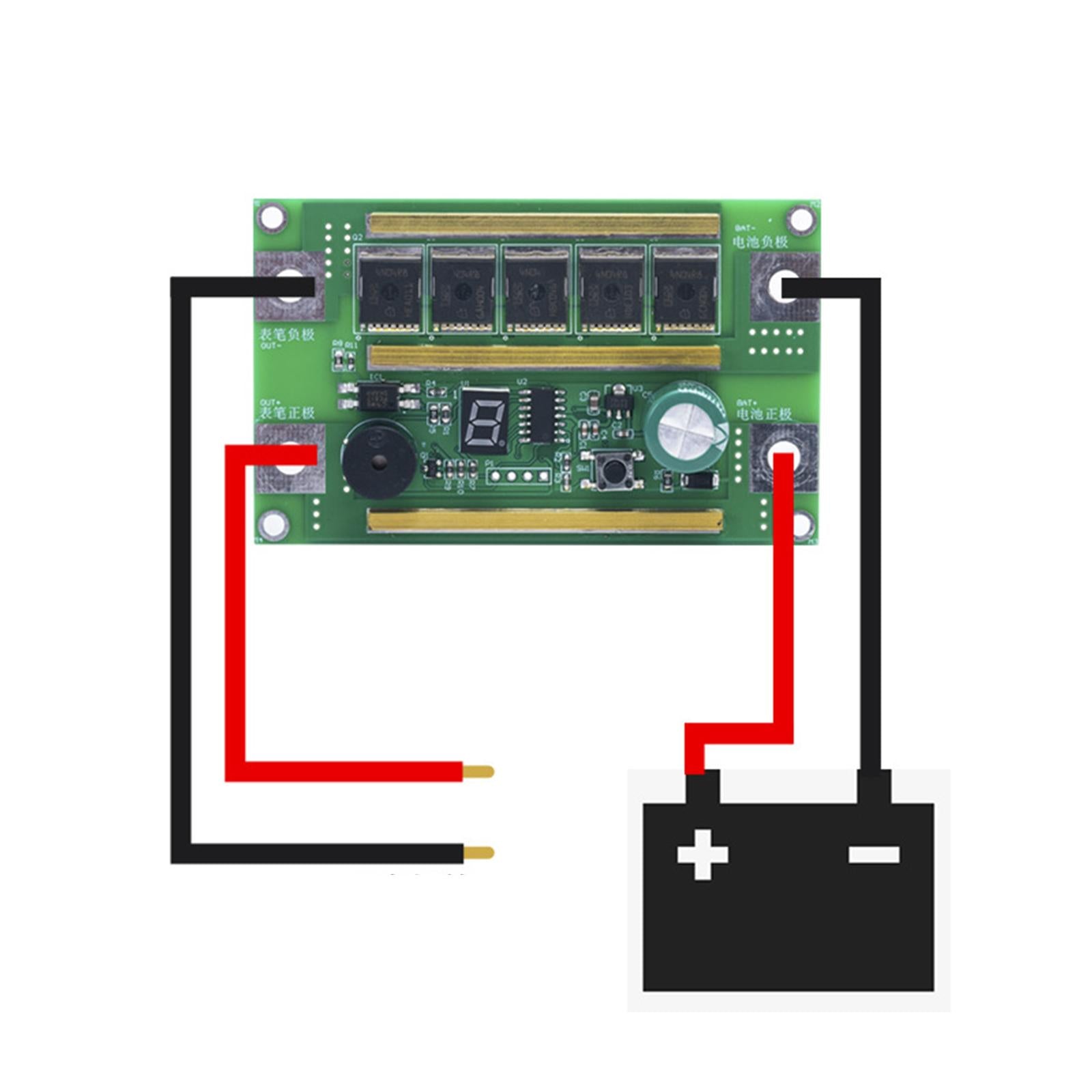

2. It is recommended that the power supply voltage is 7V-16V, and the working current is 100-300A. Exceeding this range may damage the control board.

Specification:

Material: Metal+Others
Support 0.1-0.15mm nickel sheet spot welding
Voltage: 12V

Size Chart:

Board: 55x90mm / 2.17x3.54inch

Package Includes:

1 Piece DIY PCB Circuit Board Kits
