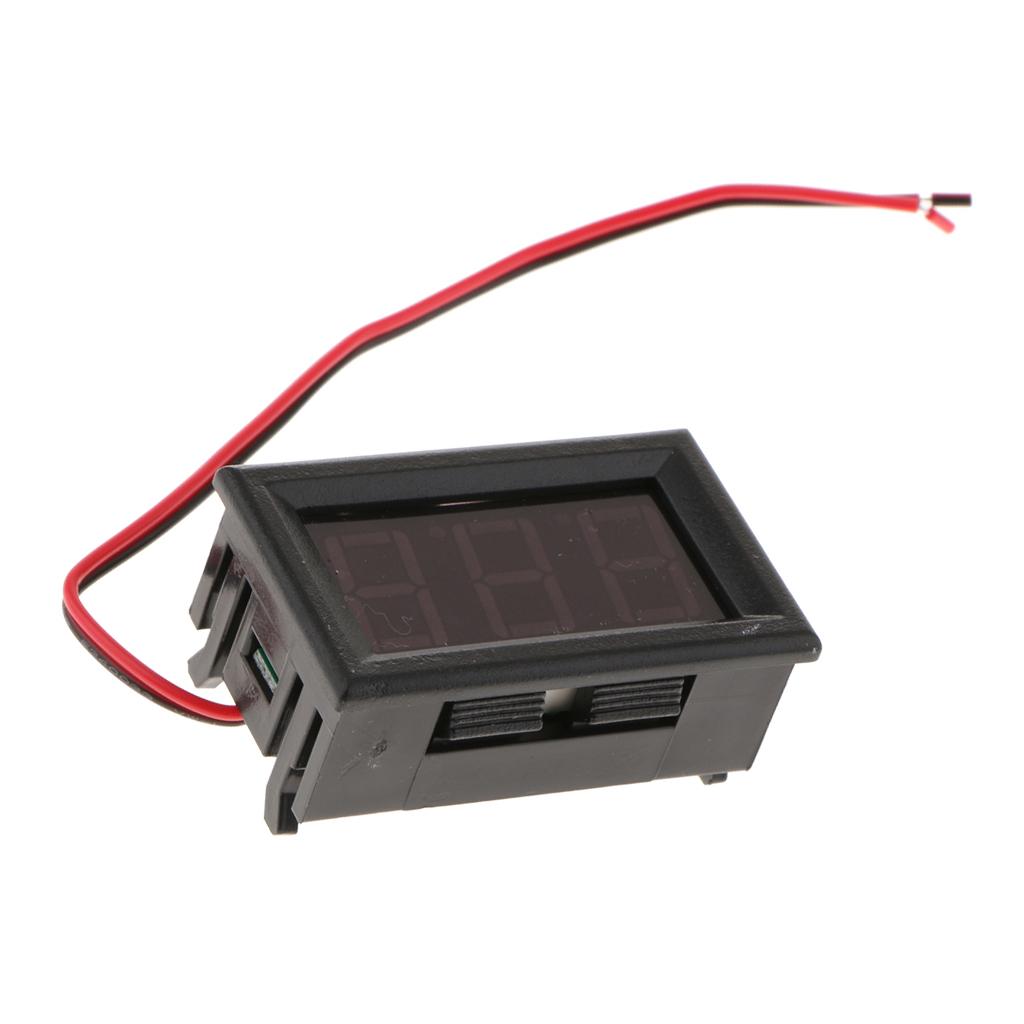

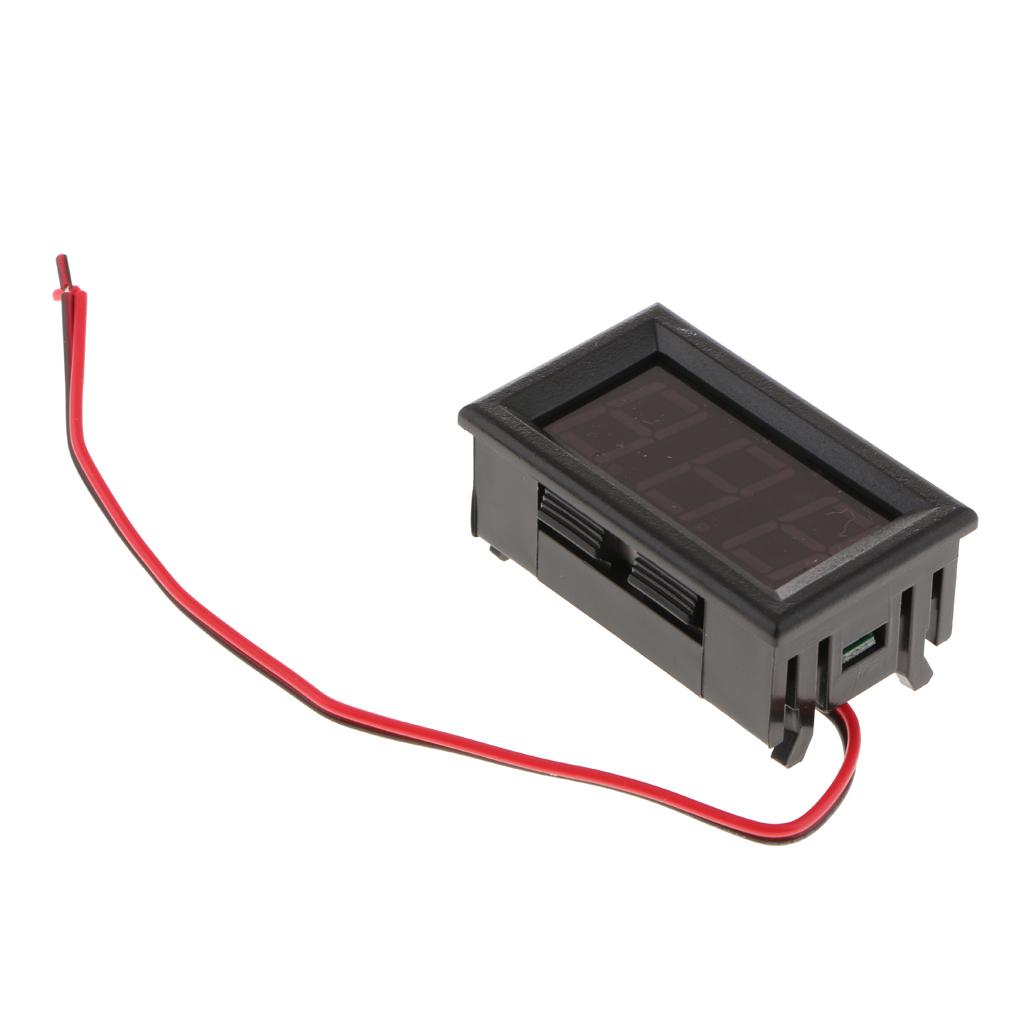

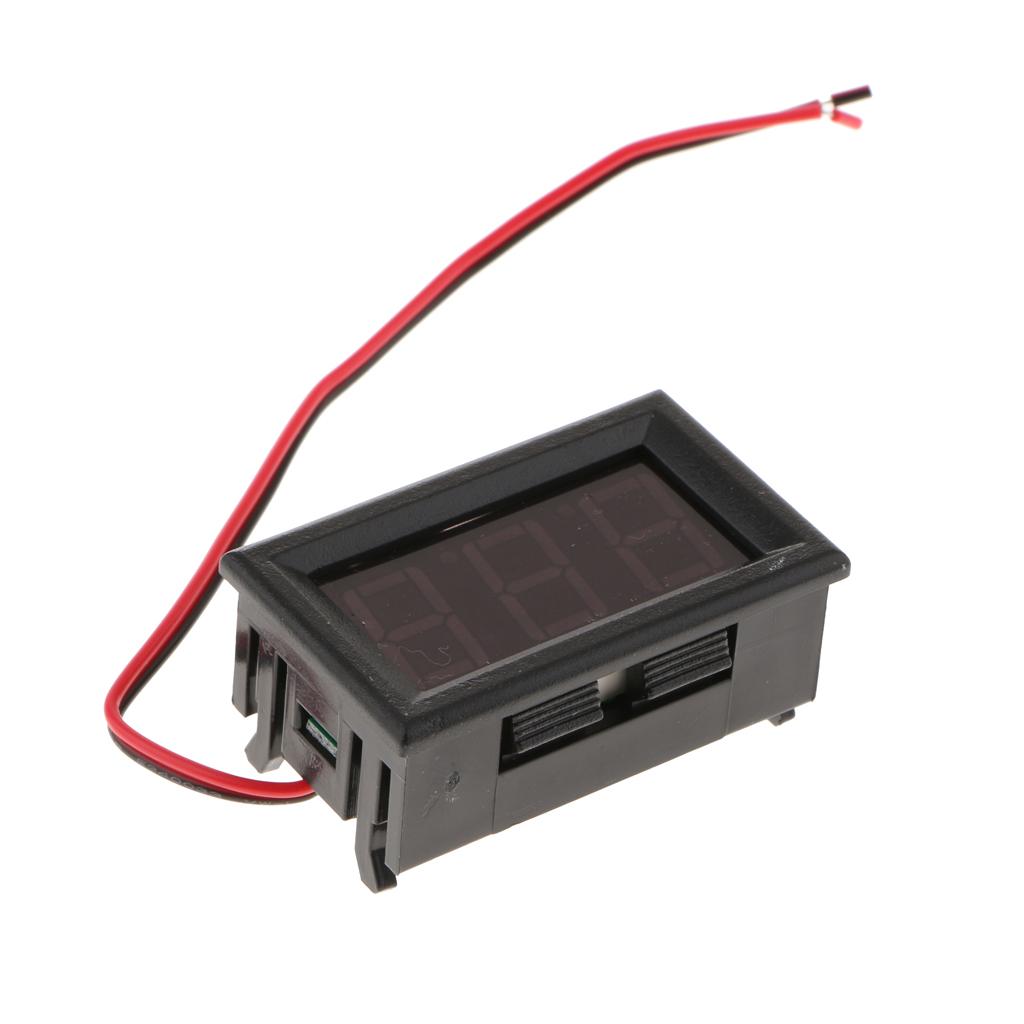

0.56 Inch 2-Wire Voltage Meter Head Monitor Tester LED Digital Voltmeter Blue

Description:

High precision 0.56" 2-wire voltage meter head.
Low start working voltage, lowest 5V, easy and convenient operate.
Accurate measurement with LED digital display, convenient to read.
With reverse polarity protection, to use.
High withstand voltage up to 132V.

Specification:

Measuring range: DC5~120V
Maximum input: DC132V(note: higher than 132V may damage the meter permanently)
Voltage measurement error: ±1%
Input impedance: more than 100KΩ
Working current： Red less than 23mA, Green less than 18mA, Blue less than 13mA
Refresh rate: about 300mS one time
Display: 3 digit 0.56" LED digital tube
Display color (optional): red, green, blue
Ambient temperature: -20°C~65°C
Wire length: 20cm
Size(L x W x H): Approx. 48 x 29 x 22mm
Weight: 18g

Package Includes:

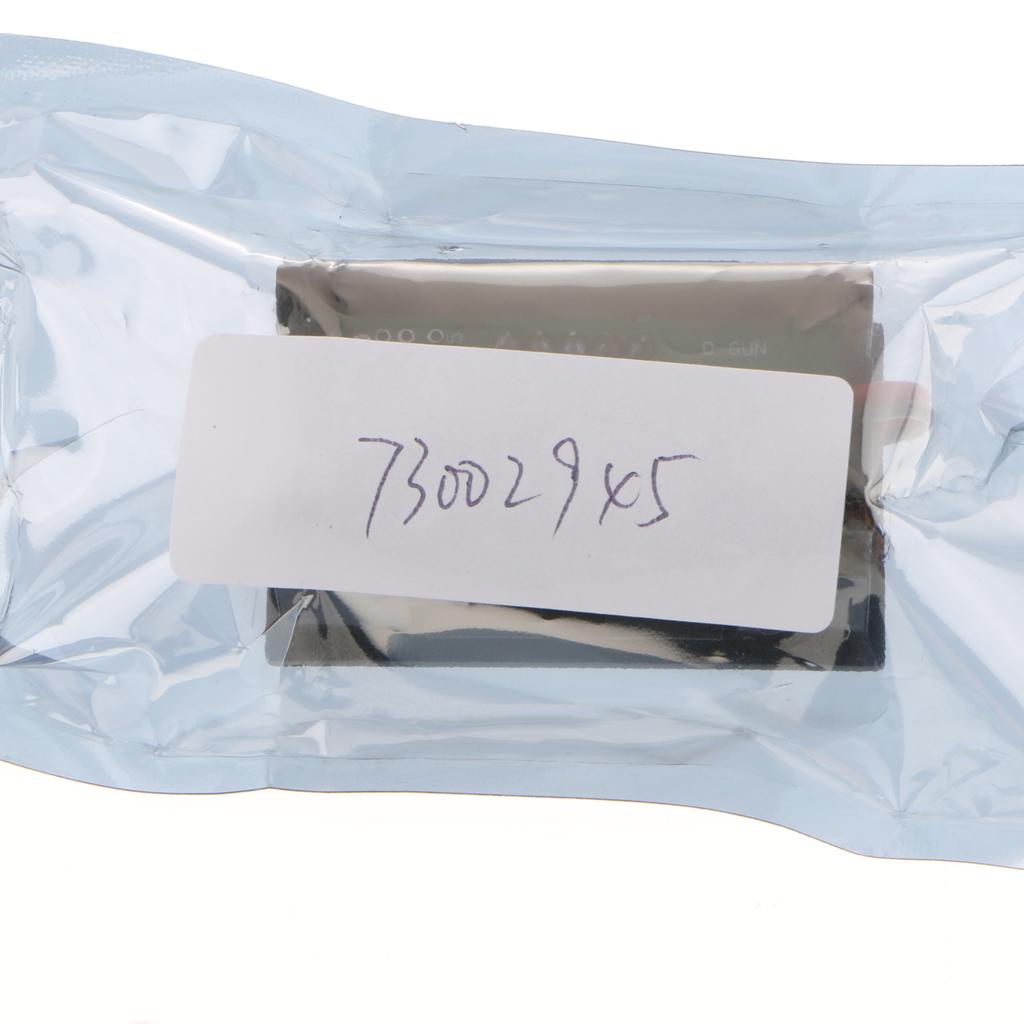

1 Piece Digital Voltage Meter
