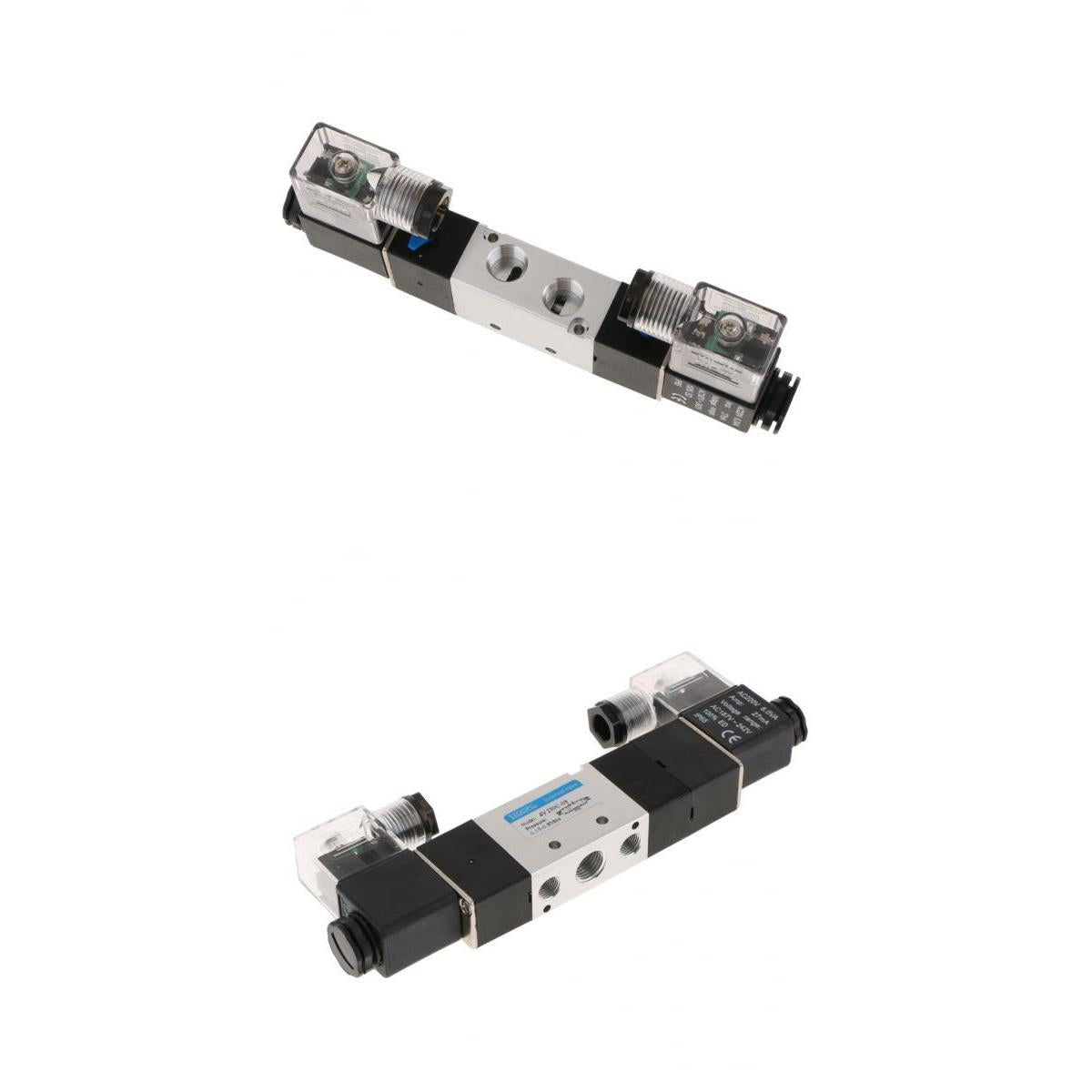

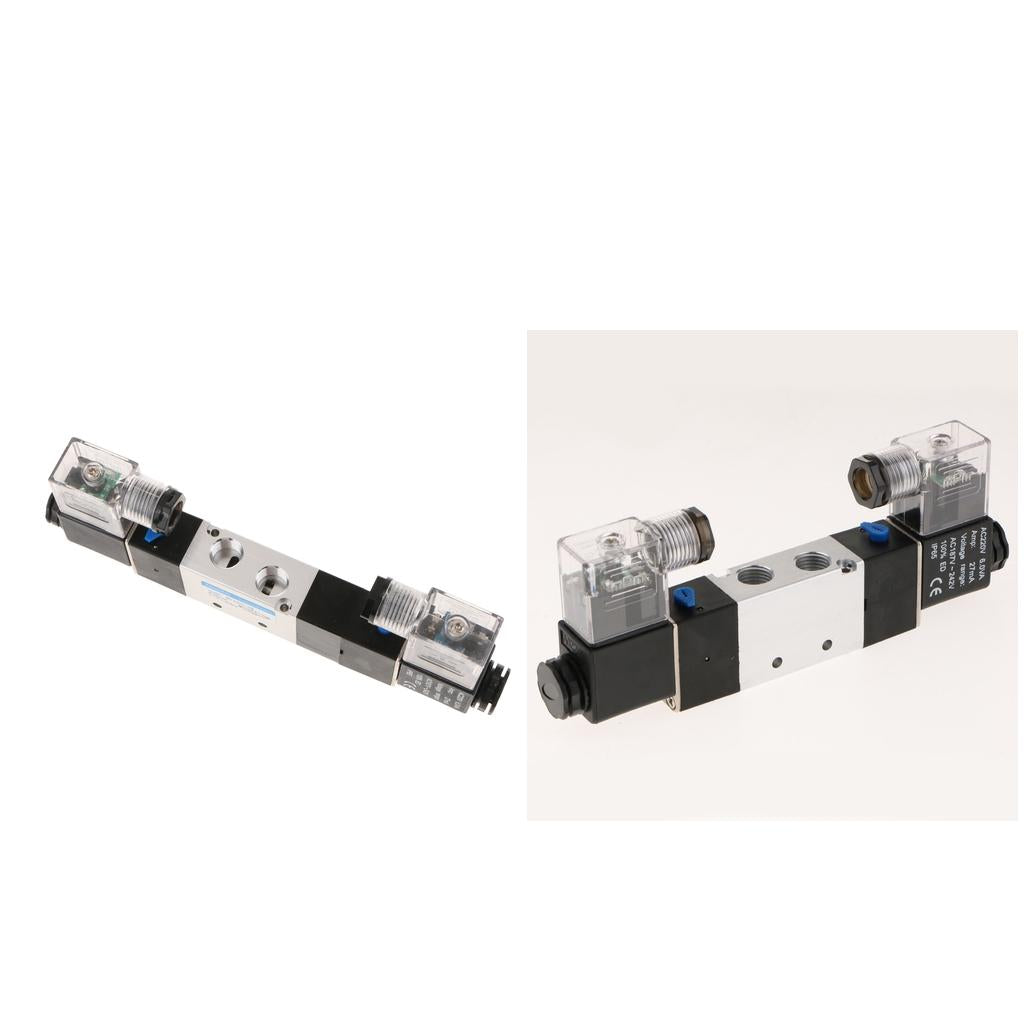

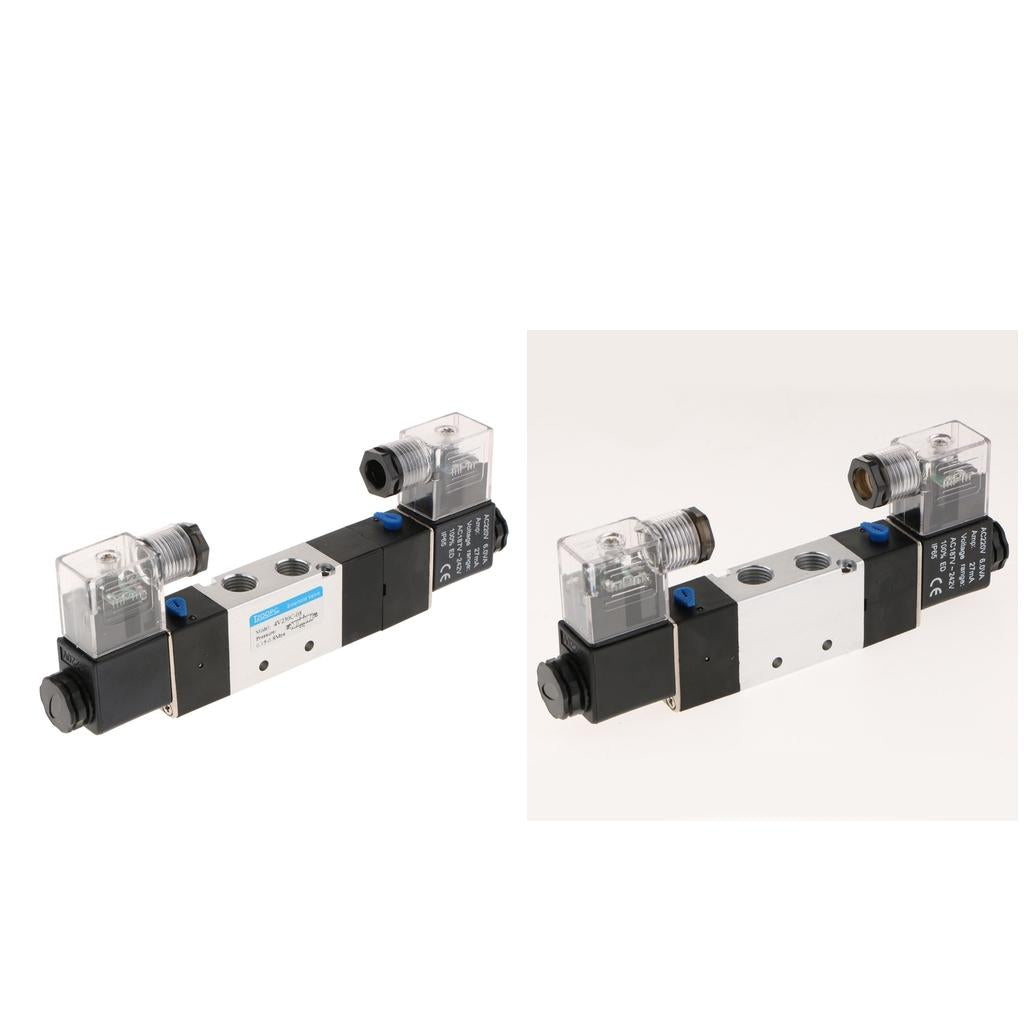

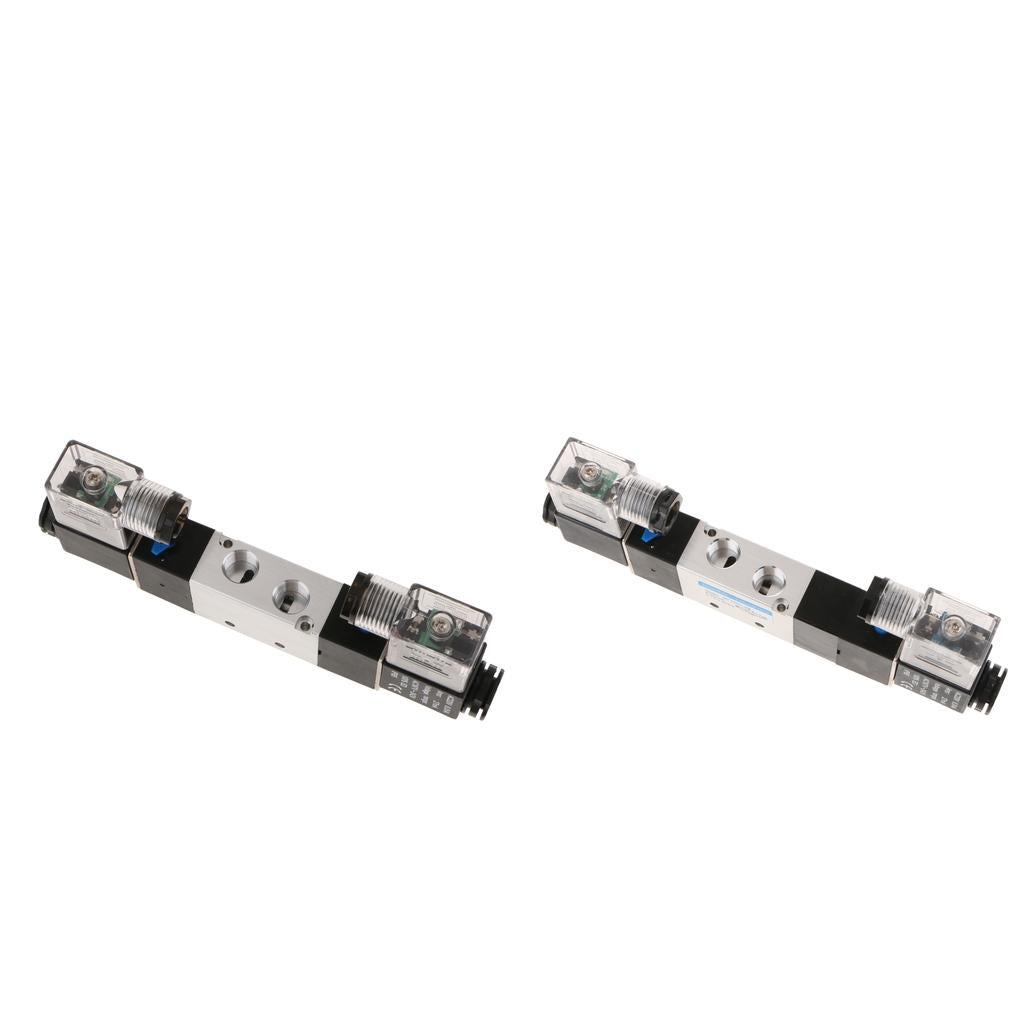

1/4 Pneumatic 5/3 + 5/2Way Electric Control Solenoid Valve Double Coil"

Description:

Model: 4V230-08&4V220-08
Coil: AC110V LED Light
Port Size: PT1/8
Effective area: 12mm2
Working pressure range: 1.5~8.0kgf/cm2
Proof pressure: 12kgf/cm2
Operating temperature range:-5~60℃
Working Votage Range: -15%~+10%
Insulation and protection: Class F.IP65
Wiring method: Lead and box
Max.Working Frequency: 3times/s
Response time: 0.05s

Specification:

4V230-08
Material: Alloy
Product detailed size: Solenoid valve size: 19.5 x 6.5 x 2cm / 7.67 x 2.56 x 0.79inch
4V220-08
Material: Alloy
Product detailed size: Solenoid valve size: 17.5 x 6.5 x 2cm / 6.89 x 2.56 x 0.79inch

Package Includes:

2 Piece Pneumatic Valve
