1.5m 72-LED Strip Car Trunk Illumination Rear Brake Backup Lamp Waterproof Turn Signal Light

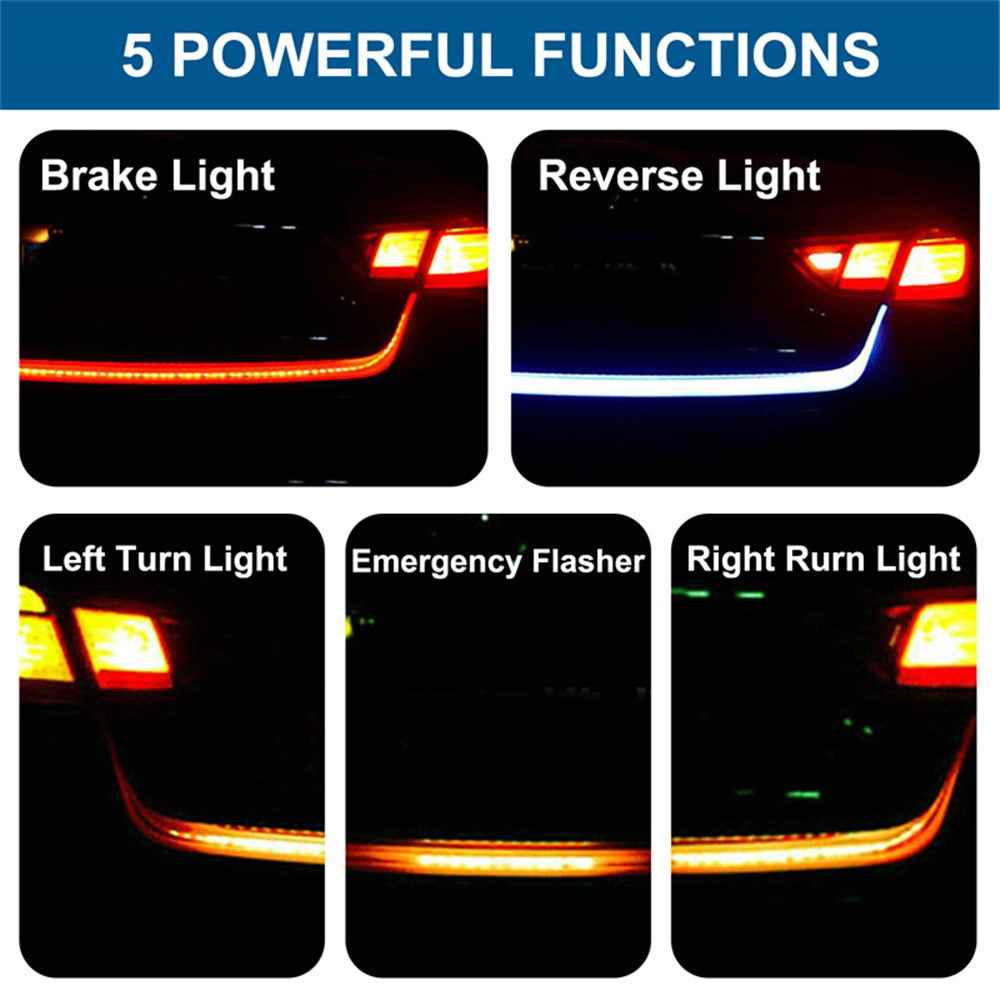

This flex LED light bar is universal fit for cars and SUVs so that you can mount them along the tailgate as running lights, turn signal lights, brake lights, and backup reverse lights
Ultra bright LED lights, unique and more vivid color
Function: (red line to acc, black line to ground wire)

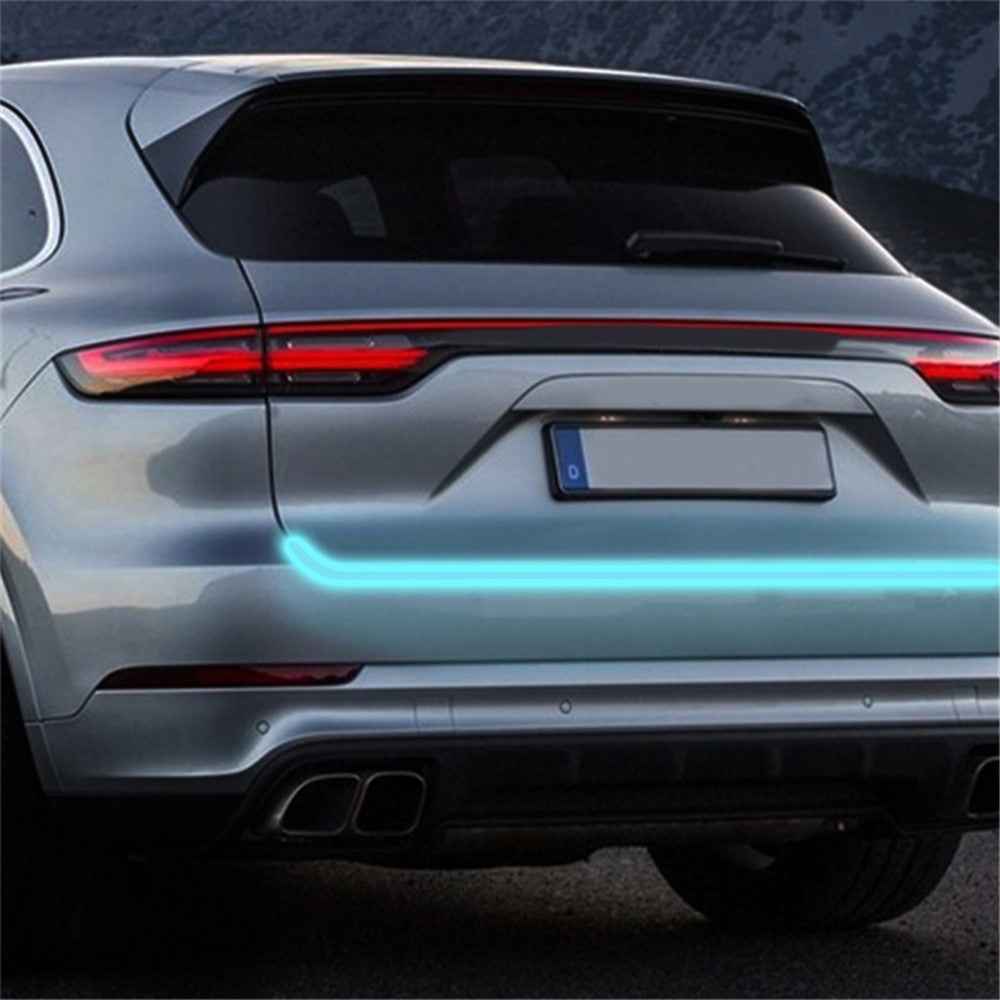

Green line: bright ice blue light when connecting to acc.

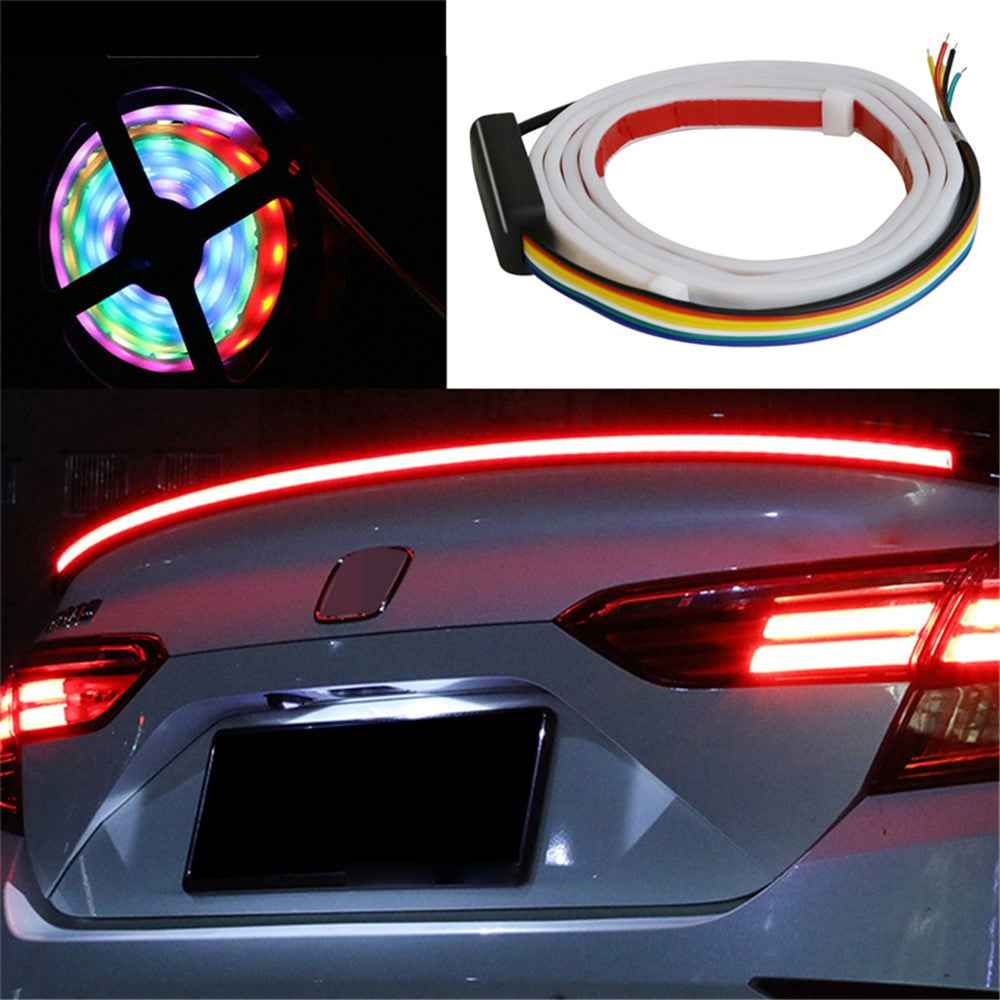

White line brake: the red light is on when braking.
Yellow line turning: when turning right, 25% of the brightness of the red light flows from left to right; When turning left, 25% of the brightness of the red light flows from right to left;
When double flashing, the red light flows from the middle to both sides at the same speed, and a long bright red light in the middle.
Braking+steering: when there is a signal for braking and steering at the same time, the red light is fully bright and the streamer mode

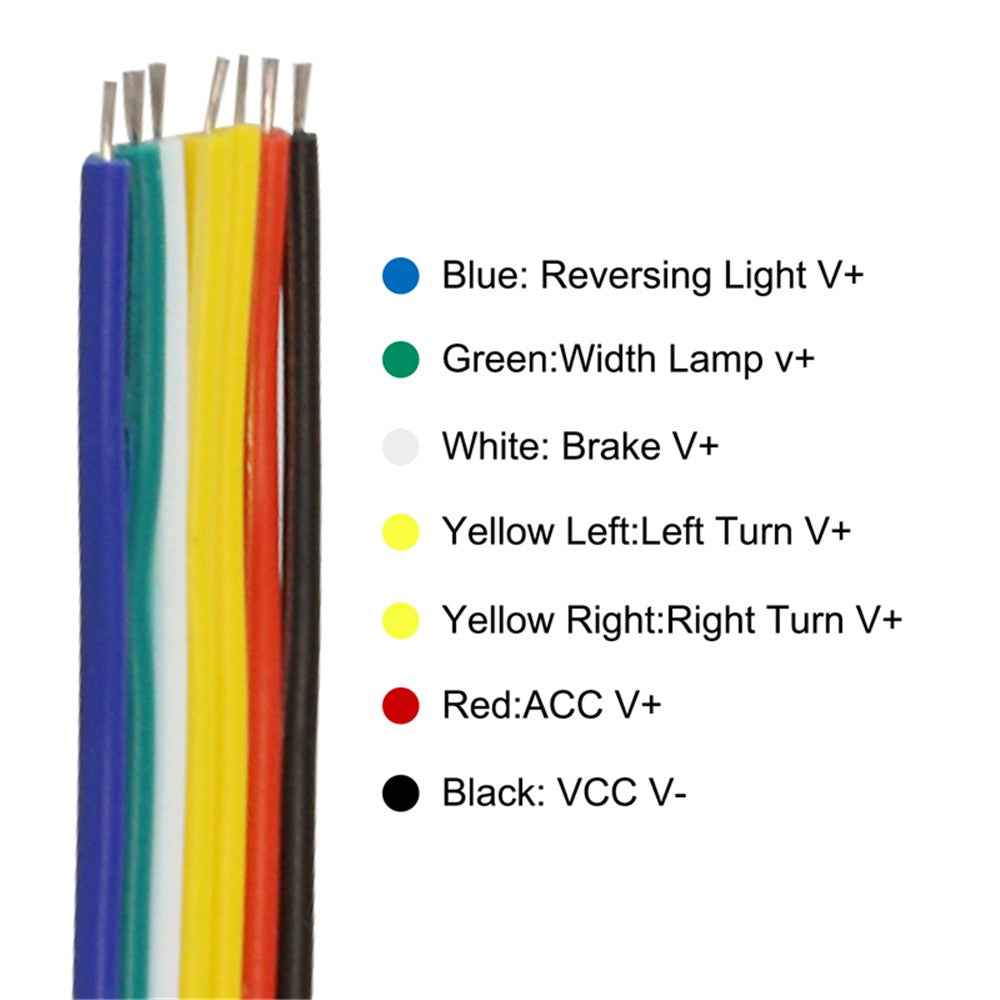

Installation instructions:
Red: connected to the positive pole of the battery or ACC to provide 12V power for the product
Black line: connected to the negative pole or ground of the battery
Yellow line: L is connected to the positive pole of the left steering line
Yellow line: R is connected to the positive pole of the right steering line
Green line: connect to the small light line. When the line is connected to 12V, the blue light will be on
White line: connected to the positive pole of the brake wire
Notes:
Please wire in strict accordance with the wiring instructions.
It is forbidden to cut or cut this product.

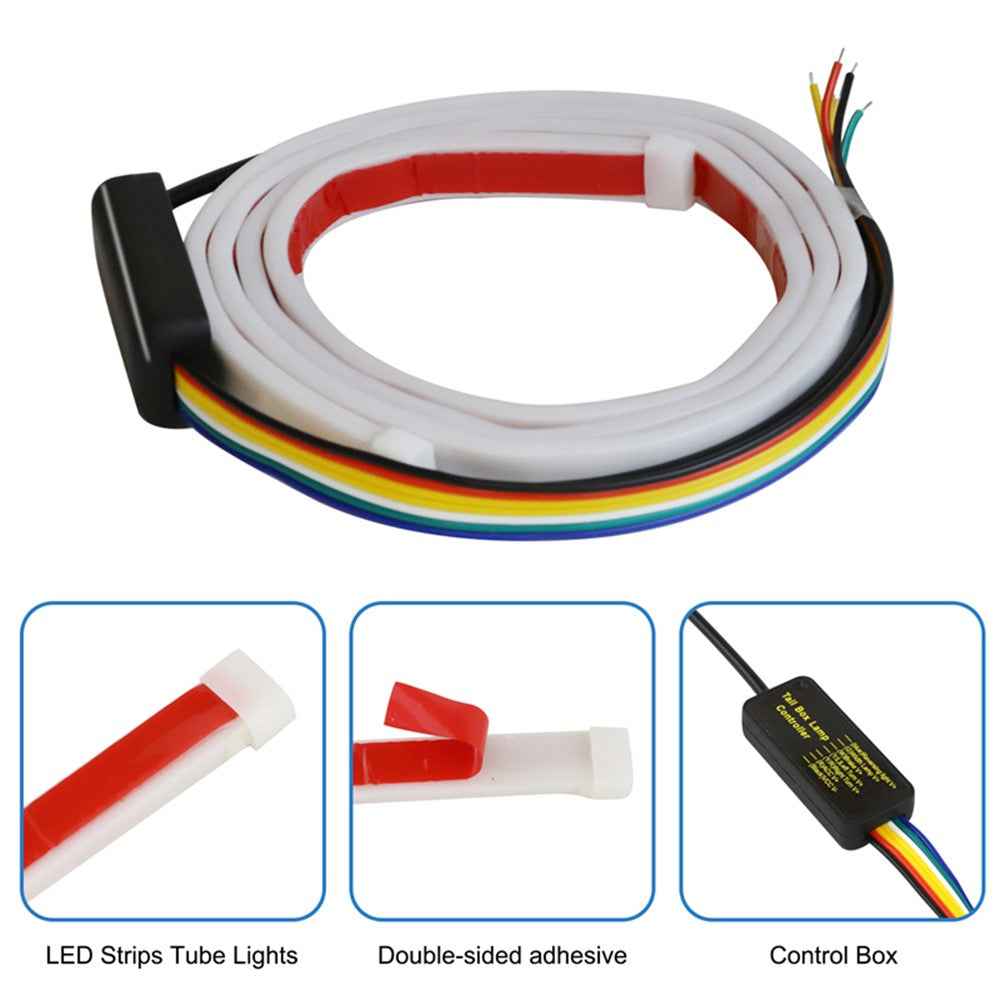

This product is designed as a soft board, and it is strictly prohibited to bend at 90 degrees.
Please do not damage the silicone strip of the product for better waterproof.
