Description:

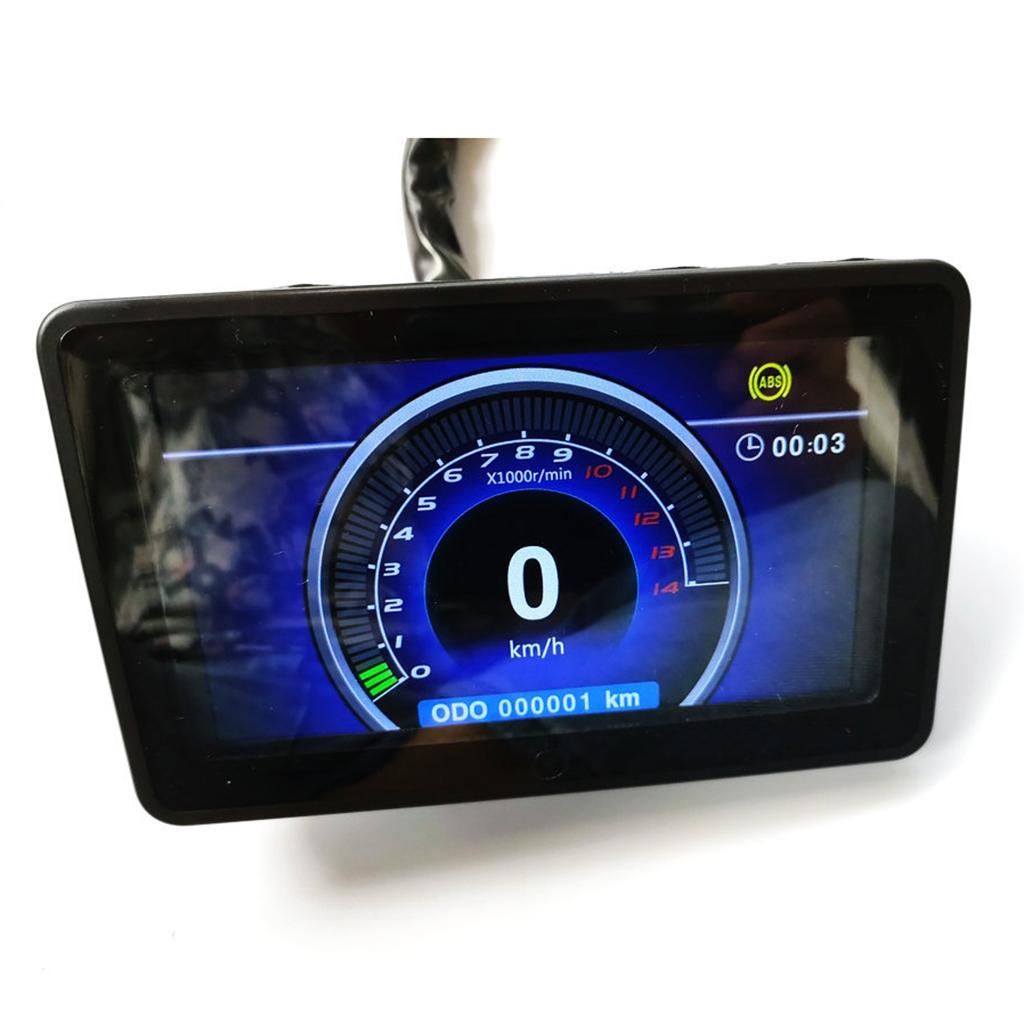

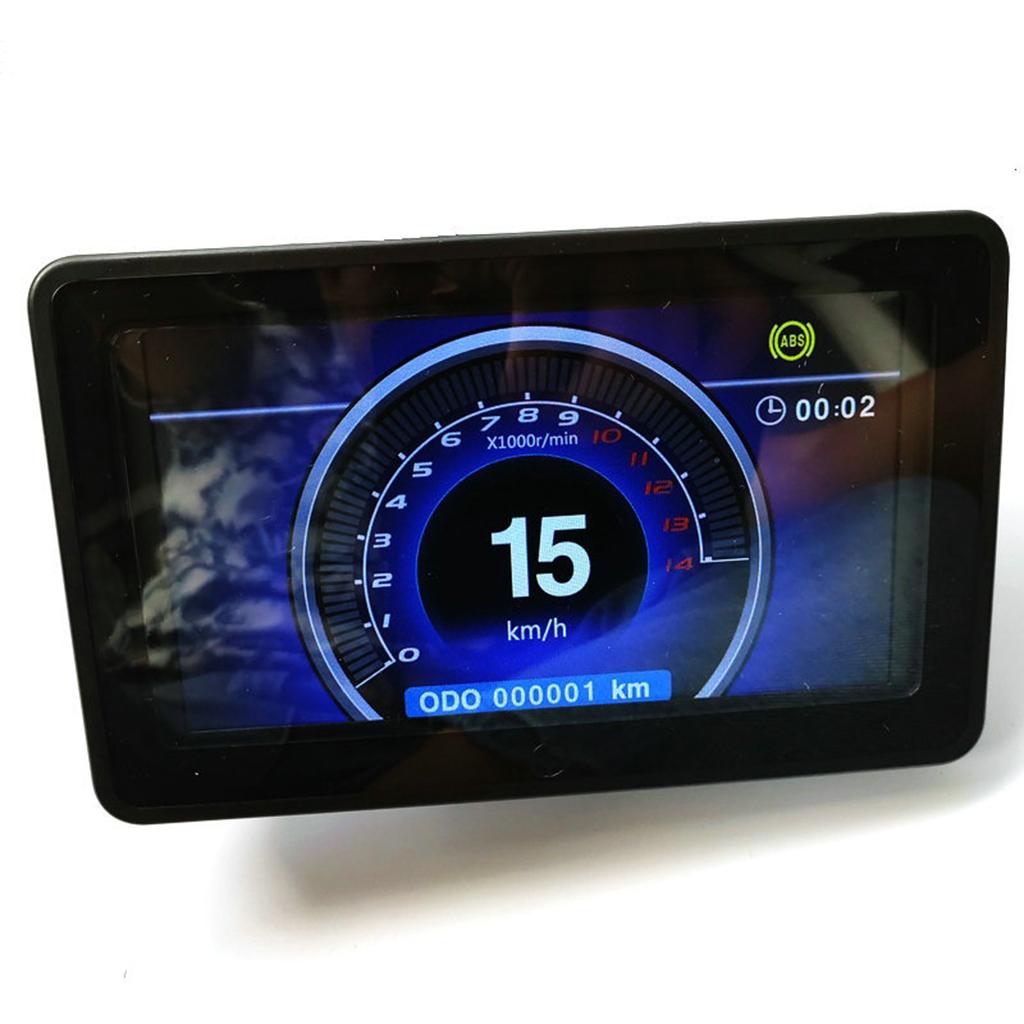

Speedometer: LCD display speed, 36.2Hz corresponds to 63km/h
Mileage: Total mileage ODO display range is 0-999999km
Mileage clear: Subtotal mileage is not saved and the boot display is 0. The total mileage is cleared: within 15 seconds of starting, one of the left and right turns and the high-beam are turned on and off more than 7 times, and the total flashes 4 times and then becomes zero.
Tachometer: 166Hz corresponds to 10*1000r/min
Fuel: no driving damping time, from 8 squares to no grid for a total of 10 seconds (no grid above 92 euros; 91-86 euros 1 grid; 8 grids below 14 euros)
Water temperature: no driving damping time, from 8 squares to no grid total 10 seconds (no grid above 156 euros; 1 grid flash at 27-17 euros; 8 grids below 17 euros)
The file is displayed: when there is no gear access, the gear position is not relevant. 1-6, N files are negative control
Button definition: Touch button:
Clock: Yes, 24 hours, with battery, keep the timer in front of the clock
MCU version: V0-0-3
ARM version: C2-CY1985-A1-22-V003-190114
ARM update: Insert the USB flash drive into the instrument USB interface, wait for 1-2 seconds to jump out of the firmware upgrade interface, wait for 2 seconds after the progress bar goes to the head, turn off the power, unplug the USB flash drive, and then turn on the power supply to start normally, indicating that the update is successful.
Scope of use: tire size is installed on a 17 or 18 inch motorcycle
Specification:
Harness: CY1985 harness
Working voltage: 12V
Accessories cable length: 86cm
Package Includes:

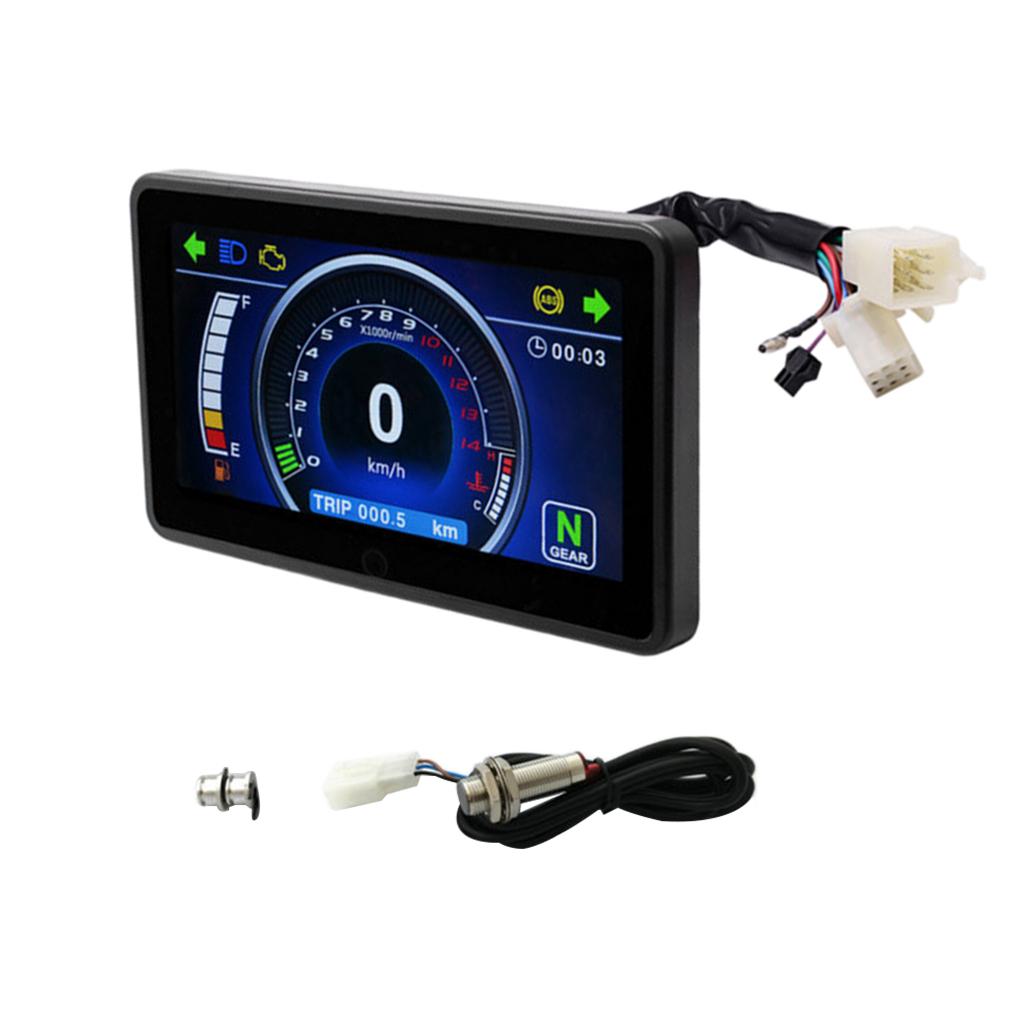

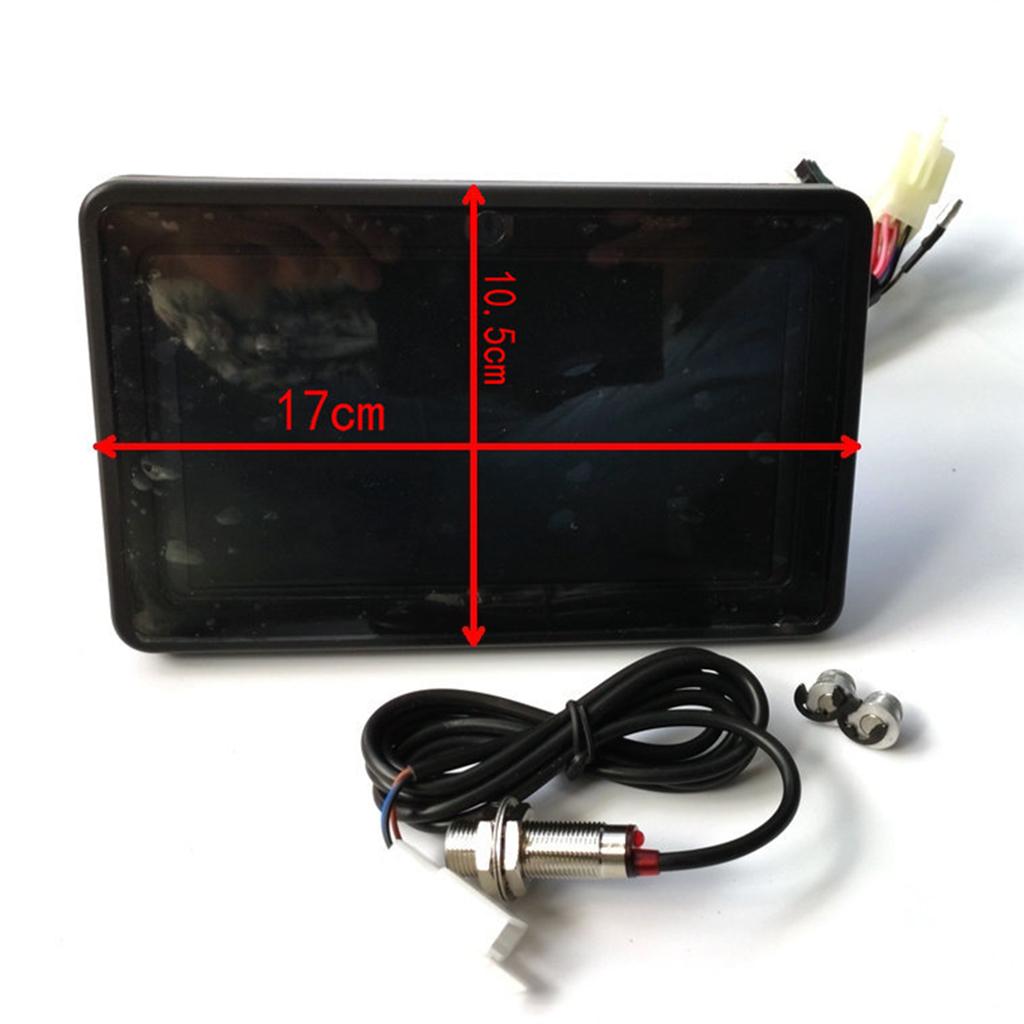

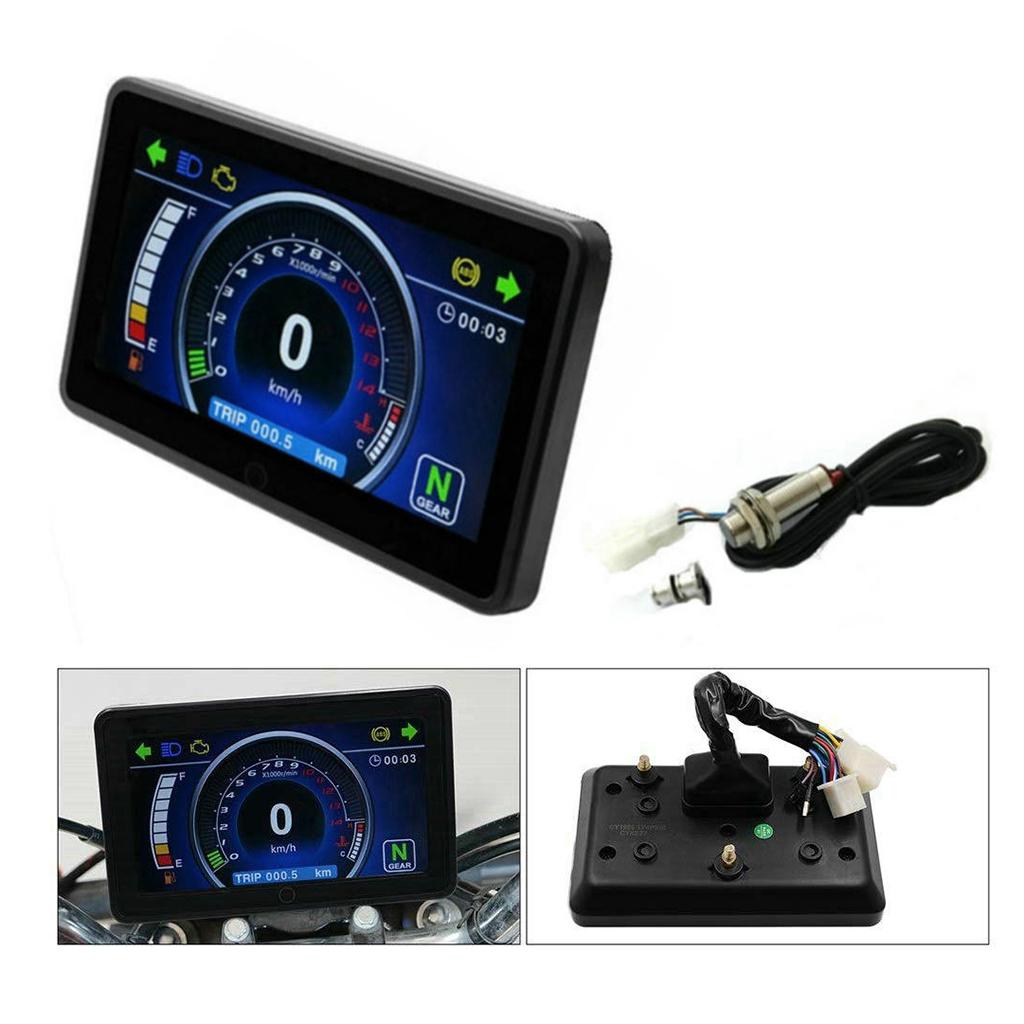

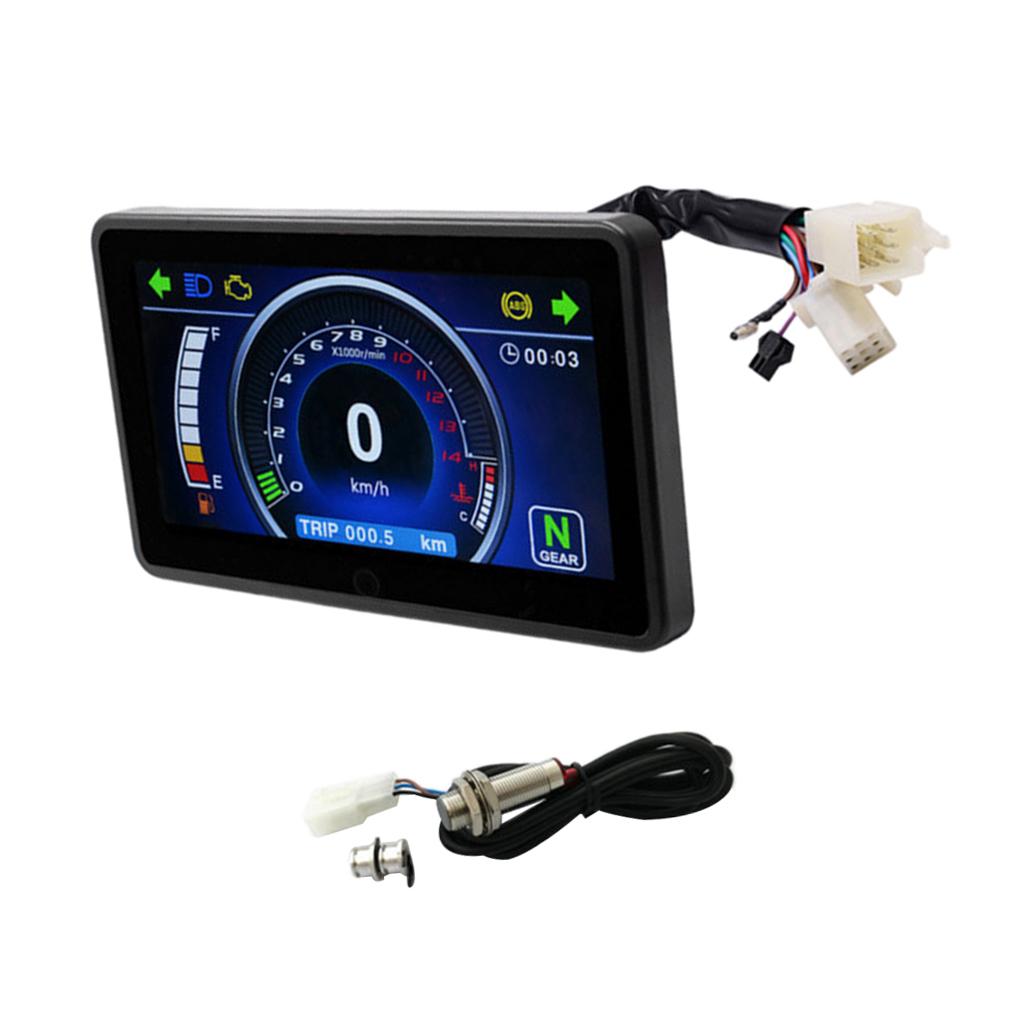

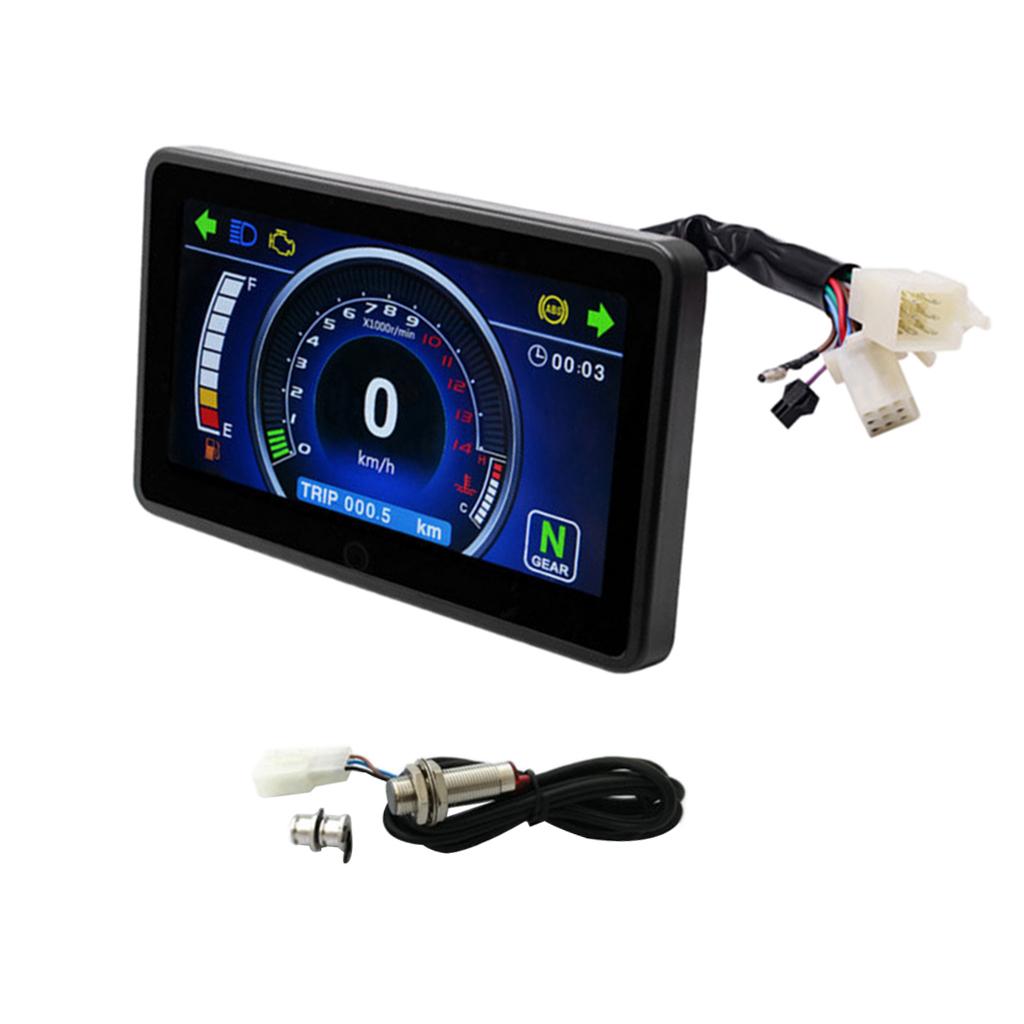

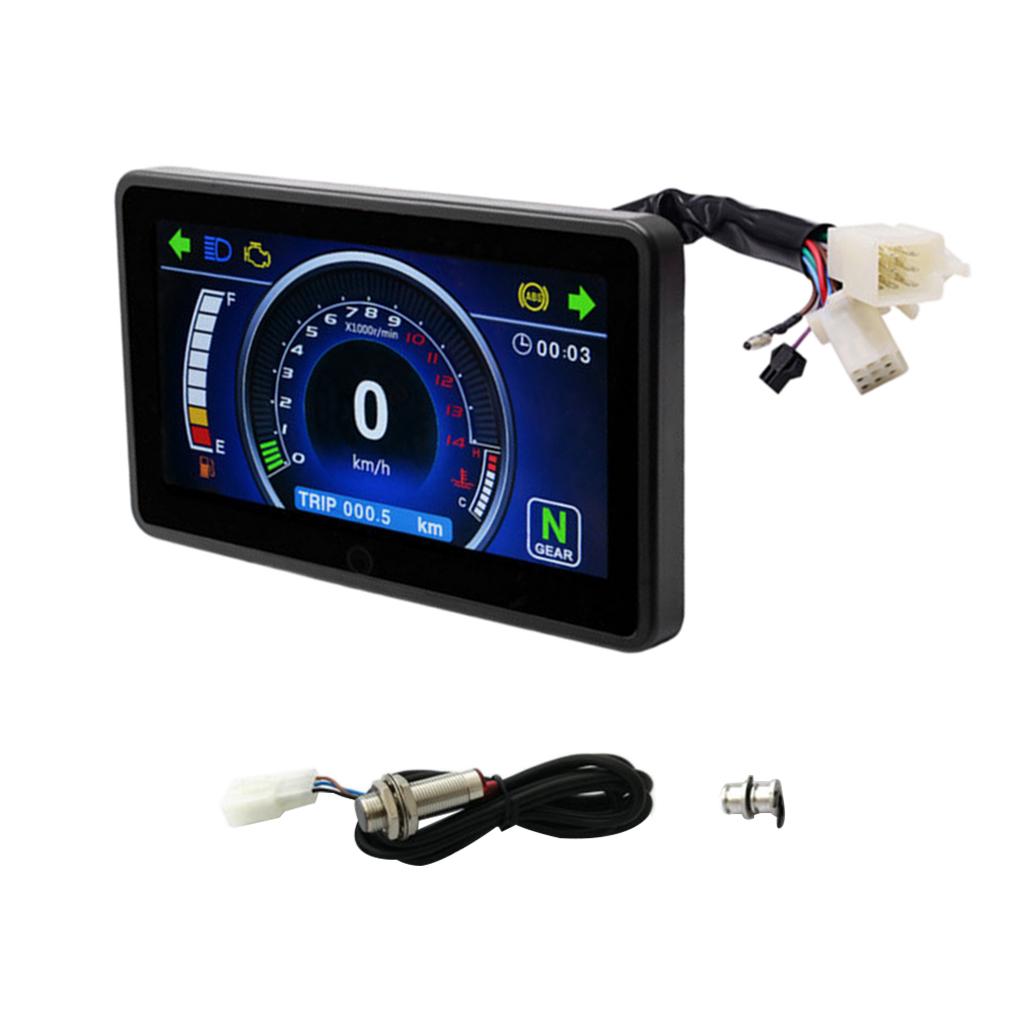

1x LCD Speedometer
1x Induction cable
2x magnets
