1 Piece Bandpass Filter 144MHz Super-Small Size 2M Bandwidth RFID Band Pass

Description:

Super-small size, excellent selectivity, high out-of-band suppression.

Special for 144MHz communications receivers, HAM 2m band, laboratory and other highly selective applications.

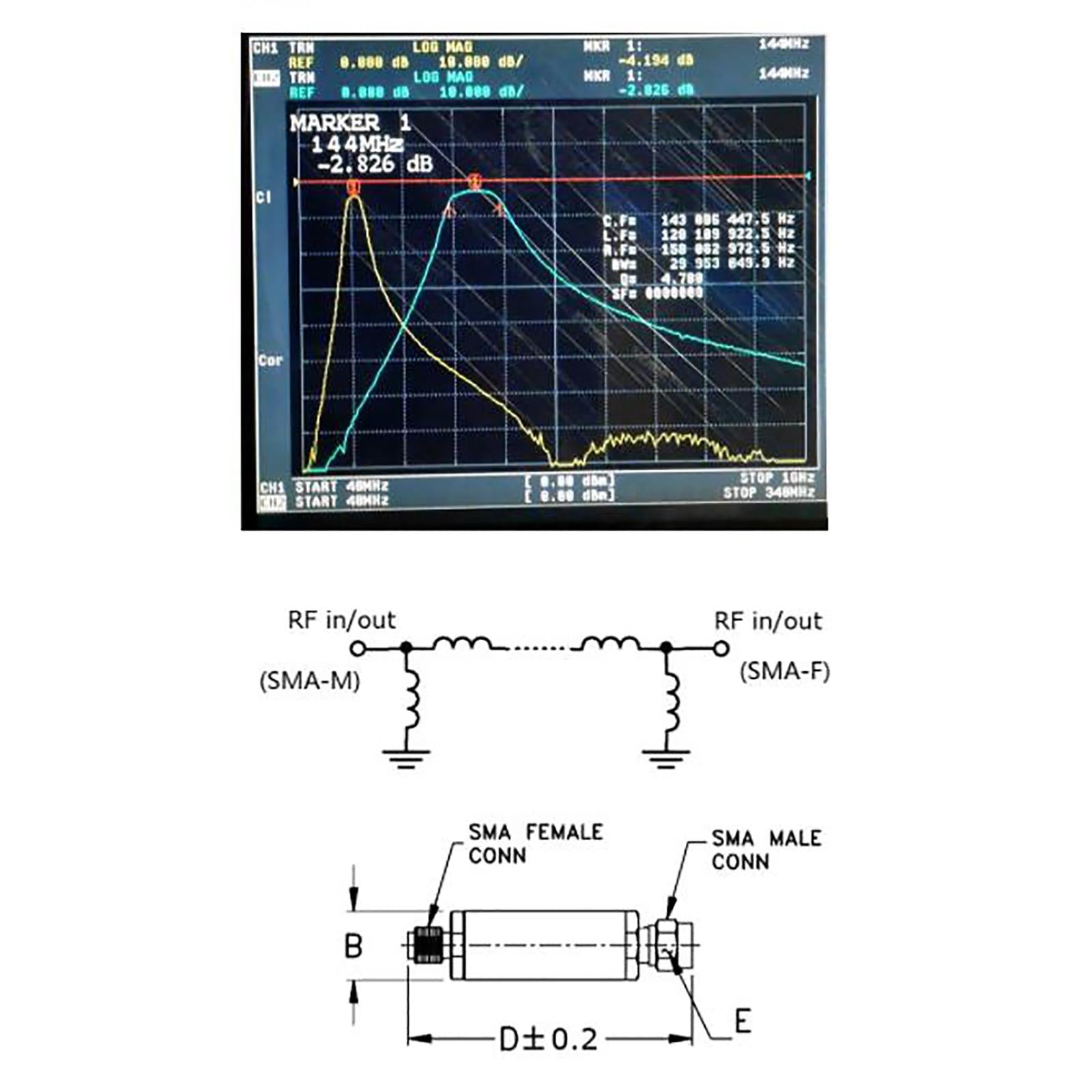

Center frequency insertion loss: 2.5 to 3.0 dB @ 144 MHz.

Greater than 50 dB Stopband: DC to 85 MHz & 300 to 1400 MHz.

Specification:

Material: Metal

Model: FBP-144

Impedance: 50 Ohms

Center frequency: 144 MHz

Size Chart:

47x12.8x12.5MM/1.85x0.50x0.49inch

Package Includes:

1x 144MHz 2m band pass filter

Note:

1. Please allow slightly error due to manual measurement.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. Wish you a wonderful on-line shopping!
