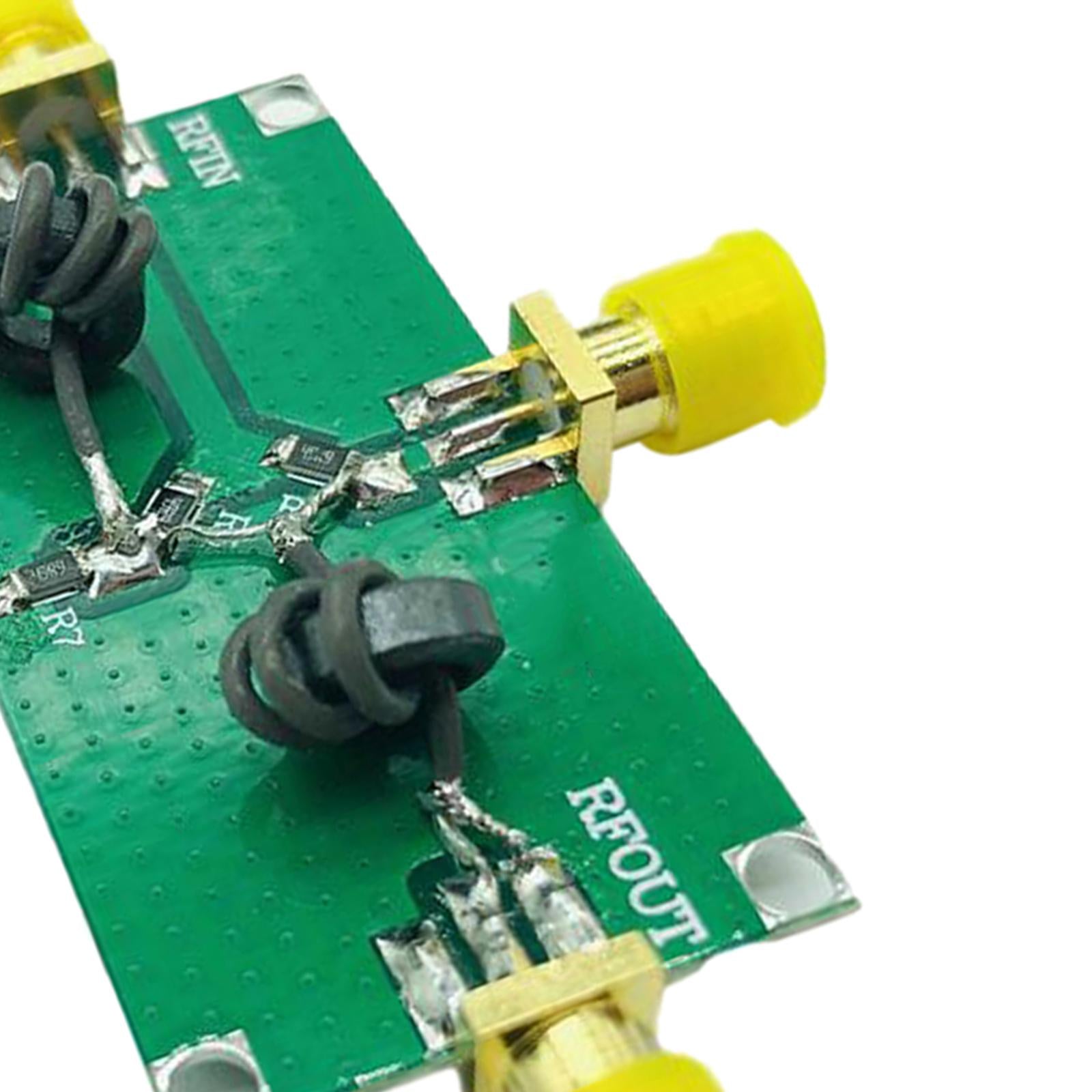

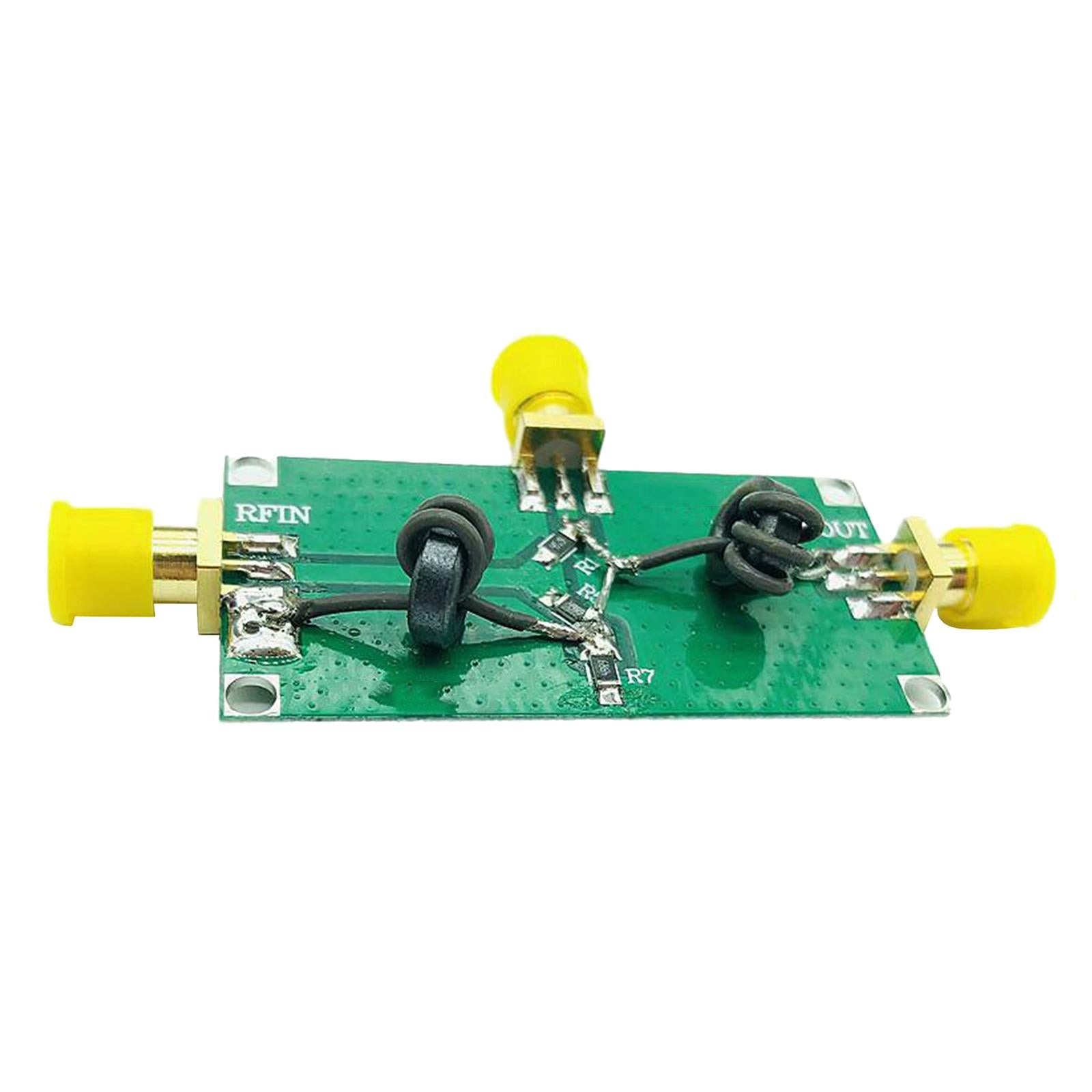

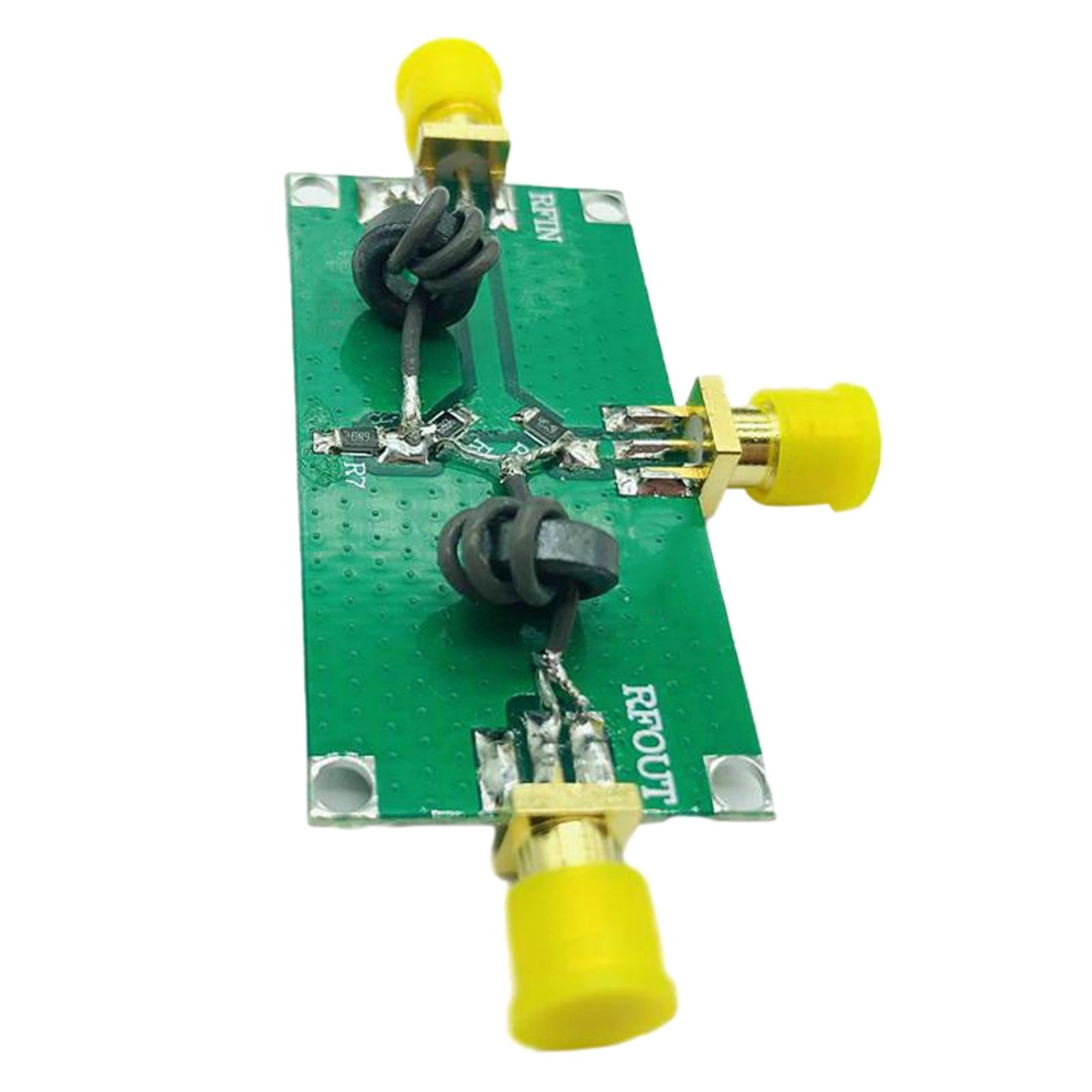

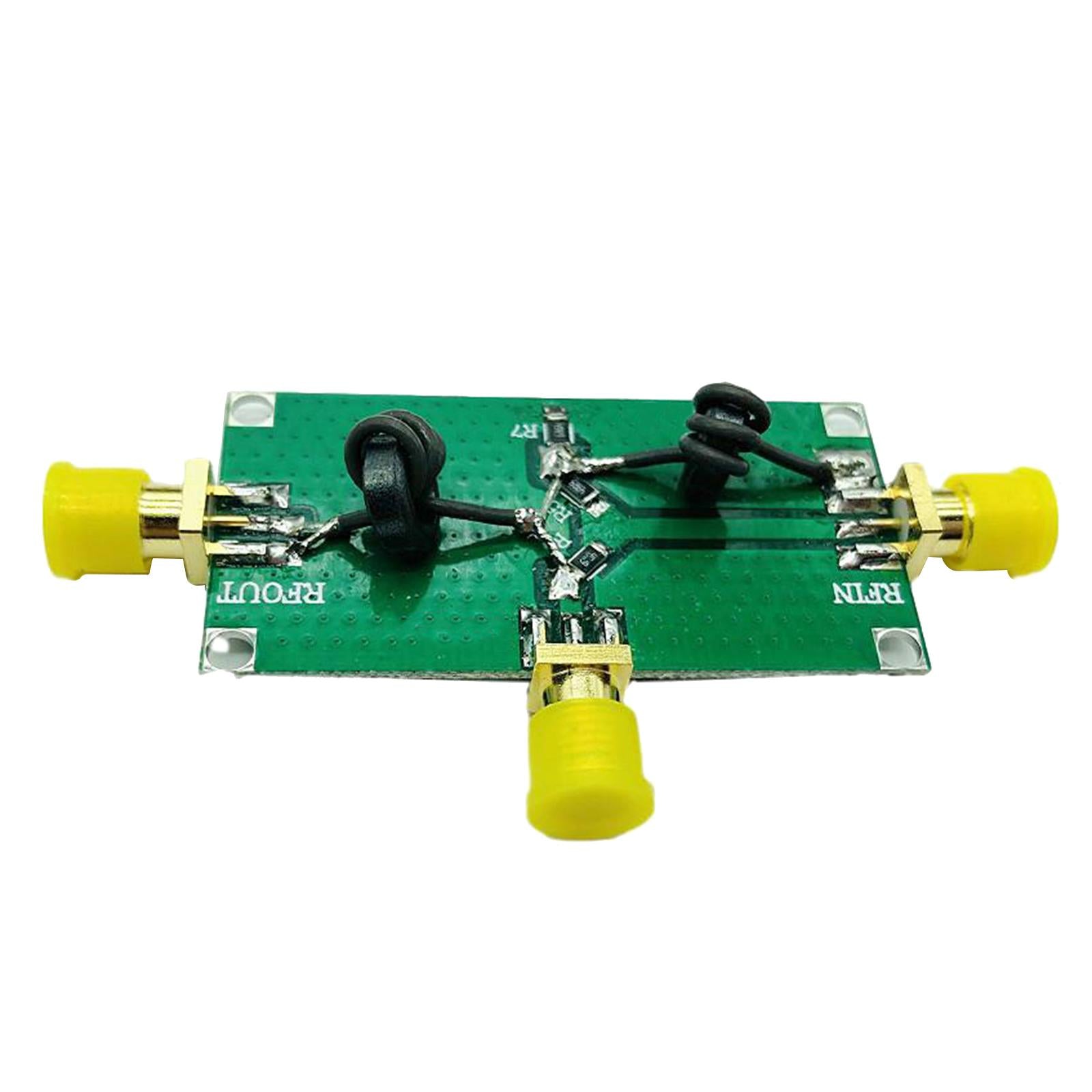

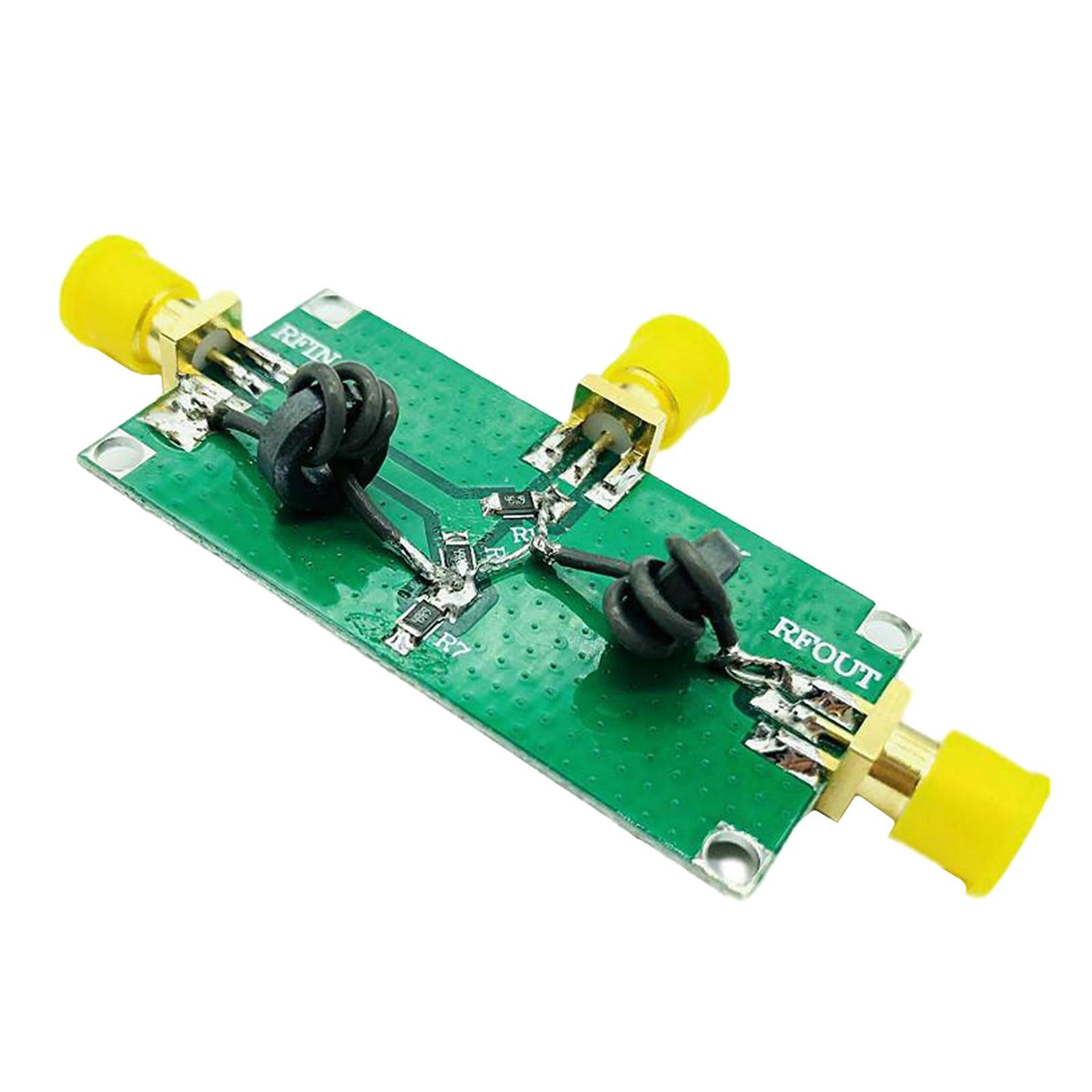

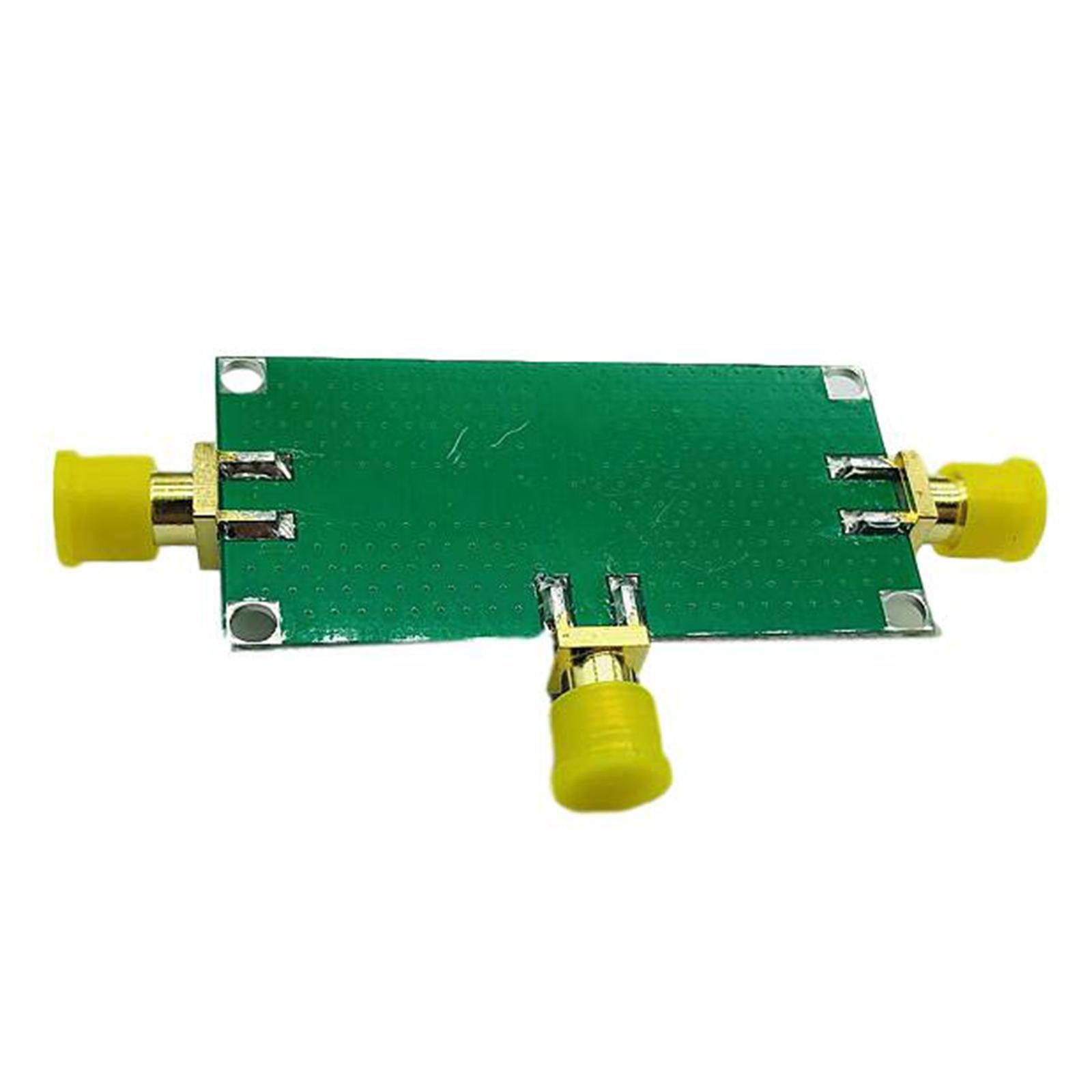

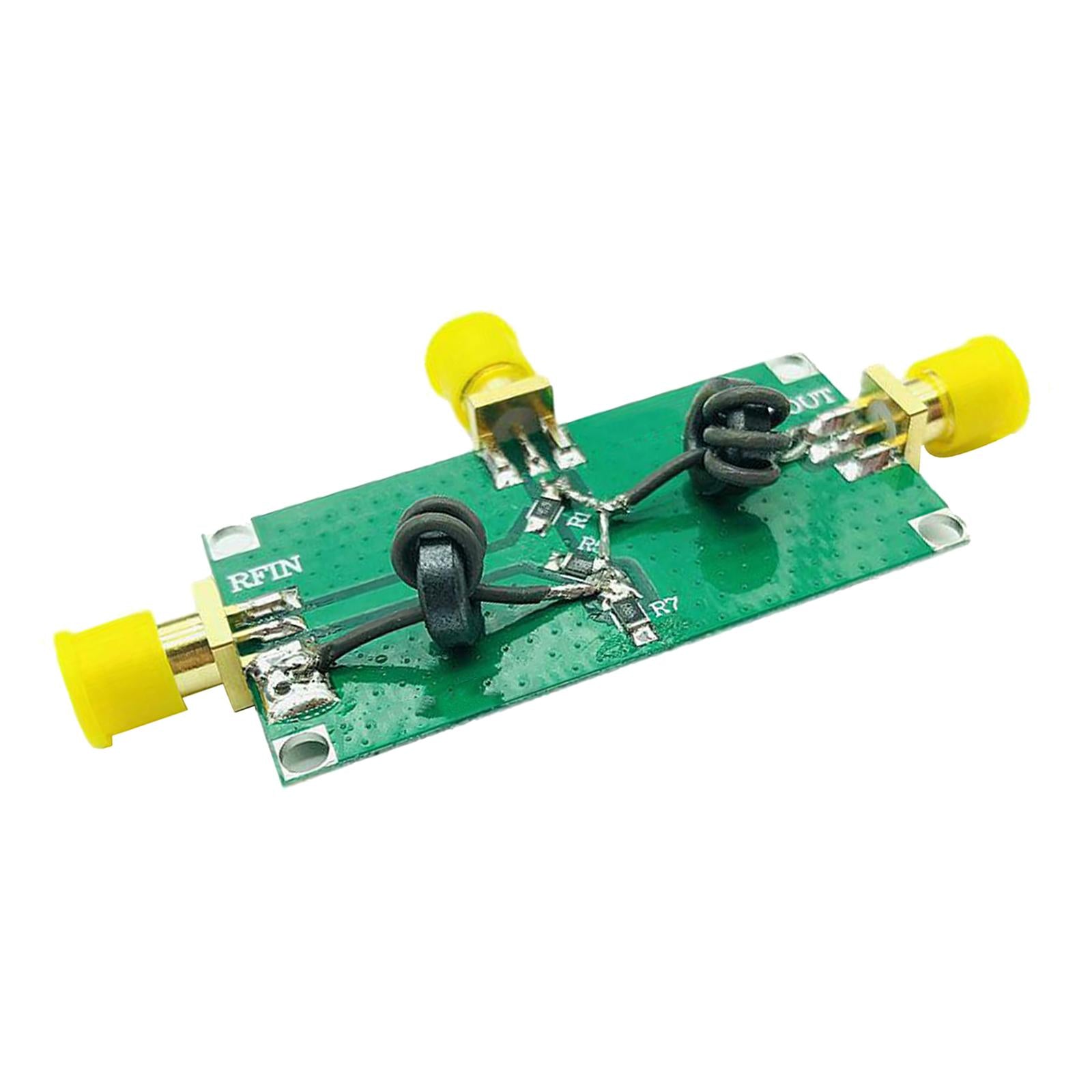

10-3000MHz Standing Wave Ratio Reflective Bridge, SWR RF Directional Bridge

Description:

This bridge is a sensor for measuring reflection coefficient. It is used for radio frequency network measurement. The output reflection signal has amplitude and phase information, and has the characteristics of wide frequency and high directivity.
The simple application of this bridge can be combined with a radio frequency spectru analyzer or a frequency sweeper with a tracking source, which can measure the return loss of the device and the reflection of the entire frequency band;
Combined with vector voltmeter or vector voltage measurement device plus signal source, the vector impedance of the circuit can be accurately measured, and the test and debugging of the radio frequency matching circuit can be completed.
It is widely used in antenna measurement and debugging, radio frequency circuit and measurement and debugging of radio, television and communication equipment.

Specification:

Type: Standing Wave Bridge
Frequency range: 1MHz～3GHz (1MHZ-2.6GHZ is relatively flat)
Characteristic impedance: 50Ω
Directivity: ≥30dB
Maximum input power: ≤0.2W
Module size: 75x35x10mm

Package Includes:

1 Piece Standing Wave Bridge
