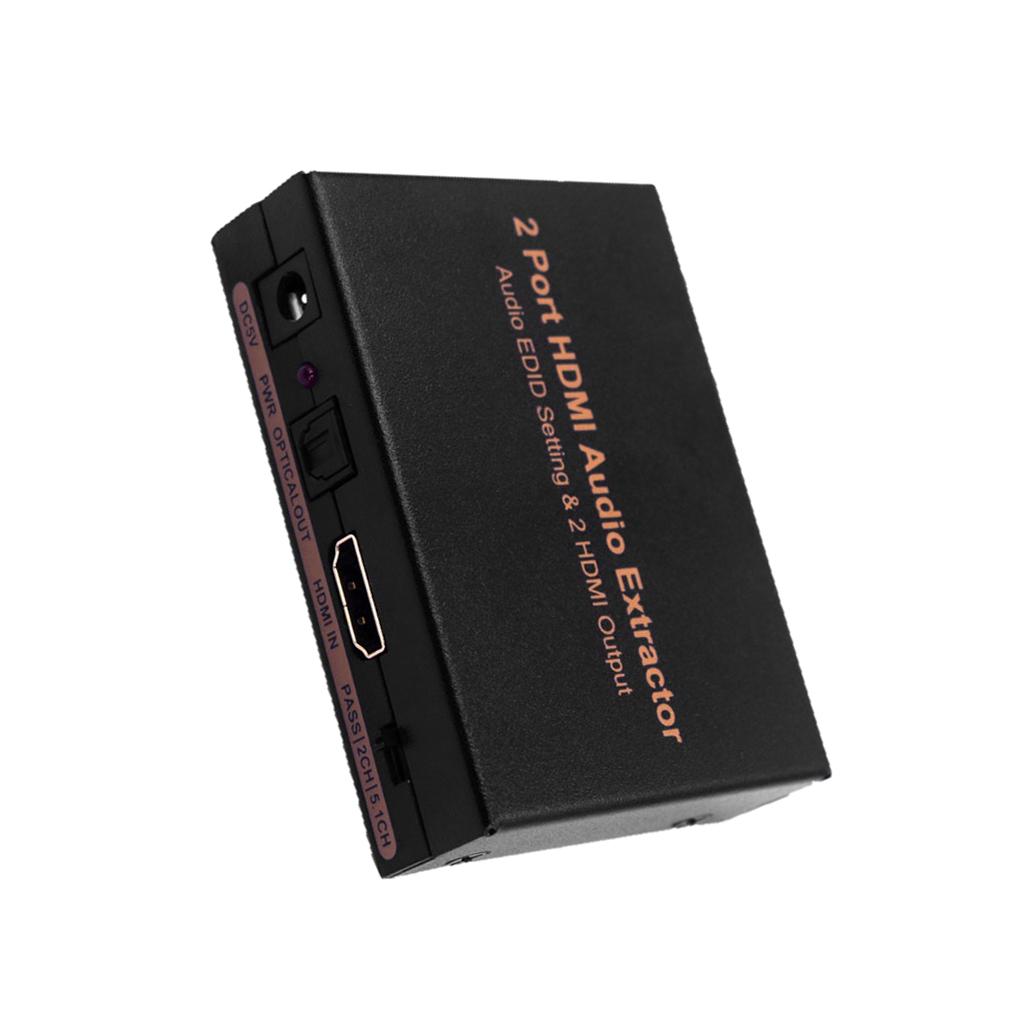

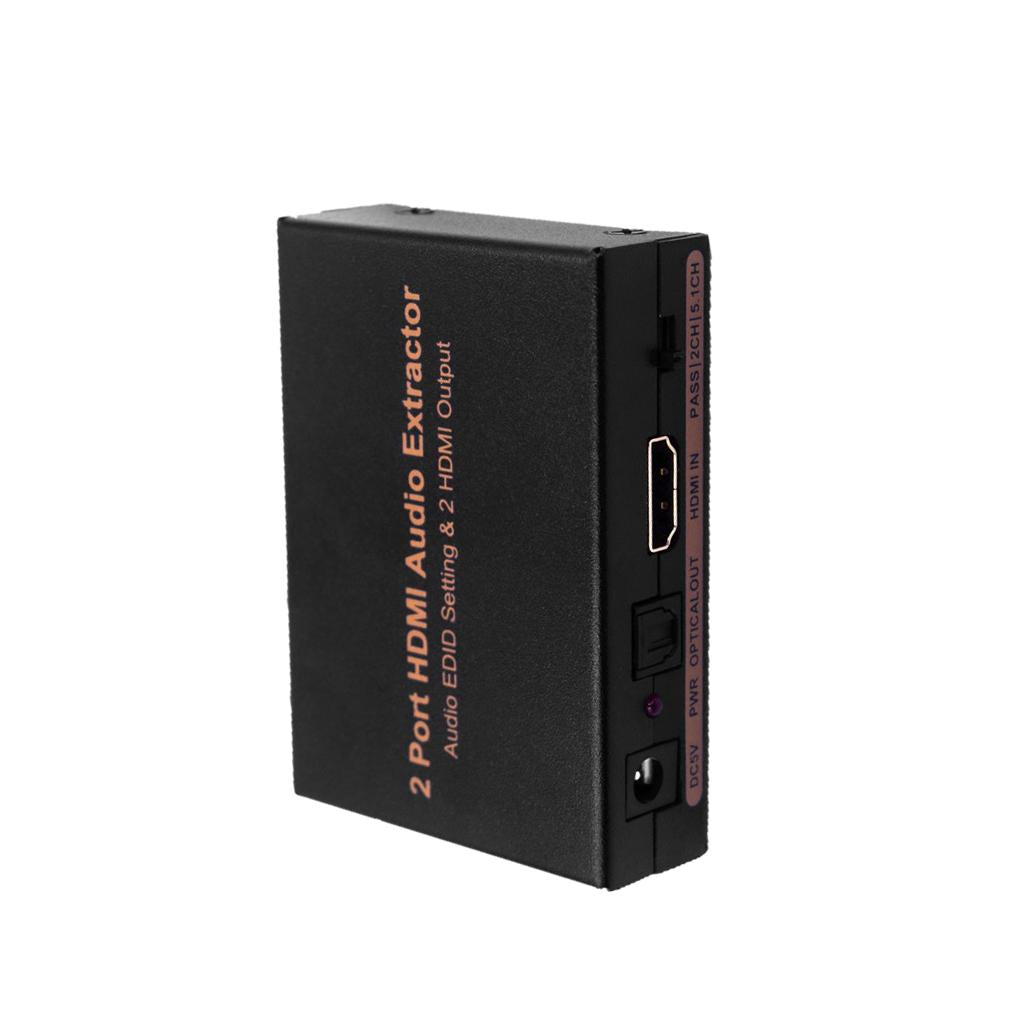

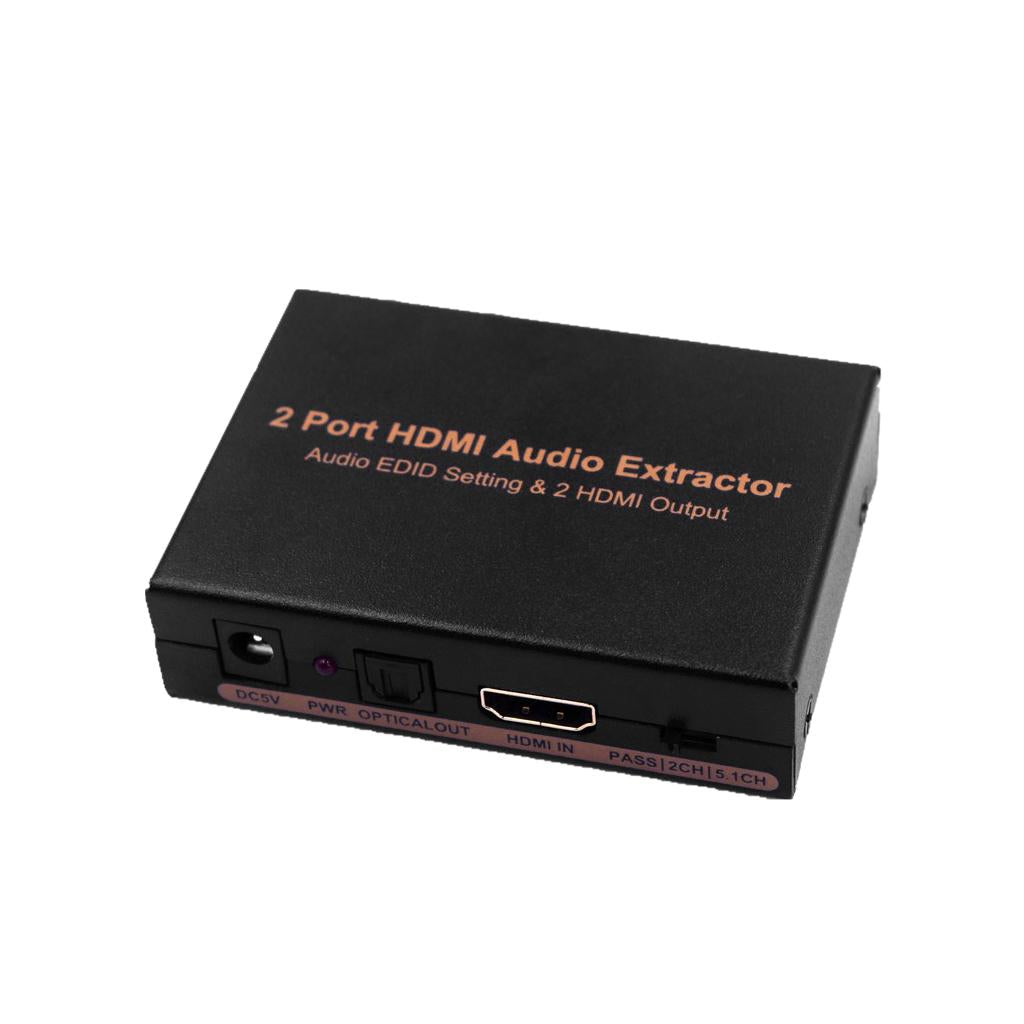

1080P HDMI TO HDMI Analog Audio Extractor Converter Splitter UK Adapter

Description:

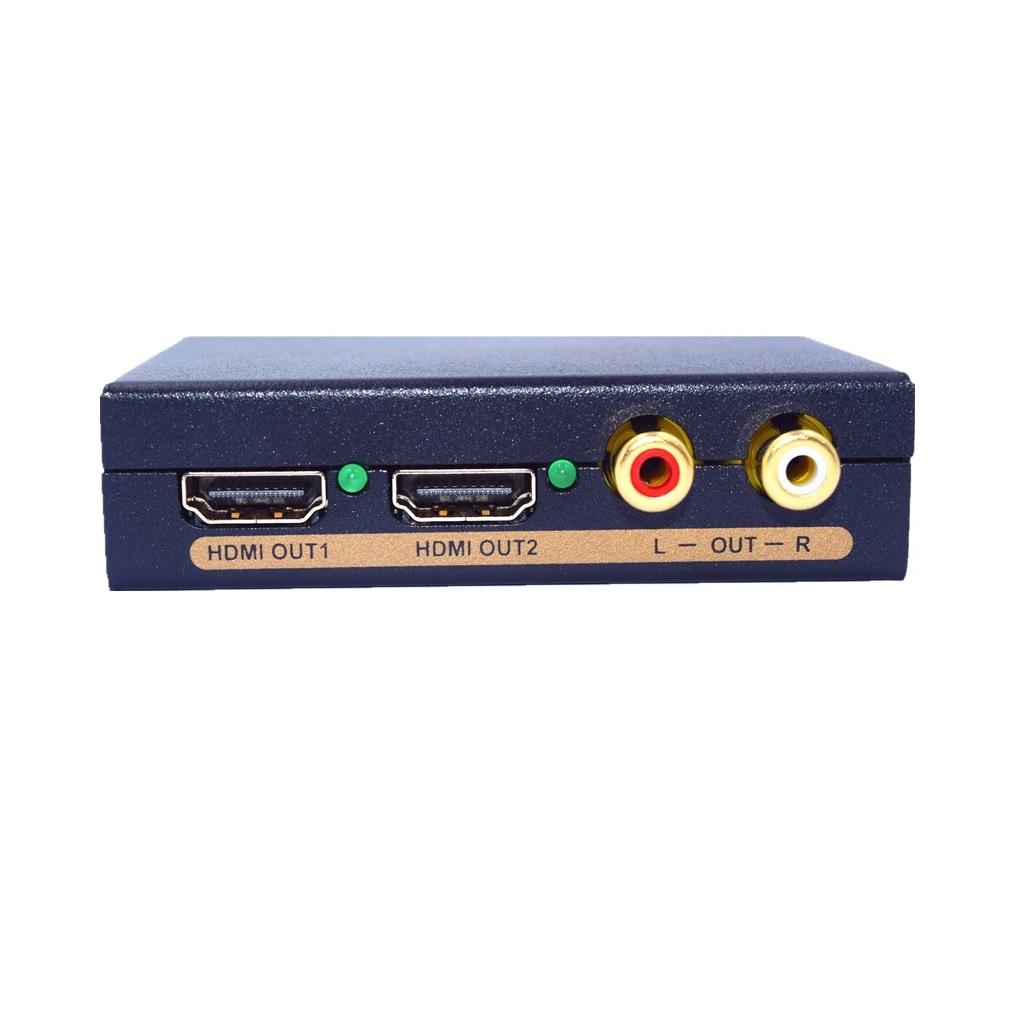

1CH HDMI input and 2CH HDMI output，can sync separation HDMI audio signal

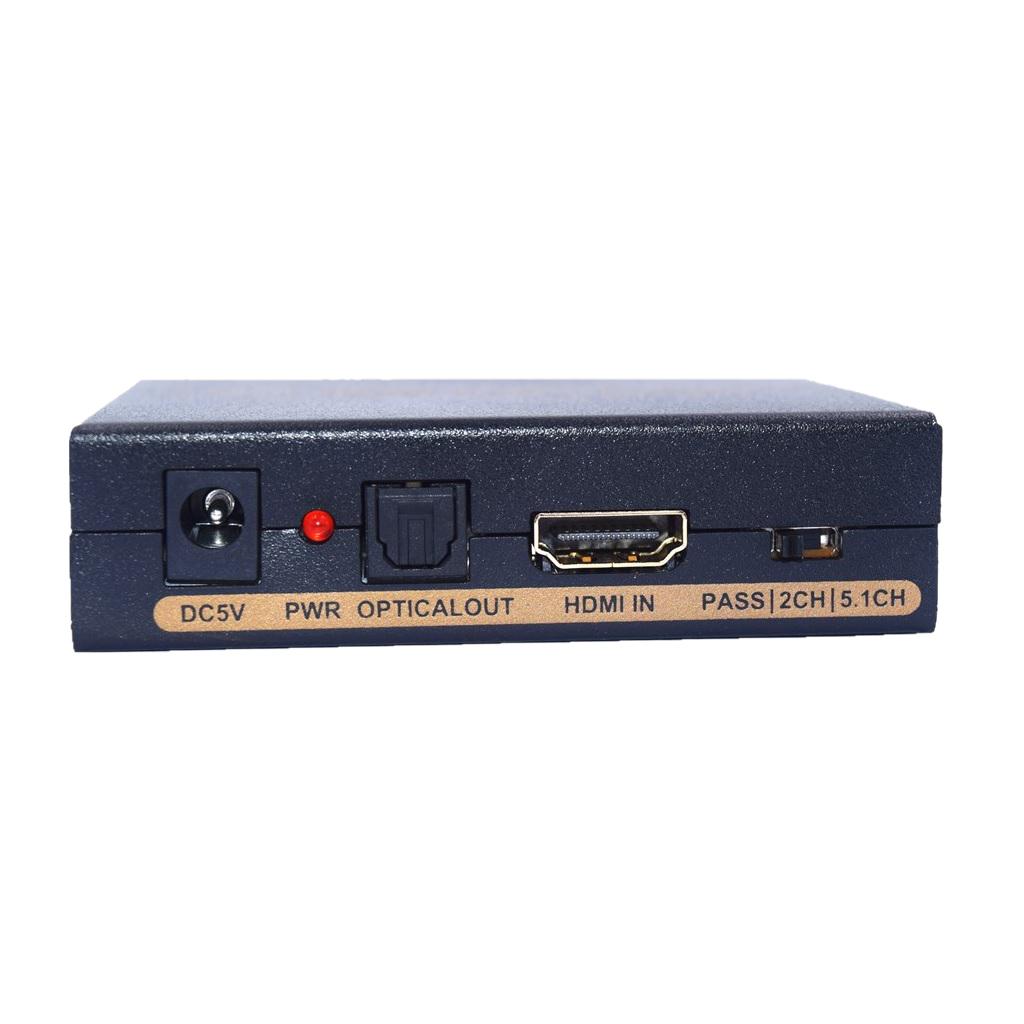

1x SPDIF optical digital audio output, 2 channel RCA analog audio output
Support HDMI input up to 1080P/60Hz, 3D (24/30fs)
Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV)
LED indication: when source or sink is working, LED relative to is light

Specification:

HDMI resolution: 1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
HDMI Audio Format: DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
SPDIF Digital audio format: Dolby Digital (AC3)/DTS/LPCM 2CH
Audio output: L/R+SPDIF
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: Less than 15m AWG26 HDMI standard cable
Output cable distance: Less than 20m AWG26 HDMI standard cable
Max working current: 600mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V Output: DC5V/1A
Operating Temperature range: (-10 to +55 Degree)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension: Approx.85 x 62 x 21mm/3.34 x 2.44 x 0.83inches
Plug type: UK Plug

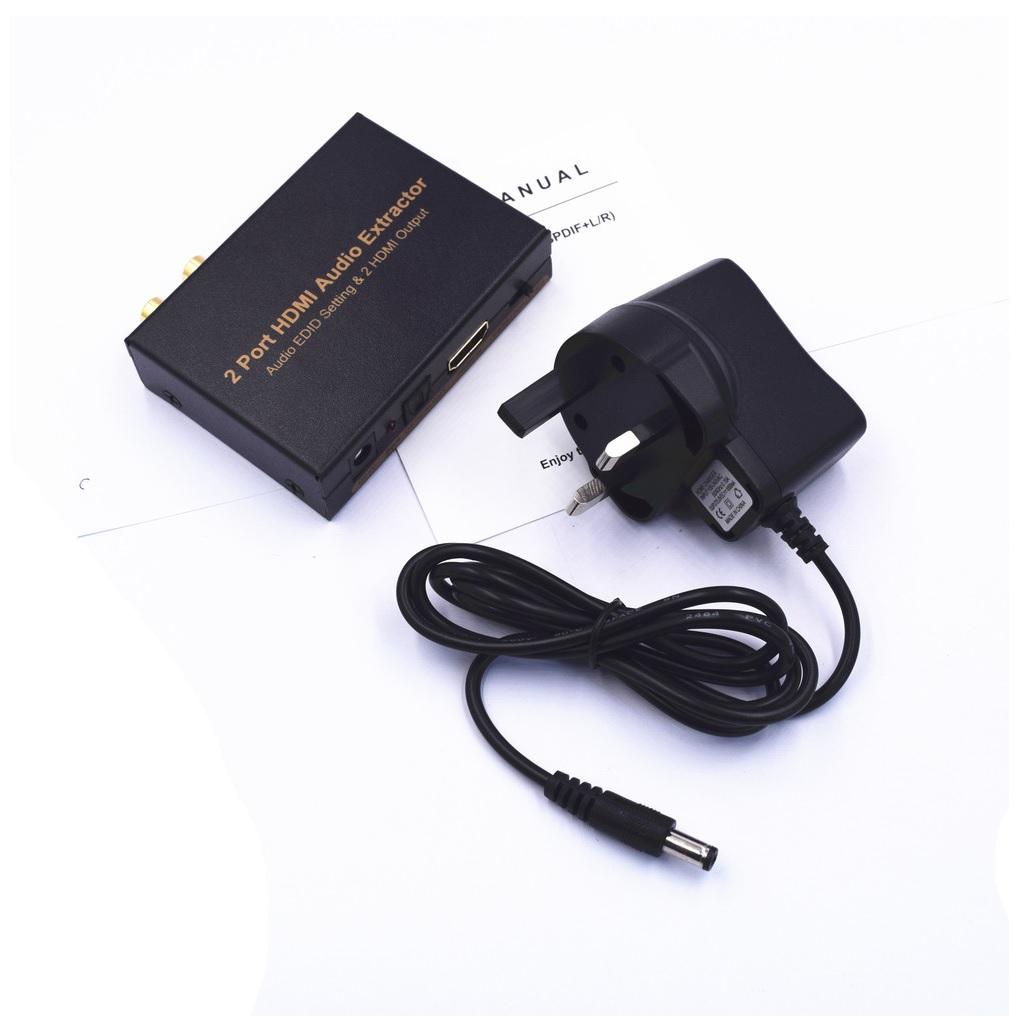

Package Includes:

1 Piece HDMI TO HDMI+Audio (SPDIF+L/R)
1 Piece DC 5V Power Adapter UK PLUG
1 Piece English User Manual
