10K Ohm 3590S-2-103L Wirewound Potentiometer Multiturn Counting Dial Rotary

Description:

Shape: round
Turns: 10 turns
Technics: wirewound
Independent linearity: ±0.25%
Resistance: 10KΩ
Resistance tolerance: ±2 ~ ±10%
Power-rating: 2W
Angle of rotation: 3600°+10°-0°
Rotational life (no load) cycles: 1,000,000
Load life: 1000 Hours
Shaft diameter: approx. 6.35mm
Storage temperature: -55℃ ~ +125℃

Specification:

Material: metal + electronic components
Heightness: 45mm

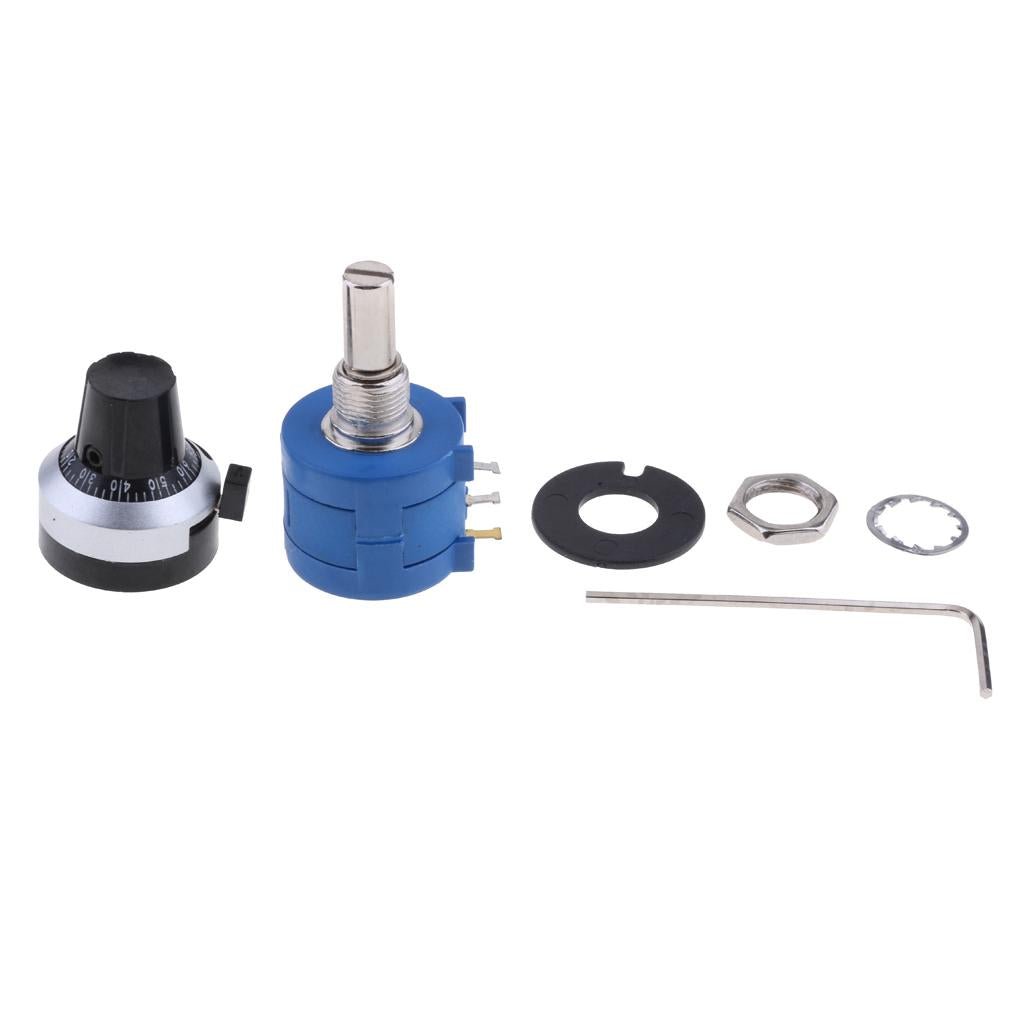

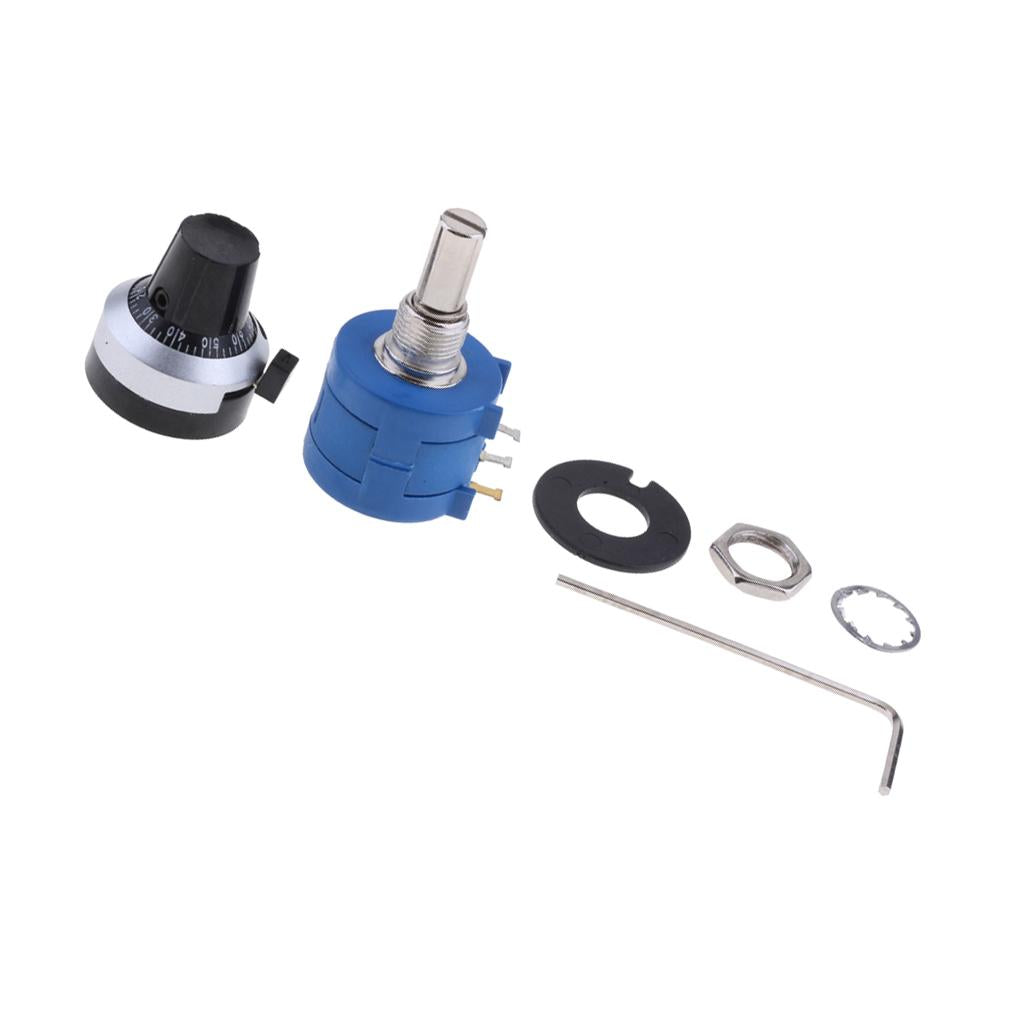

Package Includes:

1 Piece 10K Ohms potentiometer
1 Piece Turn Counting Dial
2 Piece Washer
1 Piece Nut
1 Piece Wrench

Note:

Please allow 1-2mm errors due to manual measurement
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
