12-48V 40A Learning Remote Control Switch Unit with Controller 315Mhz

Description:

40A High power Relay, wide range input of 12-48V, operates at a frequency of 315Mhz

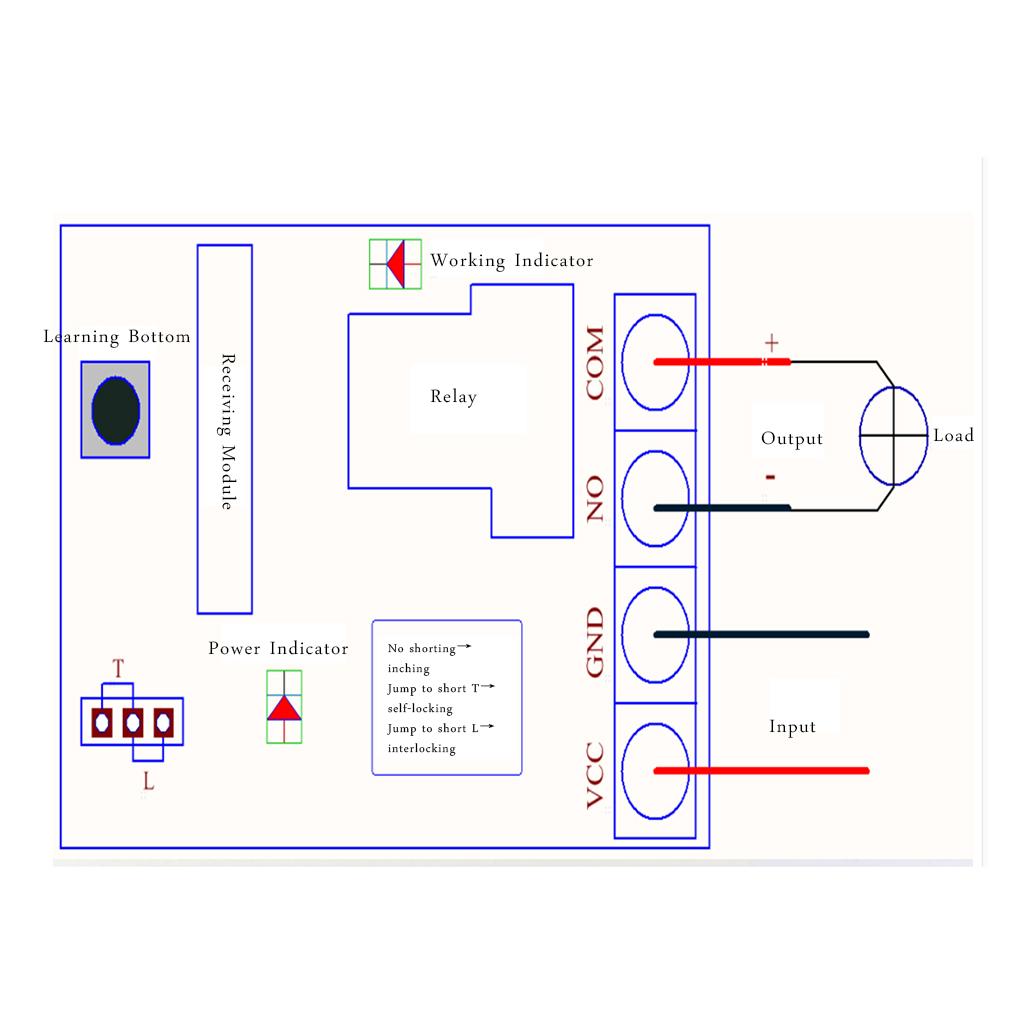

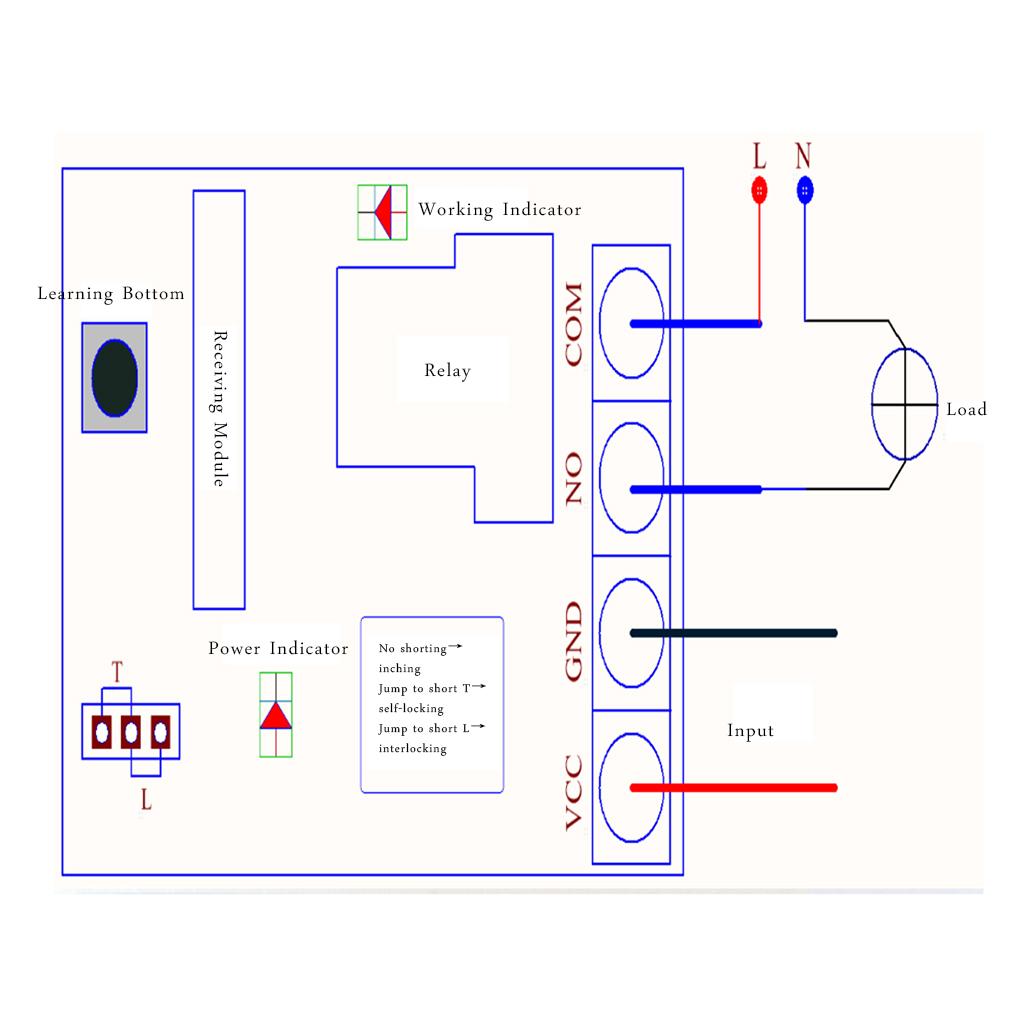

Big wiring lugs, can safely withstand high current; can work with/ without external power supply, as shown in the circuit diagrams

4000 Meters super remote distance support

Self-locking, non-locking, three output modes can be selected through the jumping on receiving circuit board

Mainly used in lamps, garages, electric doors, windows, lifting equipment, motor control, water pumps, gateways, lifts, industrial control and security industries

Specification:

Working voltage: 12V - 48V

Maximum load: 40A

Receiving frequency: 315MHz

Working temperature: -20 ° C ~ +60 ° C

Press the learning button then the indicator light will automatically go out. Then release the learning button, press any button on the remote control, the indicator light flashes for 5 times and keeps on, indicating that the learning is successful.
How to clear the learning code:
Press and hold the learning button for about 8 seconds. The indicator will turn on and turn off, then keep on, indicating that the sweeping is successful.

Package Includes:

1 Piece Switch

1 Piece Controller

Note:

All items are tested before shipment to ensure there are no quality issues.
