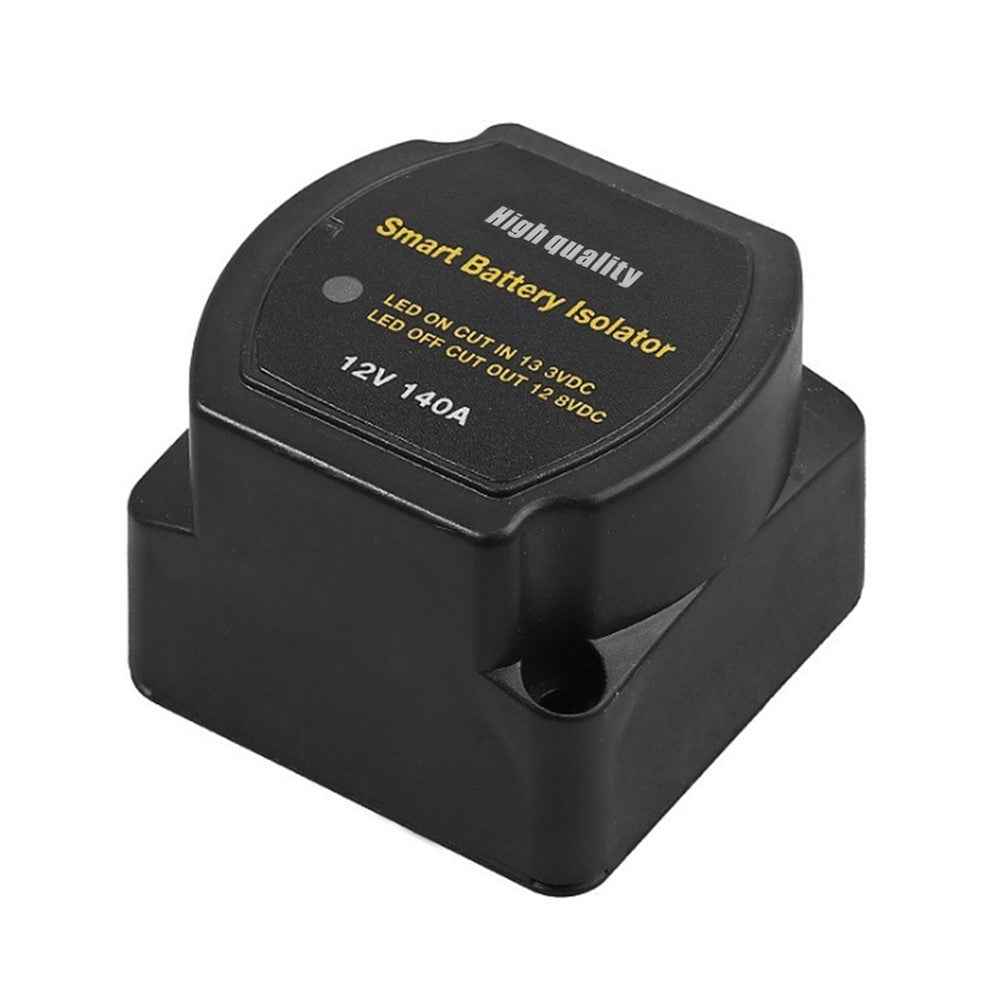

12V 24V Power Smart Dual Battery Isolator Voltage Sensitive Relay for RV Marine Car Vehicles RV Truck

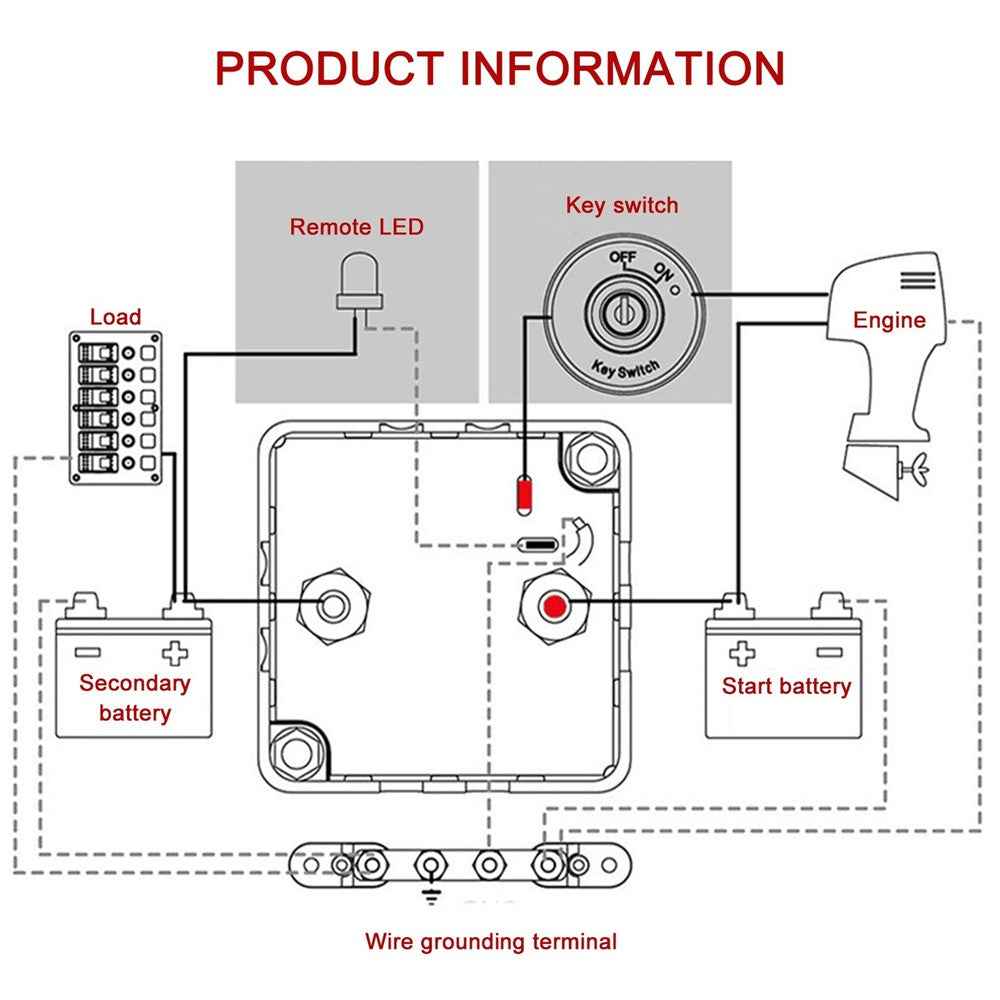

• It is used when two batteries are used in a car yacht, suitable for current between 100-120A, instantaneous maximum current 125A
• When the battery power is low, disconnect the auxiliary battery, first ensure the main battery is charging and work
• After the main battery is full, automatically charging the auxiliary battery does not affect the power supply of electric equipment
• When not charged automatically cut off the connection of the main and auxiliary batteries do not worry about the lack of power can not start the engine
• These battery isolators are small and suitable for almost anywhere, for ATV, UTV, Boats, RV's marine vehicle, trucks, caravan

Specifications:

• Material: plastic
• Continuous current: 80-100A
• Instantaneous current: 125A
• Current consumption-charging: 240mA
• Current consumption-standby: 8mA
• Disengagement delay: 5-10 seconds
• Recommended fuse: 80Amp
• Power stud: M6 copper screw nut
