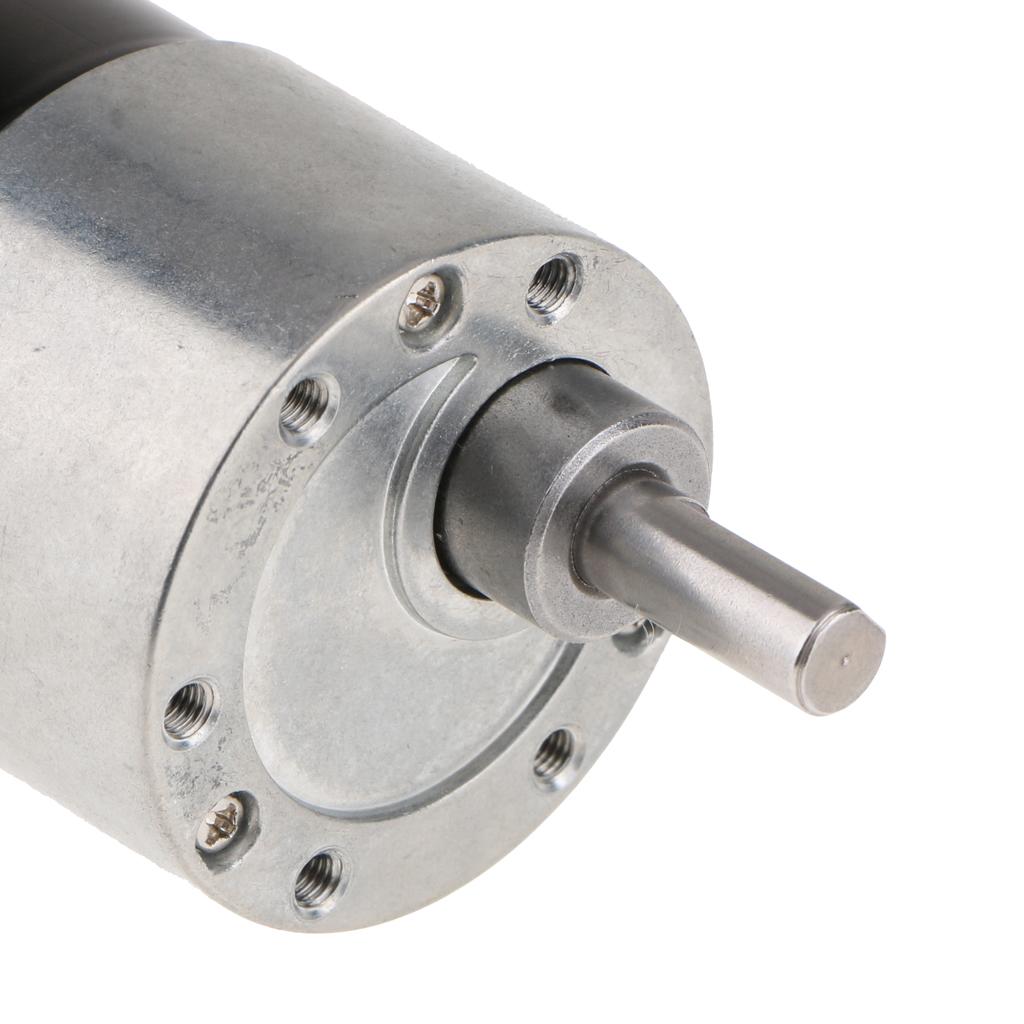

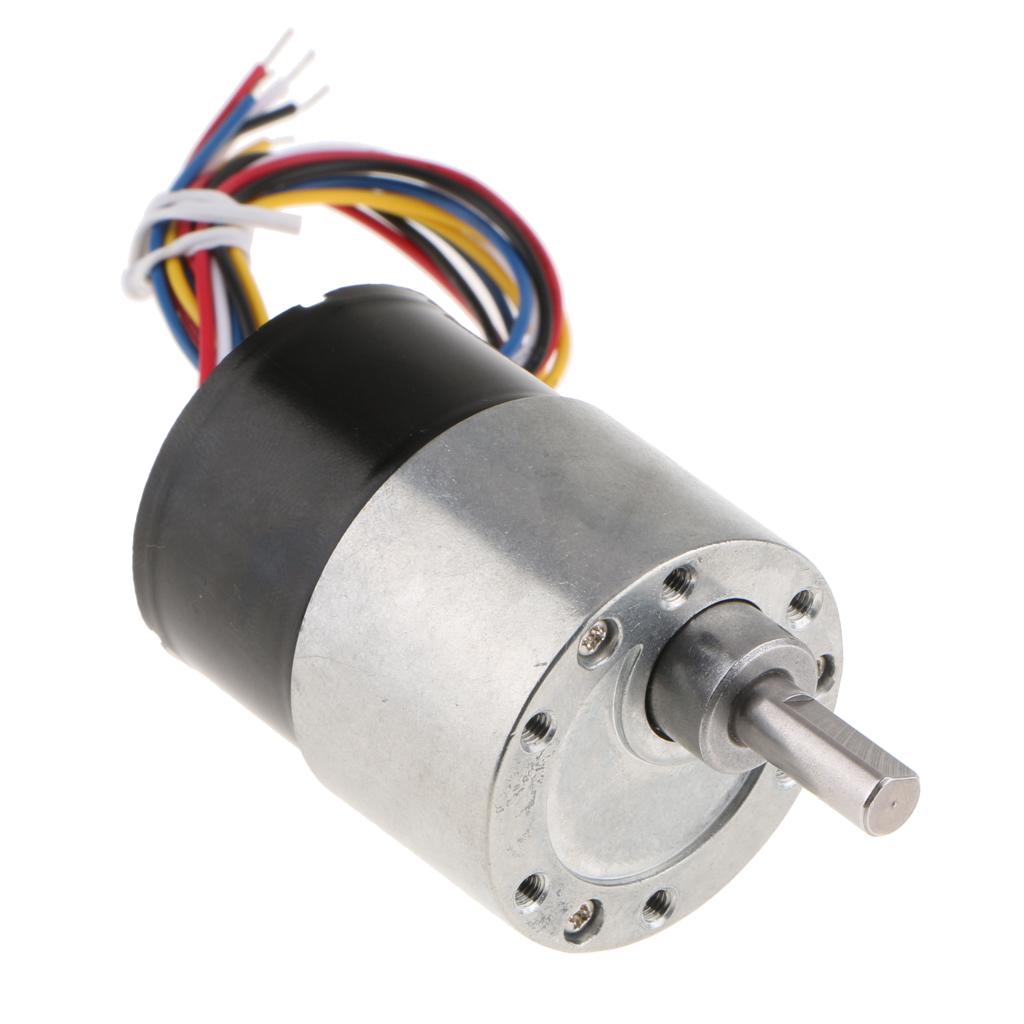

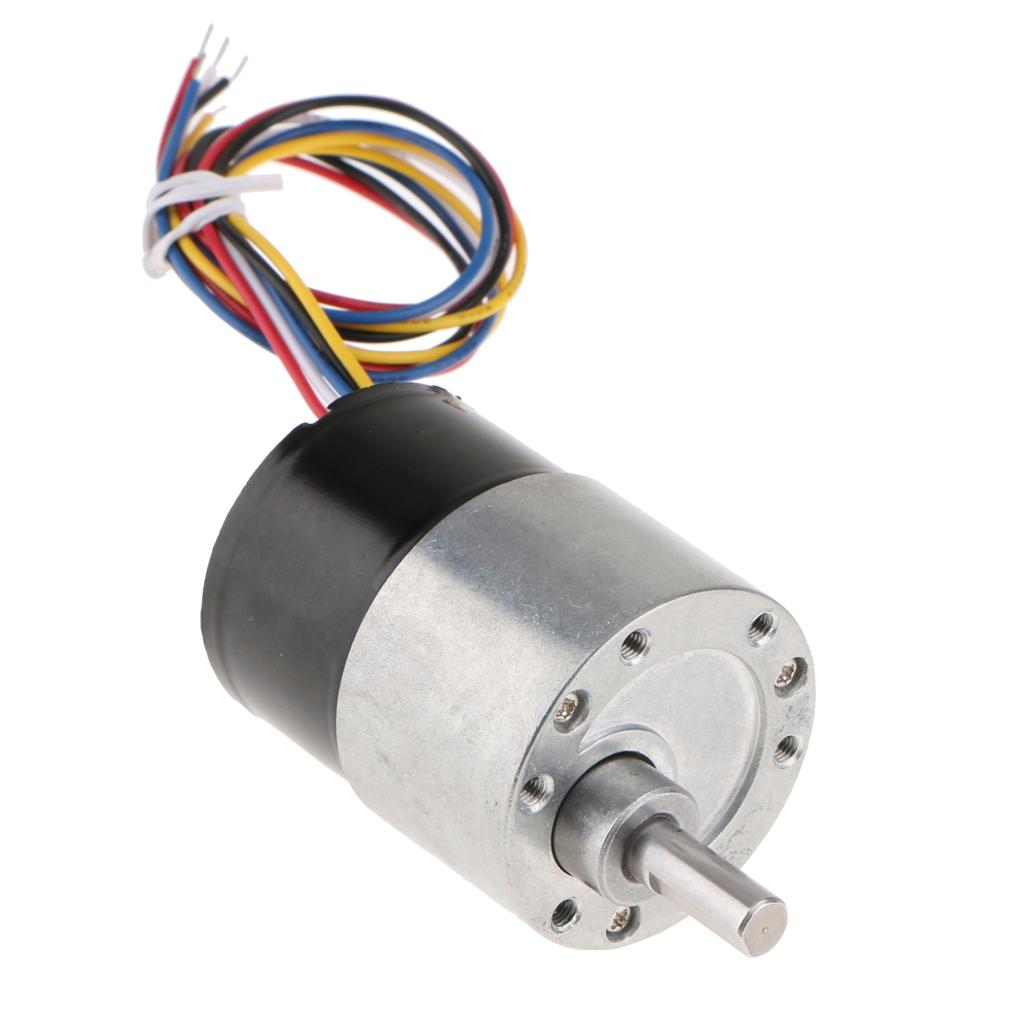

12V DC Mini Brushless Gear Motor Speed Reduction Gearbox 66rpm

Description:

DC12V brushless gear motor, stable and reliable performance.
Good for DIY engine, electric devices, household appliances and electrombile, etc.
Solidly construction and ready to install in numerous applications.
Size(Diameter x Length): 36 x 67mm; Shaft length: 15mm.

Specification:

Material: Alloy
Working Voltage: DC12V
Rotate Speed: 66rpm

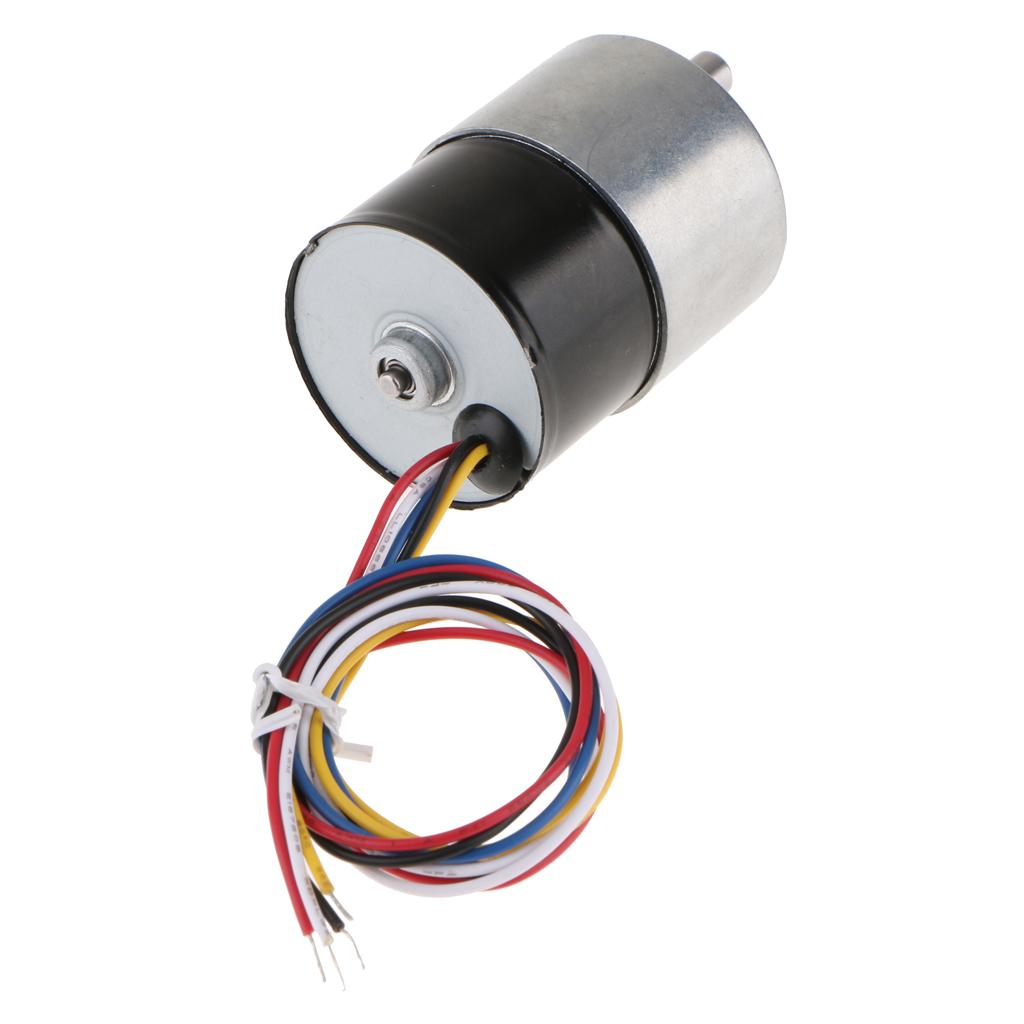

Wiring Method:
Red → connect to positive pole (Do not connect the positive and negative pole reversely)
Black → connect to negative pole (Do not connect the positive and negative pole reversely)
Yellow → FG signal wire
White → CW/CCW control line. Connecting it to the negative pole with black line to change the motor rotation
Blue → PWM speed control line, connect to 0~5V pulse width speed controller

Package Includes:

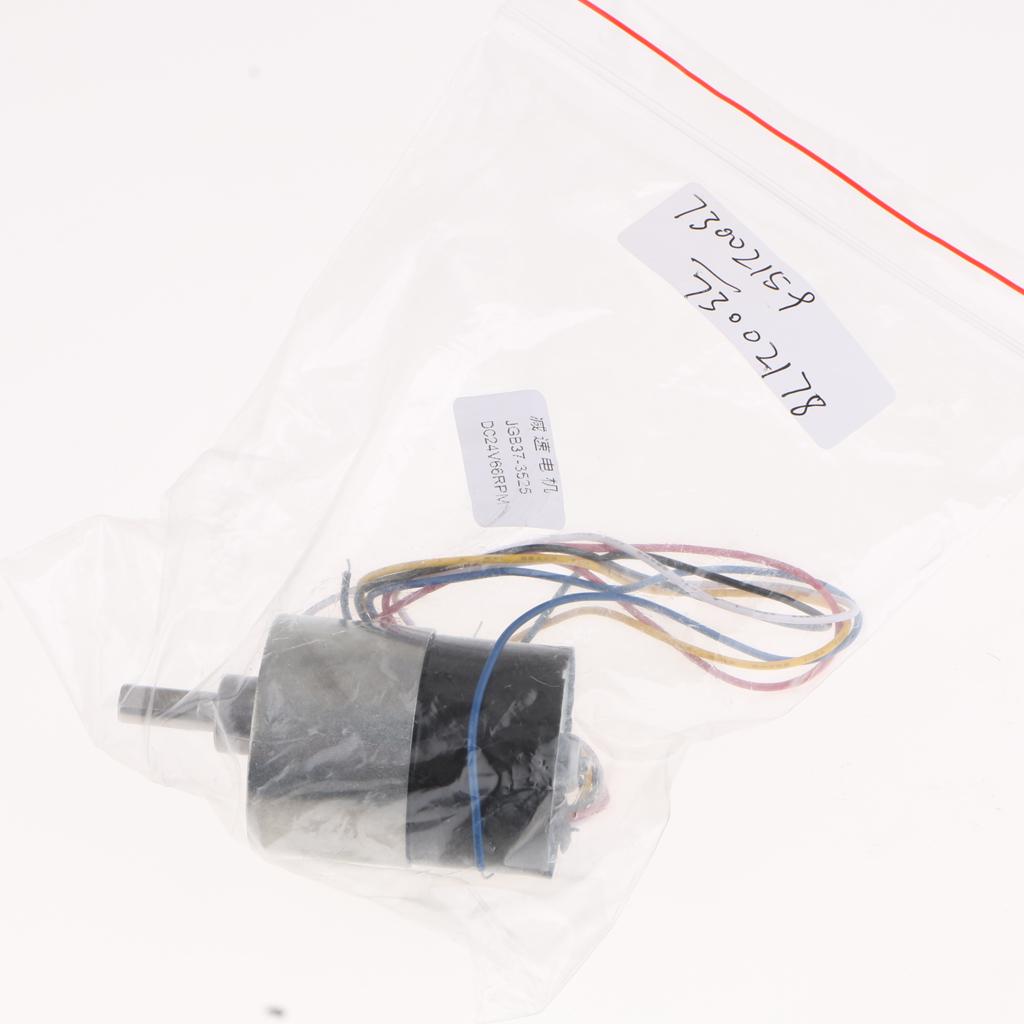

1 Piece DC Brushless Gear Motor
