Description:

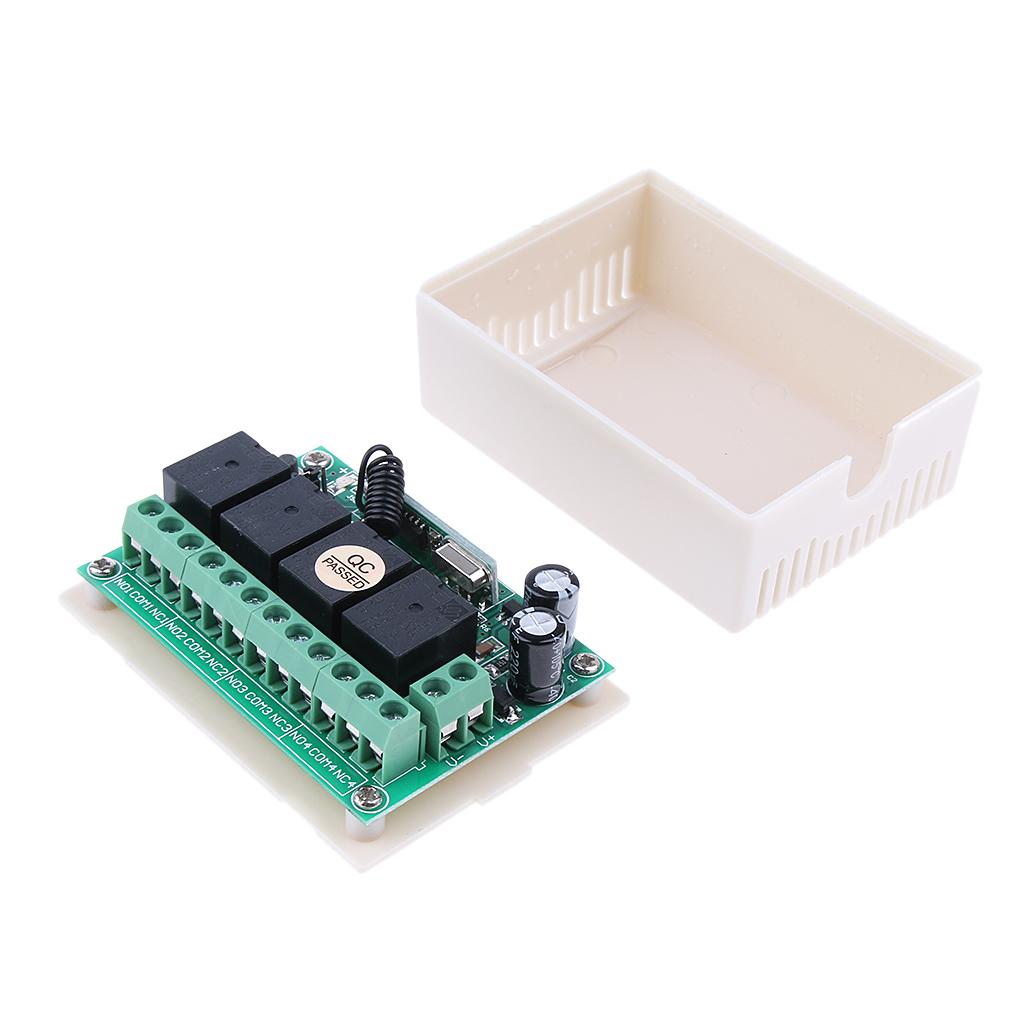

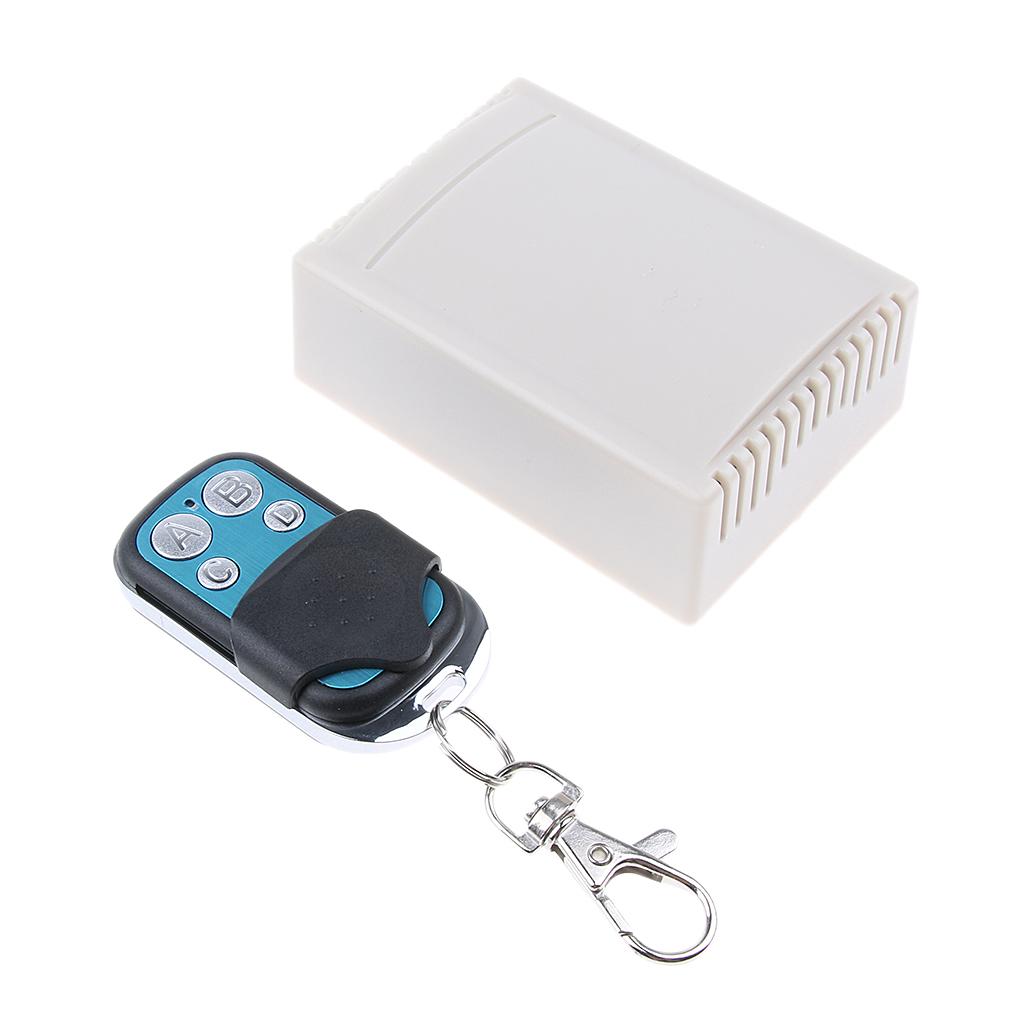

Four-input way wireless remote control switch receiver

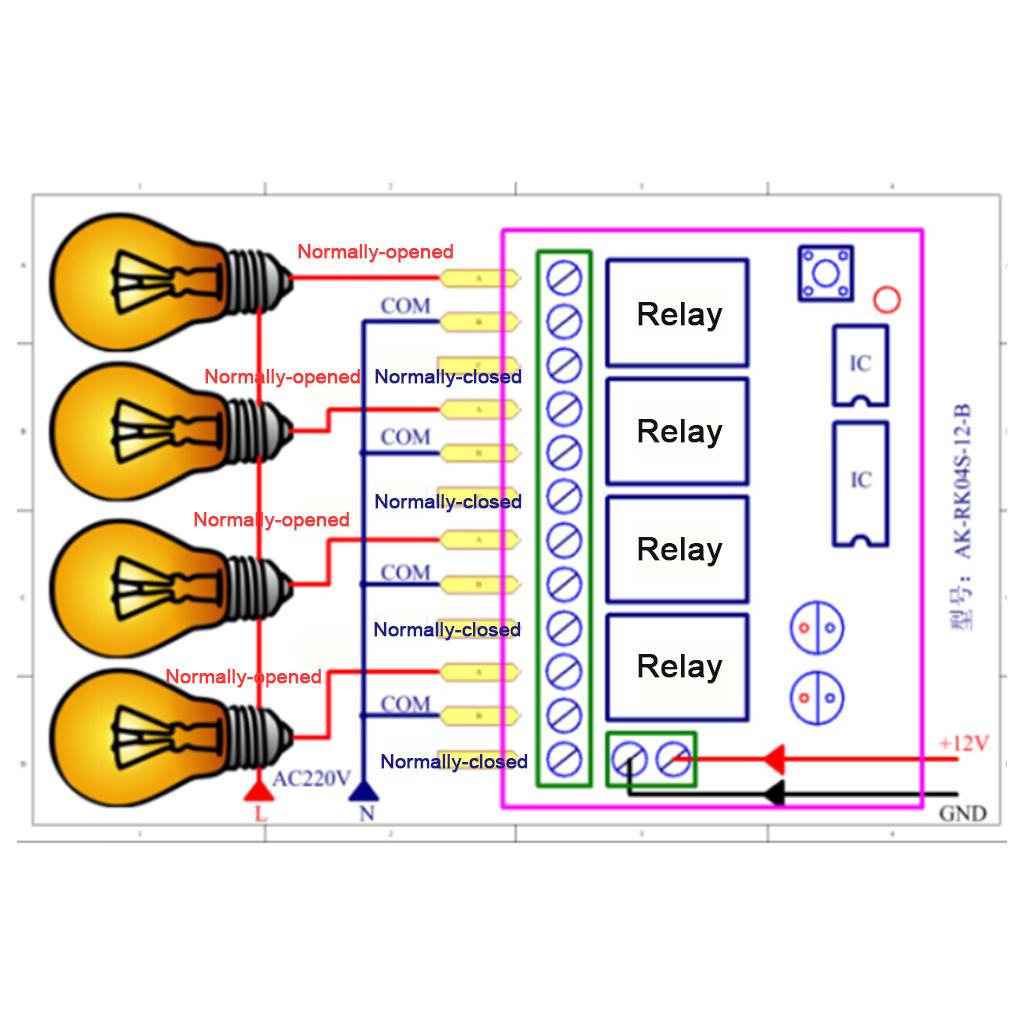

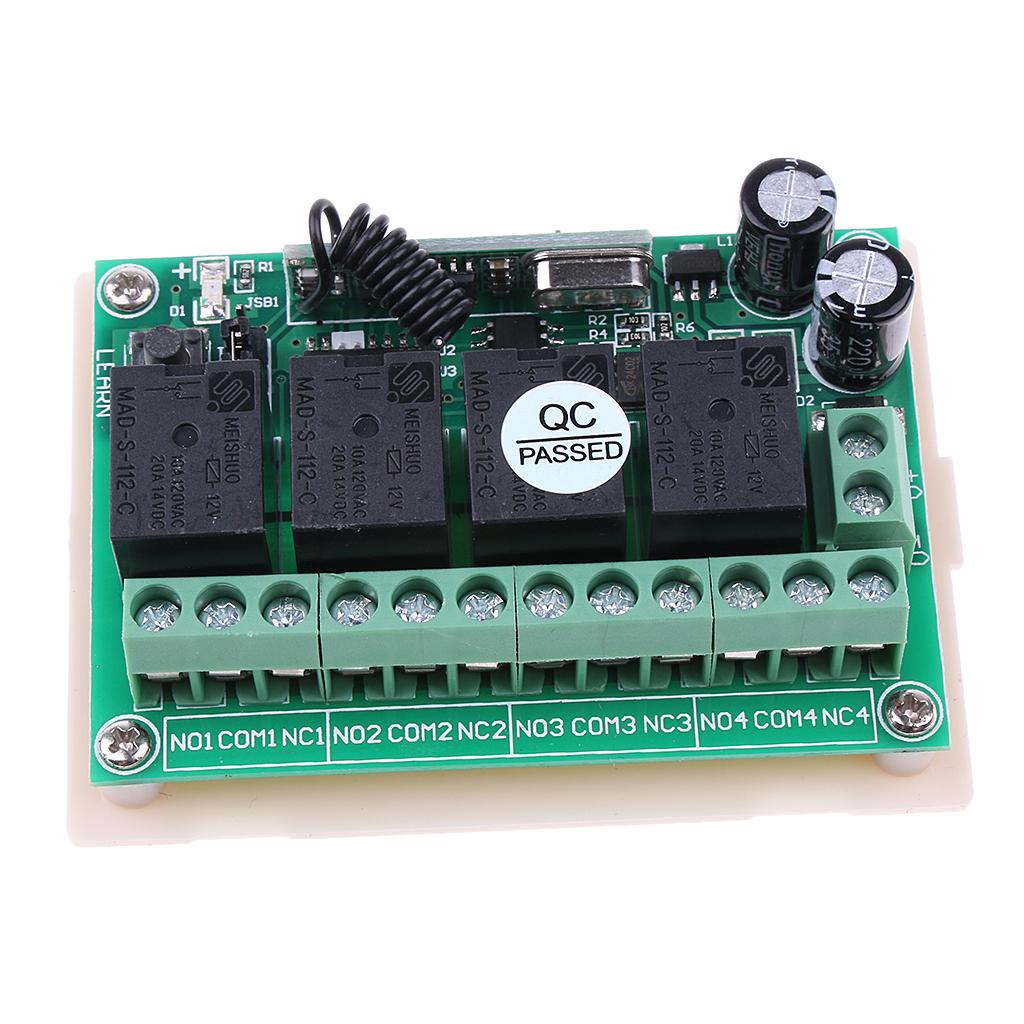

The four relays each provide a pair of normally-opened and normally-closed independent contacts, and operates at a frequency of 433Mhz
Self-locking, non-locking, three output modes can be selected through the jumping on receiving circuit board
Mainly used in lamps, garages, electric doors, windows, lifting equipment, motor control, water pumps, gateways, lifts, industrial control and security industries
Can learn 12 fixed codes, come with detailed instructions and circuit diagrams for customer's convenience
Specification:
Working voltage: DC 12V
Quiescent current: ≤10mA
Remote control distance: 20-200 meters or more
Receiving frequency: 433MHz
Receive sensitivity: -105dB
Contact type: relay normally open normally closed passive contact
Contact capacity: ≤3A

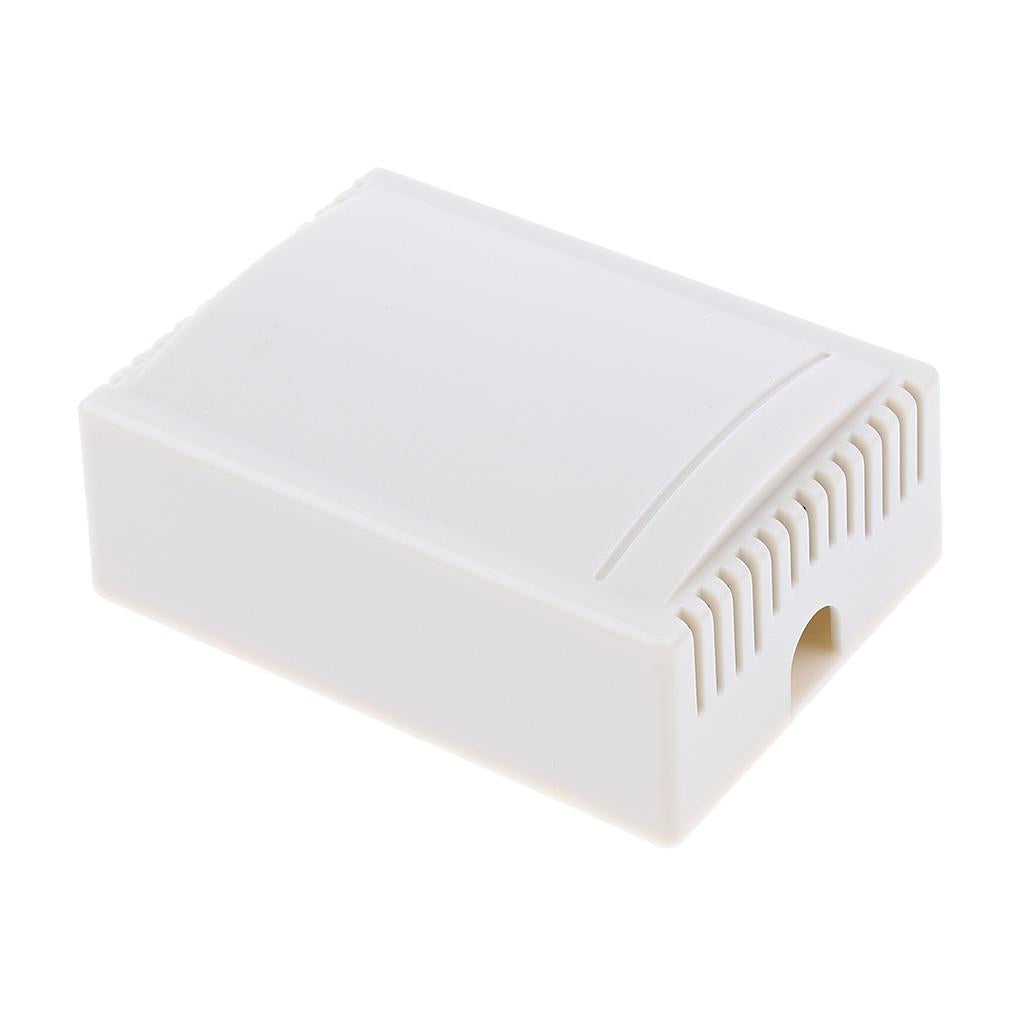

Size: about 72 × 48 × 22mm

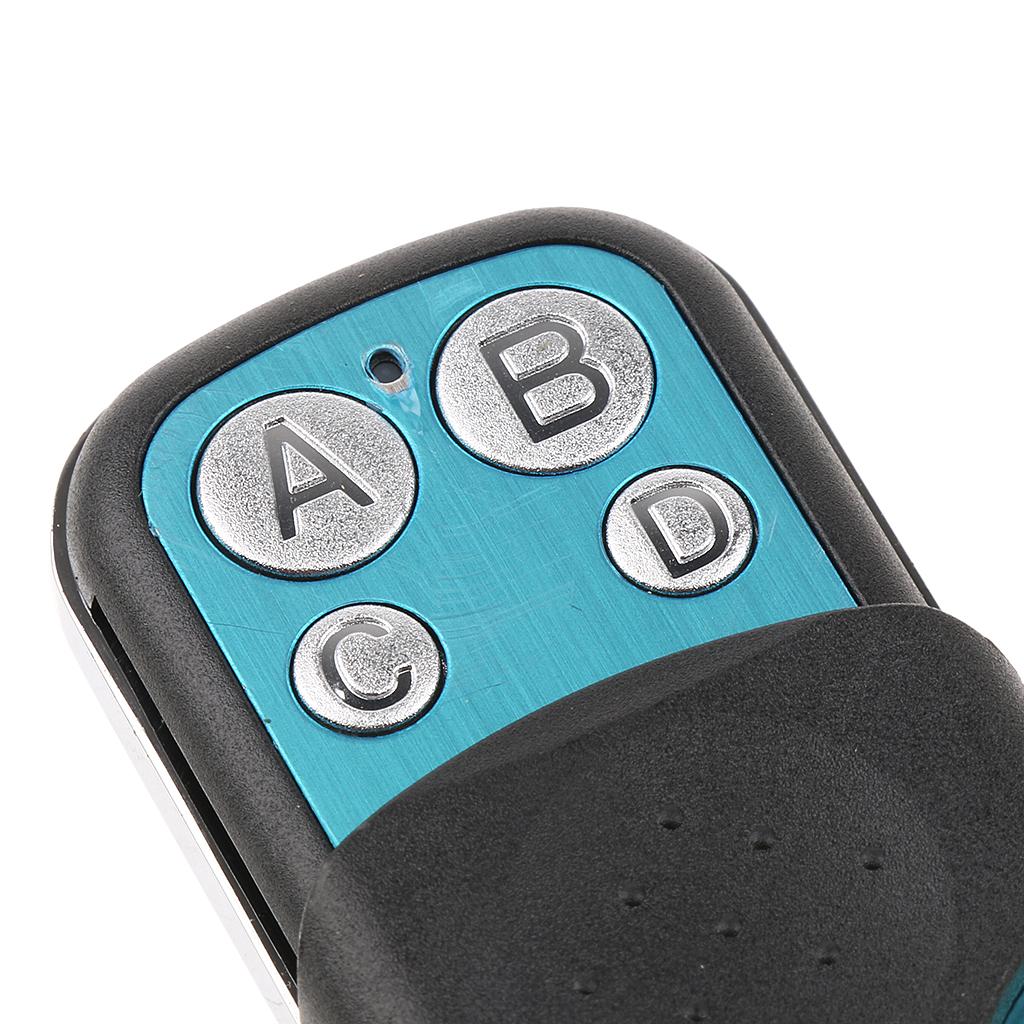

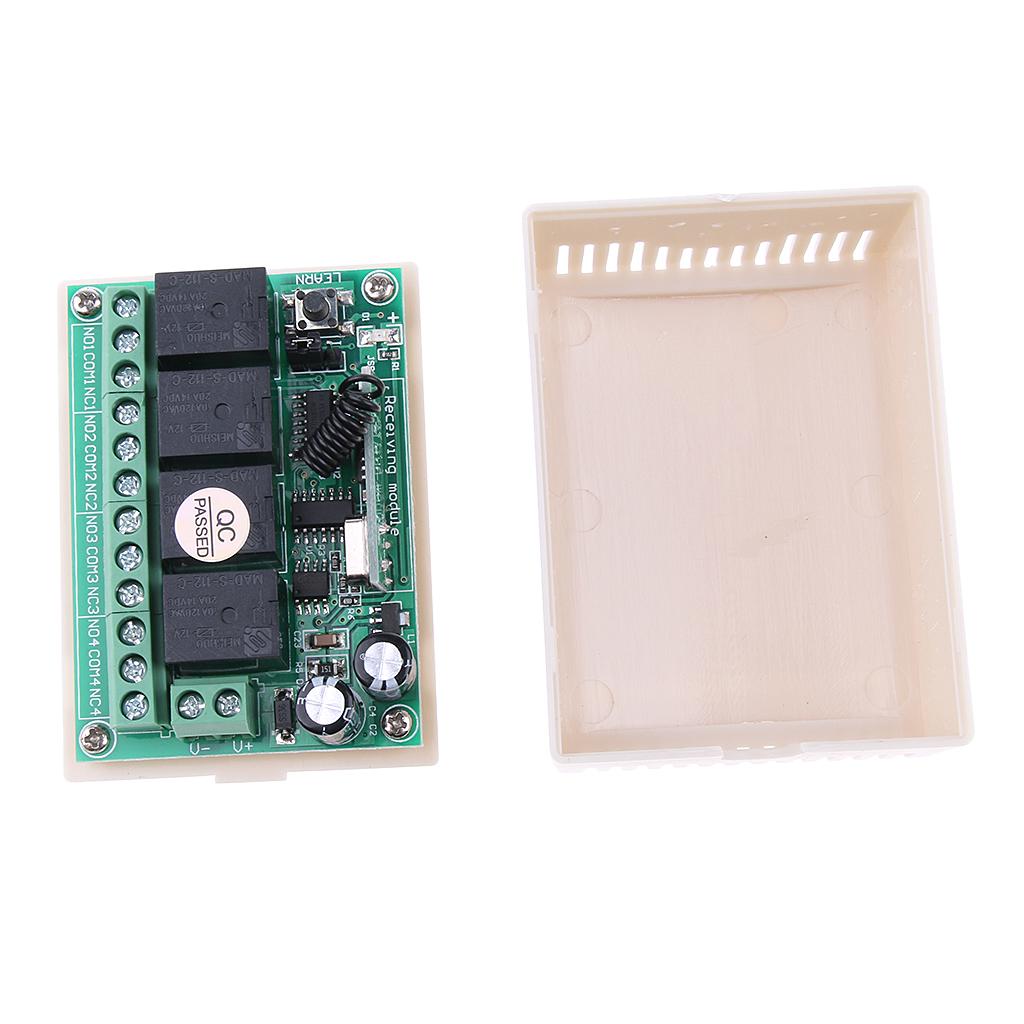

Press the learning button then the indicator light will automatically go out. Then release the learning button, press any button on the remote control, the indicator light flashes for 5 times, indicating that the learning is successful.
How to clear the learning code:
Press and hold the learning button for about 8 seconds. The indicator will turn off and return to be on, indicating that the sweeping is successful.

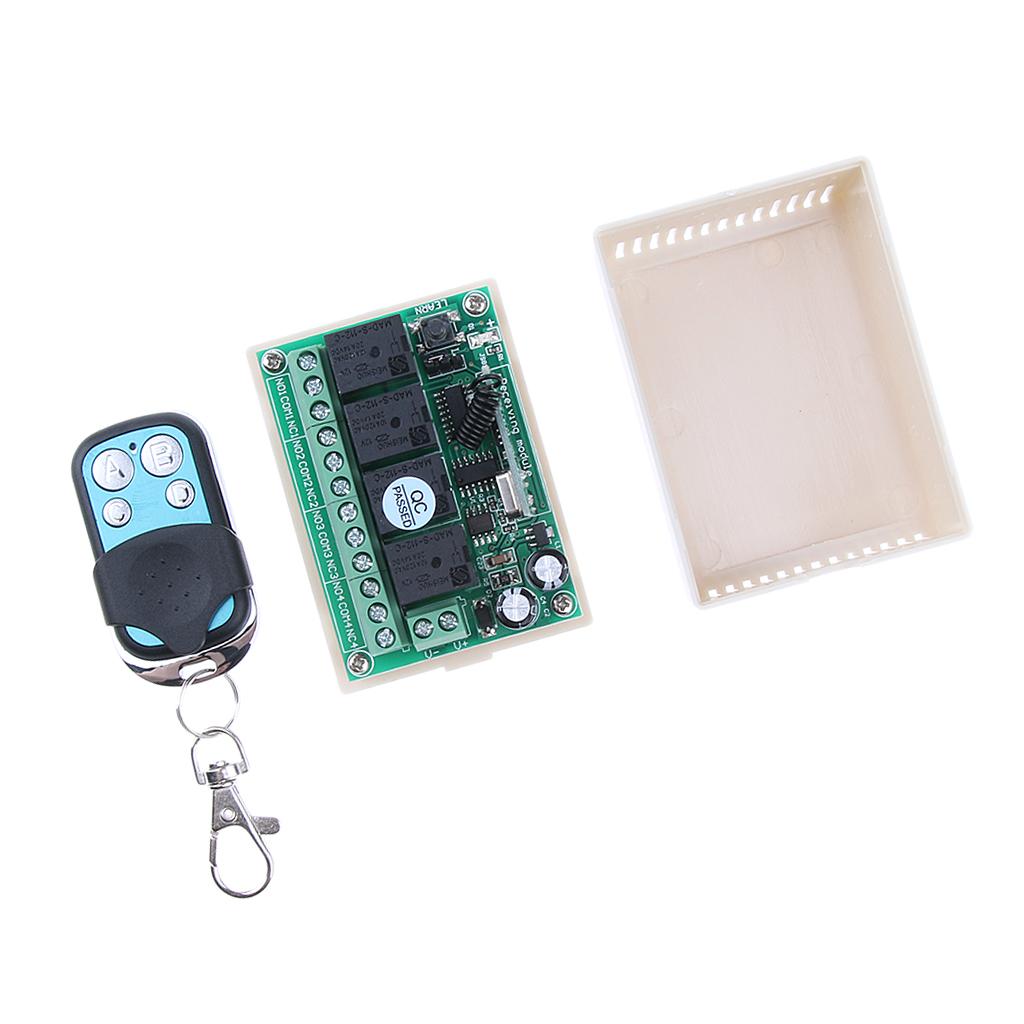

Package Includes:
1 Piece Switch
1 Piece Controller
Note:
All items are tested before shipment to ensure there are no quality issues.
