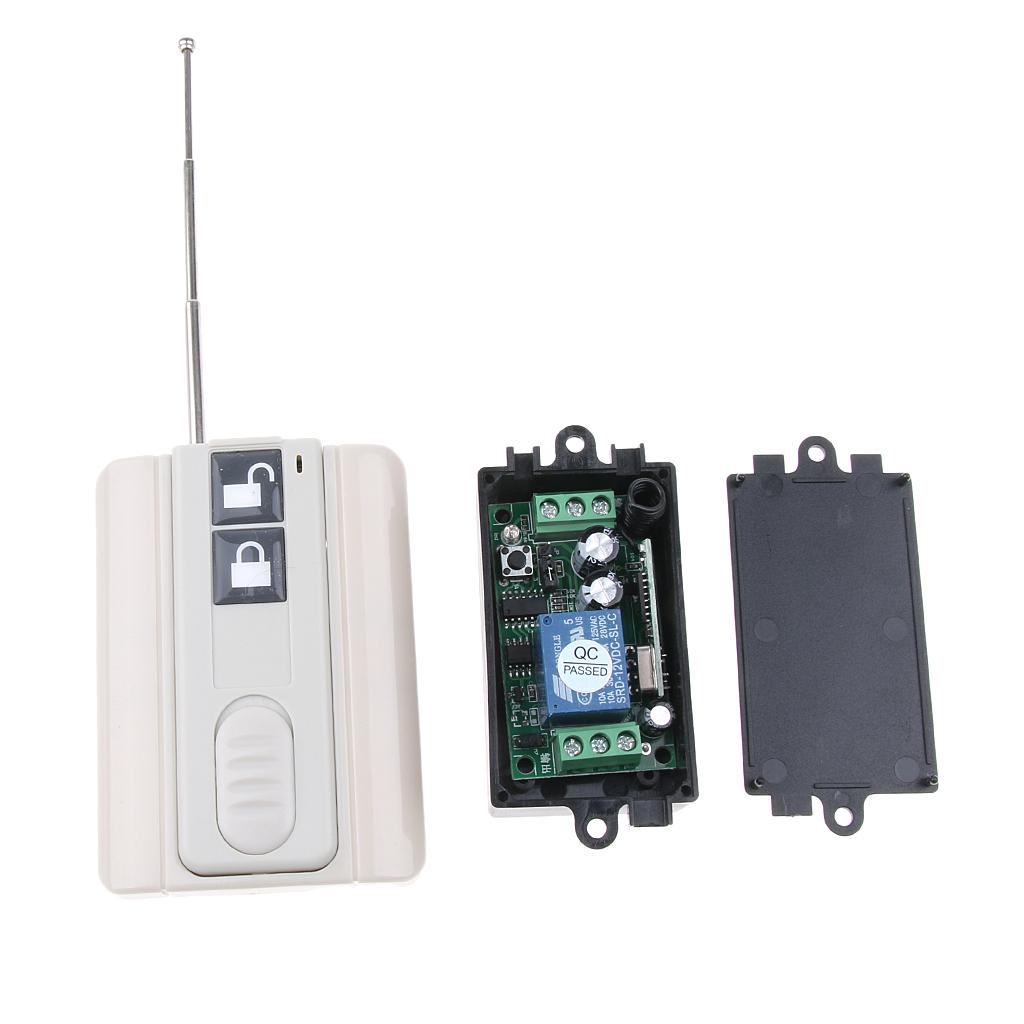

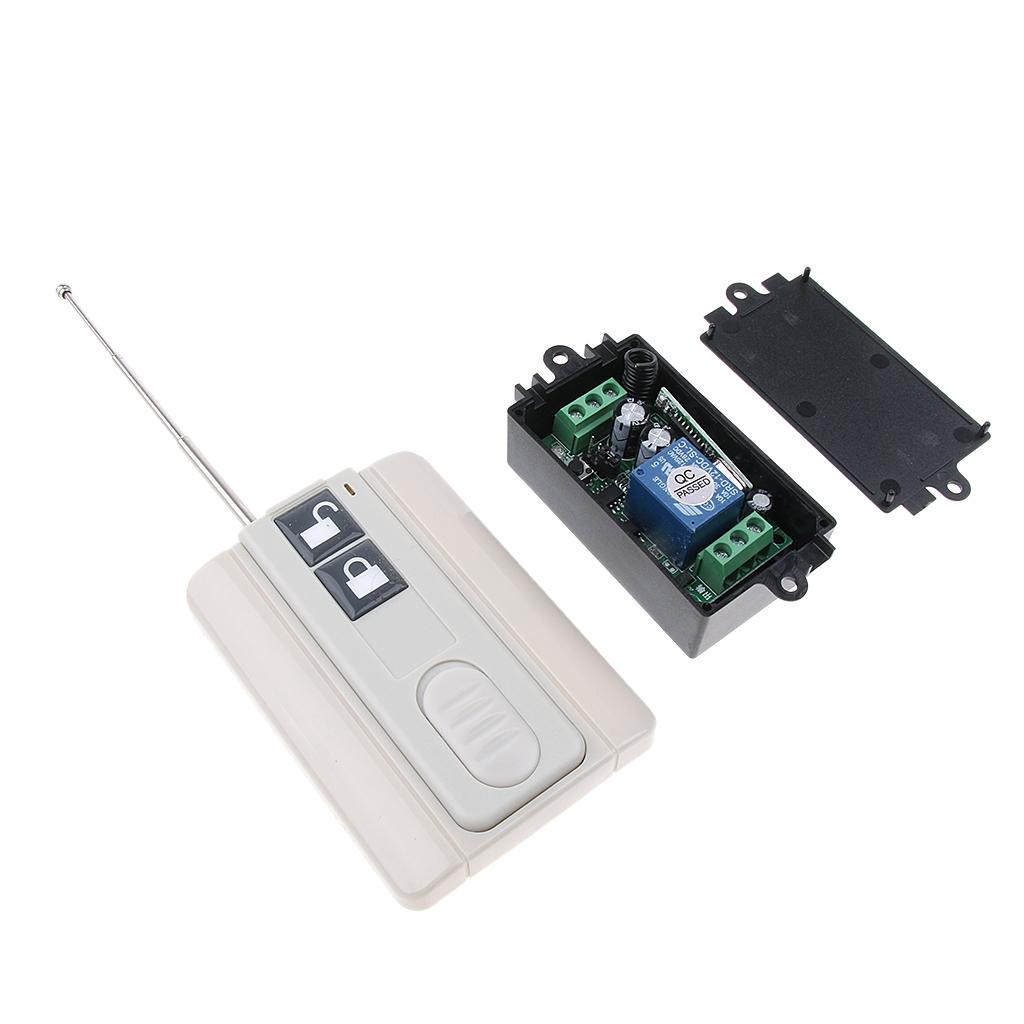

12V Learning Remote Control Switch Unit with 2-Bottom Controller 433Mhz

Description:

Intelligent microprocessor control for garage door control, lighting control, remote control curtains, access control systems and various automation control systems
Small size, easy to install, safe and reliable

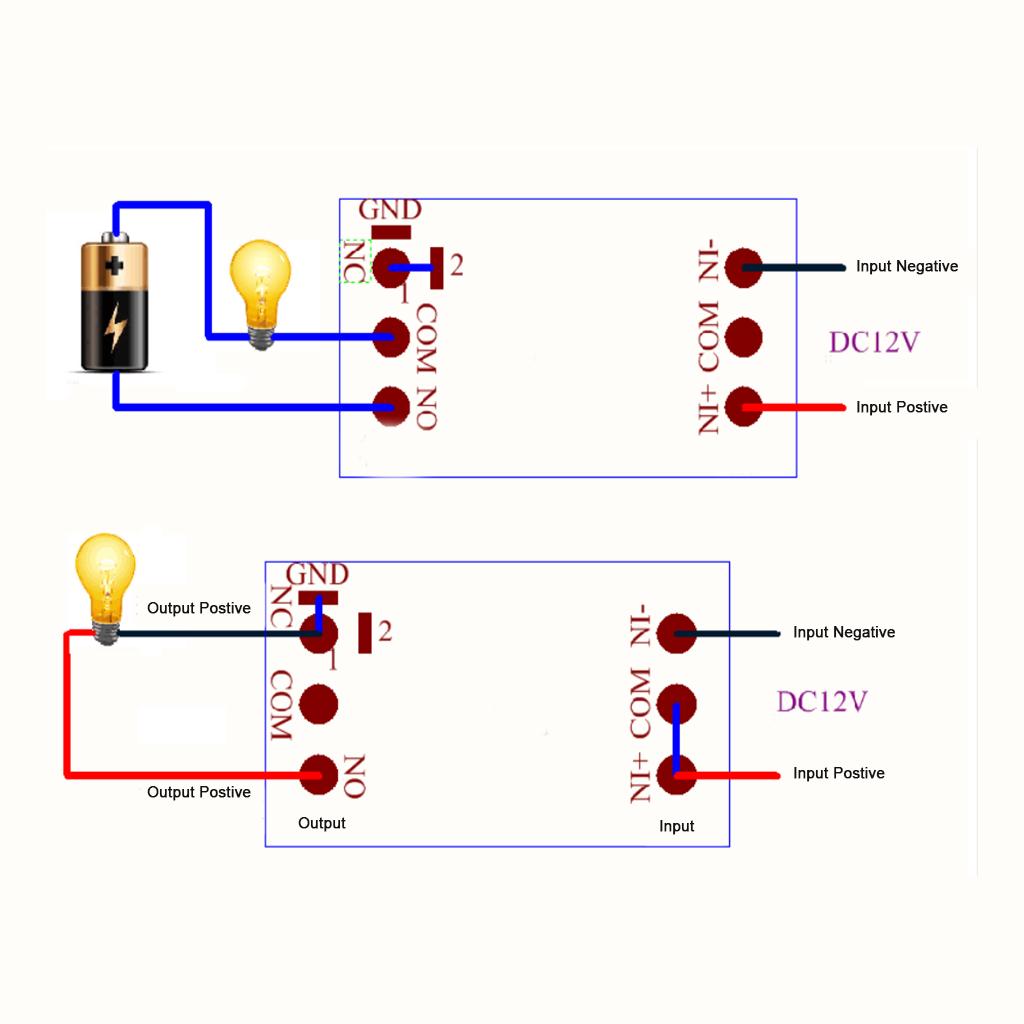

Has two wiring methods, as shown in the pictures
Can learn 16 fixed codes and come with detailed instructions
Provides circuit diagrams for customer's convenience

Specification:

Working voltage: DC12V
Static working current: ≤10mA
Working temperature: -40 ° C - + 80 ° C
Receive sensitivity: ≥-95dB
Working frequency: 433MHZ
Output current: ≤10A
Working mode: jumping, inching (start-stop), self-locking, (adjustable)
Size: 55 x 32 x 16mm

After the controller is powered on, the indicator light turns on, then press and hold the learning button for 2 to 3 seconds, the indicator light will automatically go out. Then release the learning button, press any button on the remote control, the indicator light flashes for 5 times, indicating that the learning is successful.
Note: This controller can learn 16 fixed codes of different codes and arbitrary buttons. If it exceeds 16 codes, it will clear the earliest learned fixed code.
How to clear the learning code:
Press and hold the learning button for about 8 seconds. The indicator will turn off and return to be on,indicating that the sweeping is successful.

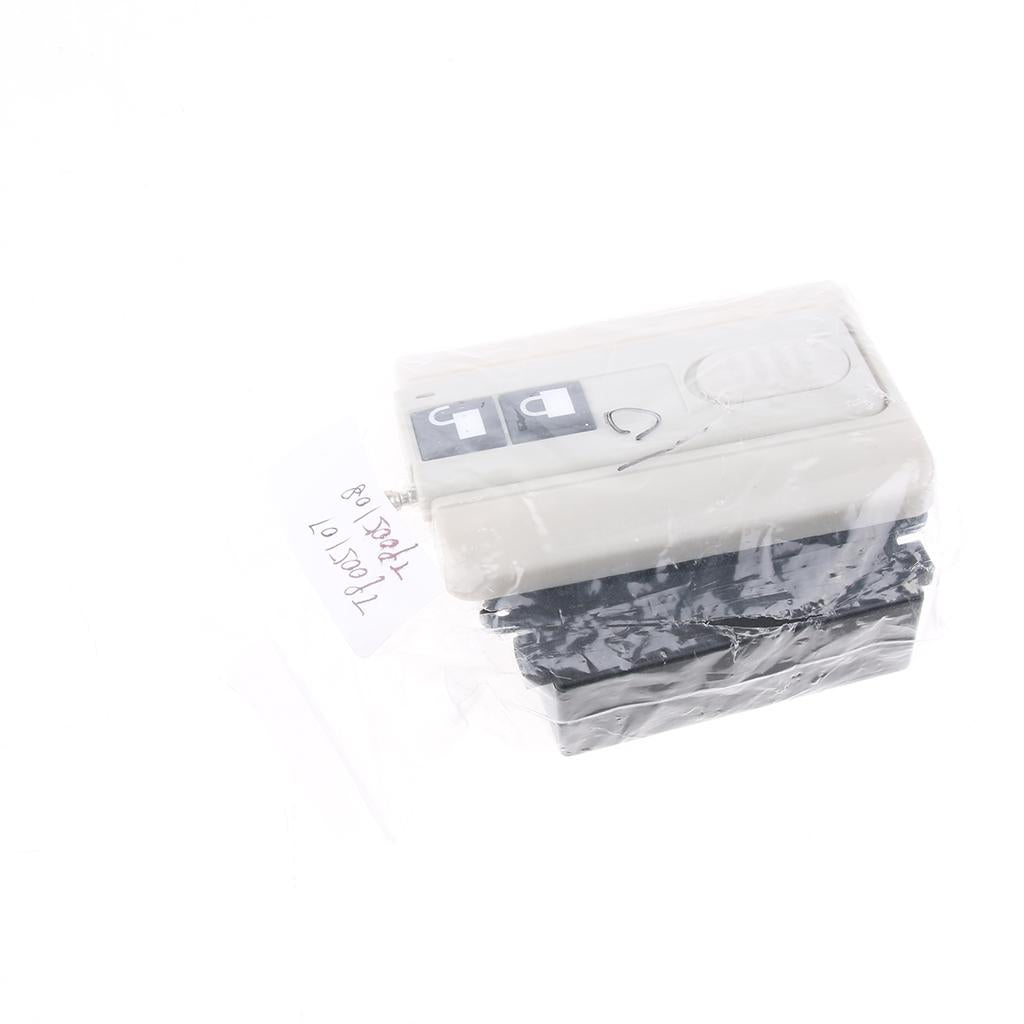

Package Includes:

1 Piece Switch

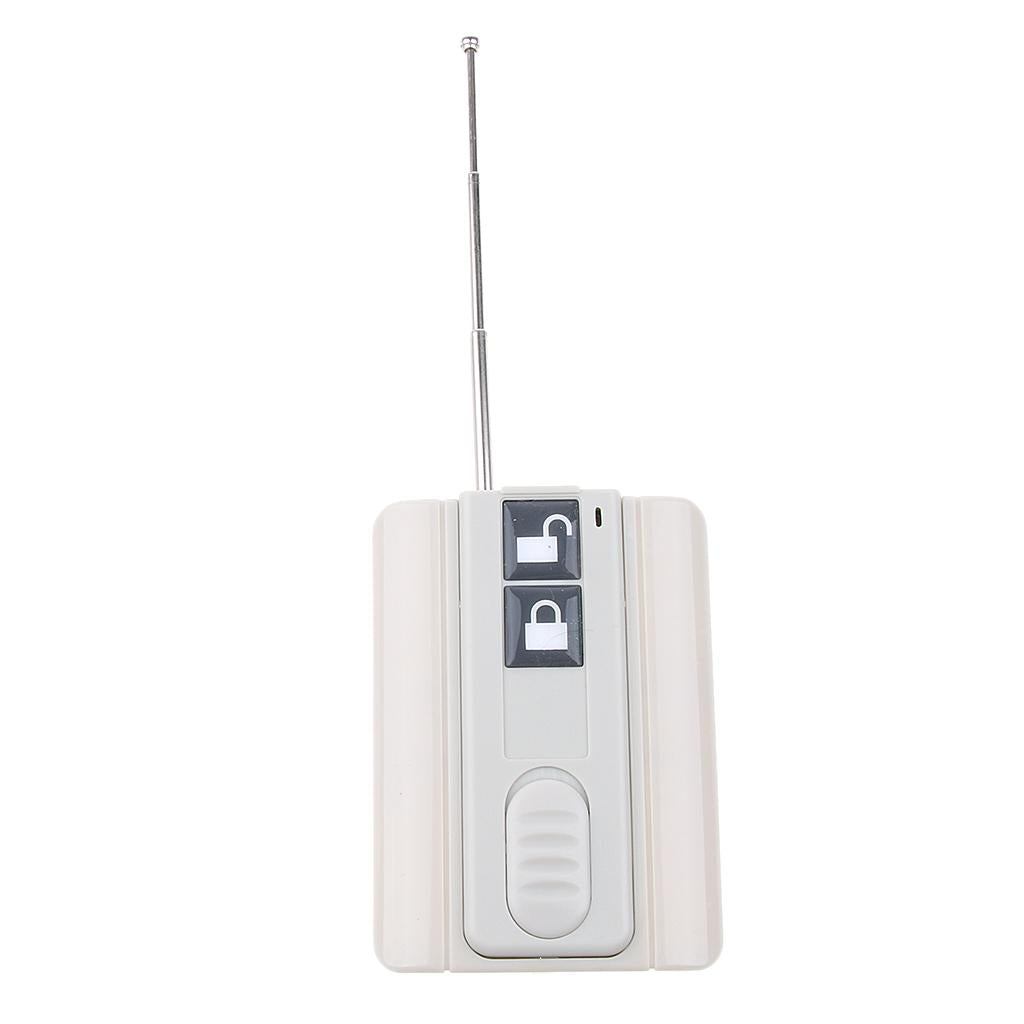

1 Piece Controller

Note:

Item is tested before shipping.
