1500W 30A Boost DC-DC Converter Controller Step-Up Converter - 1500W

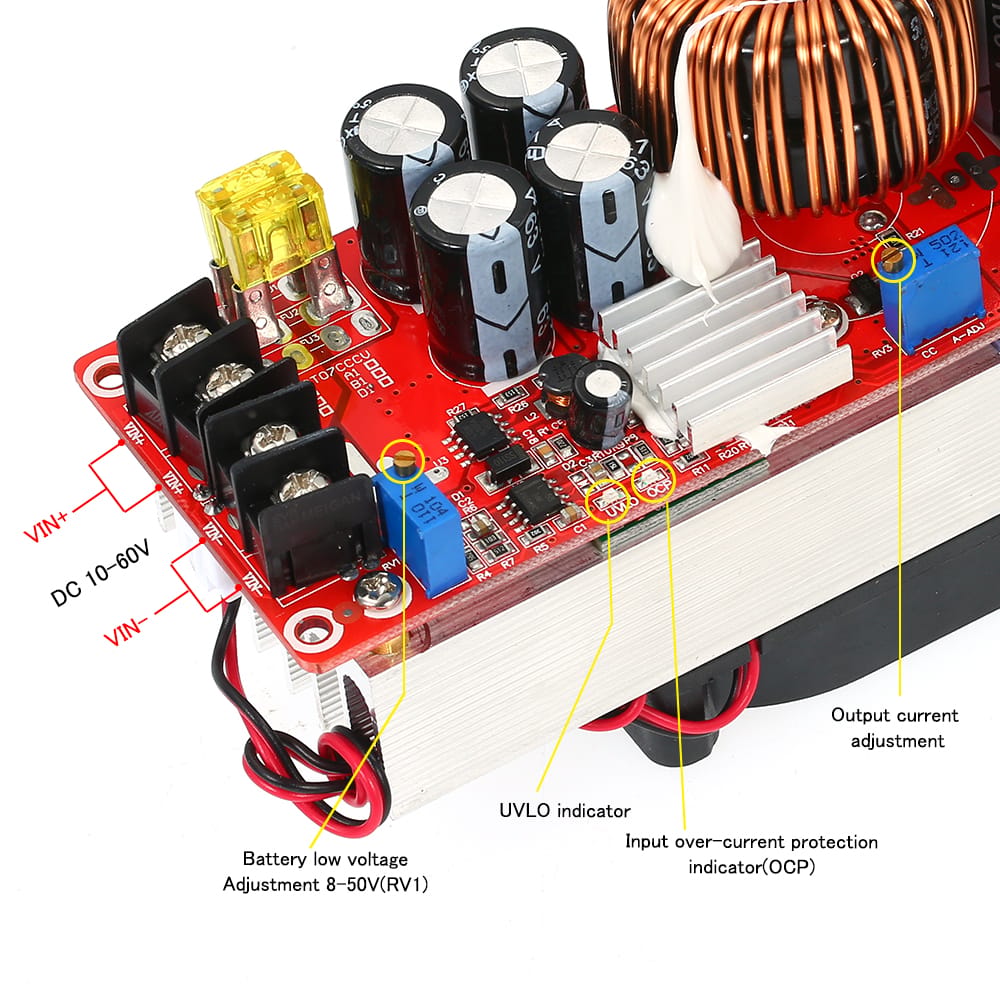

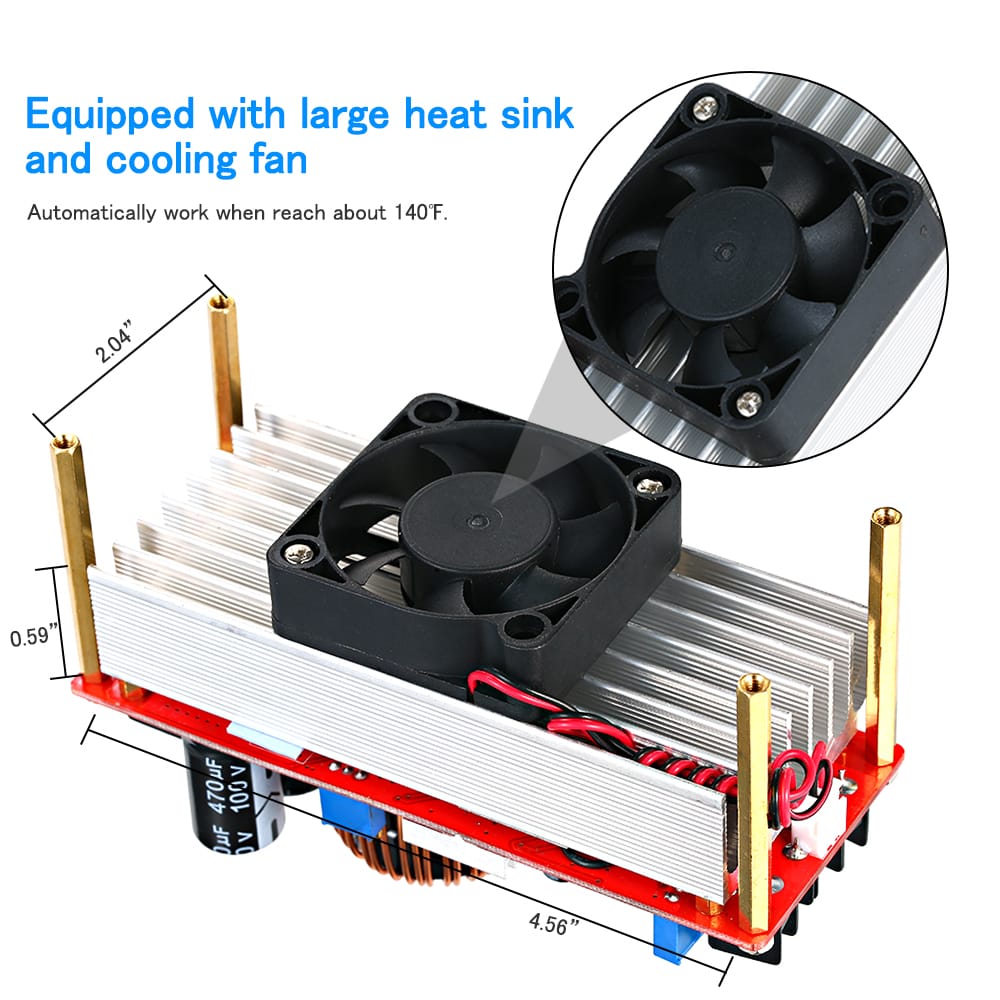

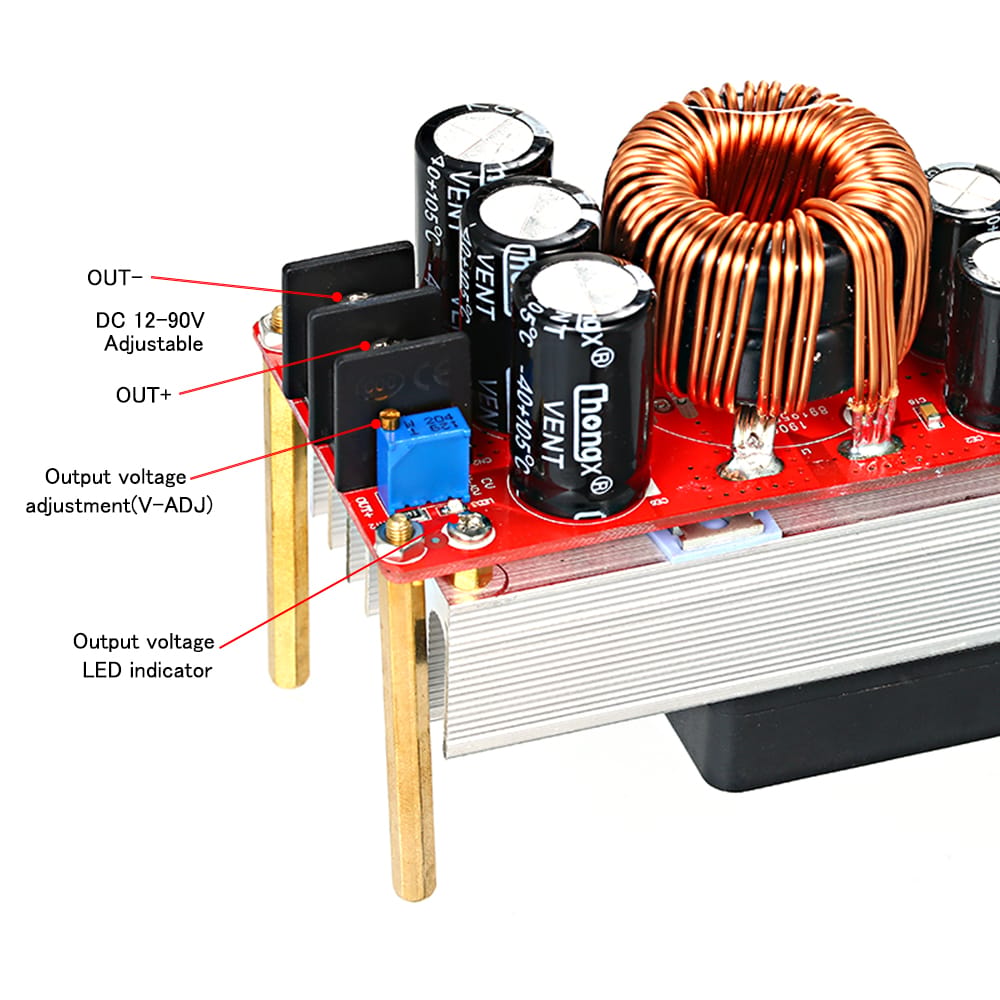

Features:Max. 1500W high output power with constant current and voltage mode which can be used for charging battery boosting accumulator car and more.Support wide input voltage from DC 10V to 60V and continuously adjustable output voltage from 12V to 90V.Equipped with large heat sink(4.562.040.59in) and temperature controlled fan which will automatically work when reaches about 60?/140?.Multi-Protection: (Input Over Current Protection) automatically protect when input is more than 35A and power supply voltage will not increase; (Short Circuit Protection) (fuse 30A) please operate carefully try not to cause short circuit.Reverse Input Protection Input Low Voltage Protection: 150A power MOS reverse protection; adjustable 10V-50V self-recovery.Specifications:Material: Copper+MetalType: Non-isolated step-up module (BOOST)Working frequency: 150KHzWorking temperature: -40~+85???/ -40~+185???Conversion efficiency: 92%-97%Wiring Method: Terminal blocks (Please use large current copper wire)Input Voltage: DC10V-60VOutput Voltage: Continuously Adjustable DC12V-90V (Default 19V)Input Current: Max. 30A(10-30V input); Max. 25A(31-60V input)Output Current: Max. 20A (Please strengthen the cooling when over 15A)Constant current range: 0.8-20A ( 0.3A)Output power=input voltage * input current (If input 12V the max output power=12V*30A = 360W)Item Size: 13*5.2*8.4cm / 5.11*2.04*3.3inPackage Size: 15*10*8cm / 5.9*3.93*3.14inItem Weight: 384g / 13.54ozPackage Weight: 389g / 13.72ozPackage List:1 * Boost Converter4 * Hexagon Copper Cylinder4 * NutNote:There might be some deviation due to manual measurement.
