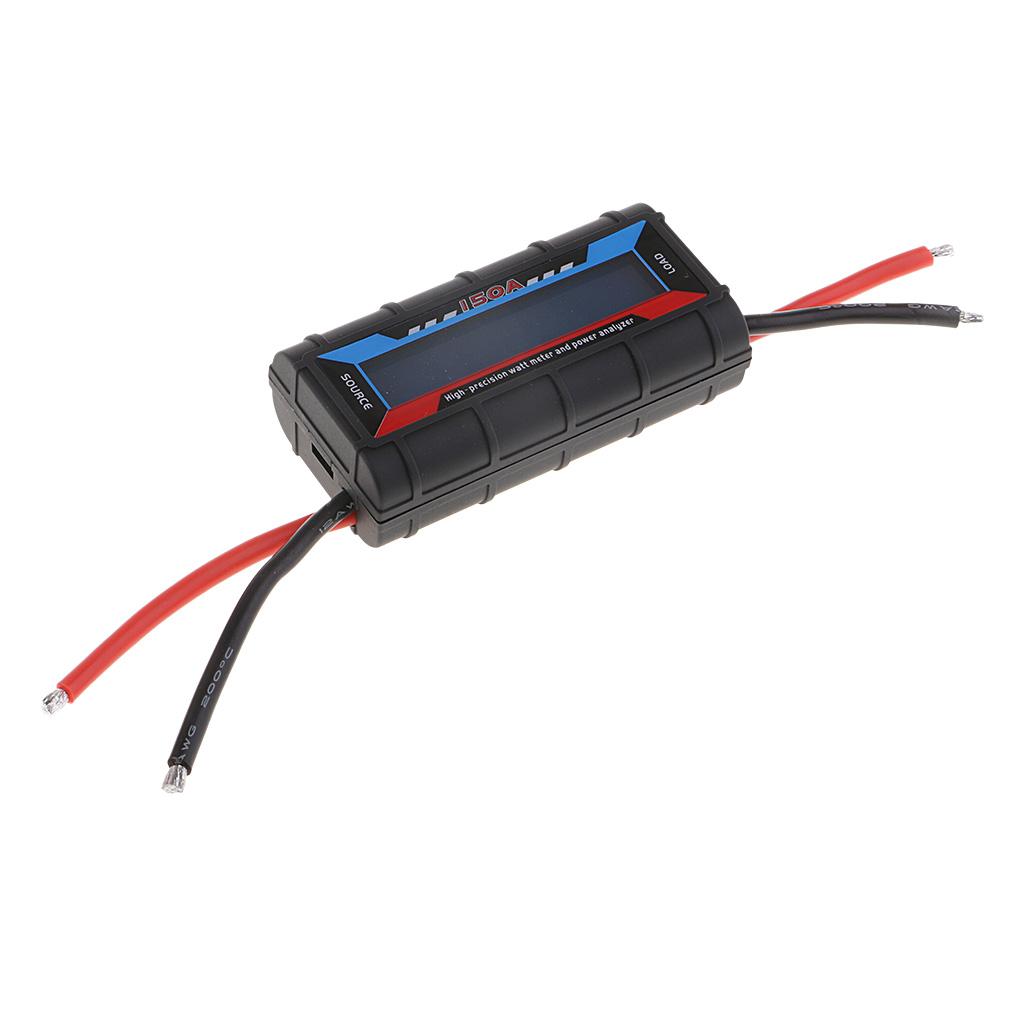

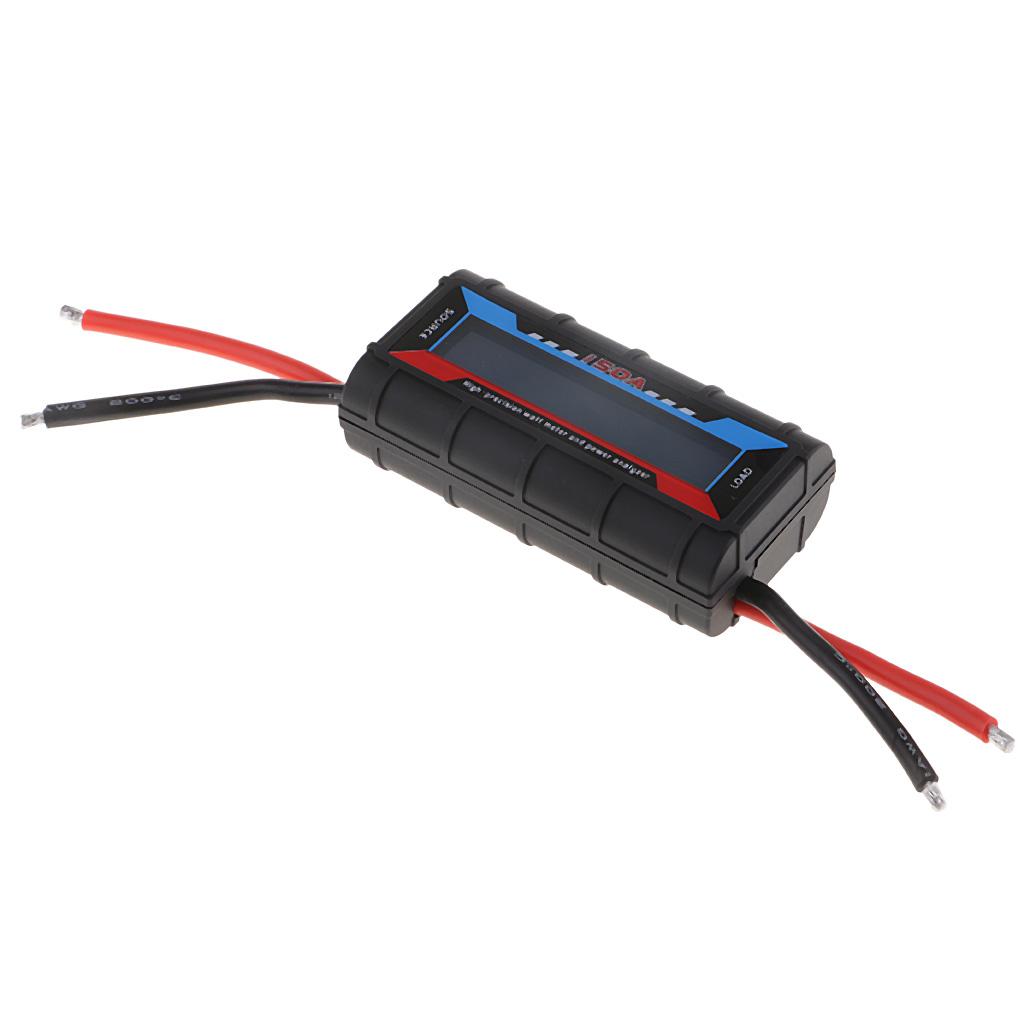

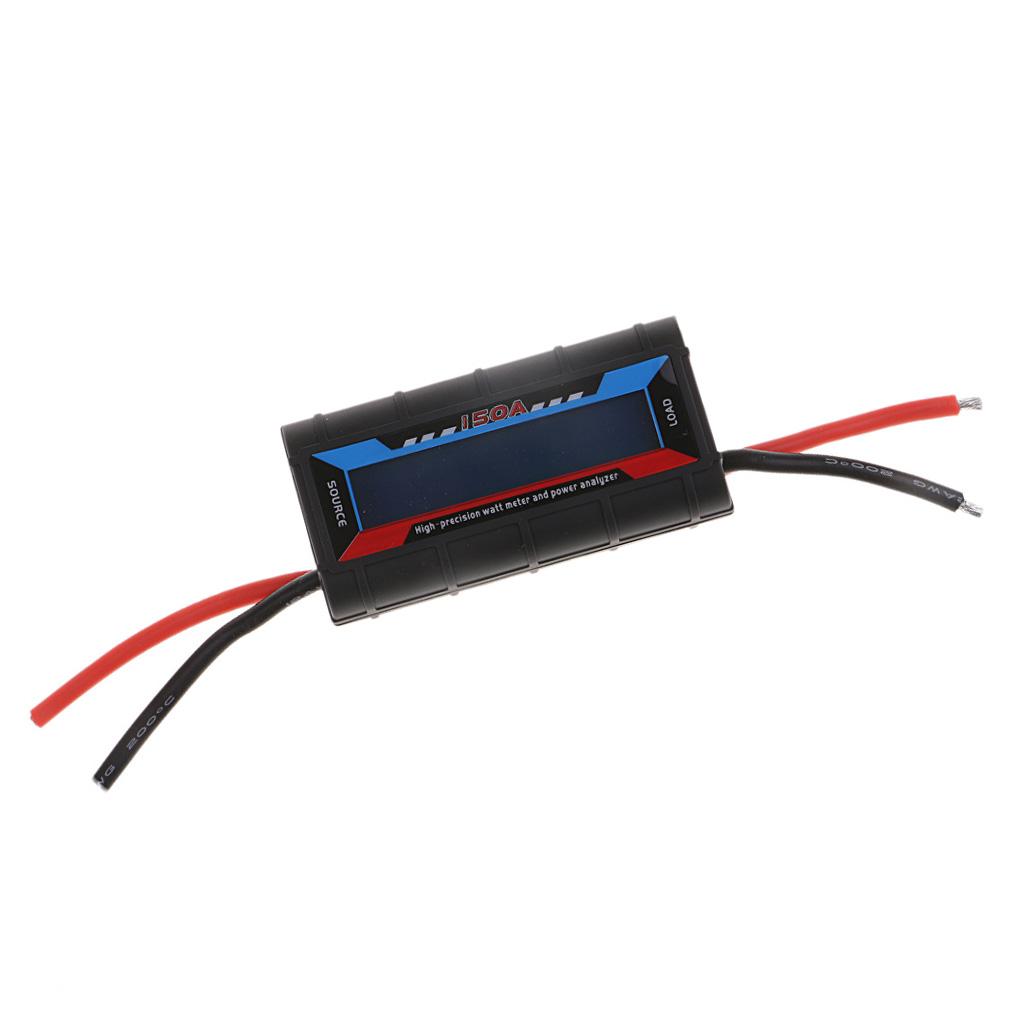

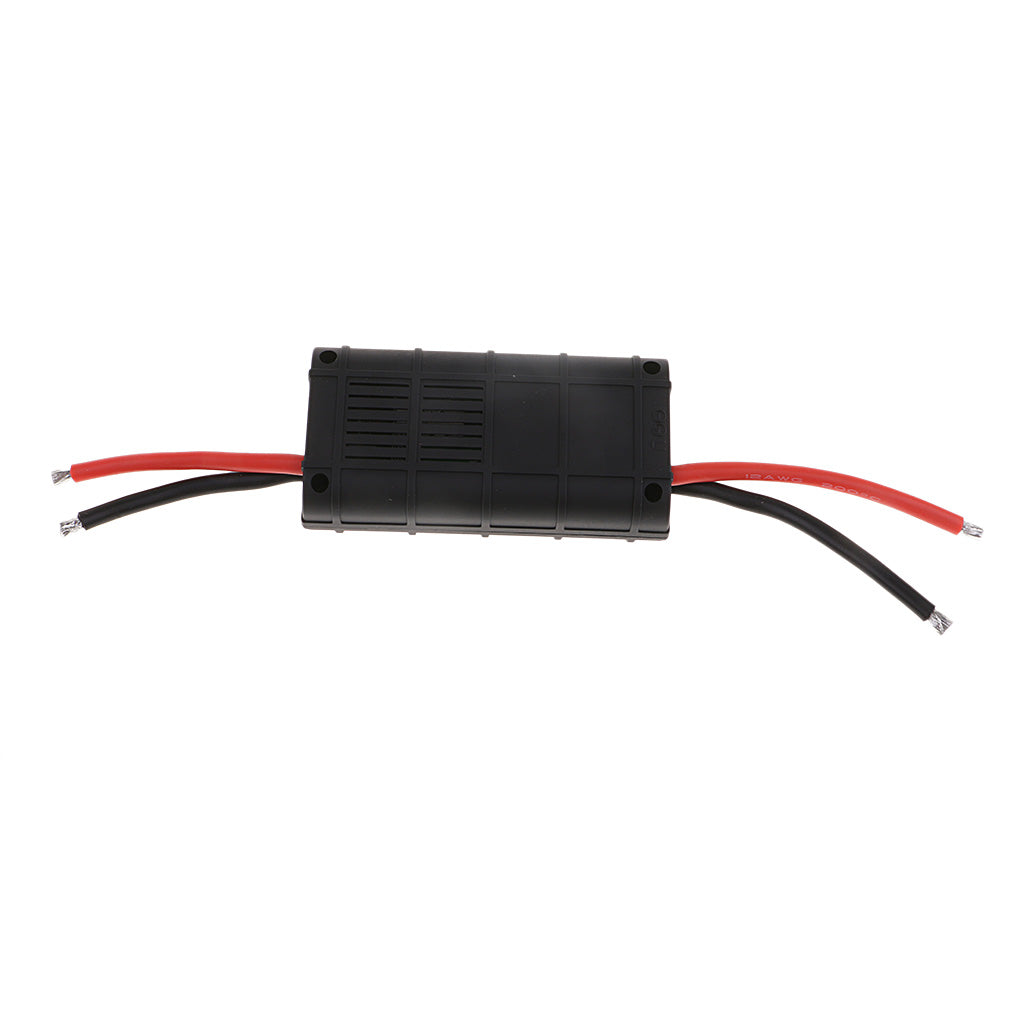

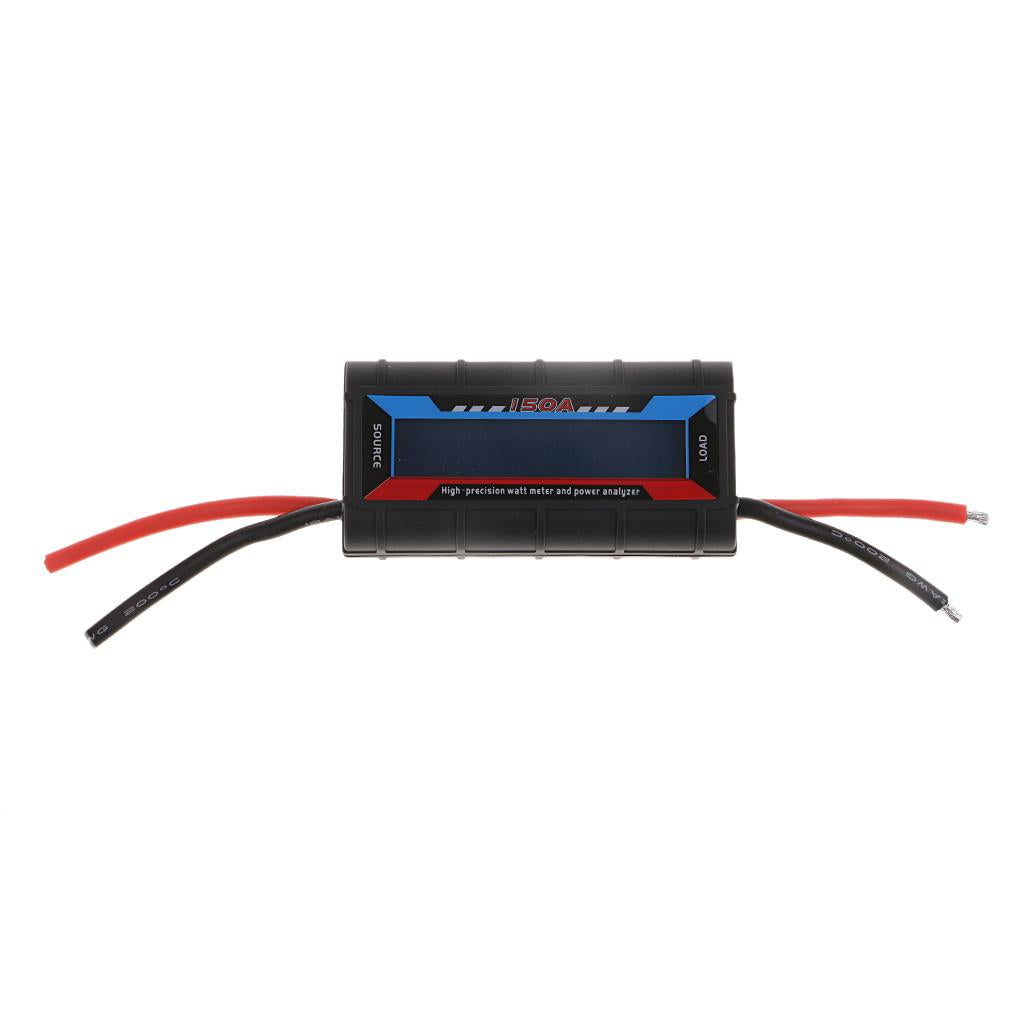

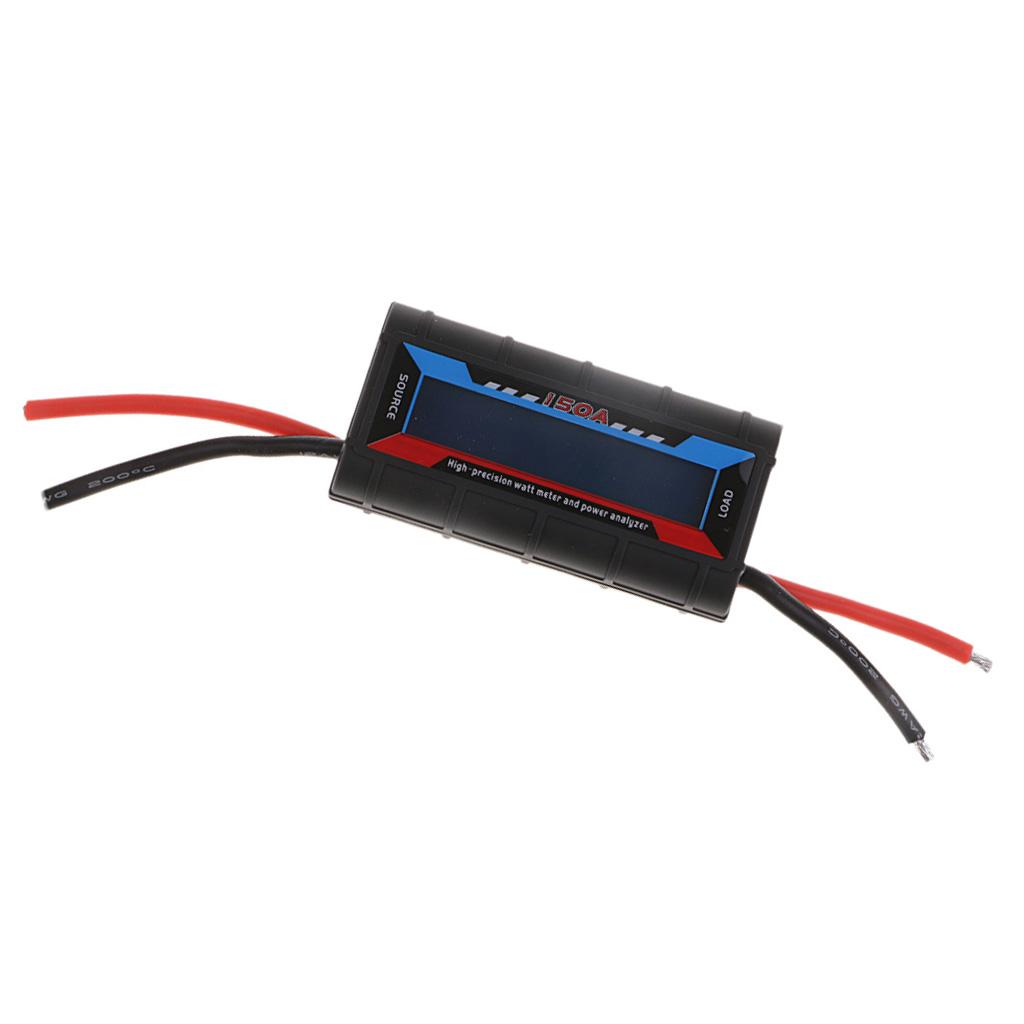

150A High Precision Watt Meter Analyzer LCD Backlight Digital Display

Description:

This all-in- watt meter is indispensable for analyzing, testing and troubleshooting any other DIY DC project.

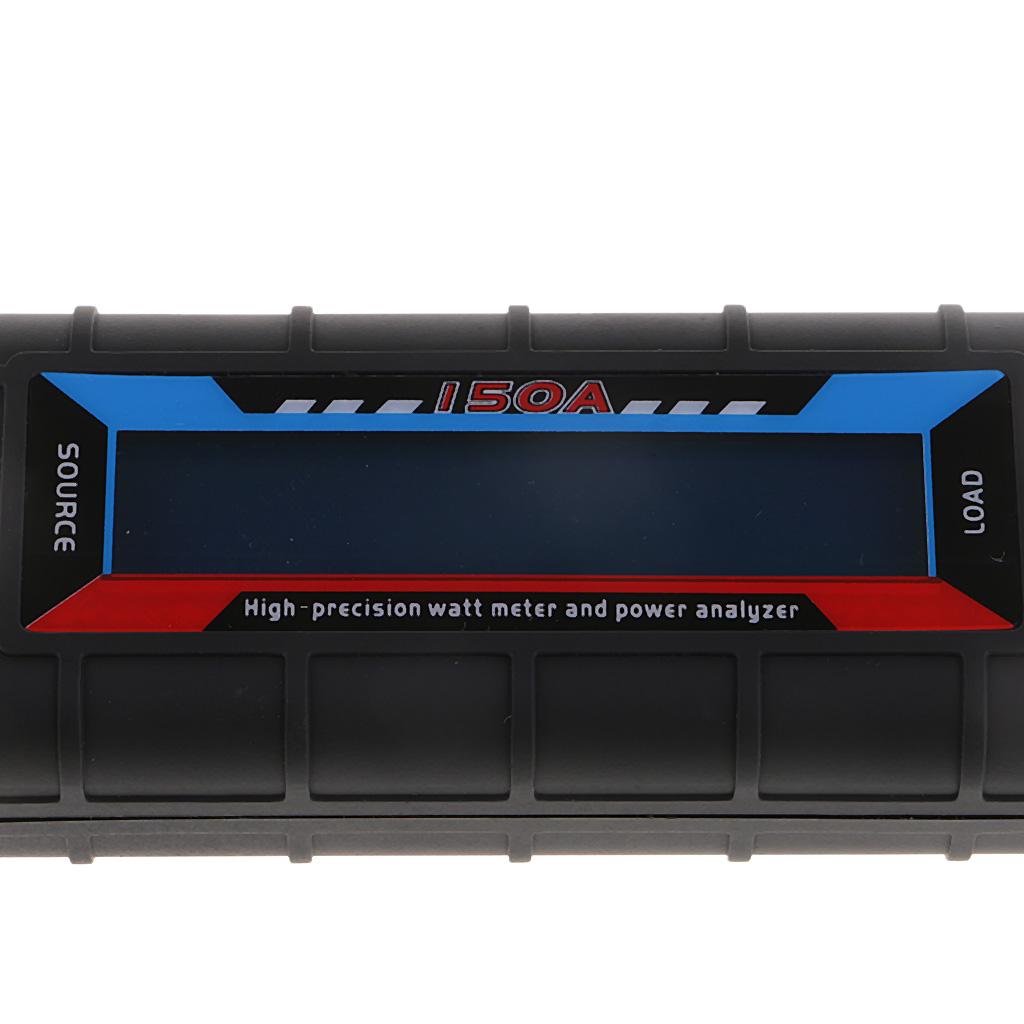

Digital LCD Screen: Easy to read LCD screen provides clear & real-time readings after connection.

Provides 8 Electrical Readings: Current (A), Voltage (V), Watts (W), Amp-hours (Ah), Watt-hours (Wh), Peak Amps (Ap), Minimum Volts (Vm), Peak Watts (Wp).

High Precision: Measures 0-150 Amps, Resolution 0.01 Amps. Measures 0-60 volts, Resolution 0.01 volts. 0 - 6554W, resolution 0.1W. 0 - 65Ah, resolution 0.001Ah. 0 - 6554Wh, resolution 0.1Wh.

Multifunction Tool: Verifies sufficient operating voltage under load. Prevents peak currents damaging battery, ESC, motors, wiring and connectors. Confirms proper battery charger operation (connect between your battery and charger). Individual cell balancing. Set cutoff voltages, check battery capacity health. Detect receivers and actual operating current so as to make sure whether a is needed, etc.

Specification:

Operating voltage range: 4.8-60V

Size Chart:

Size: approx. 8 x 4 x 3cm/3.15 x 1.57 x 1.18inch

Package Includes:

1 Piece 150A Analyzer
