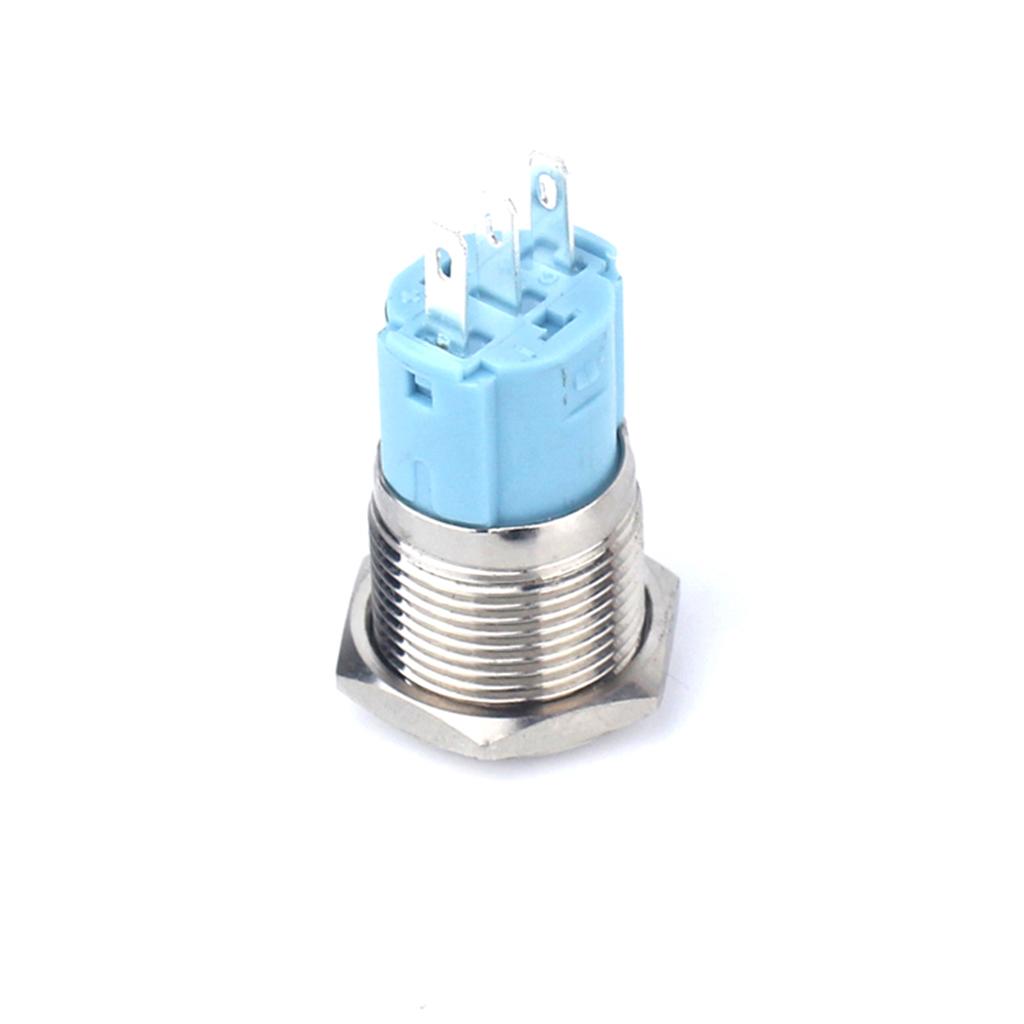

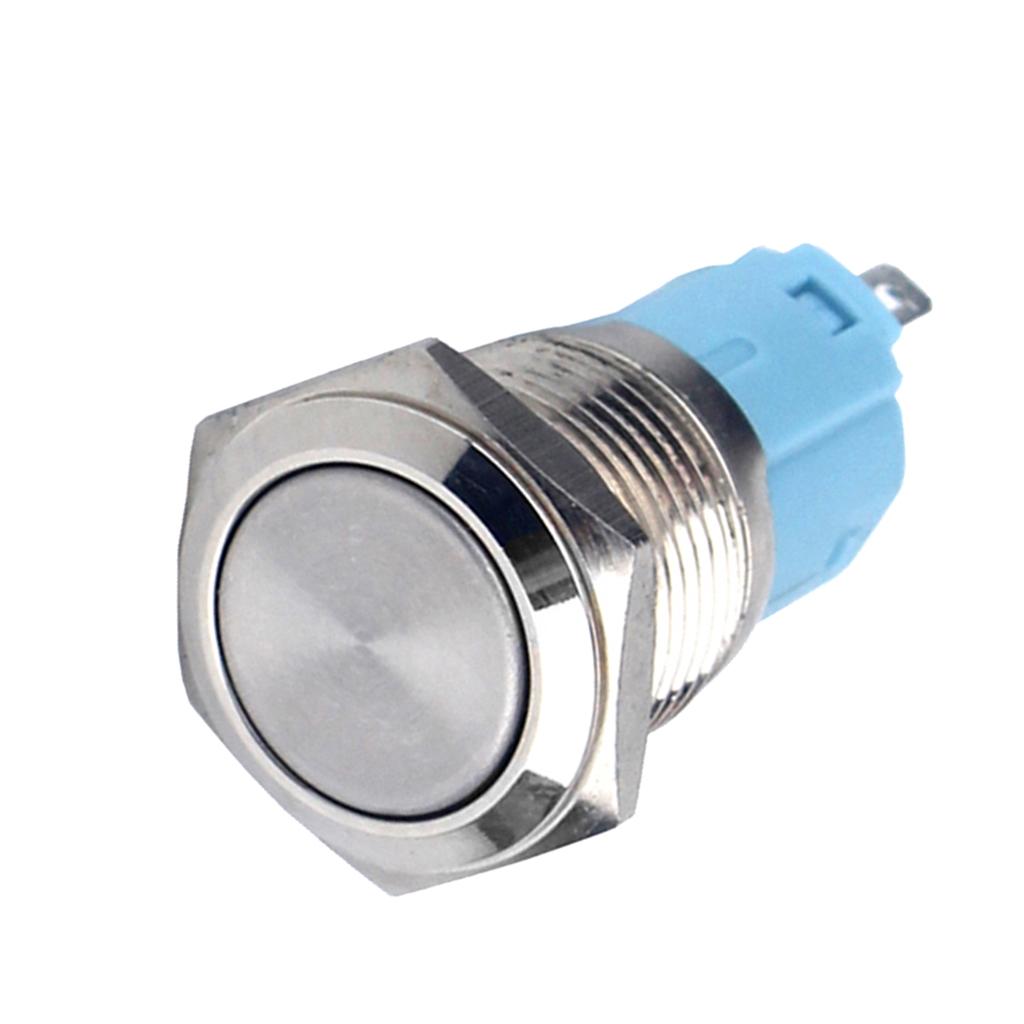

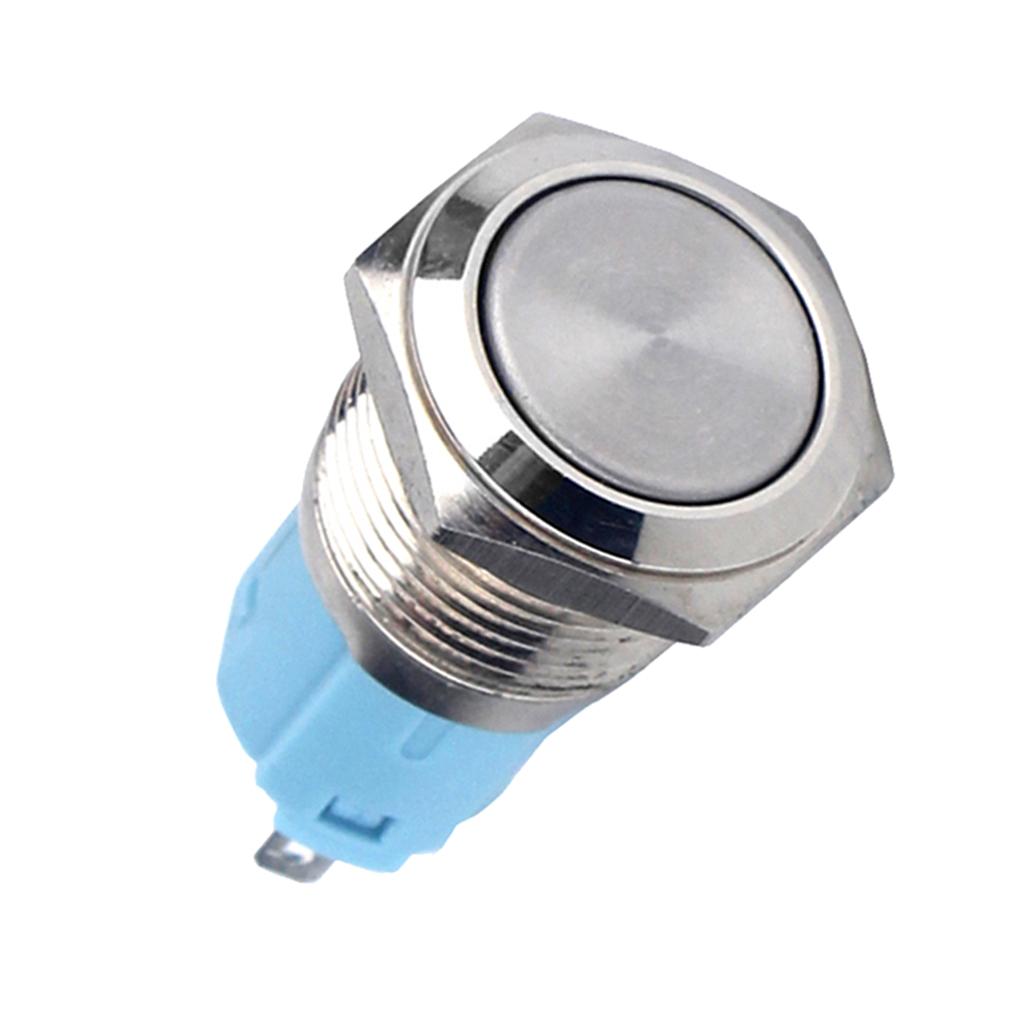

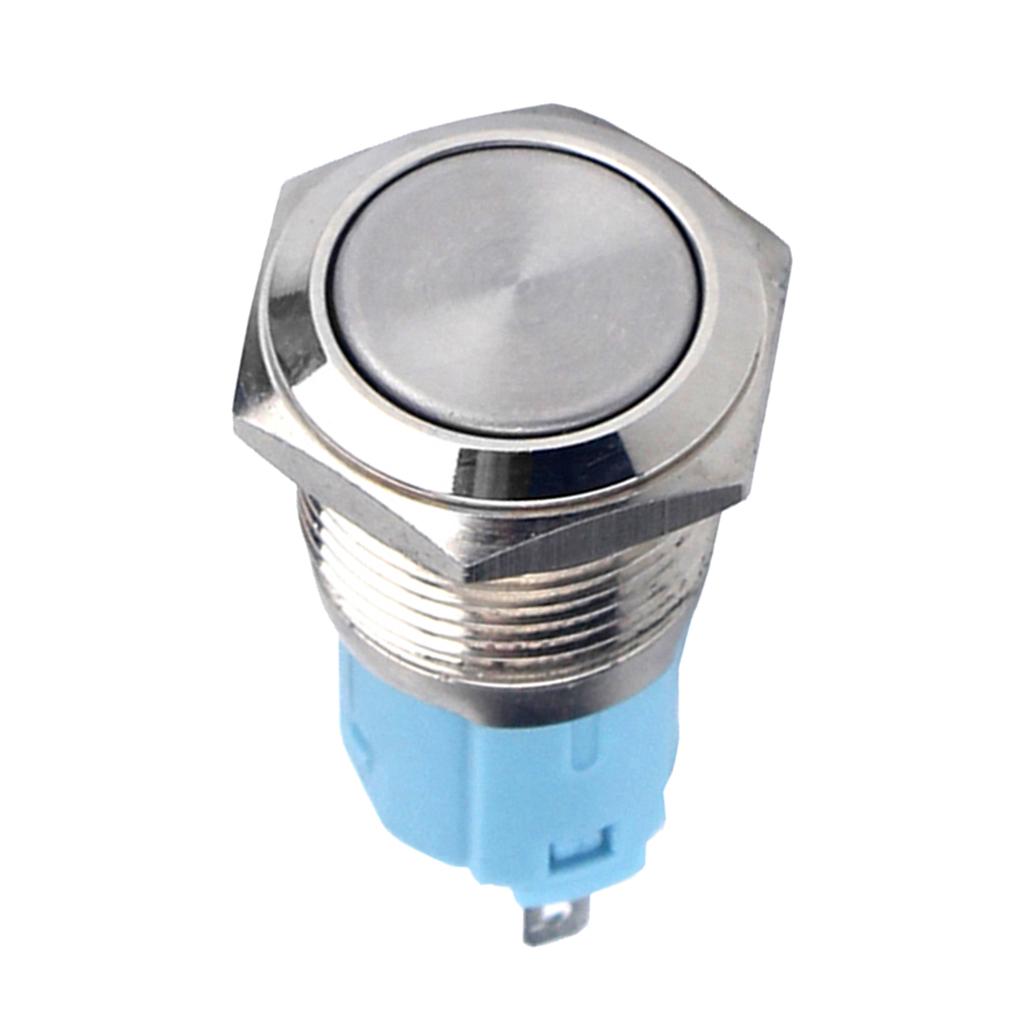

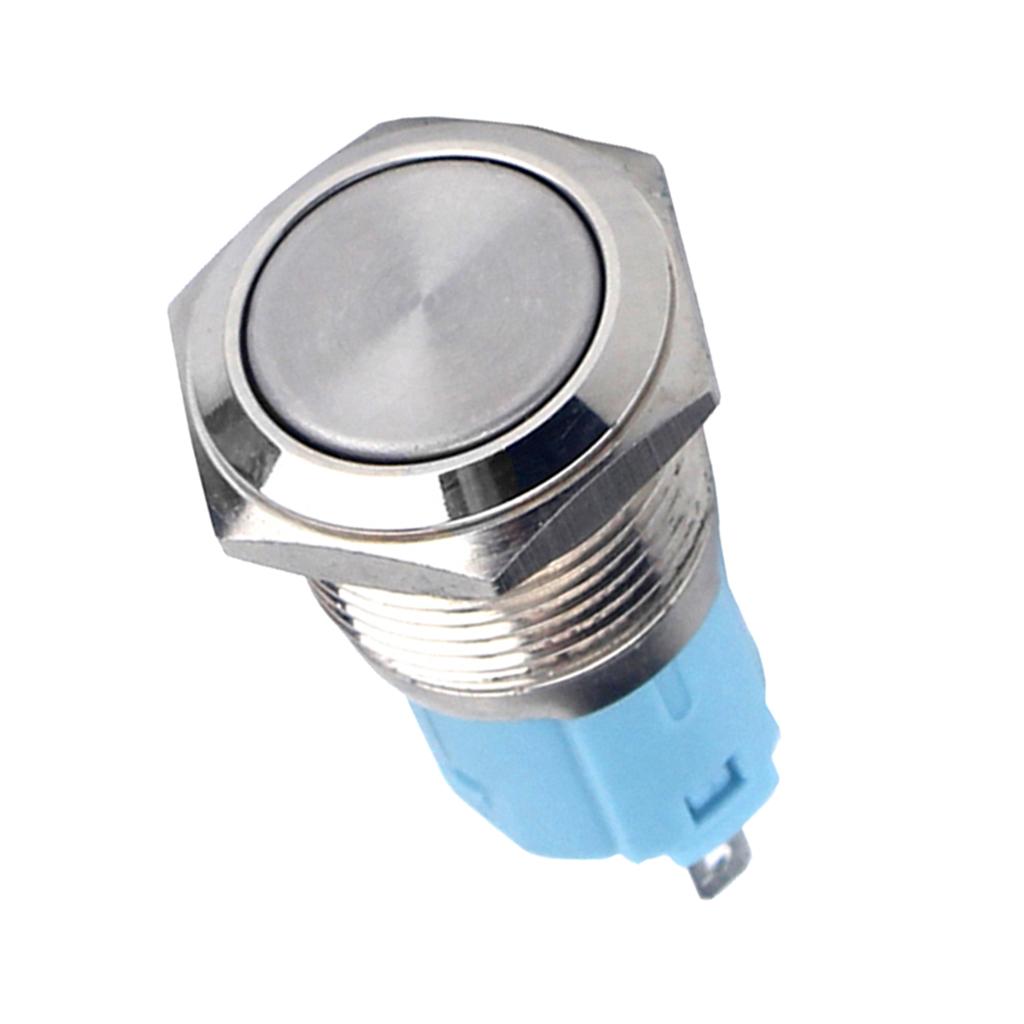

16mm Metal Push Button Switch,Latching Momentary Button On-Off Self-locking

Description:

Item Type:Push Button Switch;Material:Nickel Plated Brass;Switch Combination:1 NO 1 NC.
Operation Types:Self-reset/Self-locking.Stable and reliable performance,long service life.
Nickel plated brass shell,with mirror effect.Economical, waterproof and dustproof.
Hard and small button switch,simple operation,easy to install and disassemble.
Widely applied for all kinds of modifications such as car, motorcycle,computer,access control; home appliance;industrial control instrument,etc.

Specification:

Product Name: Push Button Switch
Material: Nickel Plated Brass
Overall Size: 35.2x17.9mm/1.39x0.7inch
Mounting Hole Diameter: 16mm/0.63inch
Panel Thickness: 1~10mm/0.04~0.39inch
Switch Combination: 1NO 1NC
Rating: 3A/250V AC
Head Shape: Flathead
Terminal Type: Welding feet
Contact Resistance: ≤50MΩ
Insulation Resistance: ≥1000MΩ
Ambient Temperature: -20~55℃
Mechanical Life: ≥500,000(cycles)
Electrical Life: ≥50,000(cycles)
Prtection Level: IP67,IK08

Package Includes:

1 Piece Push Button Switch
