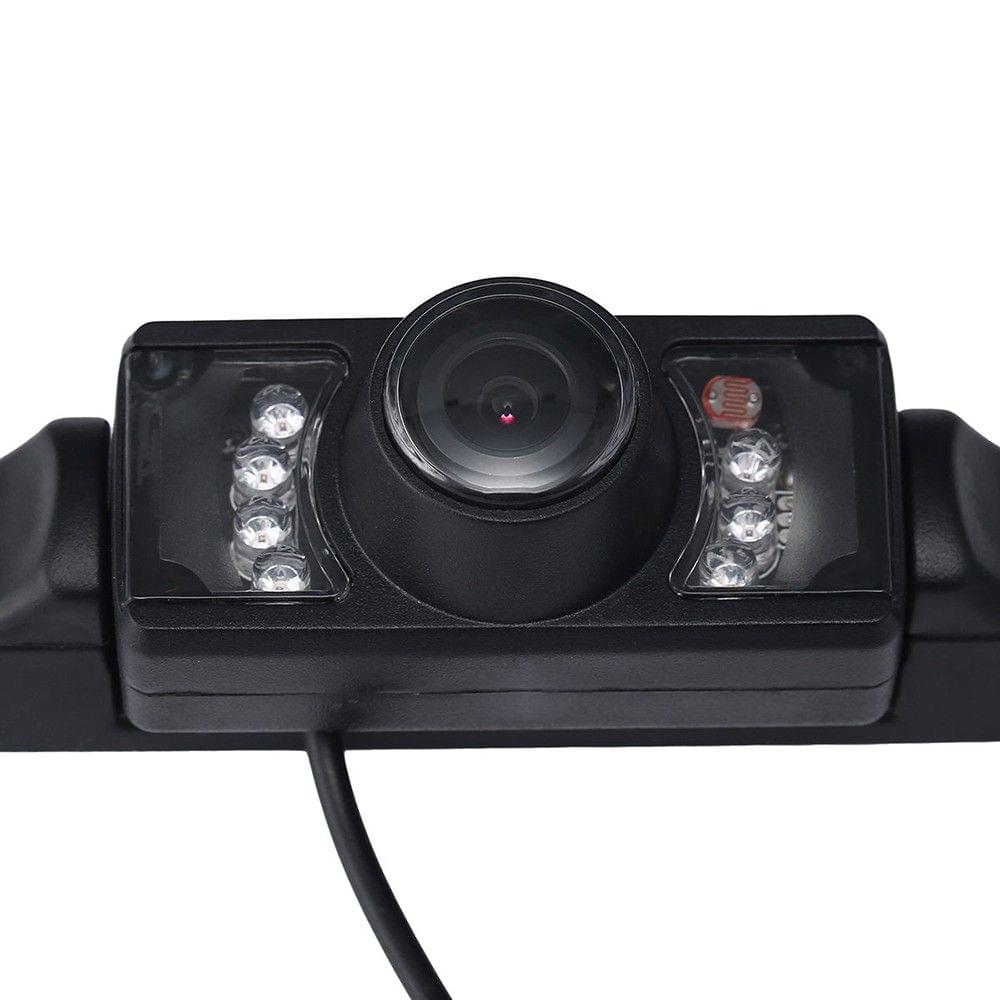

170 Degrees Night Vision Car Rear View Backup Camera Reverse Back Up Camera

This car rear view camera gives you a 170 degrees wide angle view of the area behind your vehicle, with distance scale lines that tells you how far nearby objects are.

The camera with IP67 waterproof rating, makes sure it is working in windy, snowy and rainy days.

Features:

7 infrared LED ensure good visibility at night.

On-screen parking lines helps you observe the distance from your vehicle to rear objects.

Can be easily and firmly installed on your license plate IP67 waterproof level for outdoor and rainy use.

Small and compact design, convenient to use, easy to install. The visual is wider because it has a 170 ° super wide Angle.

Specifications:

Material: Plastic

Image Sensor: Color 1/3\" Sensor

CCD TV System: NTSC/PAL

Resolution: 768(H)×494(V) Pixel

Horizontal Resolution: 480TVL LED

Quantity: 7

Lens Angle: 170°

Waterproof Class: IP66 S/N Ratio ≥48dB

Current Consumption:≤150mA

Minimum Illumination: 0.5Lux

Material : Plastic, Metal

Operating Power: DC 12V ± 20%

Operating Temperature: -20°C~80°C, RH95%

Max Storage Temperature: -40°C ~ 80°C, RH95%

Max Video Cable Length: 6m / 19.7ft

Power Cable Length: 1.2m / 3.9ft

Item size: 29 * 5 * 3cm / 11.42 * 1.97 * 1.18in

Item weight: 200g / 7.05oz

Package size: 30 * 12 * 5cm / 11.81 * 4.72 * 1.97in

Package weight: 230g / 8.11oz

Installation:

1. Mount the camera at the back of the car (on the license plate back window or other suitable place).

2. Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.

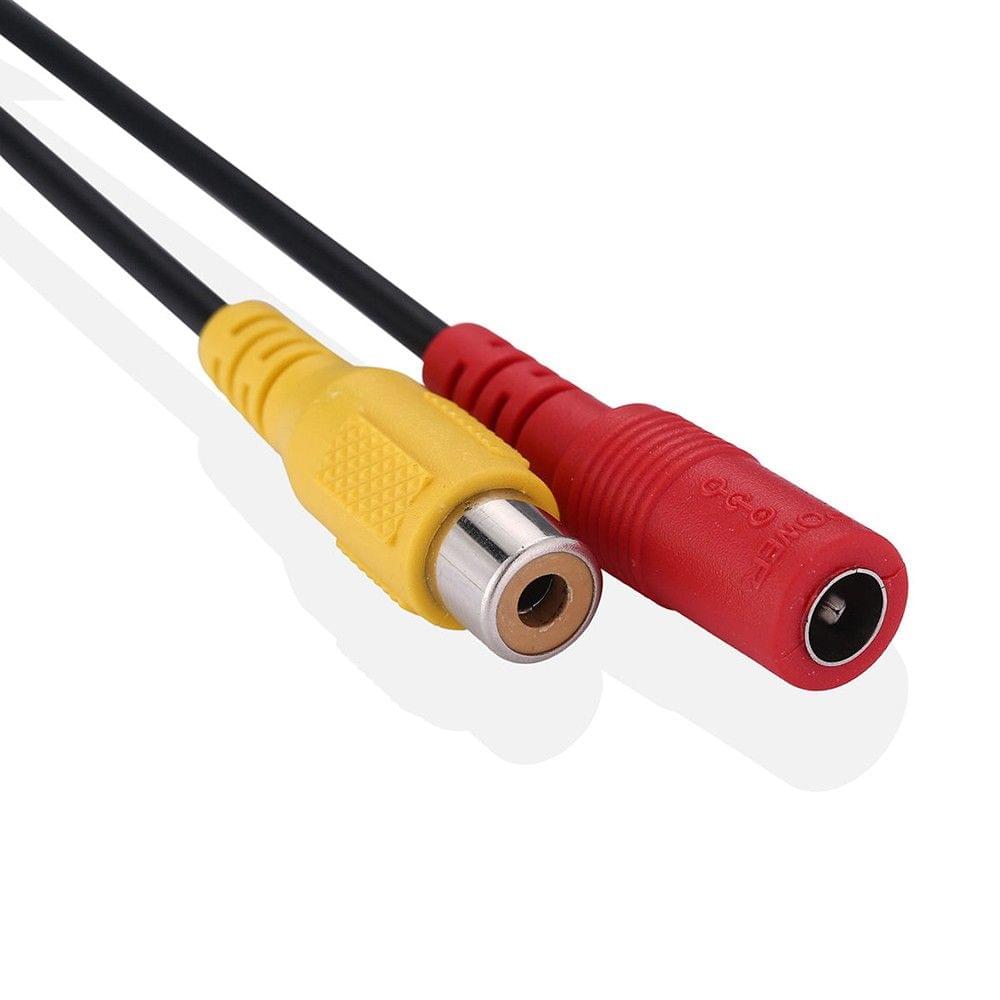

3. Connect the video cable of the camera to the extension cord.

4. Connect the extension cord to your car monitor.   Compatible With Universal fit for Any Vehicle / Car

Package list:

1 * Car Rear View Backup Camera

1 * User Manual

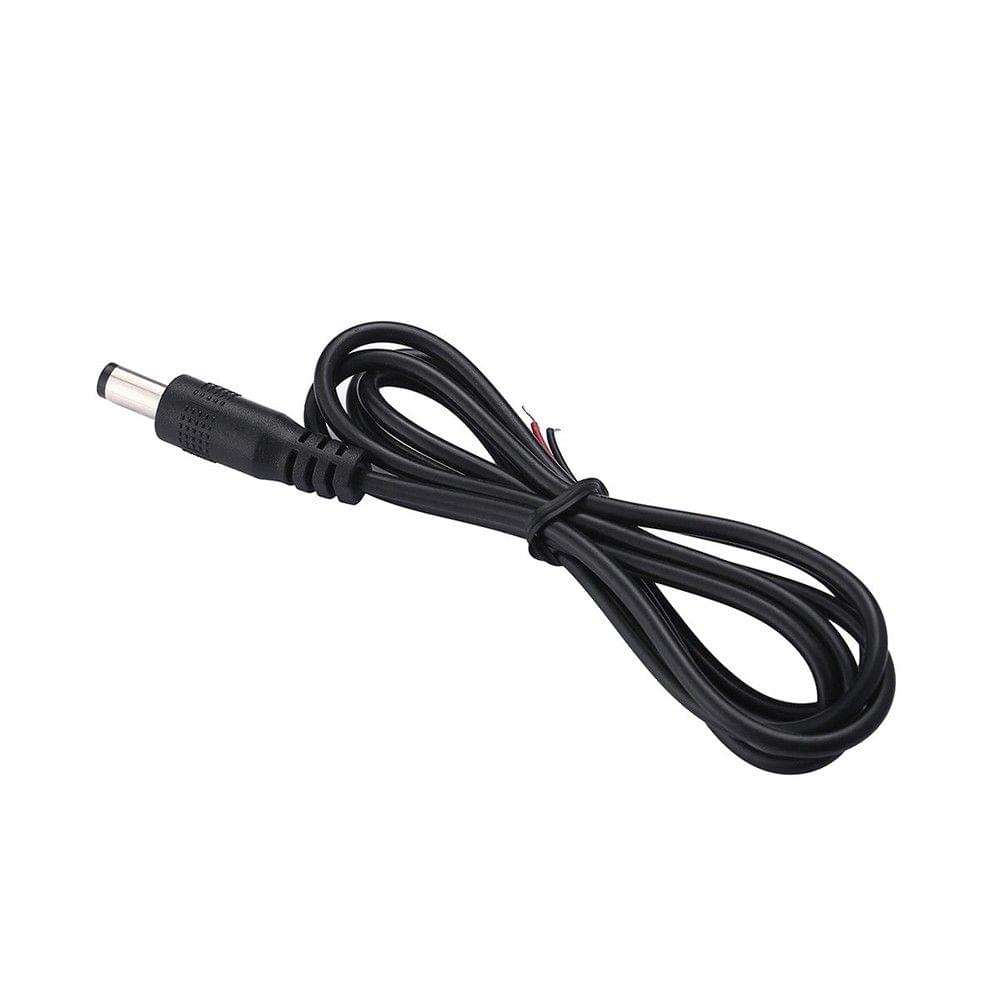

1 * Connecting Cable
