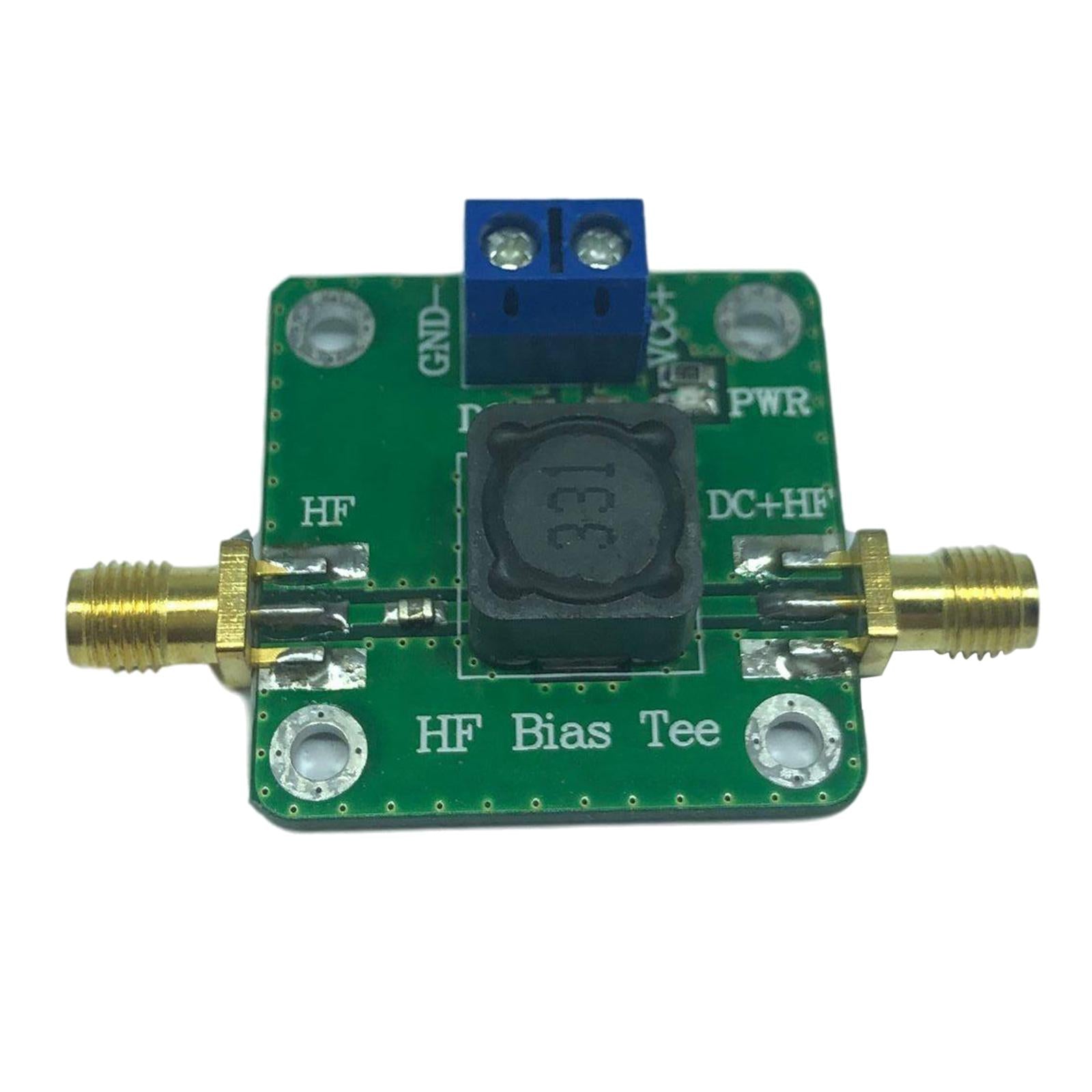

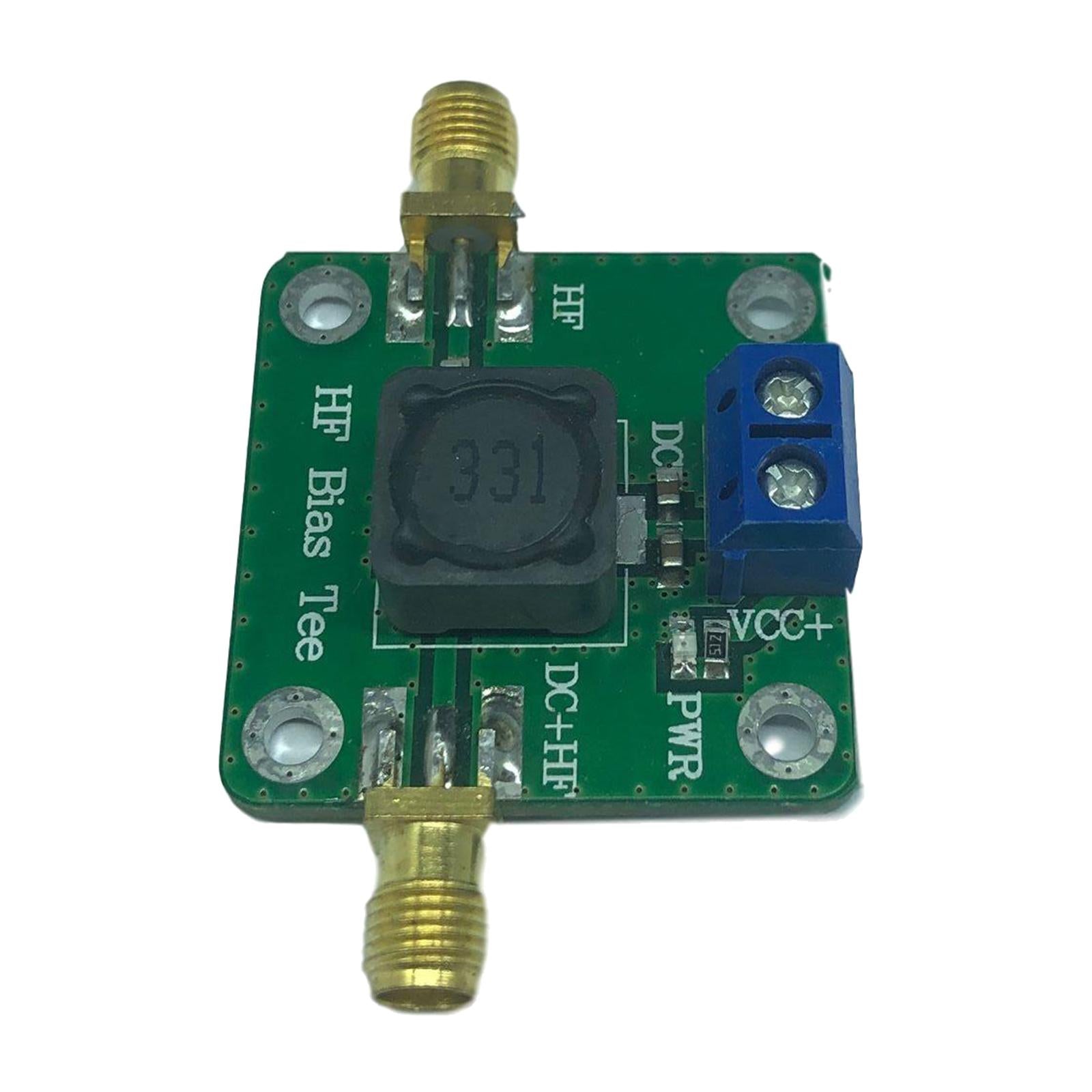

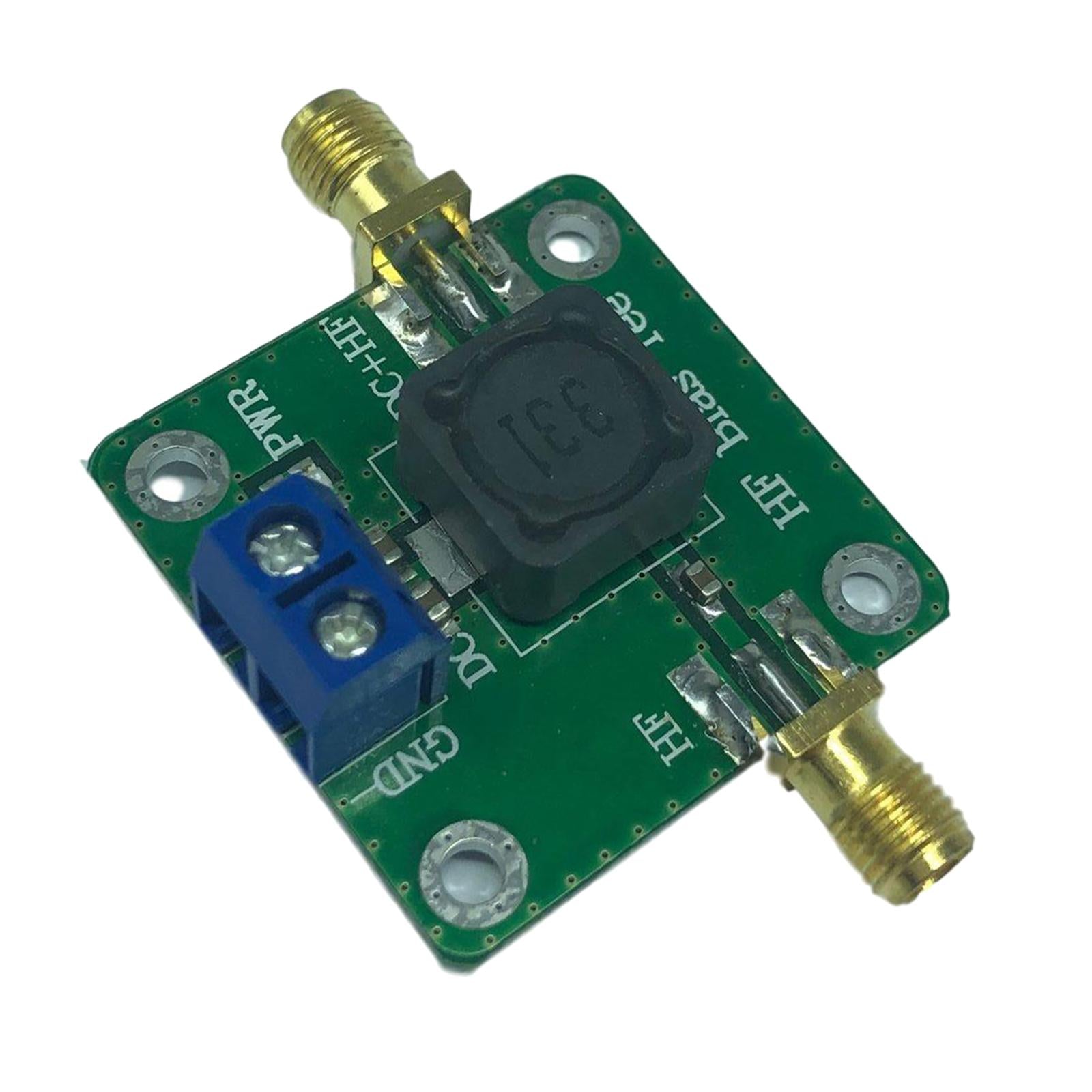

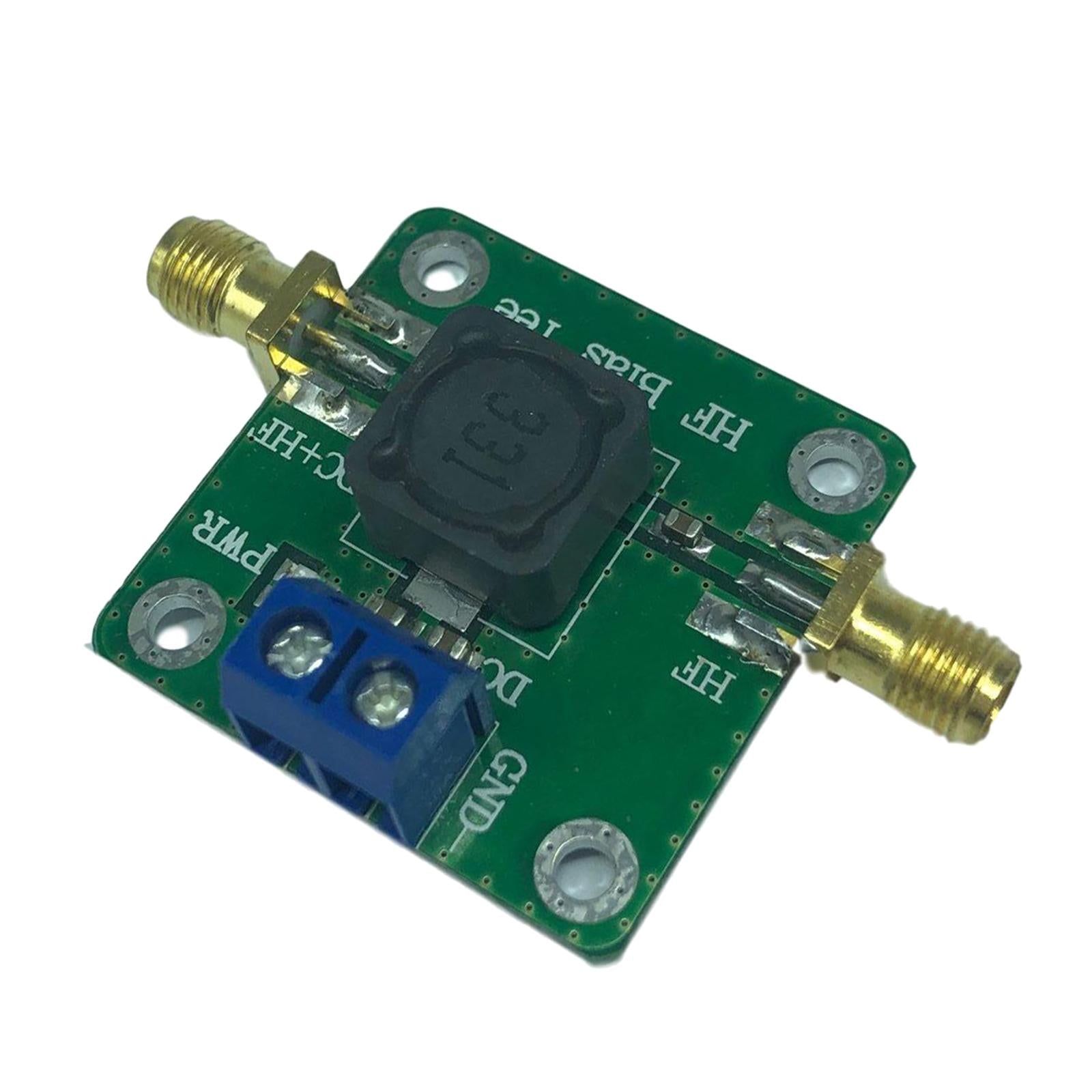

1pc RF Microwave Bias Isolator 0.1dB/100KHz 0.2dB/60MHz Max Current 600mA

Description:

RF power supply for active antenna
Output dc blocking of broadband amplifier
Communication data is injected through the RF terminal
Frequency range: 50K-60MHz
Insertion loss: 0.1dB/100KHz, 0.2dB/60MHz

Specification:

Maximum voltage: 50V
Maximum current: 600mA
RF connector: SMA-K (outer screw inner hole)
System impedance: 50ohm
DC: External DC power supply
RF: Radio frequency signal terminal (this port can only transmit radio frequency signals)
RF+DC: RF DC bias (this port can transmit RF and DC bias)

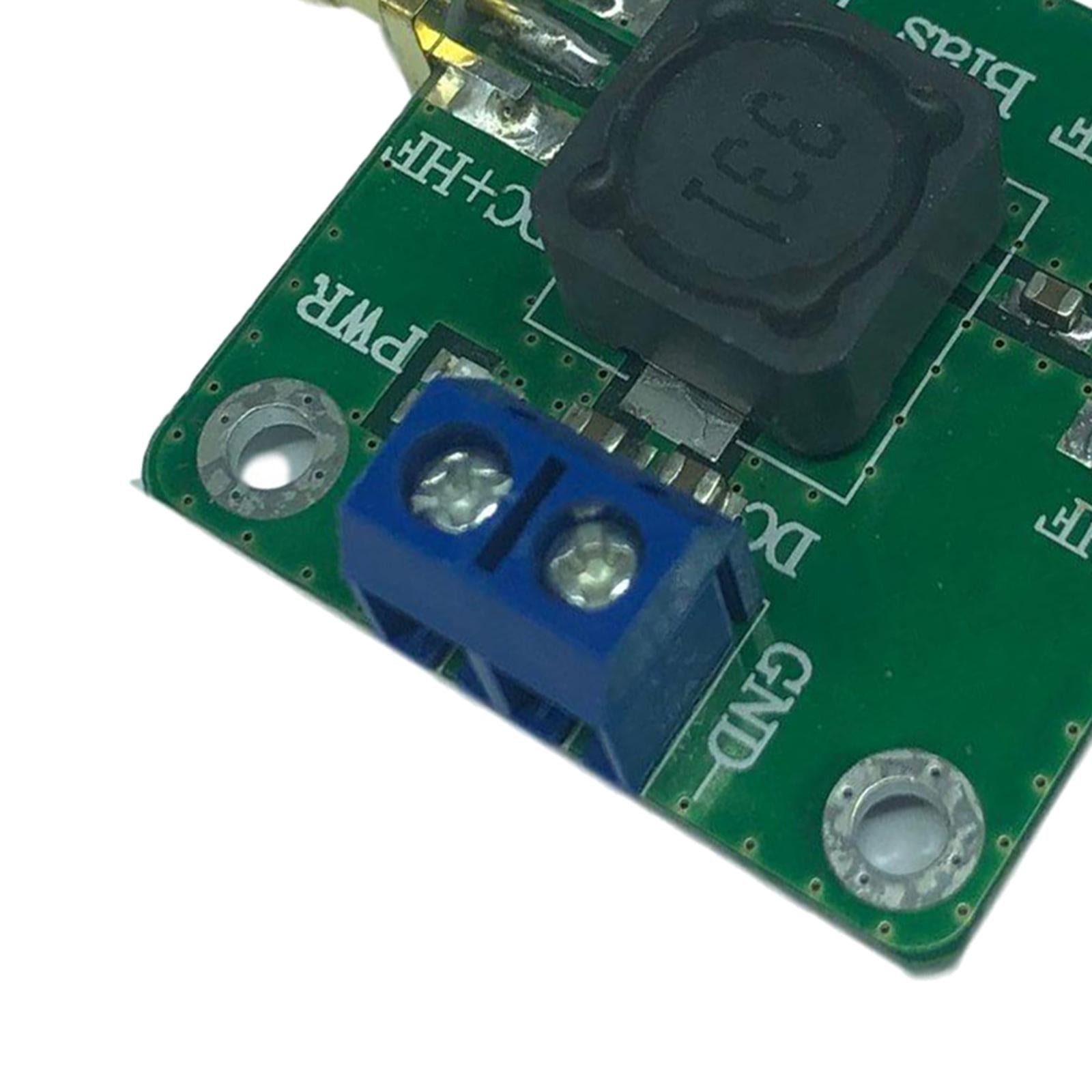

GND-: common ground terminal for DC power supply
VCC+: the power supply terminal of DC power supply

Size Chart:

Size: 50x50x15mm / 1.97x1.97x0.59inch

Package Includes:

1 Piece RF Microwave DC Bias Isolator
