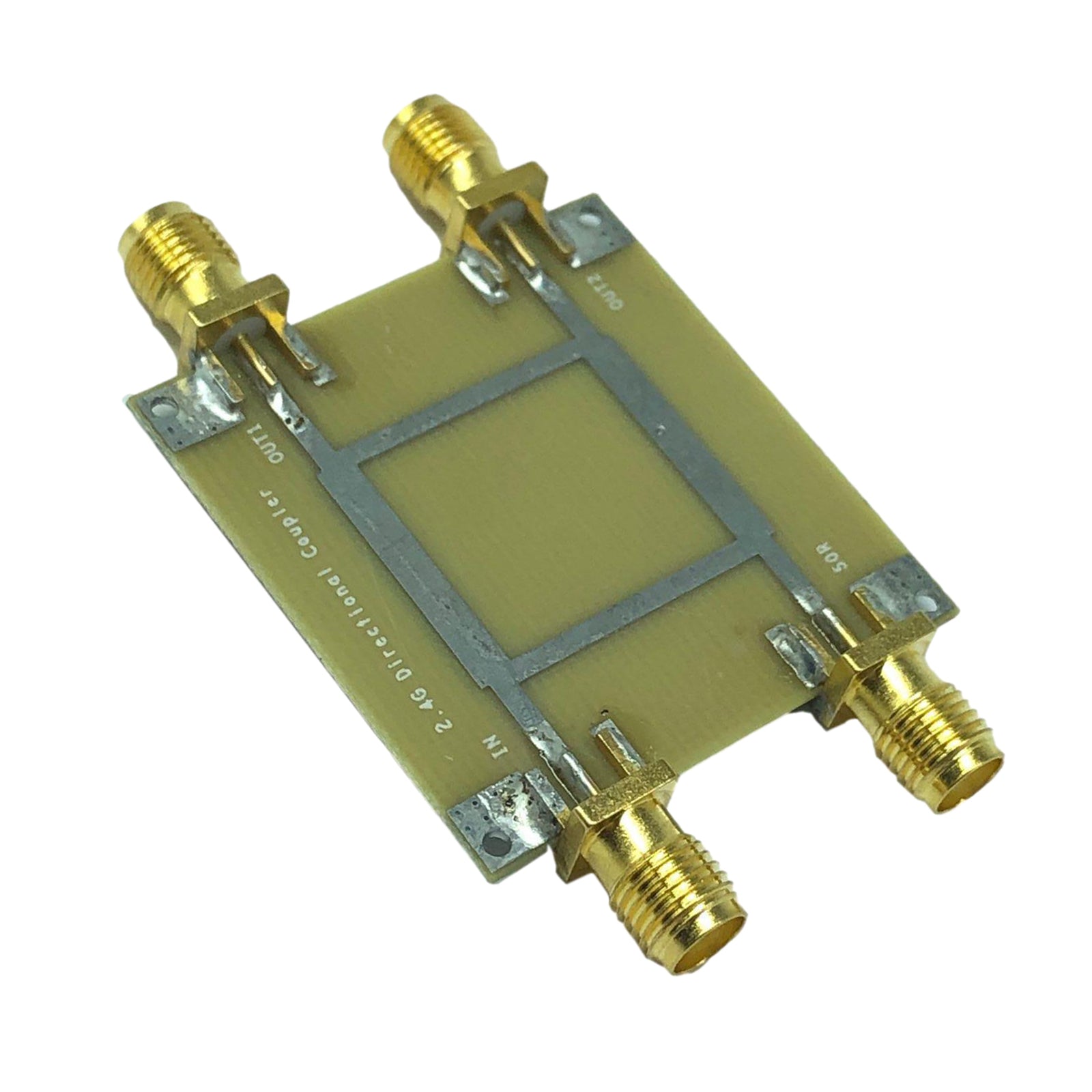

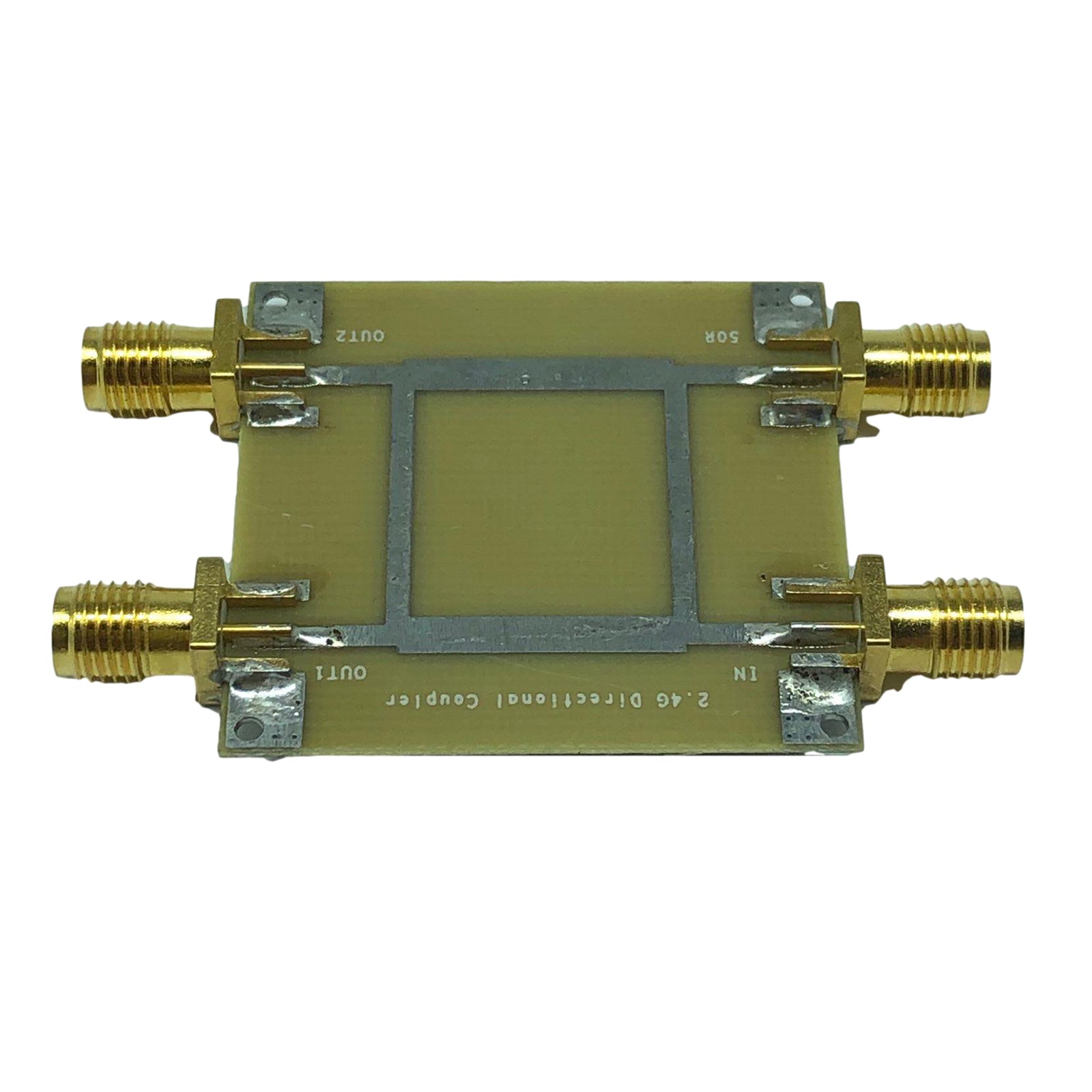

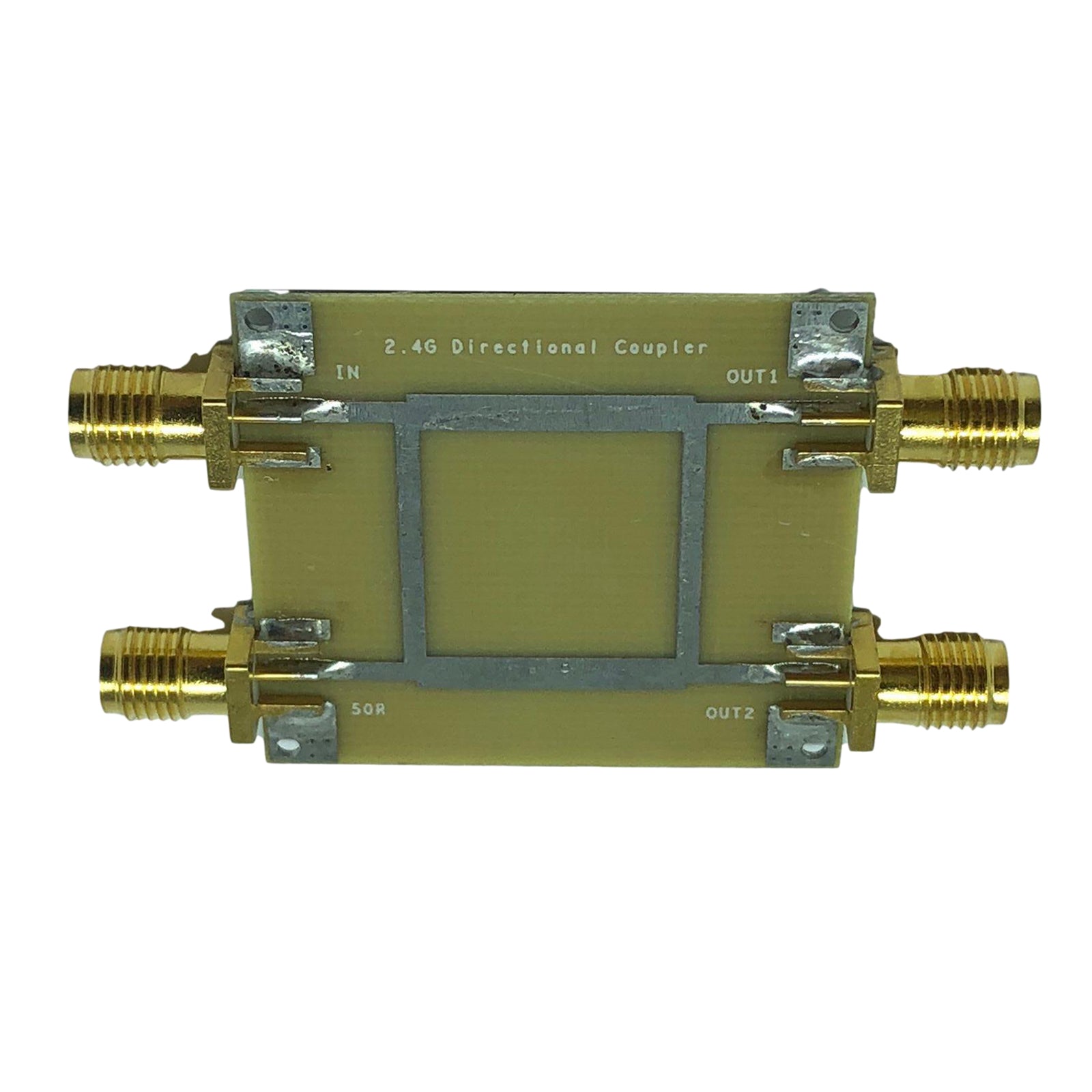

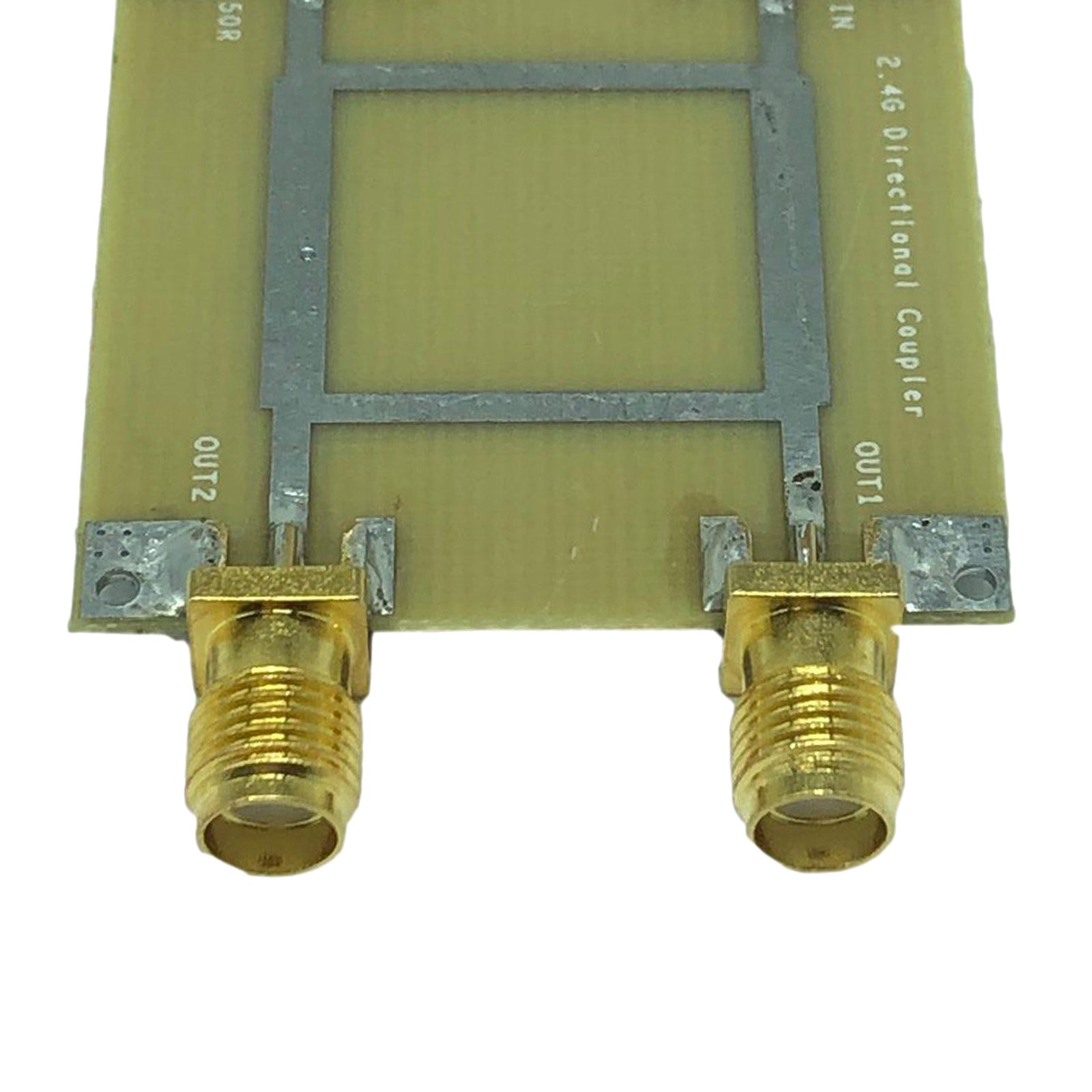

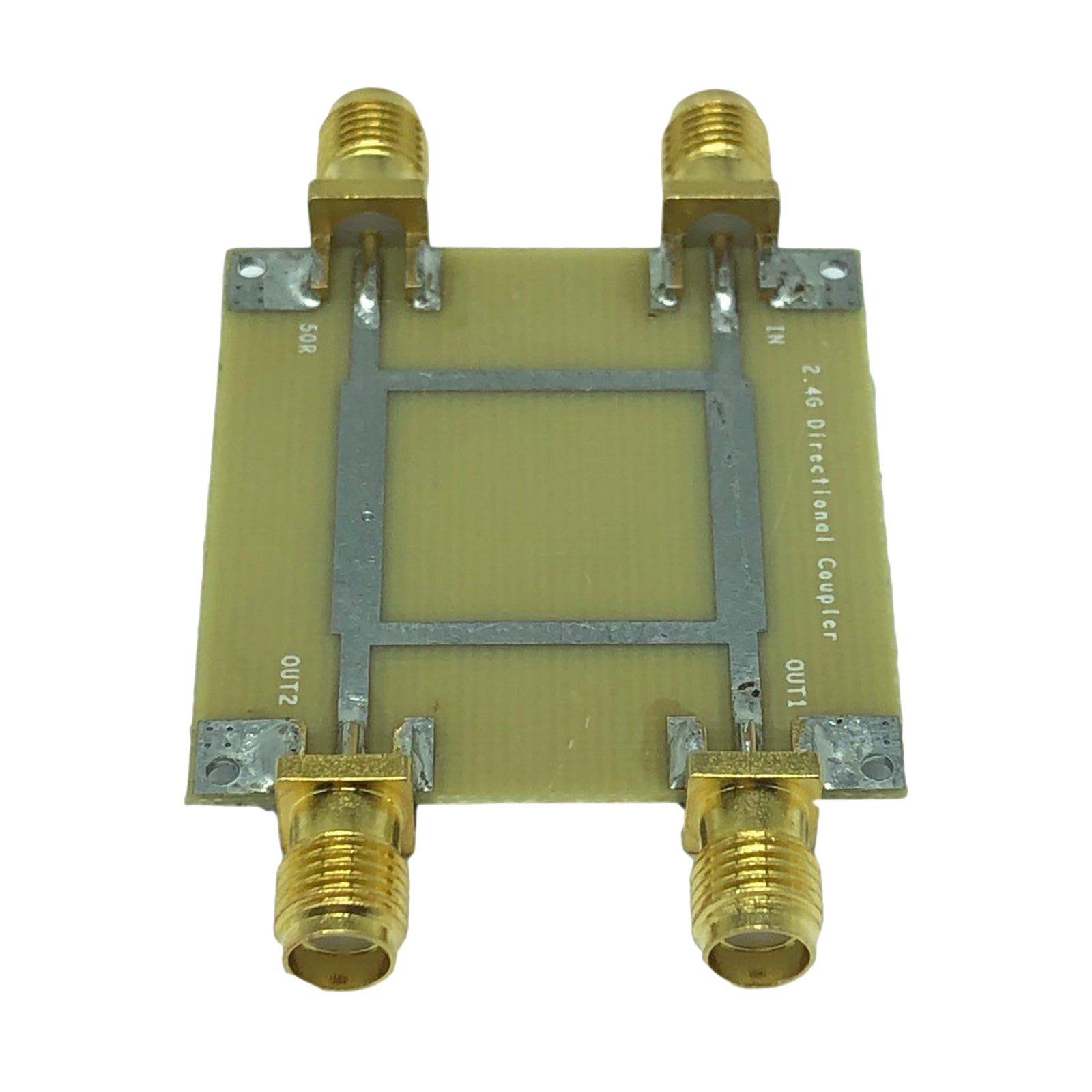

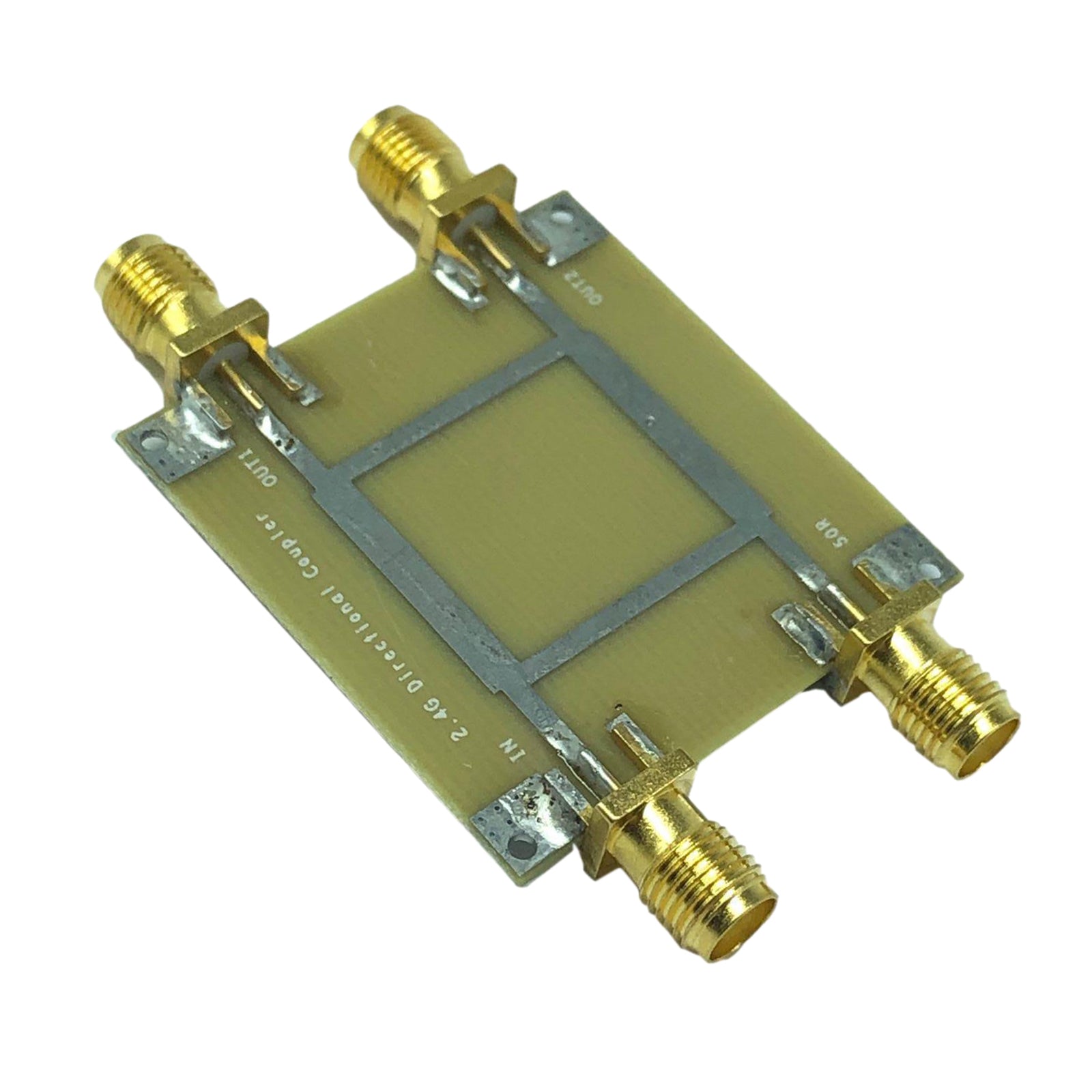

2.4GHZ Directional Coupler Bridge Divider 1 2 3 Port Upgraded Replacement

Description:

directional coupler directional bridge microstrip power divider
The microstrip directional coupler, power splitters is similar to the structure as shown in figure 1, ideally no reflection port 1 input, input power output by 2, 3, port, port 4 no output, namely, 1, 4 port isolation from each other. Speed 12 with/S13 (90 degrees), the phase difference of PI / 2.
Frequency range 2.3GHz-2.5GHz
2, S21>-3.6dB
3, S11<-15dB
4, S22<-15dB
5, test results

Specification:

Material: Plastic and Metal
Size: 40x37cm/15.75x14.57inch

Package Includes:

1 Piece Directional Coupler

Note:

Please allow slight dimension difference due to different manual measurement.
