2.5W RF Low-Power Amplifier for 380-450mhz Wireless Remote Transmitter

Description:

The broadband radio frequency low power amplifier is suitable for various radio transmissions, such as: shortwave FM wireless remote control, FM radio transmission, amateur radio 135-175MHz, 380-470MHz walkie-talkie, etc.
Low-frequency input 2mW can output up to 2.5W power, 500MHz can output up to 2W, 800MHz can output up to 1.5W, and 1000MHz can output up to 1.0W.
The amplifier housing has heat dissipation function and can work stably for a long time.
Working frequency: 1-1000MHz
Working voltage: DC15V

Specification:

Output power: Input power: 2mW (3dBm)
2.5W (34dBm) low frequency side (100MHz)
2.0W (33dBm) IF end (500MHz)
1.5W (31dBm) high frequency end (800MHz)
1.0W (30dBm) high frequency end (1000MHz)
Working current: 430mA (determined by output power)

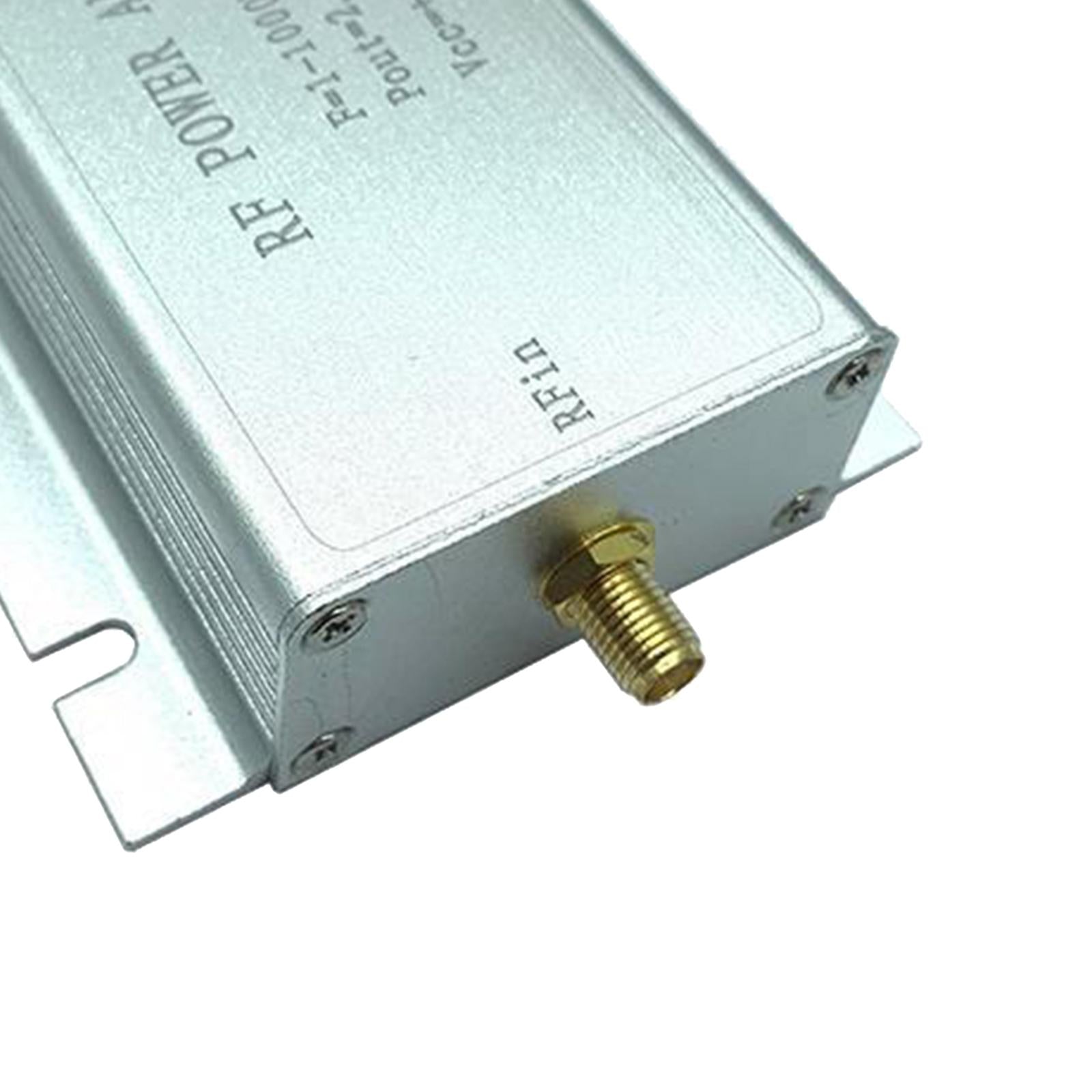

RF connector: standard SMA female

Size Chart:

Size: 82x71x25mm / 3.23x2.8x0.98inch

Package Includes:

1 Piece RF Power Amplifier

Note:

Color might be slightly different due to the color calibration of each individual monitor.
Please allow slightly measuring deviation due to manual measurement.
