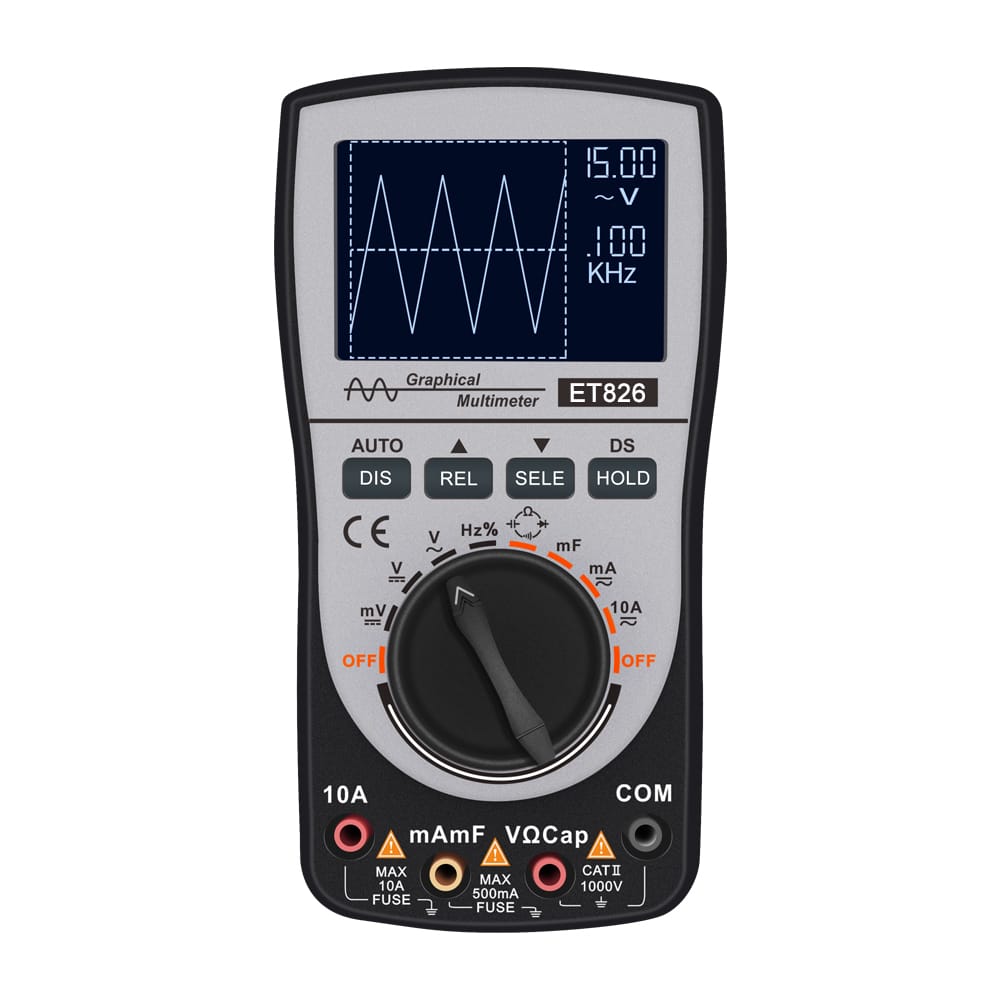

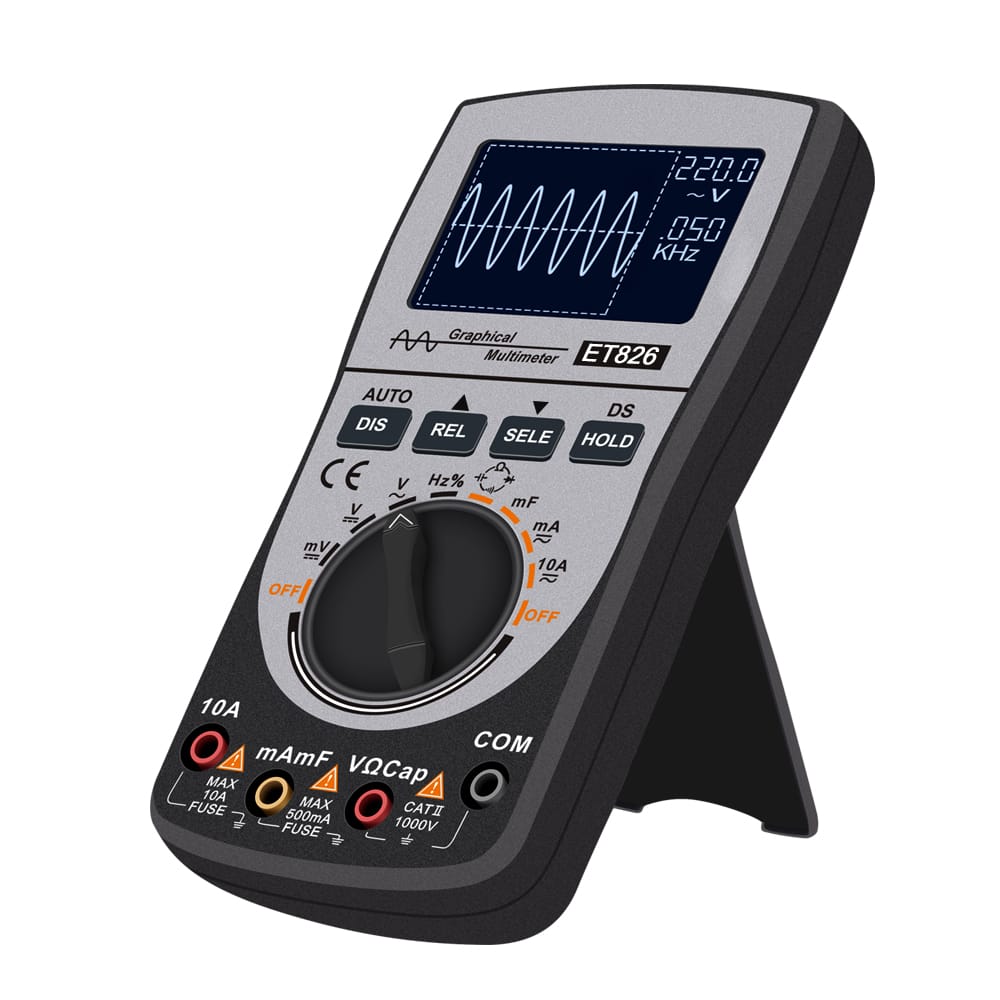

- 2-in-1 Intelligent Digital Oscilloscope Multimeter DC/AC 2-in-1 Intelligent Digital Oscilloscope Multimeter DC/AC
- Description

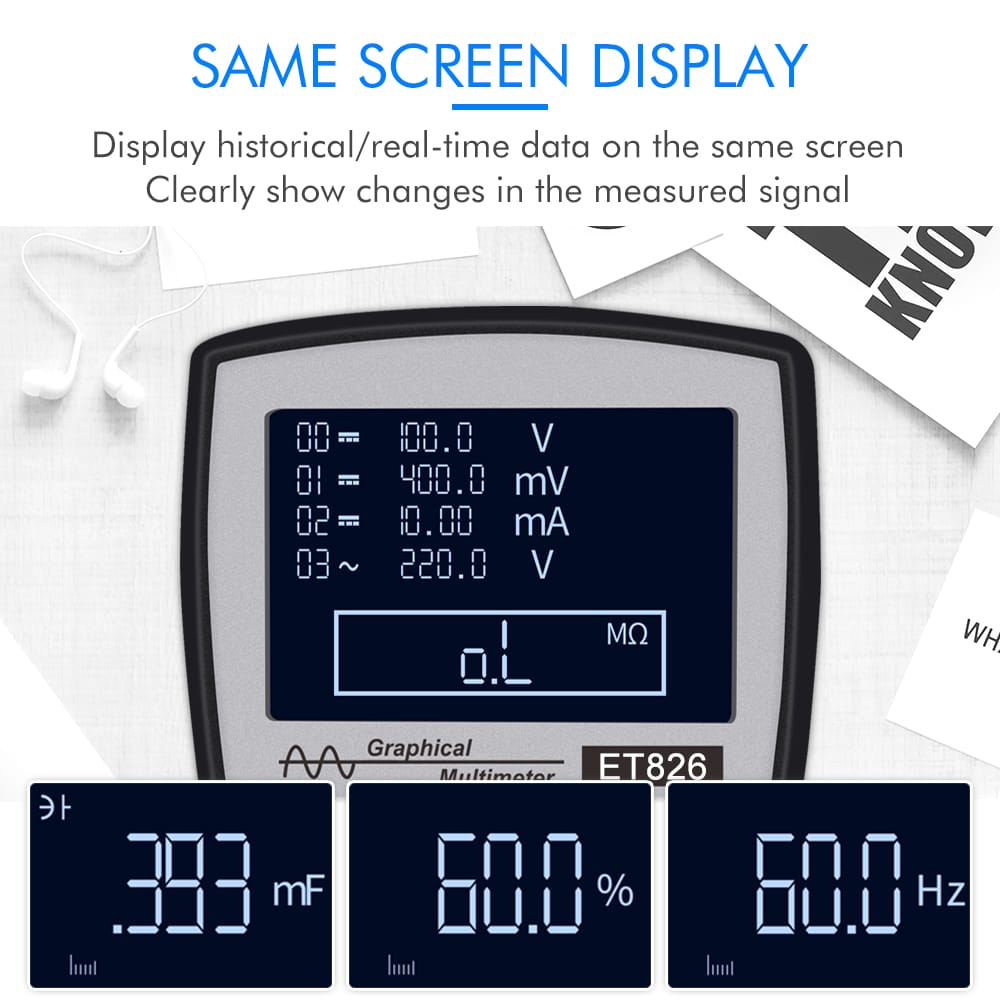

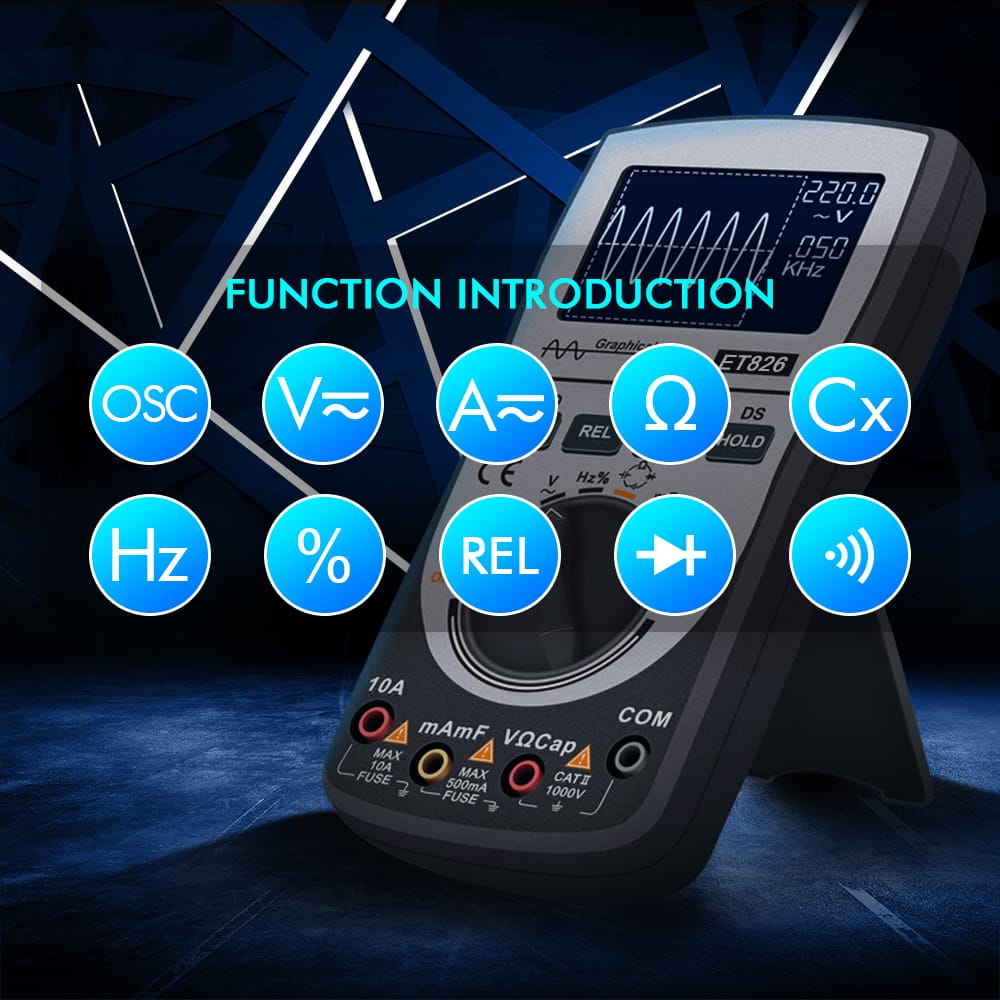

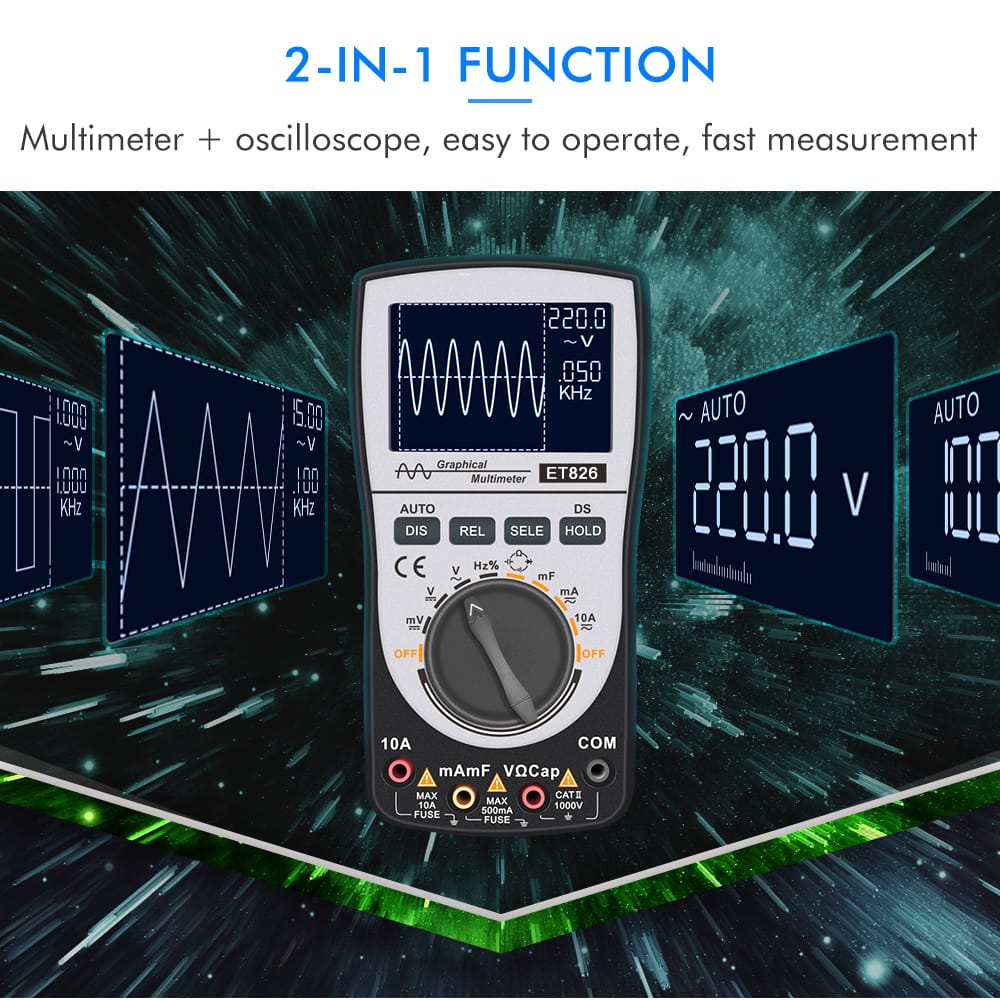

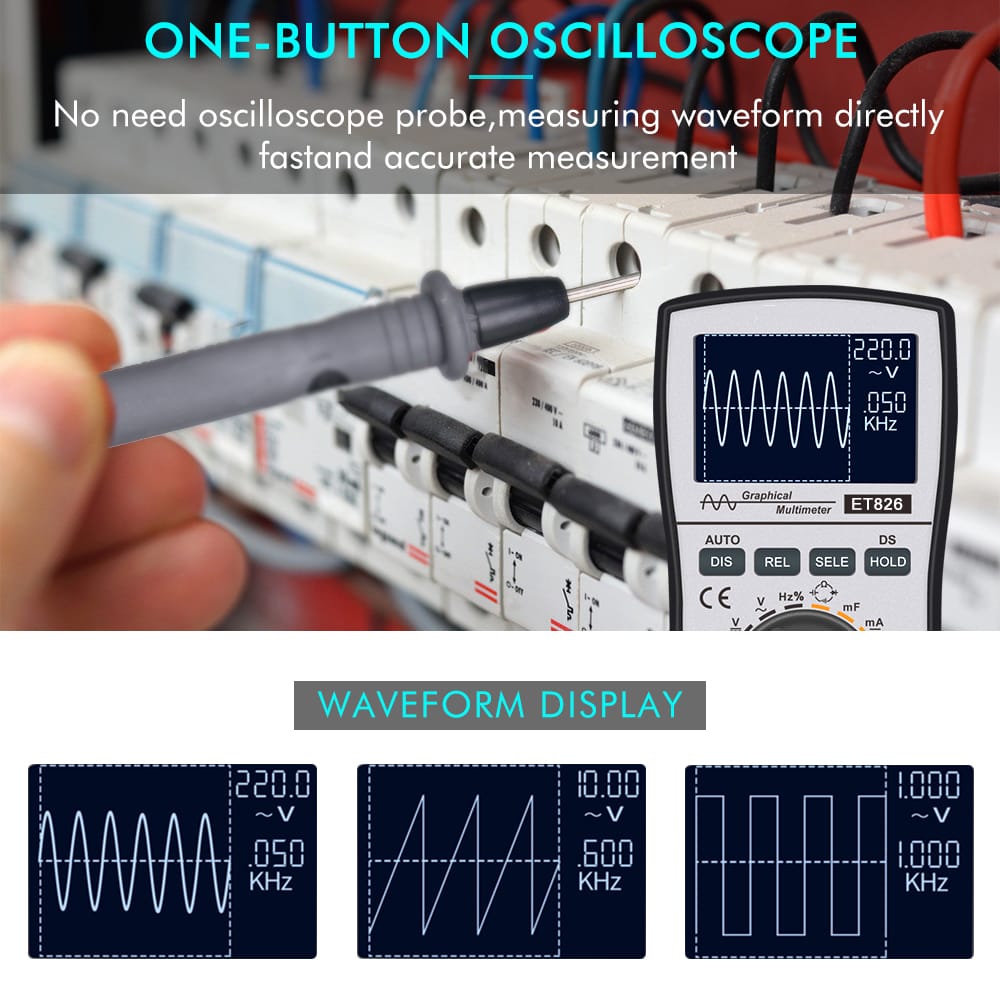

Are you still puzzled in changing meter frequently? It will lead to low efficiency to hinder work and high cost in work. You need oscilloscope multimeter urgently. This 2-in-1 oscilloscope multimeter is more convenient and easy to use.Features:Digital multimeter with 200K high-speed A/D sampling 4000 counts auto-range one-button switch of graphical waveform display during measurement.High reliability with panel calibration technology and memory calibration sparing the need for adjustment with potentiometer.Storing 100 sets of data and 10 waveforms independently.Capable of holding waveform and data during measurement easy to view and analyze.Displaying historical data and real-time measurement on the same screen with particular record reading mode for easy comparison.Featuring DC/AC voltage/current resistance capacitance/mF (large capacitance) frequency/duty cycle diode/continuity test.AC voltage bandwidth up to 20KHz.Innovative design for the one-key silent mode quiet in mastery.Frequency measurement with 5Hz~5MHz automatic switching range and the maximum input of 380VAC.10A AC and DC current measurement with protection against voltage error.Capacitance double gear design 0.1nf-100uf gear position: convenient for small capacitors to measure quickly.10mf gear position: high capacitance and high accuracy are guaranteed.Realizing one-button automatic waveform capture operator-friendly to learn and operate.Effectively eliminating lead resistance distributed capacitance or interference signals with relative value measurement (clearing).Extending battery life with automatic shutdown function.Specifications:Material: ABSMain color: greyDisplay: LCD display 128*64dot-matrix graphics 4000 countsLCD size: 60 * 40mm / 2.4 * 1.6inBacklight: whitePower: 3 * 1.5V AA battery (not included)Input resistance: 10M?Auto sleep: yes (the meter automatically auto sleep in 15 minutes without any operation of button)Power consumption: about 40mAStorage capacity: DMM data: 100 groups waveform record: 10 groupsOperation environment: 0?~+40?; 75%RHStorage environment: -10?~+60?; 90%RHItem size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3inItem weight: 190g / 6.7ouncePackage size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8inPackage weight: 360g / 12.7ounceDigital storage scopemeter:Analog bandwidth: ACV/DCV/ACA/DCA 20KHzMaximum real-time sampling rate: 200kspsDigital multimeter:DC voltage:Range: 400mV/4V/40V/400V/1000VResolution: 0.1mV/1mV/10mV/100mV/1VUncertainty:400mV: (0.75%rdg+10dgt)4V/40V/400V/1000V: (1.5%rdg+10dgt)/1000VAC voltage:Range: 400mV/4V/40V/400V/750VResolution: 0.1mV/1mV/10mV/100mV/1VUncertainty:400mV: 50Hz~1KHz / (2.0%rdg+10dgt) no more than 1KHz4V/40V/400V: 50Hz~400Hz / (1.0%rdg+10dgt) 400Hz~20KHz / (5.0%rdg+10dgt)750V: 50Hz~1KHz / (1.5%rdg+10dgt) no more than 1KHzDC current:Range: 40mA/400mA 4A/10AResolution:40mA/400mA: 10?A/100?A4A/10A: 1mA/10mAUncertainty: (1.2%rdg+10dgt)AC current:Range: 40mA/400mA 4A/10AResolution:40mA/400mA: 10?A/100?A4A/10A: 1mA/10mAUncertainty: (1.5%rdg+10dgt) 50Hz~5KHz no more than 5KHzResistance:Range: 400?/4K?/40K?/400K?/4M?/40M?Resolution: 0.1?/1?/10?/100?/1K?/10K?Uncertainty: (1.0%rdg+5dgt) (3.0%rdg+5dgt)/40M?Capacitance:Range: 51.2nF/512nF/5.12?F/51.2?F/100?F/10mFResolution:51.2nF/512nF/5.12?F/51.2?F/100?F: 10pF/100pF/1nF/10nF/100nF10mF: 1?FUncertainty:51.2nF/512nF/5.12?F/51.2?F/100?F: (3.0%rdg+10dgt)10mF: (5.0%rdg+15dgt)Frequency:Range: 5Hz~5MHzResolution: 1HzUncertainty: (1.0%rdg+5dgt) (signal amplitude not less than 2Vp-p ACV MAX 380V)Diode test: open circuit voltage is about 1.5V the maximum test current is about 1.5mAContinuity test: reference resistance is about 50?Fuse specification: 500mA/250V 10A/250VPackage list:1 * Multimeter Oscilloscope1 * Pair of Test Pens1 * Protective Bag1 * User Manual
