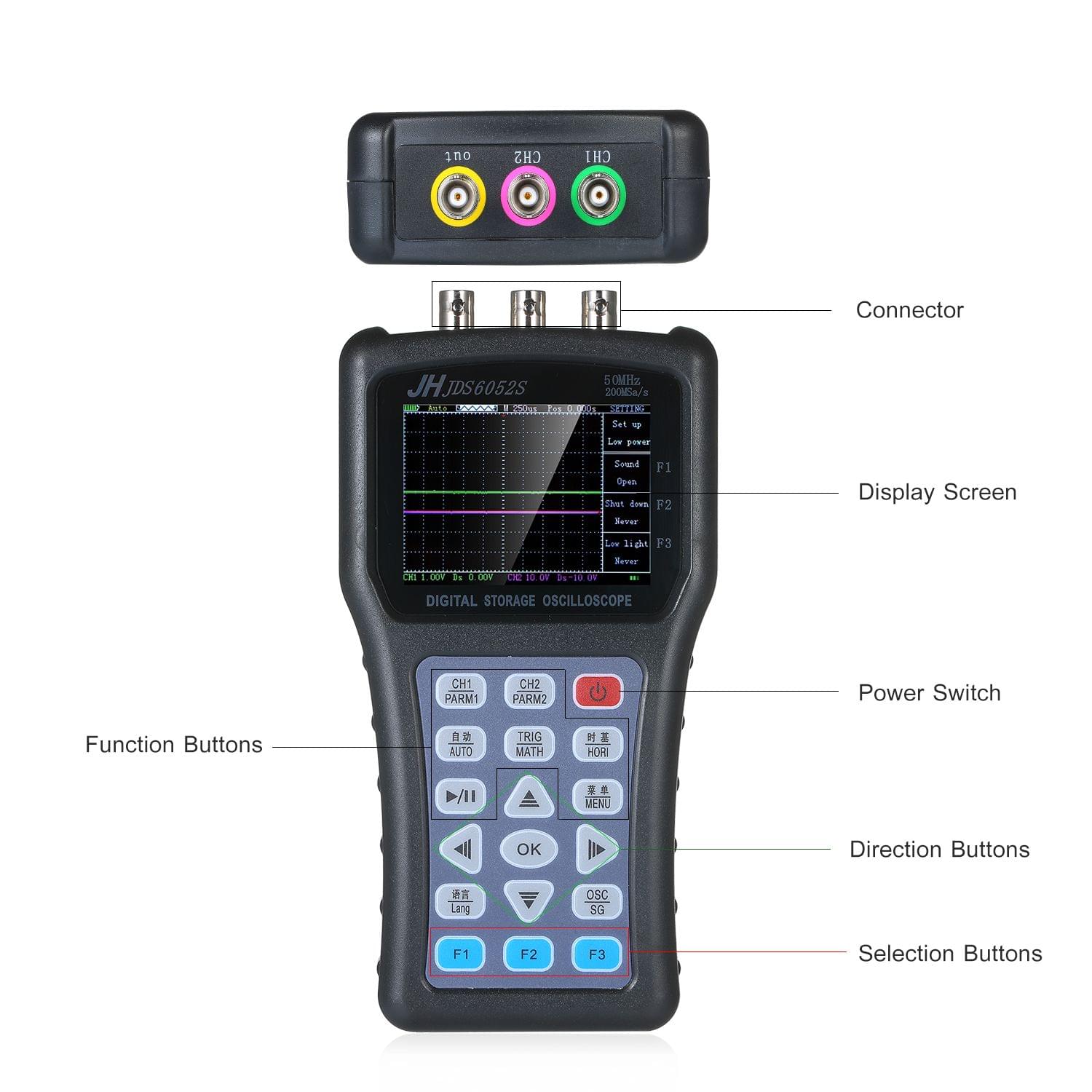

2-in-1 Oscilloscope & Function Signal Generator Dual Channel

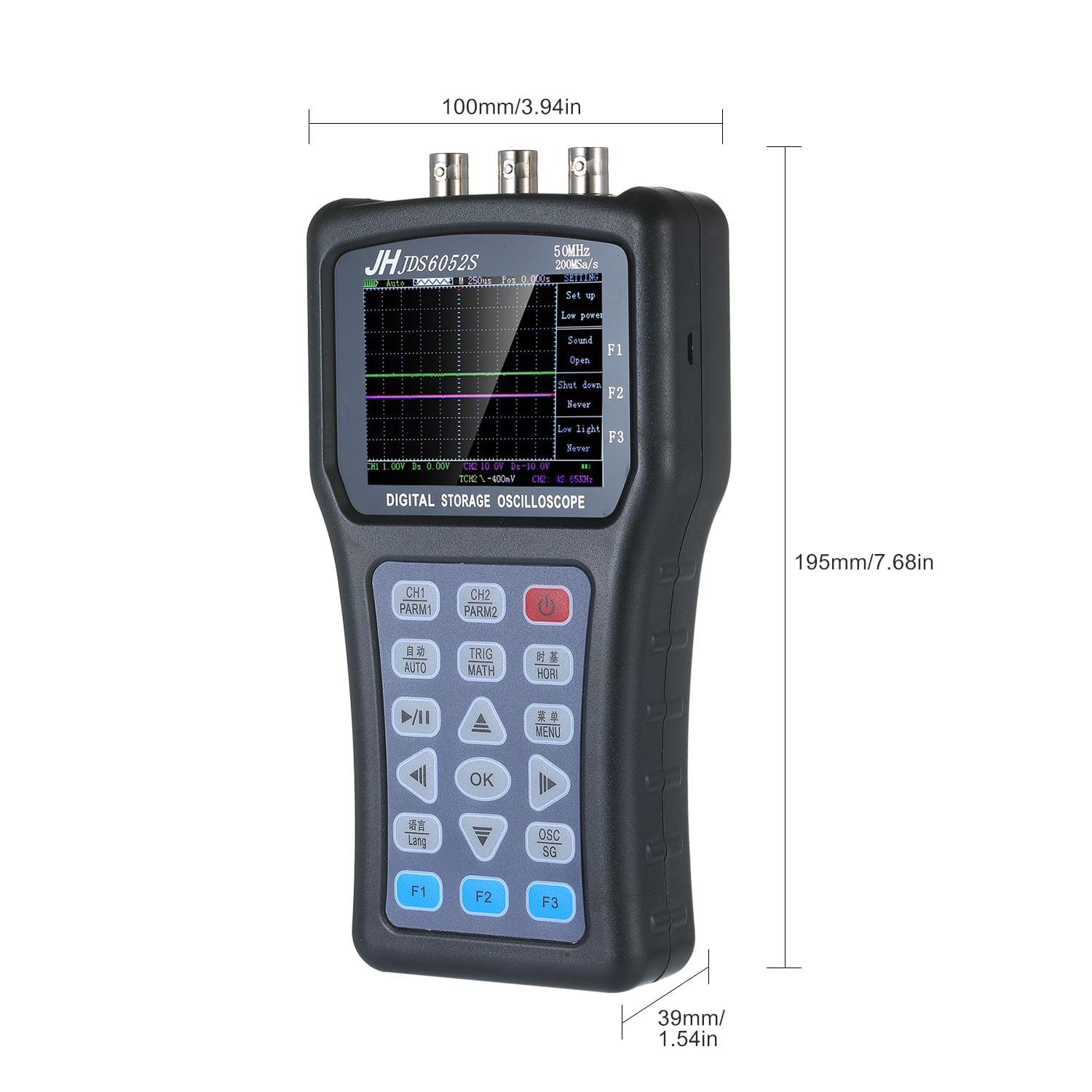

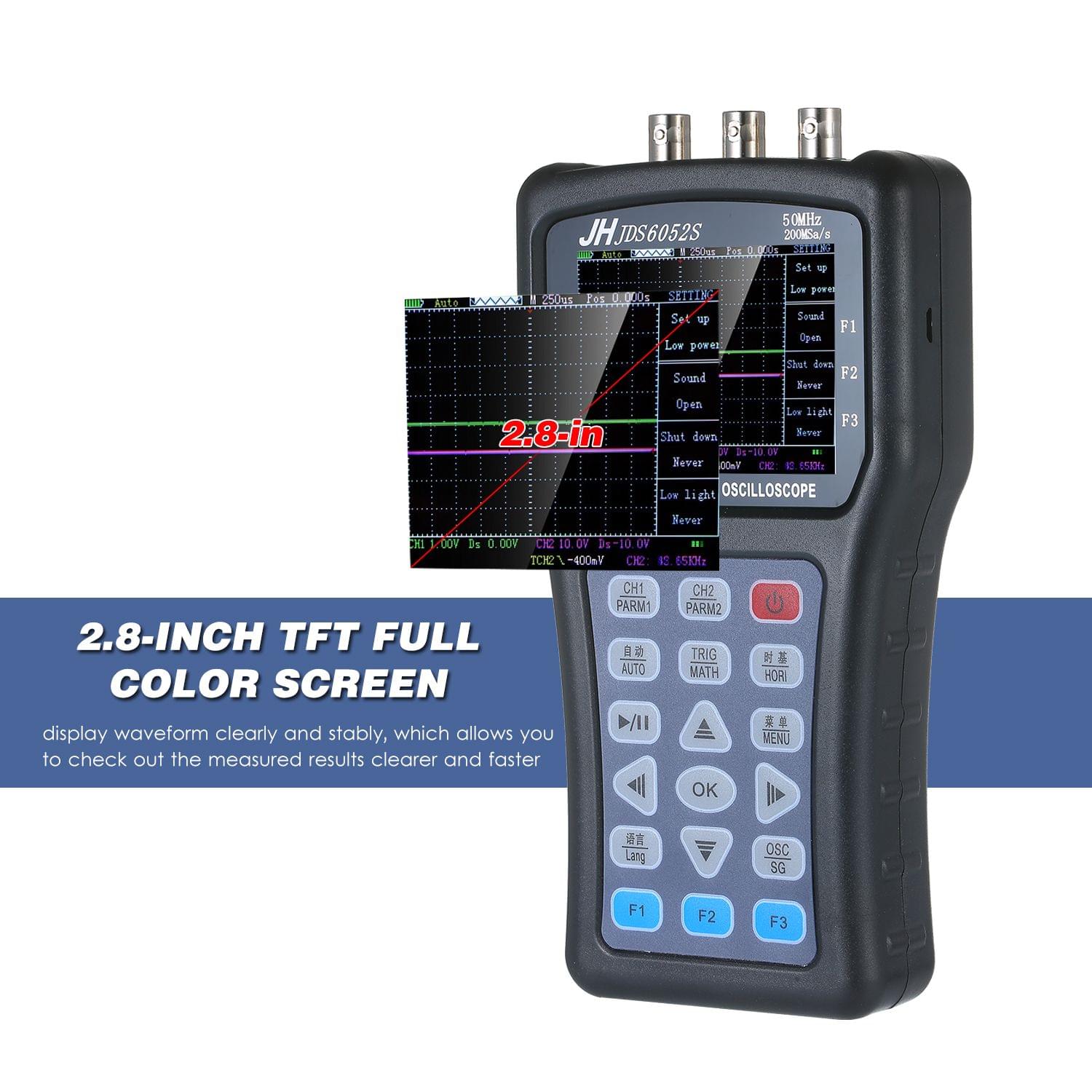

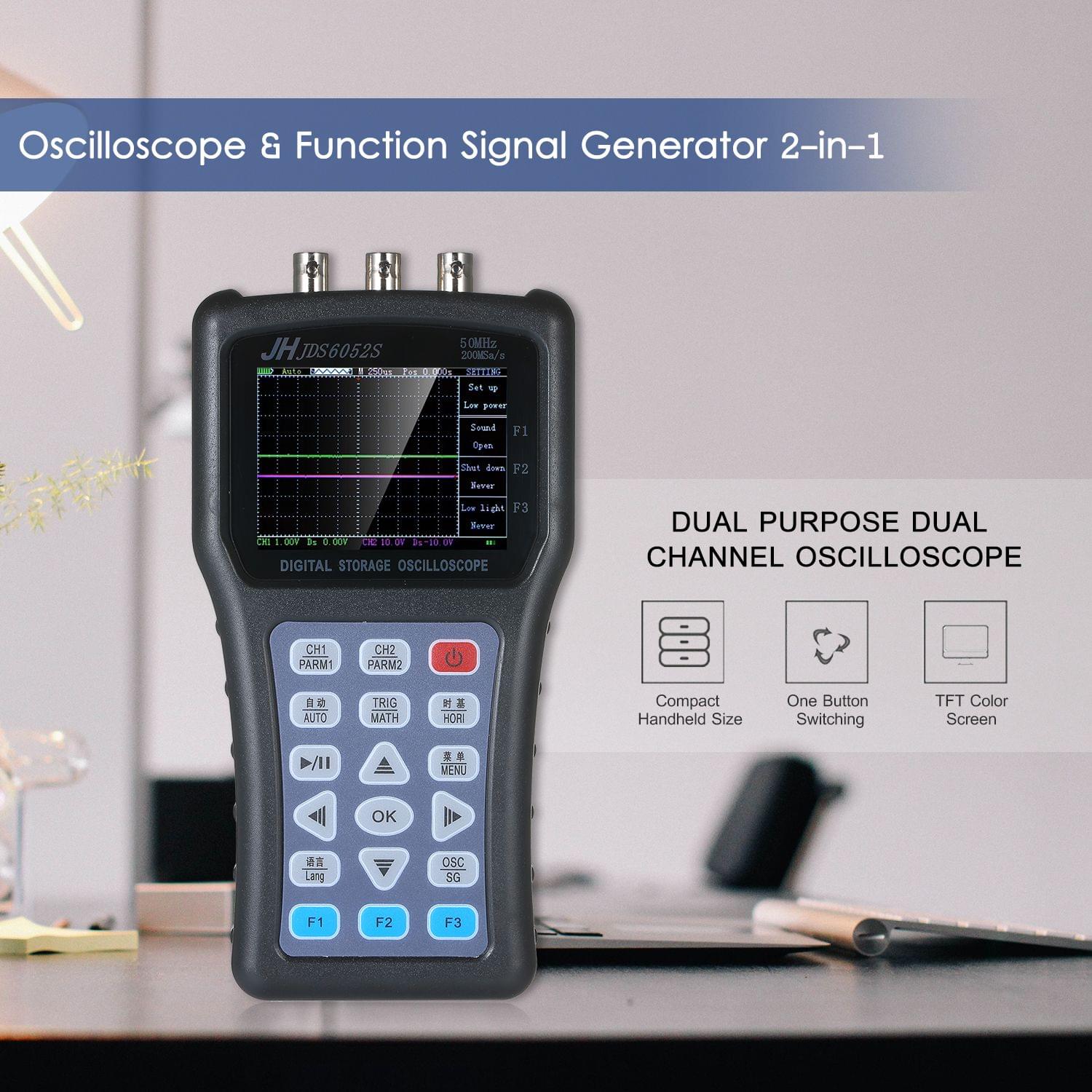

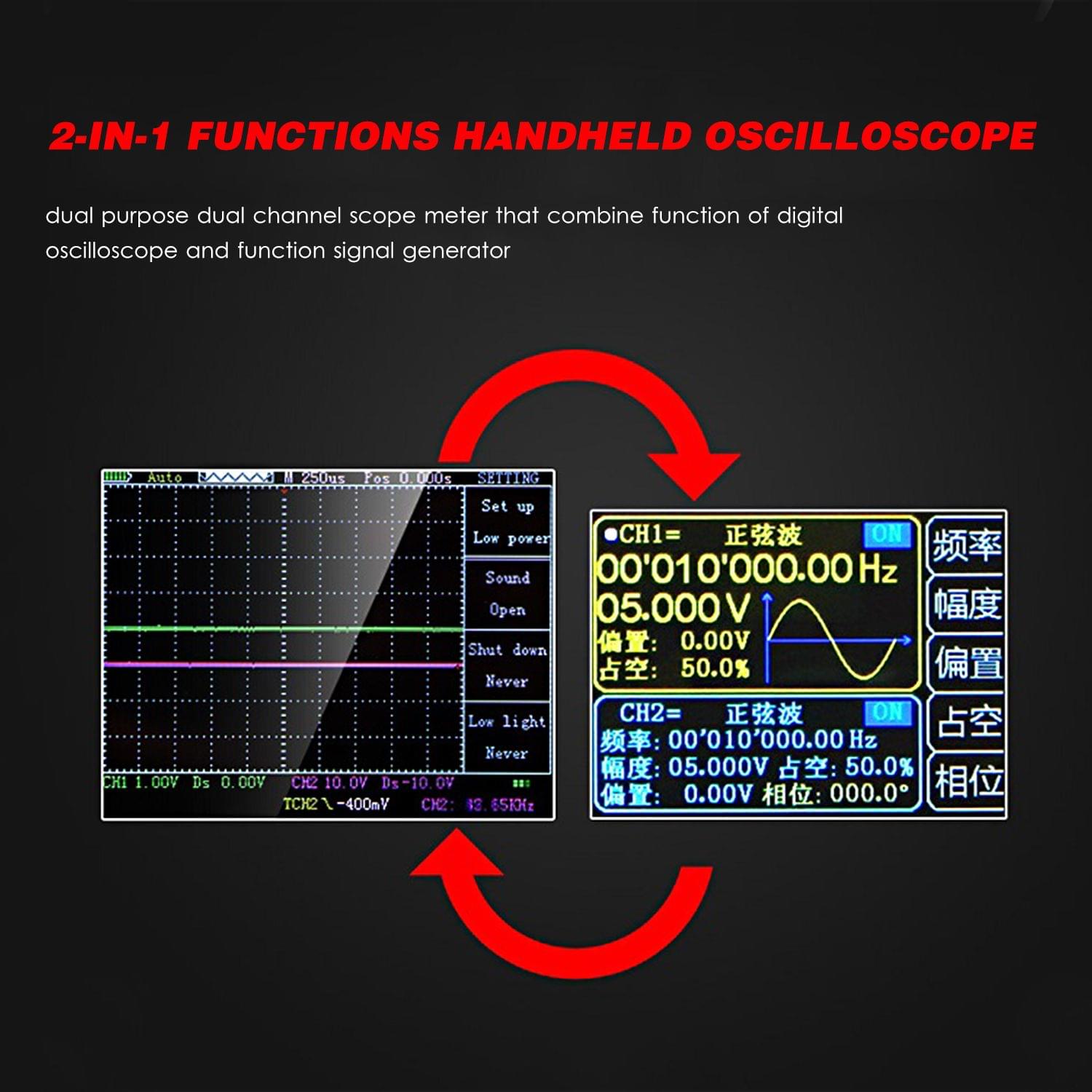

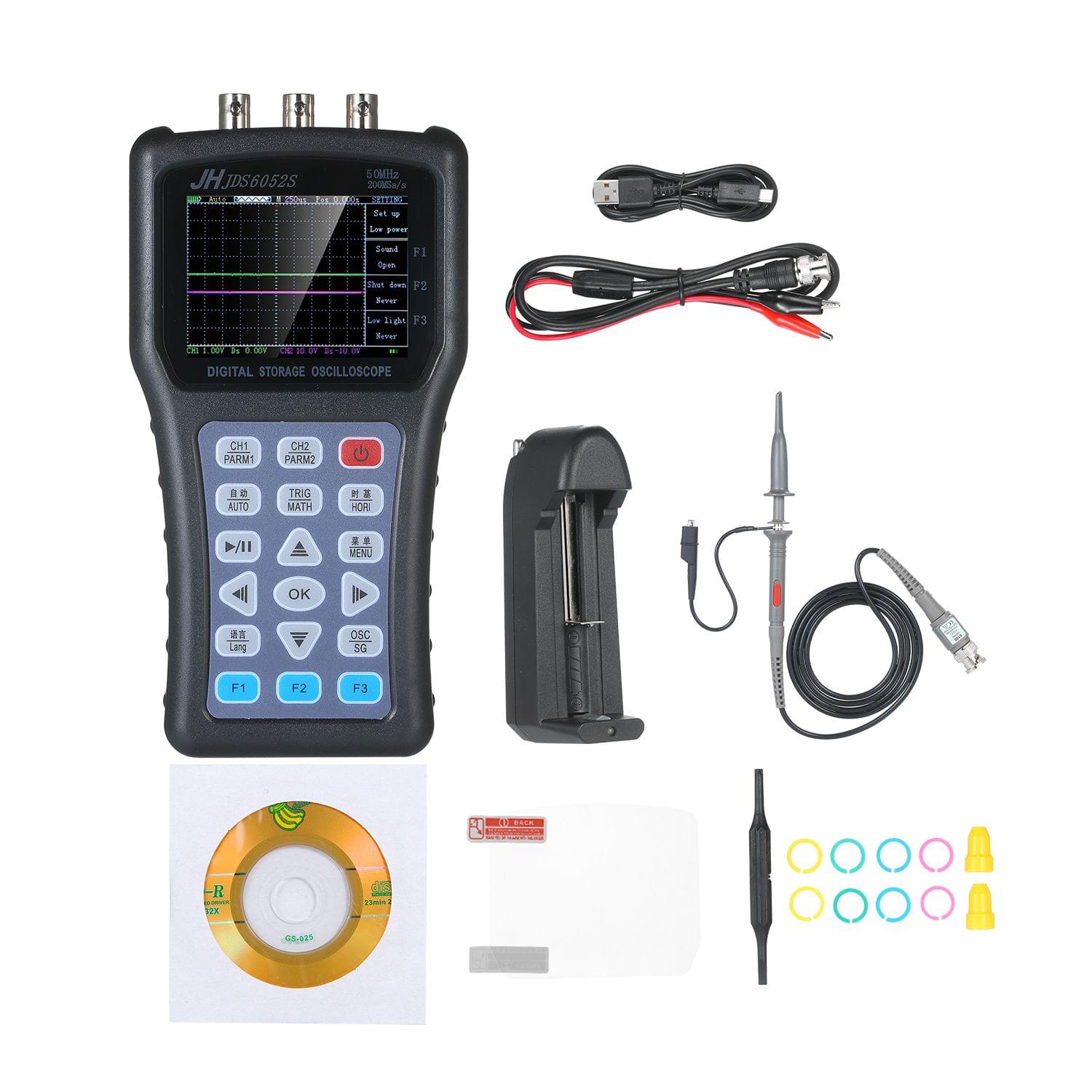

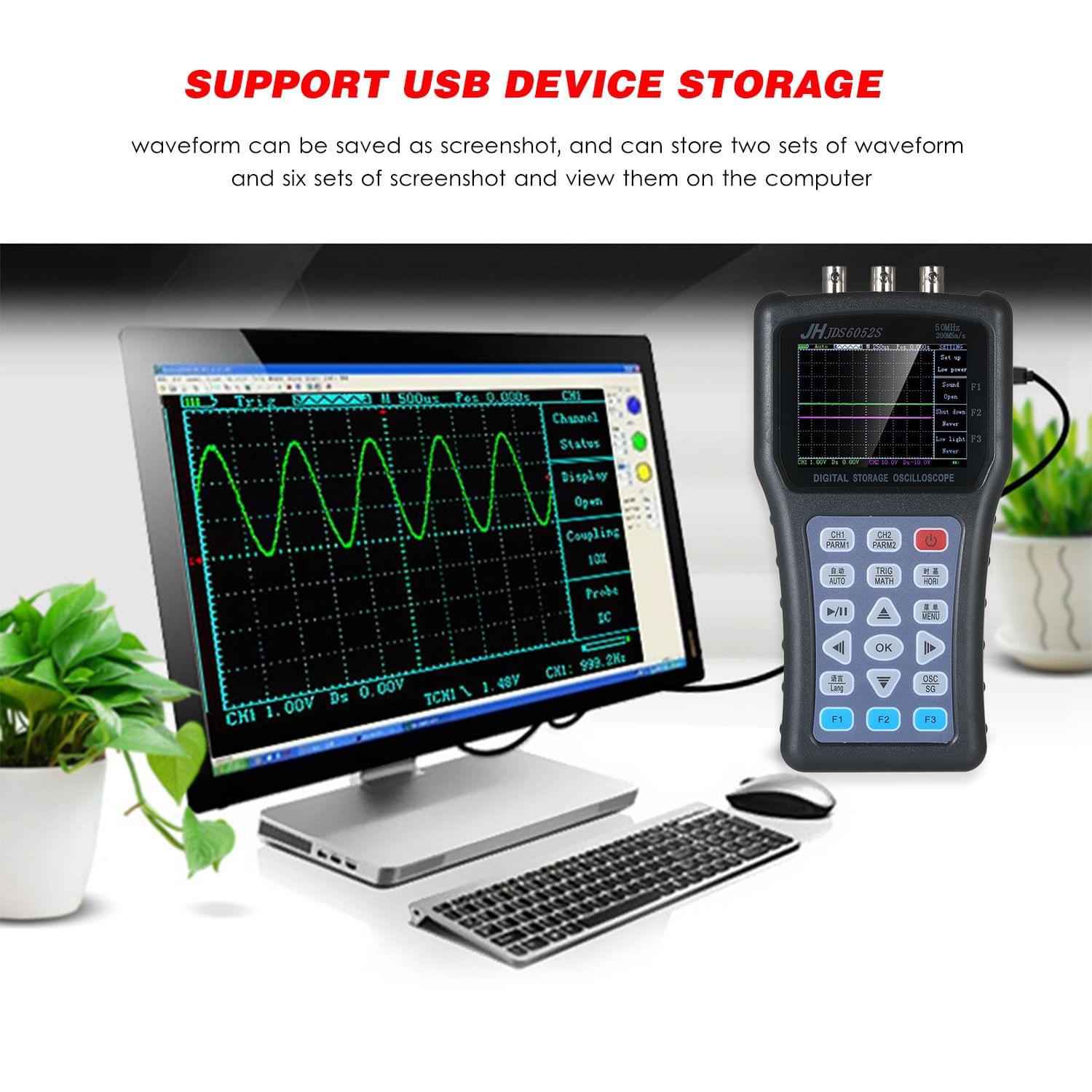

Features:2-in-1 Functions: dual purpose dual channel scope meter that combine functions of digital oscilloscope and function signal generator.Support USB Device Storage: waveform can be saved as screenshot and can store two sets of waveform and six sets of screenshot.2.8-inch TFT Full Color Screen: display waveform clearly and stably which allows you to check out the measured results clearer and faster.Simple Operate Panel: compact design handheld digital oscilloscope is simple and intuitive to operate.Channel Port: support manual trigger CH1 CHE trigger and can arbitrarily output.Accessories: a pair of 1X 10X oscilloscope probes a alligator clip cable a battery charger a USB cable and other necessary parts.Specifications:Material: ABSColor: Black+grayDisplay: Full color TFT LCD display(320*240 pixels)Power Supply: 1 * 3.7V 2800mAh lithium battery (NOT included)Item Size: 195 * 100 * 39mm / 7.68 * 3.94 * 1.54inItem Weight: 323g / 11.39ozPackage Weight: 772g / 27.23ozPackage Size: 28.4 * 23.2 * 8.2cm / 11.18 * 9.13 * 3.23inOSCILLOSCOPE:The Number of Channels: 2Maximum Real-time Sampling Rate: 200MSa/s(single channel CH1) 100MSa/s(dual channel CH1 CH2)Bandwidth: 50M(single channel) 25M(dual channel)Vertical Resolution: 8 bitsVertical Gear: 10mV~5V (probe x1) 100mV~50V ( probe x10) 1 2 5 stepping levelImpedance: 1M? 25pFCoupling: DC ACDisplay Mode: Y-T / X-YInput Voltage: 40V(probe x1 ) 400V(probe x10) using a high voltage probe the maximum voltage is determined by the quality of the probeTime Base Range: 12.5ns~5s 100ms~5s scan mode (scan)Storage Depth: 3K per channelTrigger Mode: Automatic normal and singleTrigger Type: Rising edge falling edgeAutomatic Detection: 50Hz~20MHzCursor Measurement: Time voltage (manual mode)Recordable Contrast Waveform: 2Screenshot Function: SupportMathematical Calculation: CH1+CH2 CH1-CH2 CH2-CH1Self-calibration: SupportSIGNAL GENERATOR:The Number of Channels: 1Frequency: Sine wave (1Hz-5MHz) square wave (1Hz-1MHz) positive sawtooth wave (1Hz-1MHz) reverse sawtooth (1Hz-1MHz)Amplitude: 100mV~8VOffset: Maximum (0V~4V)Duty Cycle: 0%~100%Packing List:1 * Oscilloscope1 * Pair of Oscilloscope Probe1 * Alligator Clip Cable1 * Battery Charger1 * USB Cable1 * Screen Protector1 * CD1 * Probe Compensation Adjustment Tool2 * Insulation Cap8 * Maker Ring1 * User's Guide (English)
