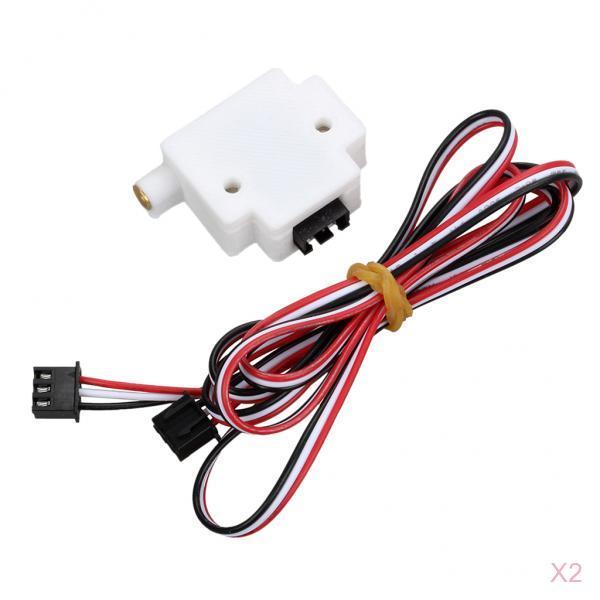

2 Pieces 3D Printer Part Detection Module for 1.75mm Filament Monitor Sensor

Description:

Wear-resistant copper sets added in both the inlet and outlet to effectively extend the product life. Wiring: Connect the module to the M-sensor port on the motherboard.
Used for Lerdge board: When there is material in, the green light in the module keeps lighting. when the material is exhausted, the green light goes off,and the motherboard executes the pause command operation, after the replacement of the material, can continue to print.
Used with other motherboards: The material detection module uses the level transition detection method.
When with material in, the detection level signal should be high, and when no material, the material port level signal goes low.
When the system detects a determined transition from high to low level, it will regard it as the material exhausted, then the board executes the pause command operation, and after the replacement of the material, it will continue to print.

Specification:

Board size: 38*30*13mm/1.50*1.18*0.51inch

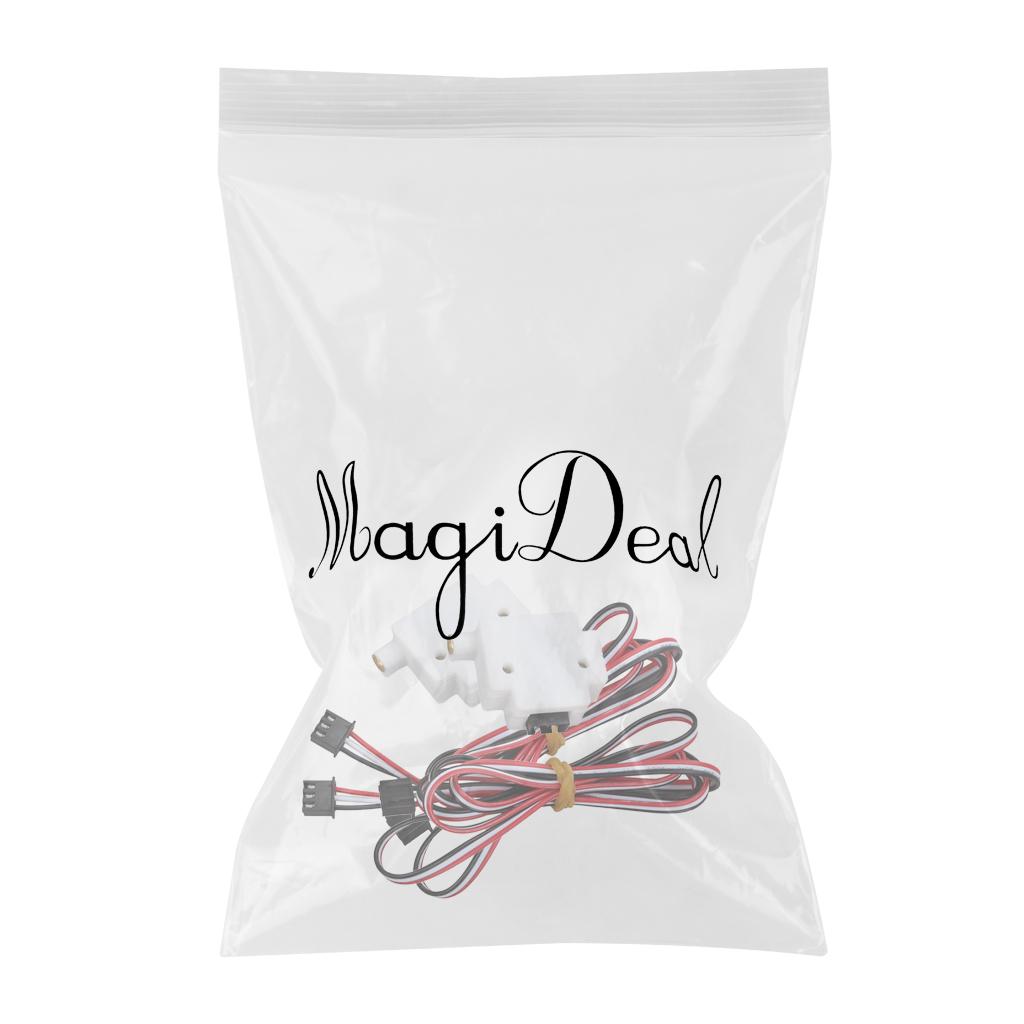

Package Includes:

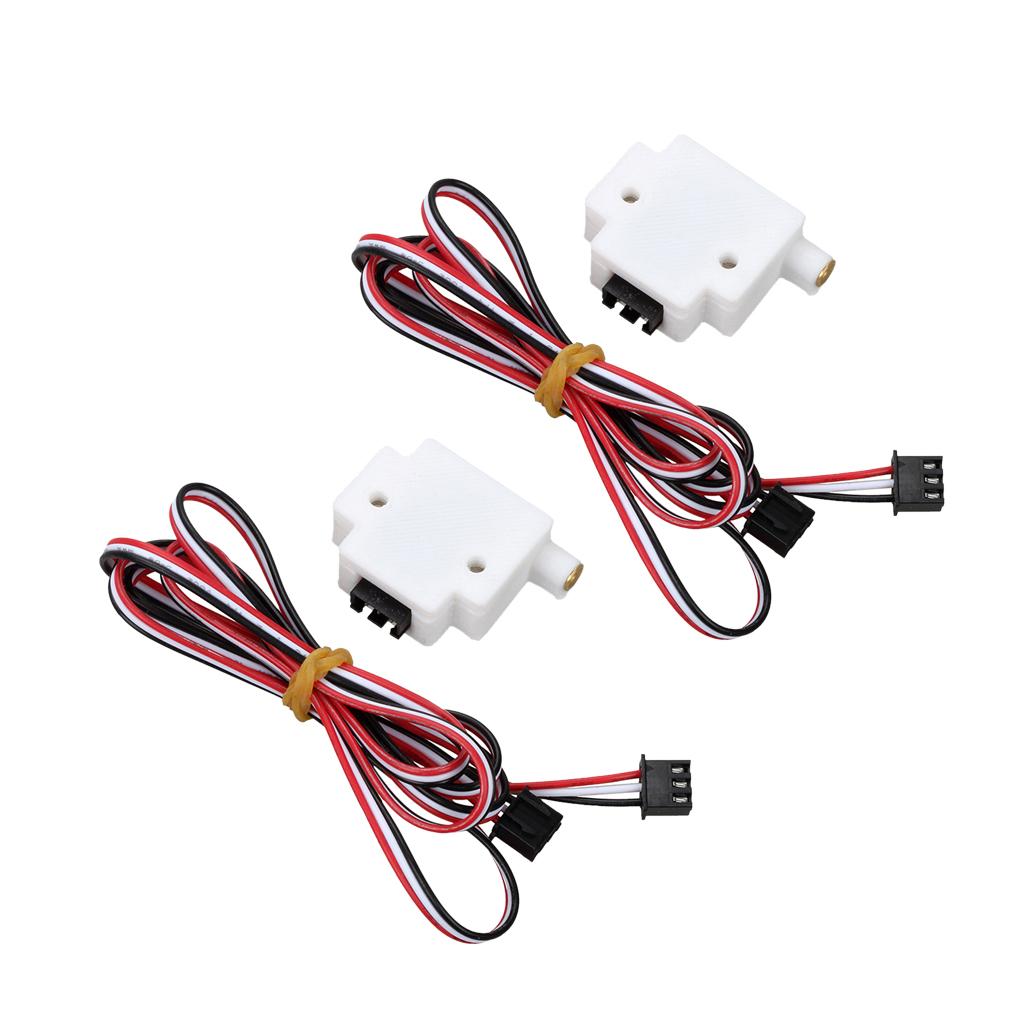

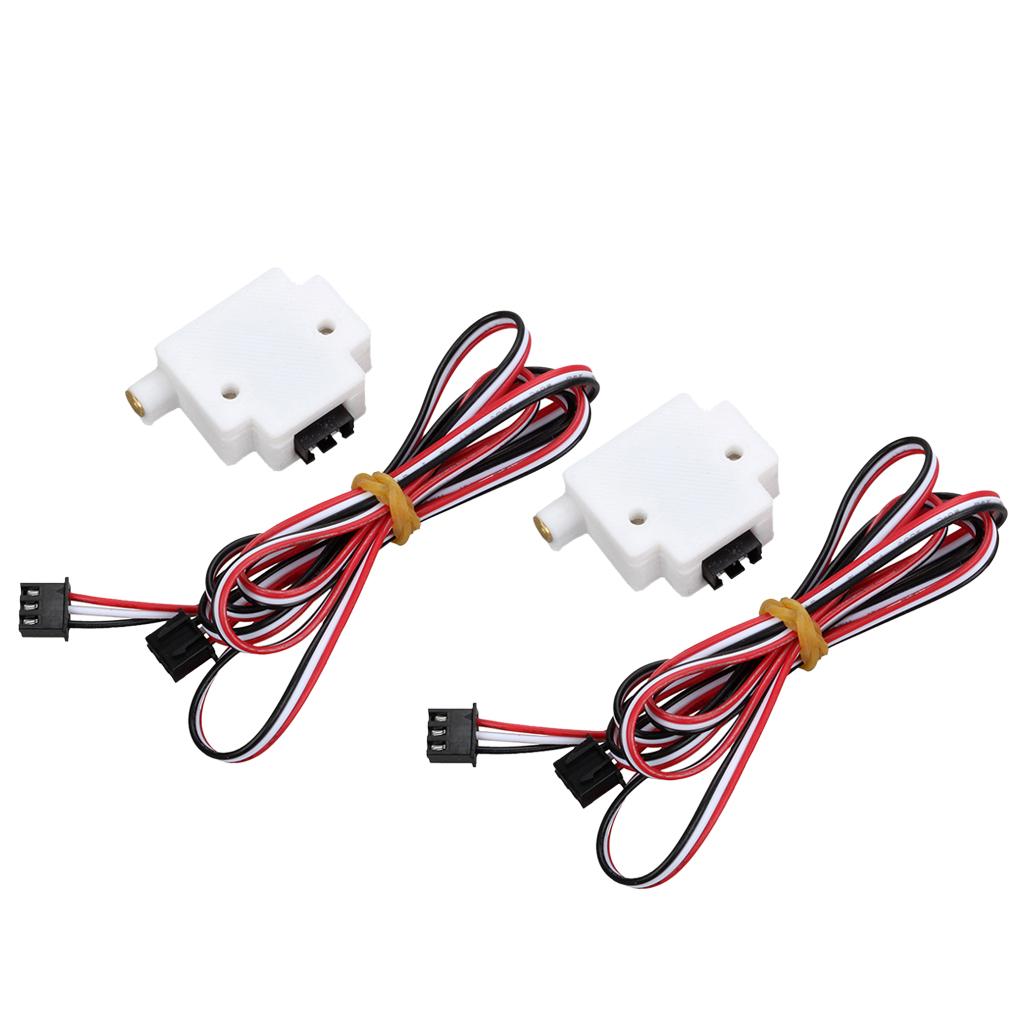

2 Pieces Material detection module with cable.
