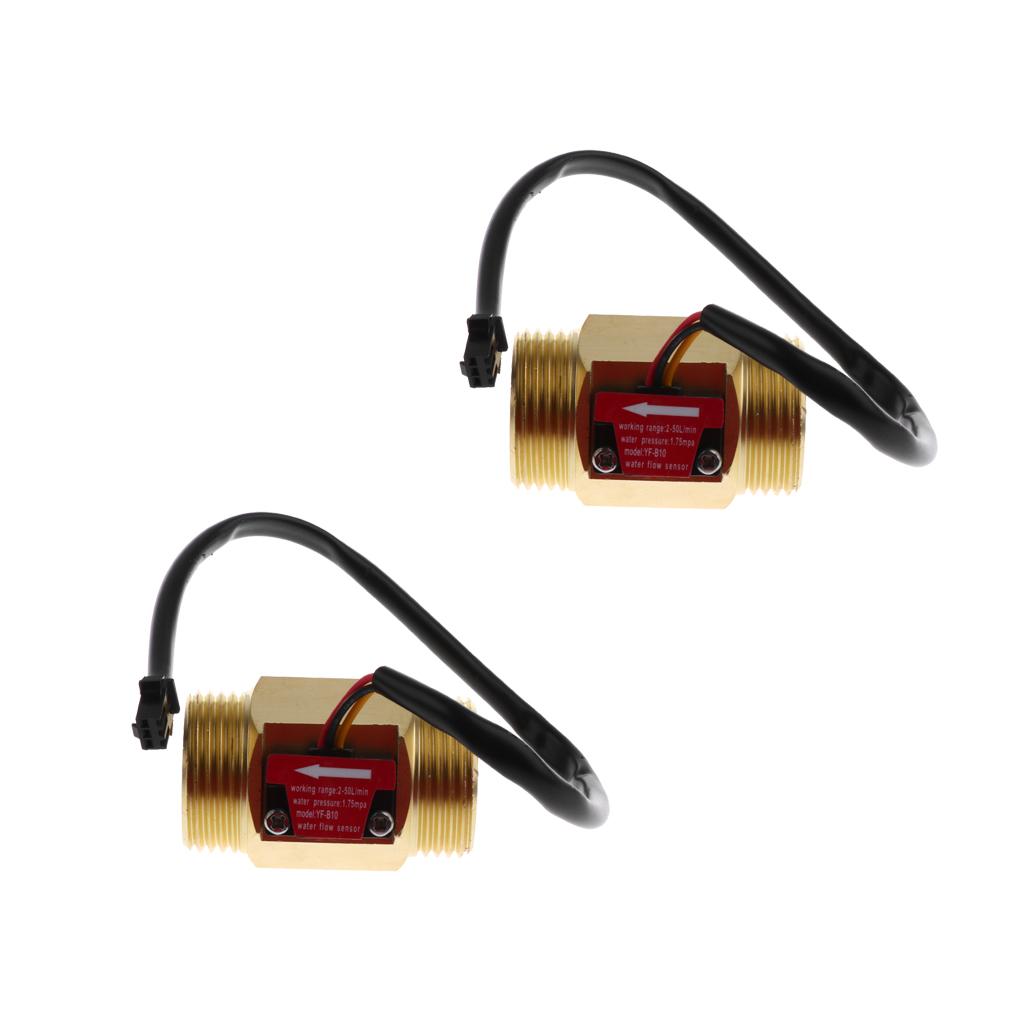

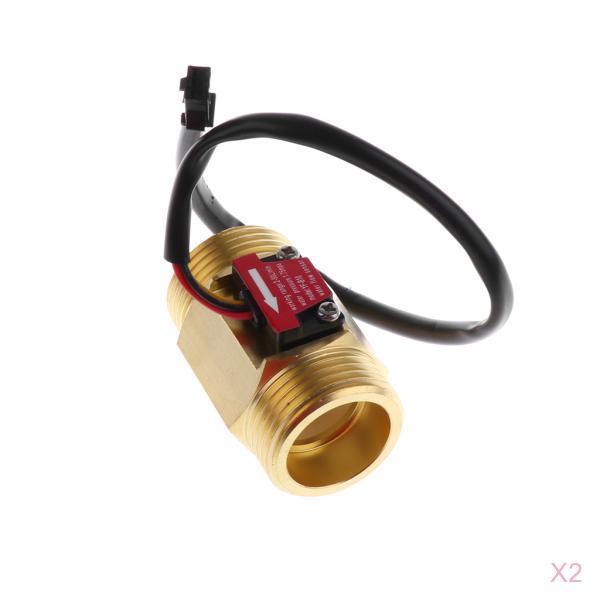

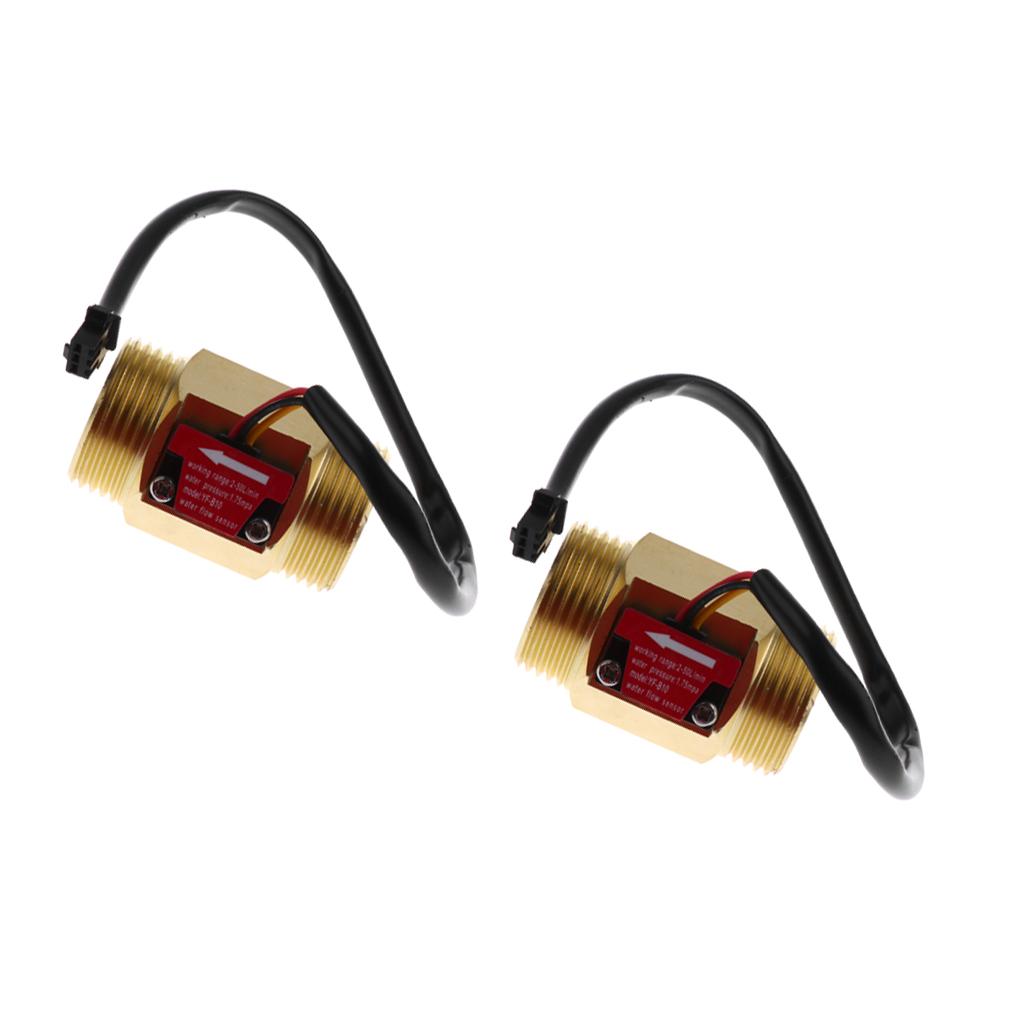

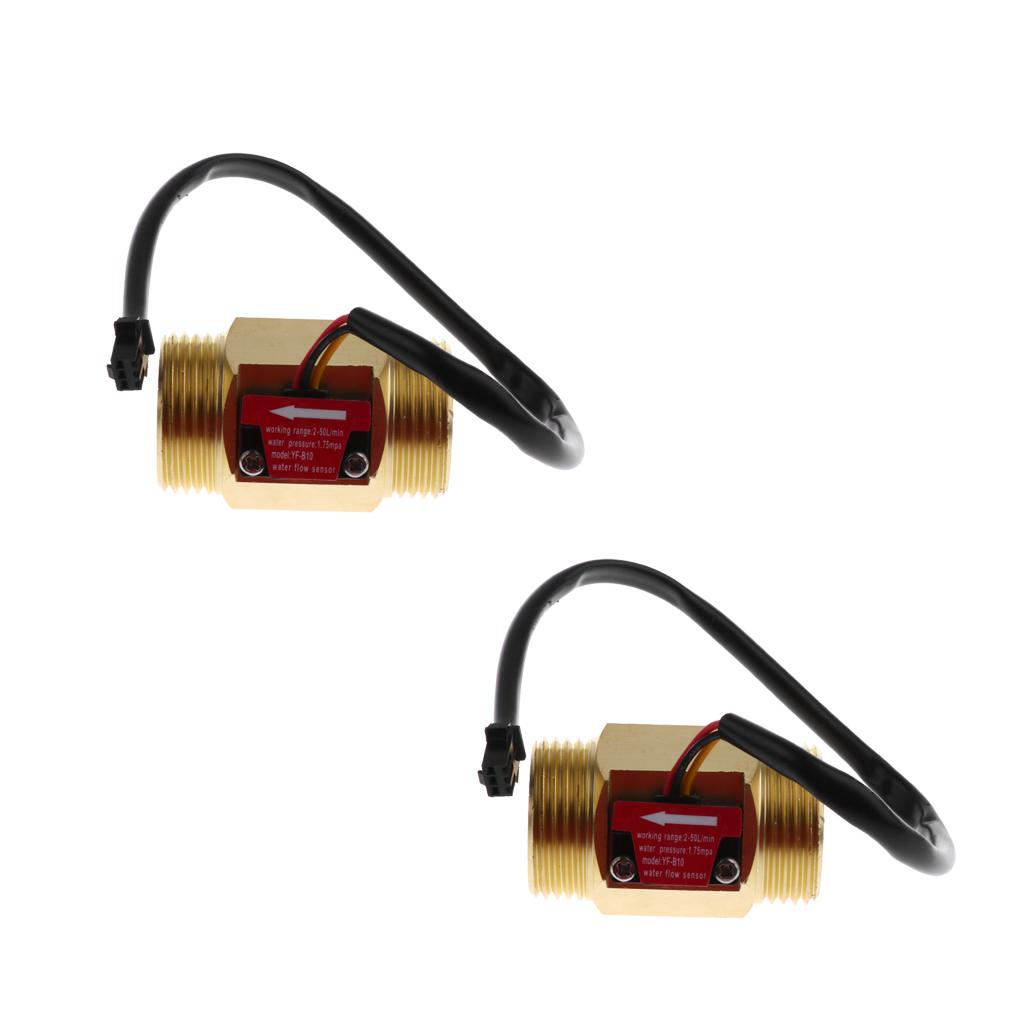

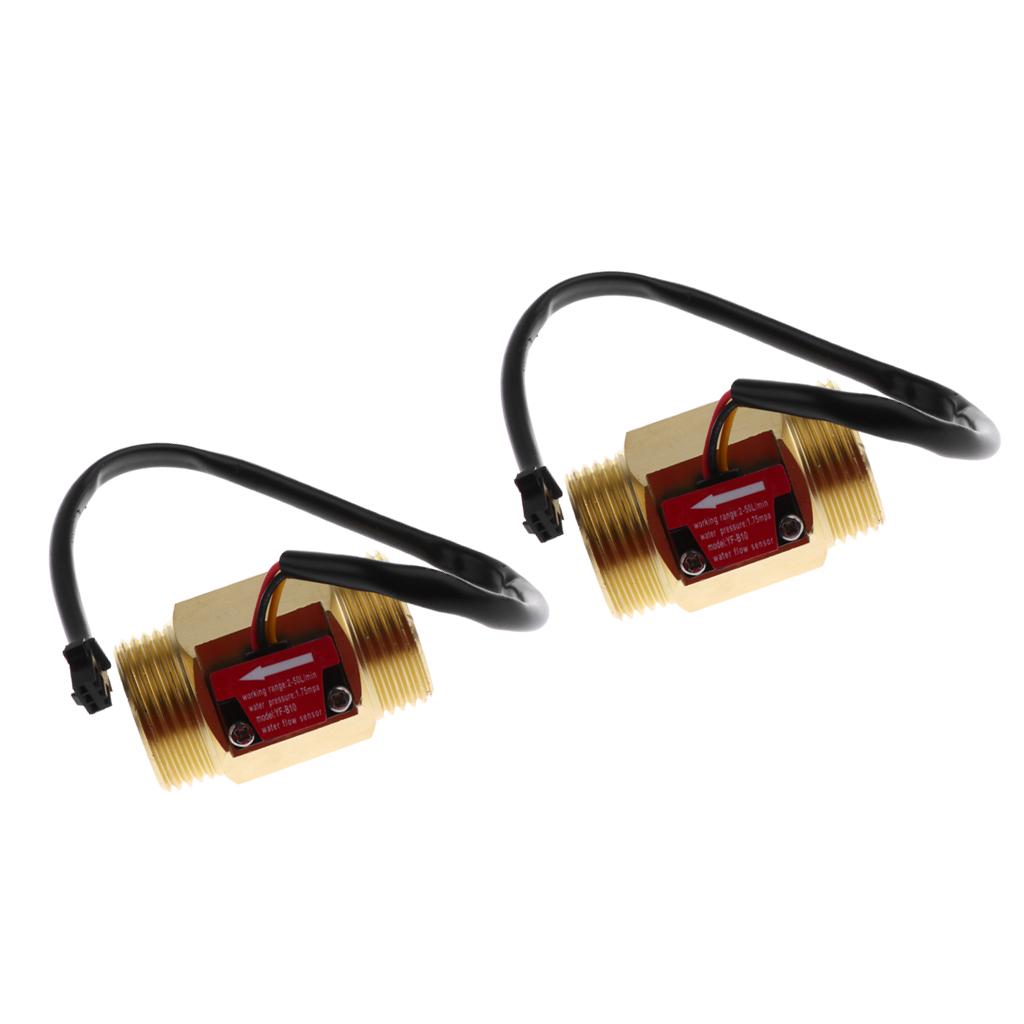

2 Pieces G1 Hall Effect Liquid Water Flow Sensor Switch Flow Meter"

Description:

Copper material, small size, easy to install.
The water flow sensor is applied for water heater, and can be used as flow switch.
Maximum water pressure: 1.75MPa, flow range: 2-50L/min.
Stable, high temperature, low water pressure start, safe.

Specification:

Water Pressure: >1.75MPa
Working Voltage Range: DC5～15V
Insulation resistance: >100MΩ
Accuracy: 1～25L\MIN﹞±5%
Flow Pulse Characteristic: F=(8*Q-4)±5%，F:frequency Q为L/Min
Output pulse high level: >DC 4.7V(input DC 5V)
Output pulse duty cycle: 50%±10%
External Thread Diameter: G1 inch

Package Includes:

2 Pieces Water Flow Sensor
