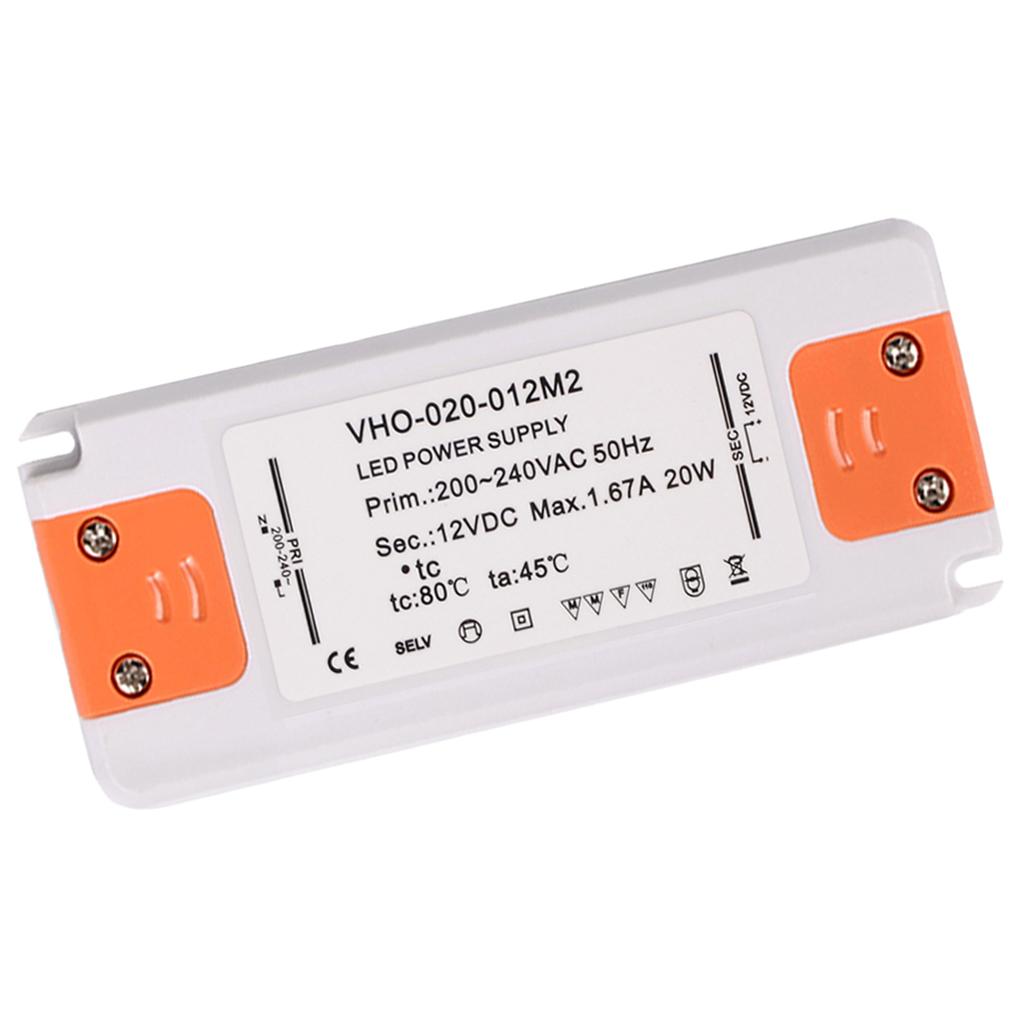

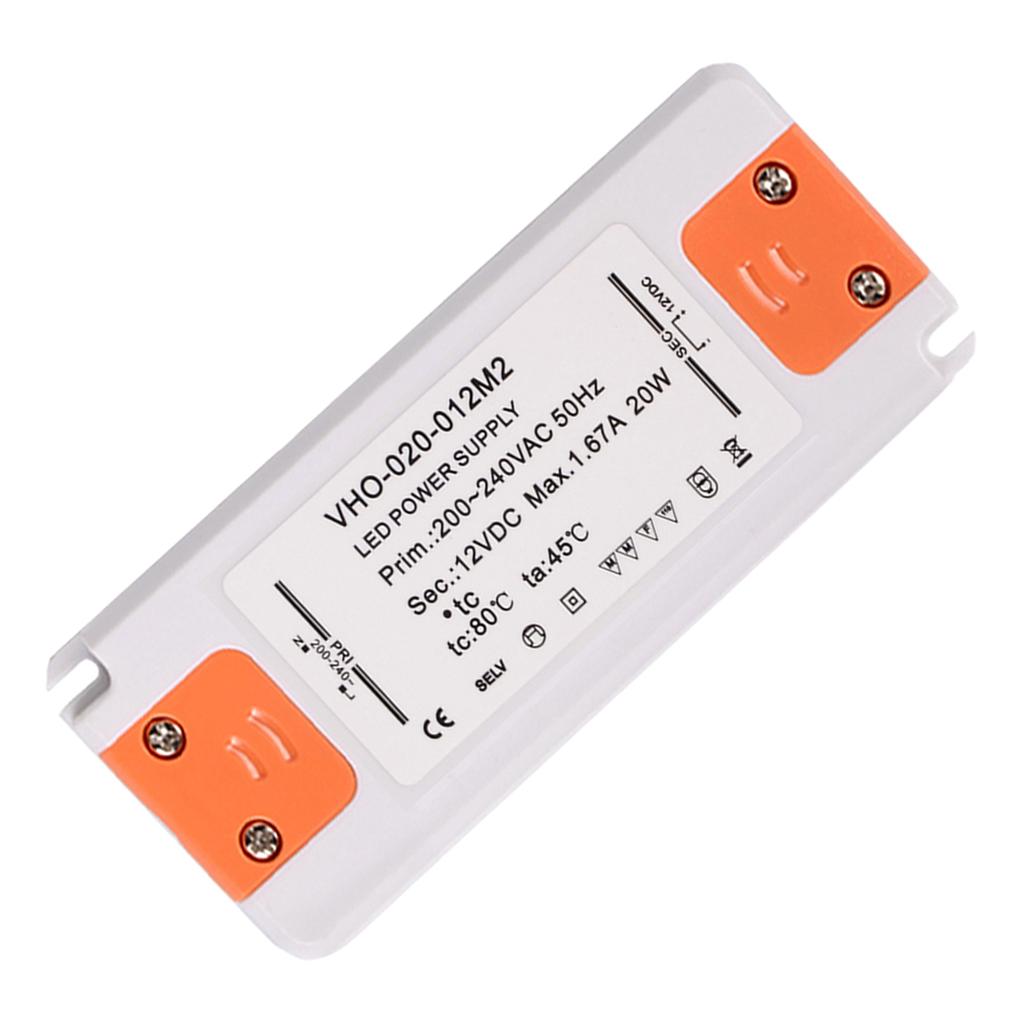

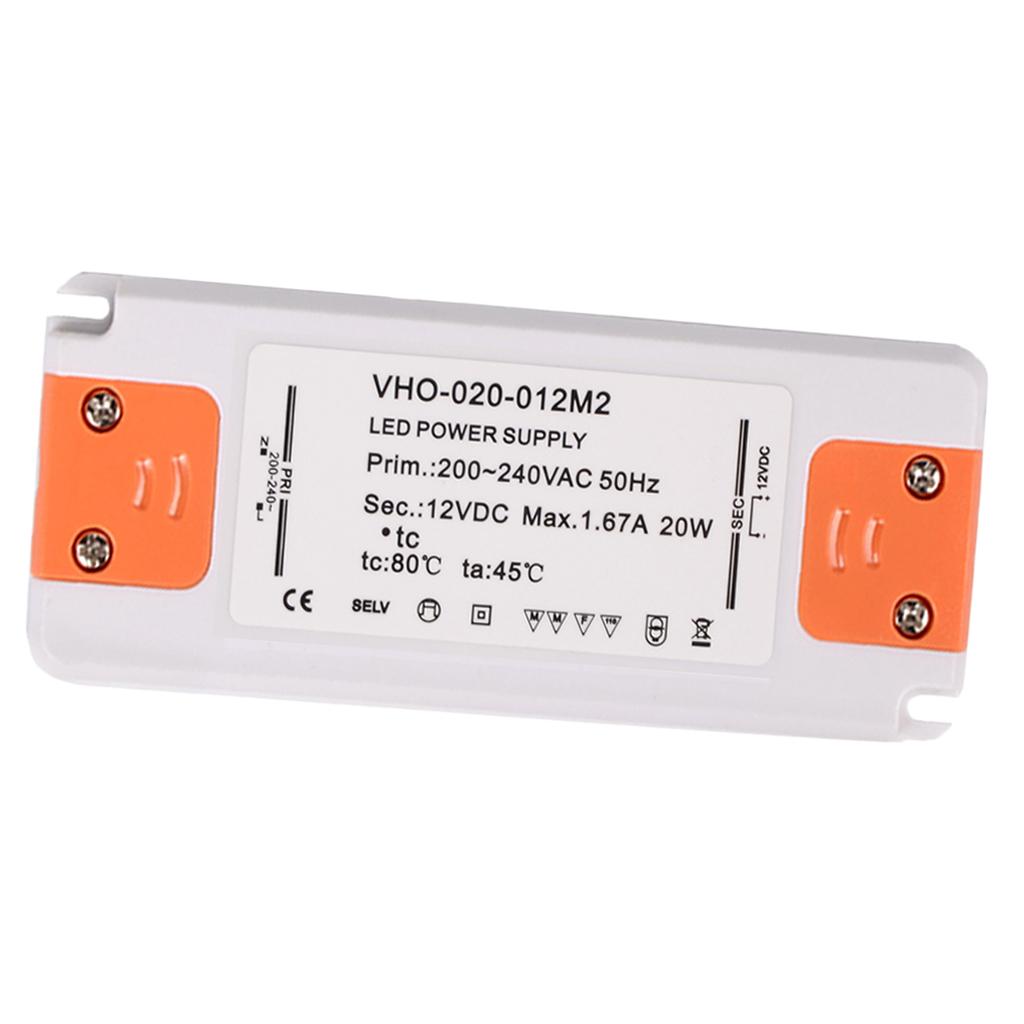

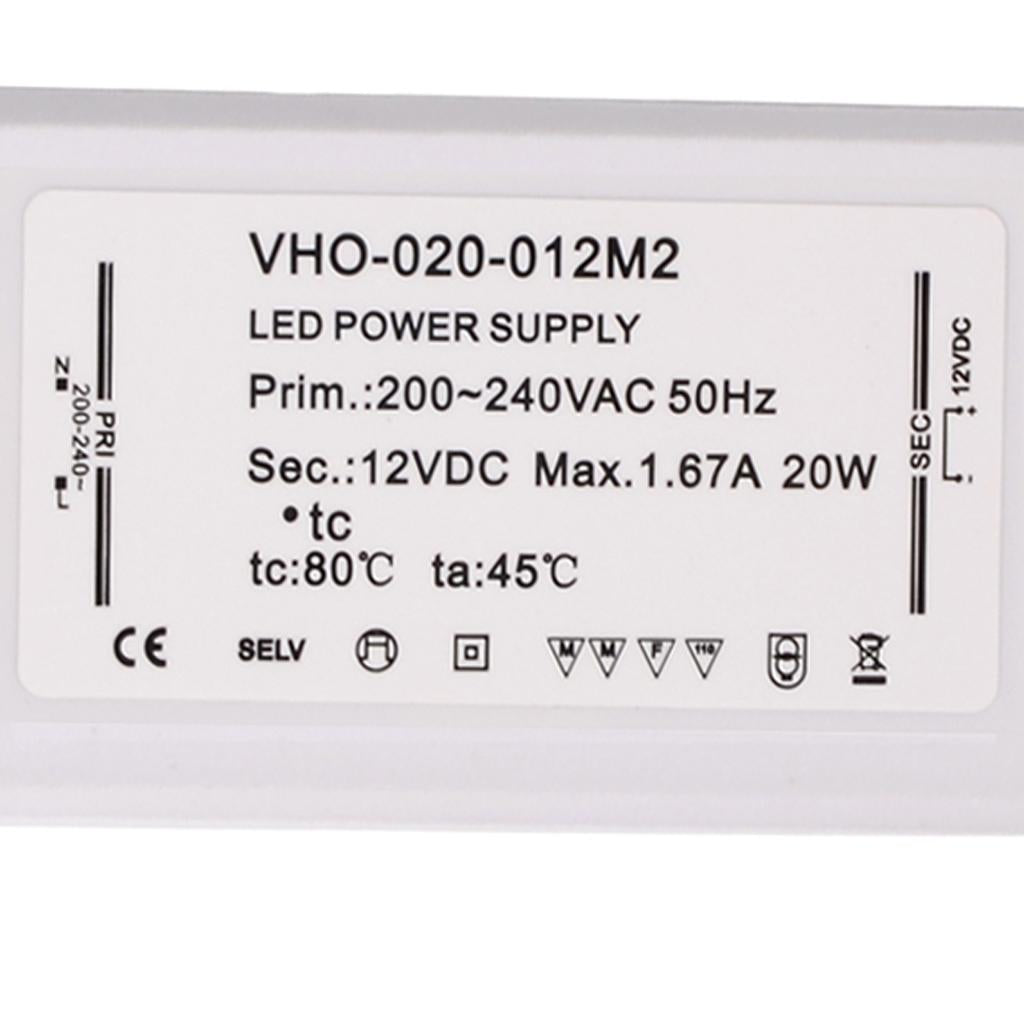

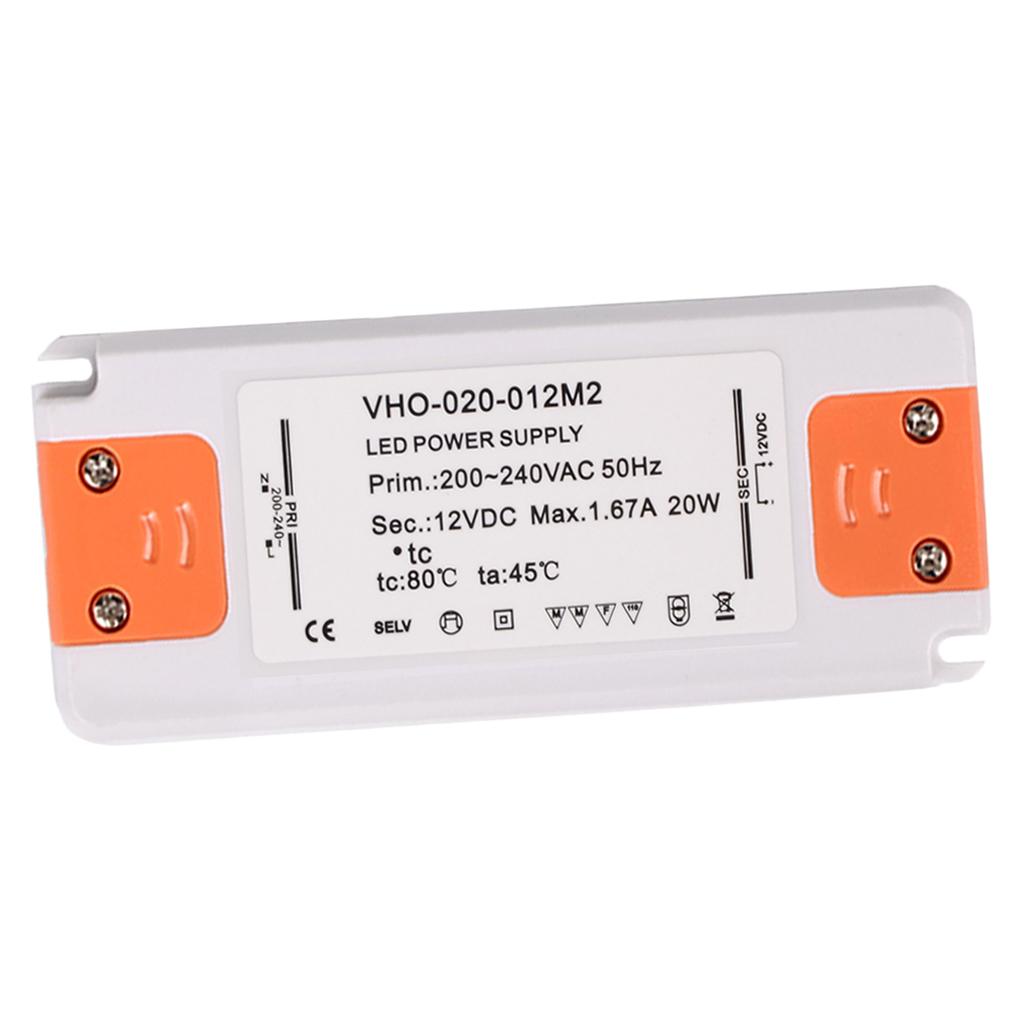

20W 1670MA 12V Slim LED Driver Transformer Power Supply

Description:

Size:L * W * H = 127.5 * 50 * 10.8 mm
Input rated voltage : AC100-240V
Frequency: 50～60Hz
Input power(Loading): ≤ 25W
Output /Output current (Loading): 1670MA
Output voltage (loading): DC 12V

Specification:

Model: PL-PCV-12-20
Reference standard Basic on: IEC 61347
Short circuit protection/Short-circuit projects: OK
Overloading / Over loading: OK
Insulation Strength / Voltage Return Input-Output / Input-Outcut AC 1.5 KV/5 mA 1Min
Enter-Shell / Input-Housing AC 1.5 KV/5 mA 1Min
Ripple / Ripper ≤ 600 MVpp(120Hz)
Efficiency / efficiency ≥ 85 %
Power factor / PF ≥ 65 %
Working Temperature / Working Temporure -25 °C ~ +40 °C

Package Includes:

1 Piece LED Power Supply

Note:

Please allow 1-3mm error due to manual measurement.
Photo color might be a little different from the actual product due to color display of different monitors.
