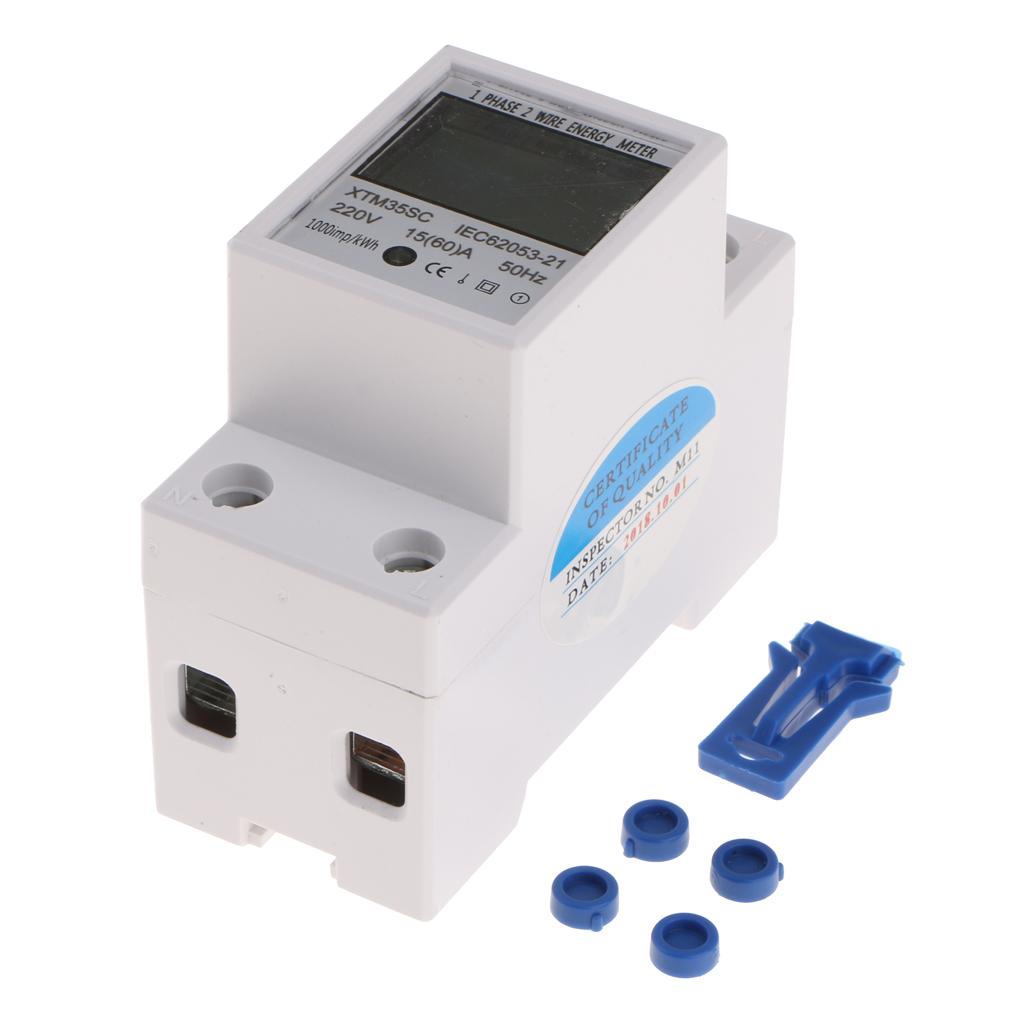

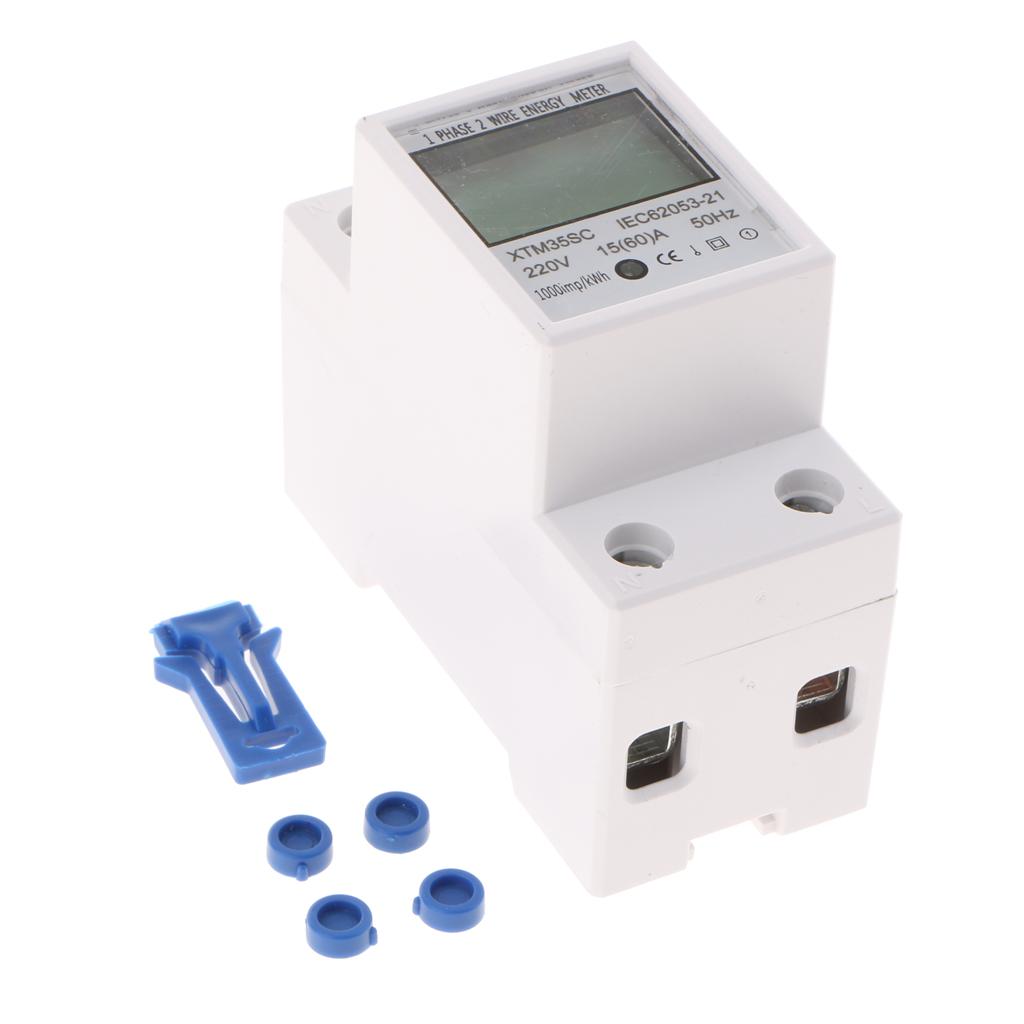

220V Din-rail Energy Meter Din Rail KWH Watt Hour Meter LCD 1 Phase 15（60A）

Description:

35mm standard DIN- rail installation , complying with standard DIN EN50022.
Bipolar width (Modulus 17.5mm), complying with standard DIN43880.
Standard configuration5+1 digits display (9999999.1kWh)LCD.
May select function(display voltage、current、power、frequency、power factor).
Single direction measurement 1 phase 2 wire active energyconsumption.
It is nothing with direction of the flow of load current.
Complying with standard GB/T17245.321-2008.
Embedded terminal cover, nice, safe to protect electricity.

Specification:

Model: XTM35SC
Accuracy: Class 1
Voltage: 220V
Current: 5（30A）/ 15（60A）(Optional)
Insulation performance: AC voltage 4kv for 1 minute,1.2/50us waveform pulse voltage 6kv
Size: 80 x 65 x 35mm/ 3.15 x 2.56 x 1.38inch

Package Includes:

1 x DIN-Rail Electric Meter
1 x Manual
4 x Accessories
