220V Learning Remote Control Switch Unit with 3-Bottom Controller 315Mhz

Description:

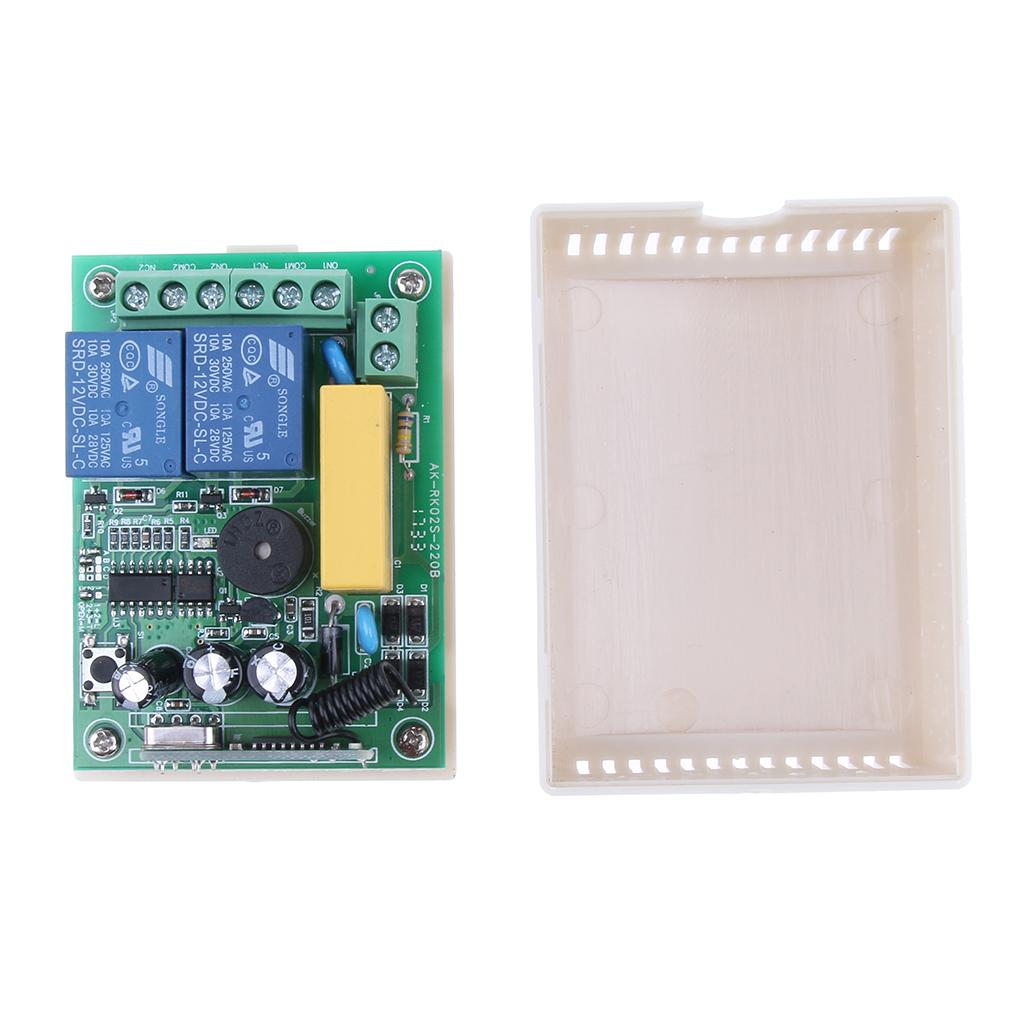

10A relay, can load large power appliances

Learning type single-chip decoding; easy to install, convenient, simple to operate

The output working mode is switched by shorting the reserved pad, and the inching, self-locking and can be arbitrarily selected

Reserved data bit output adjustment port, can be shorted to different positions, convenient for customers to support a variety of optional remote control

Ususally applied to garage door control, lighting control, remote control curtains, access control system, various motor control systems

Specification:

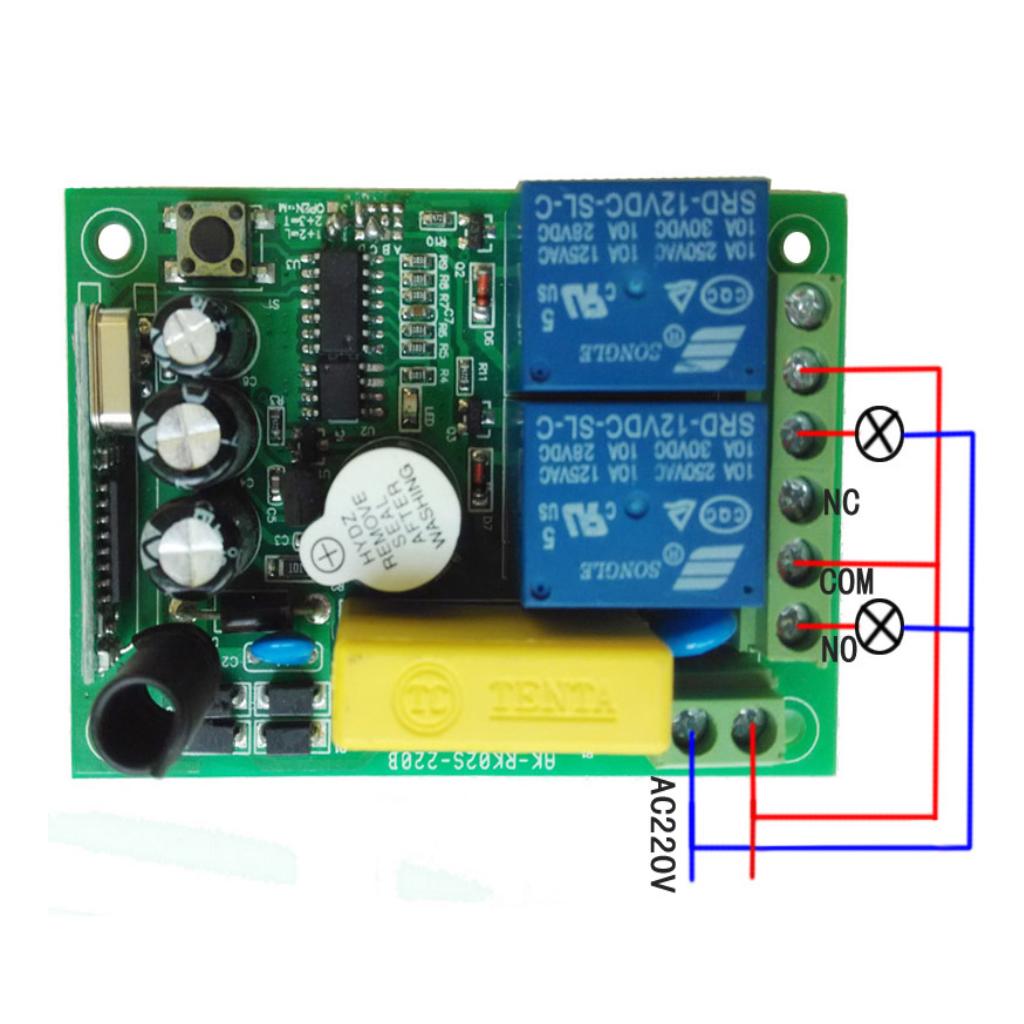

Working voltage: AC220V

Working frequency: 315MHz

Working mode: self-locking, inching or

Size: 70 x 50.5 x 18.2mm

After the controller is powered on, the indicator light turns on, then press and hold the learning button for 2 to 3 seconds, the indicator light will automatically go out. Then release the learning button, press any button on the remote control, the indicator light flashes for 4 times, indicating that the learning is successful.

How to clear the learning code:
Press and hold the learning button for about 8 seconds. The indicator will turn off and return to be on,indicating that the sweeping is successful.

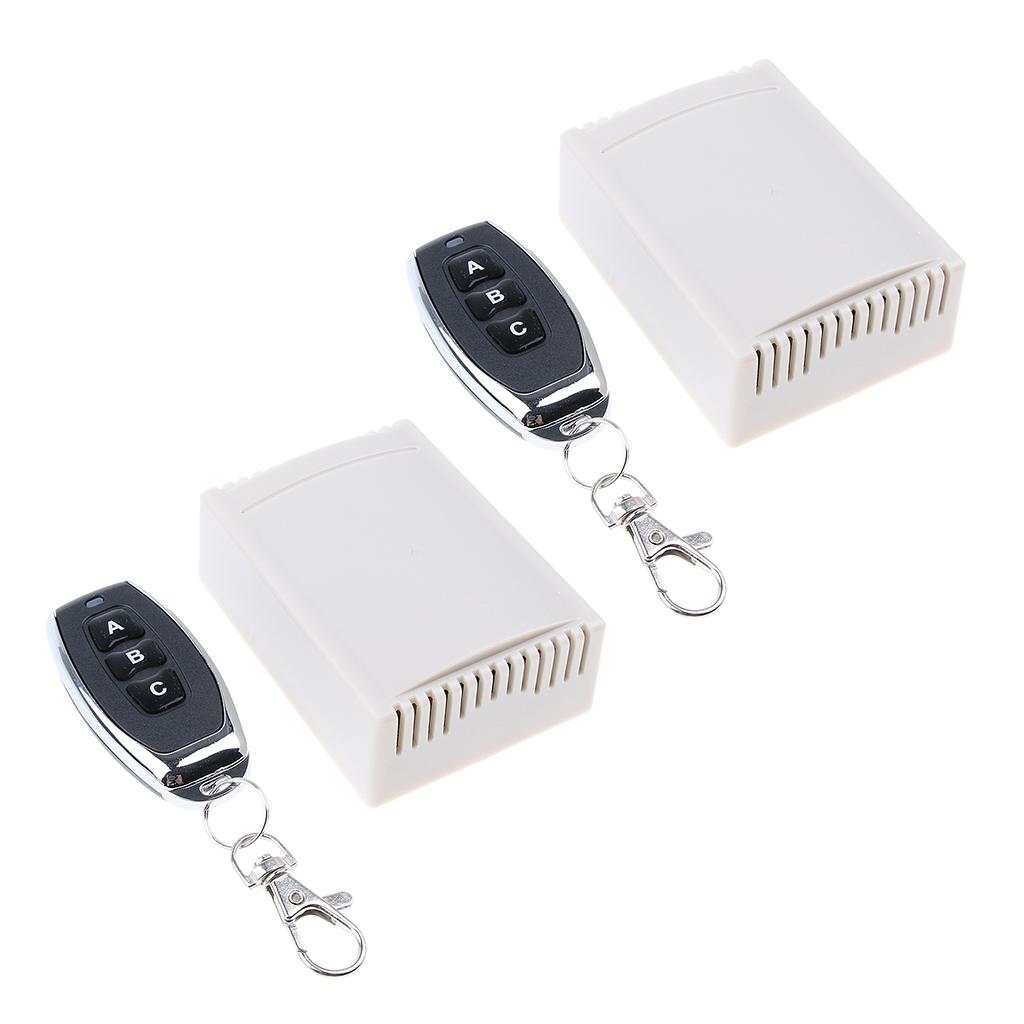

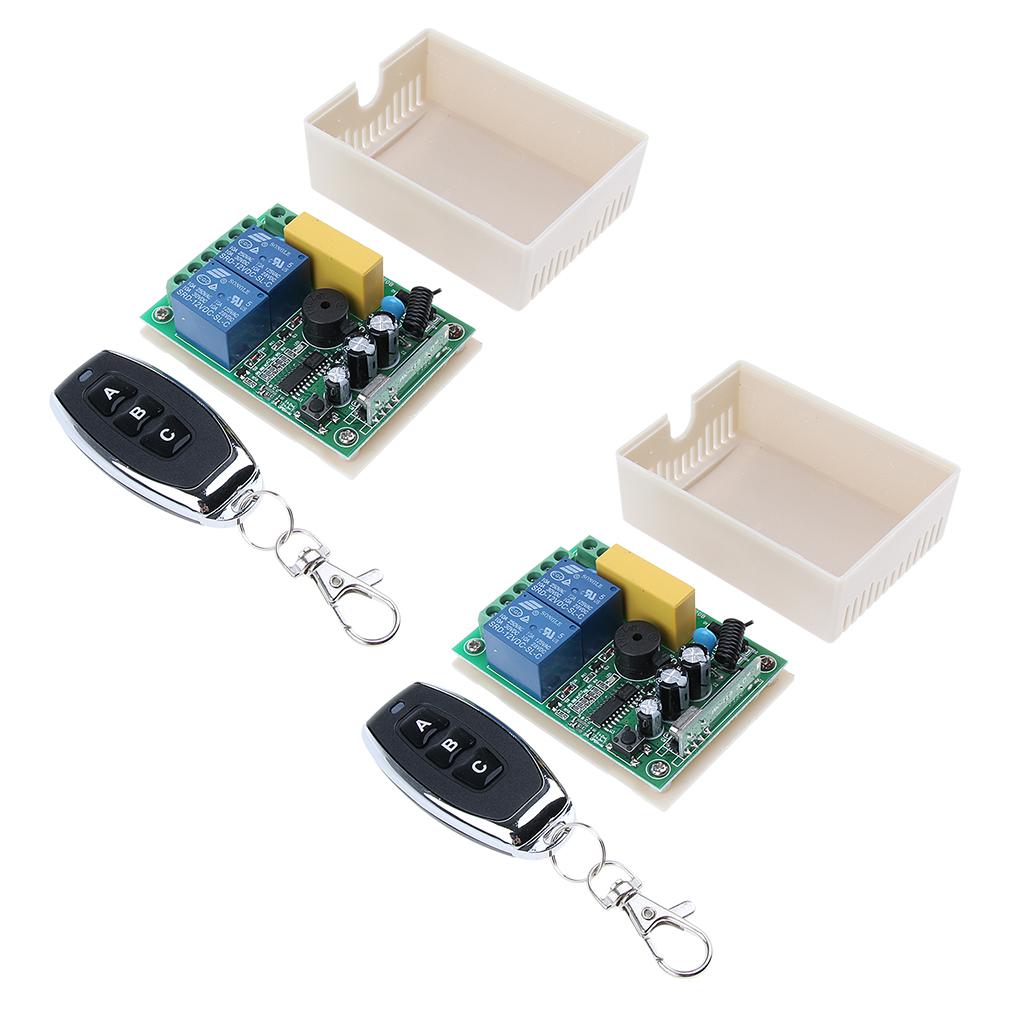

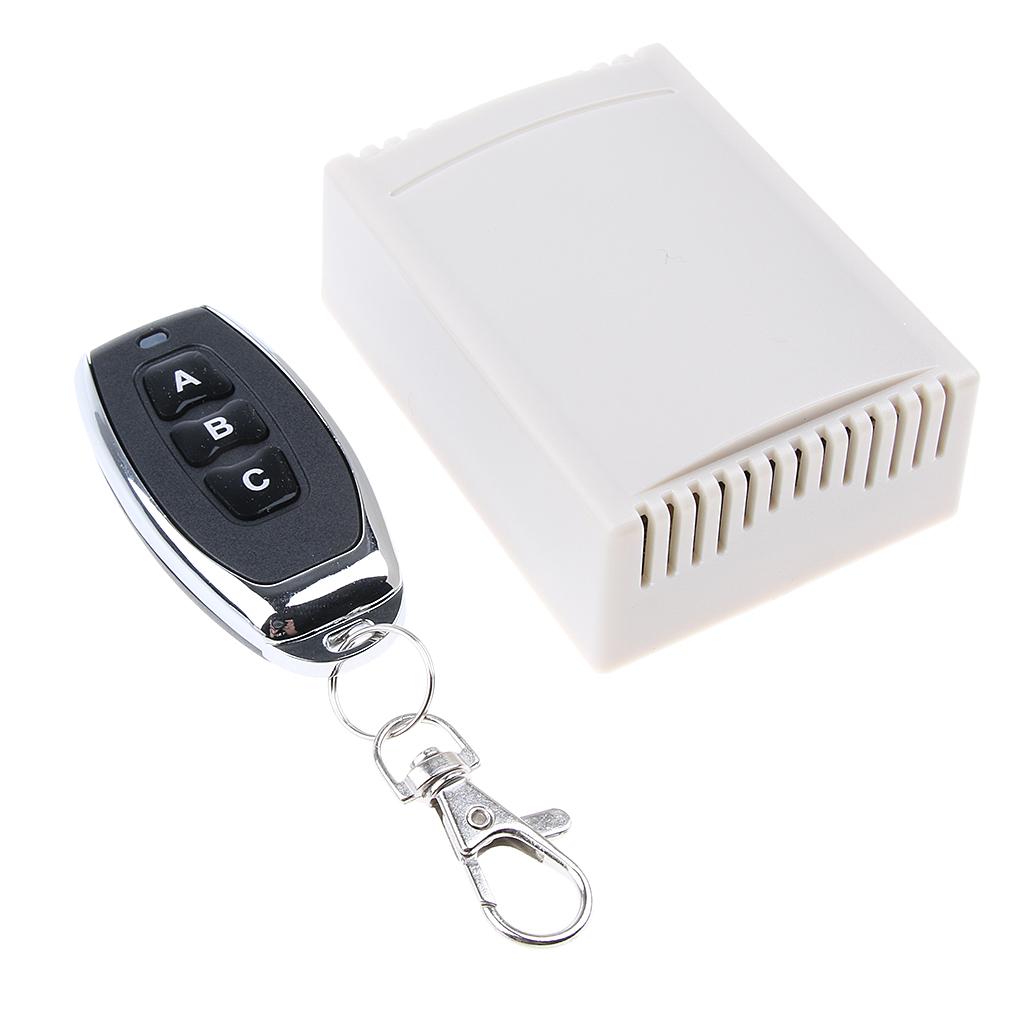

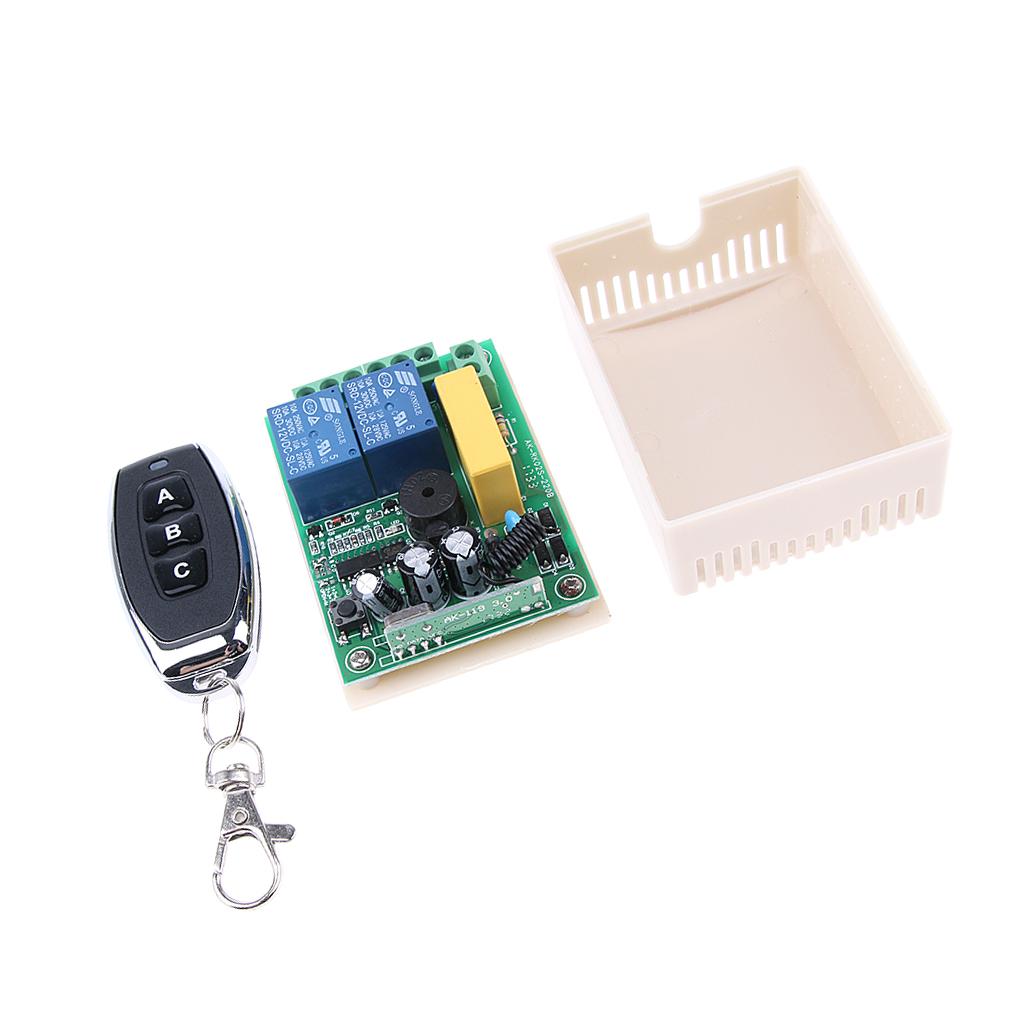

Package Includes:

1 Piece Switch

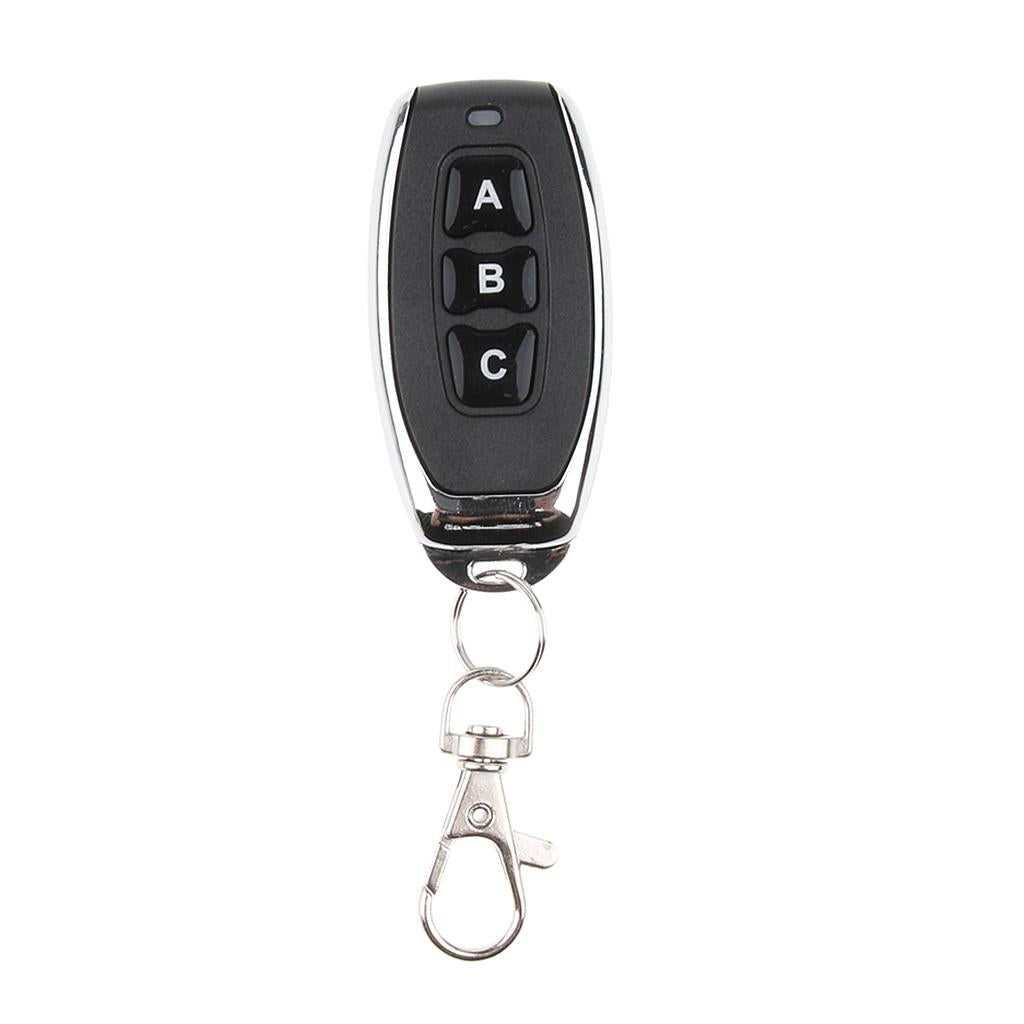

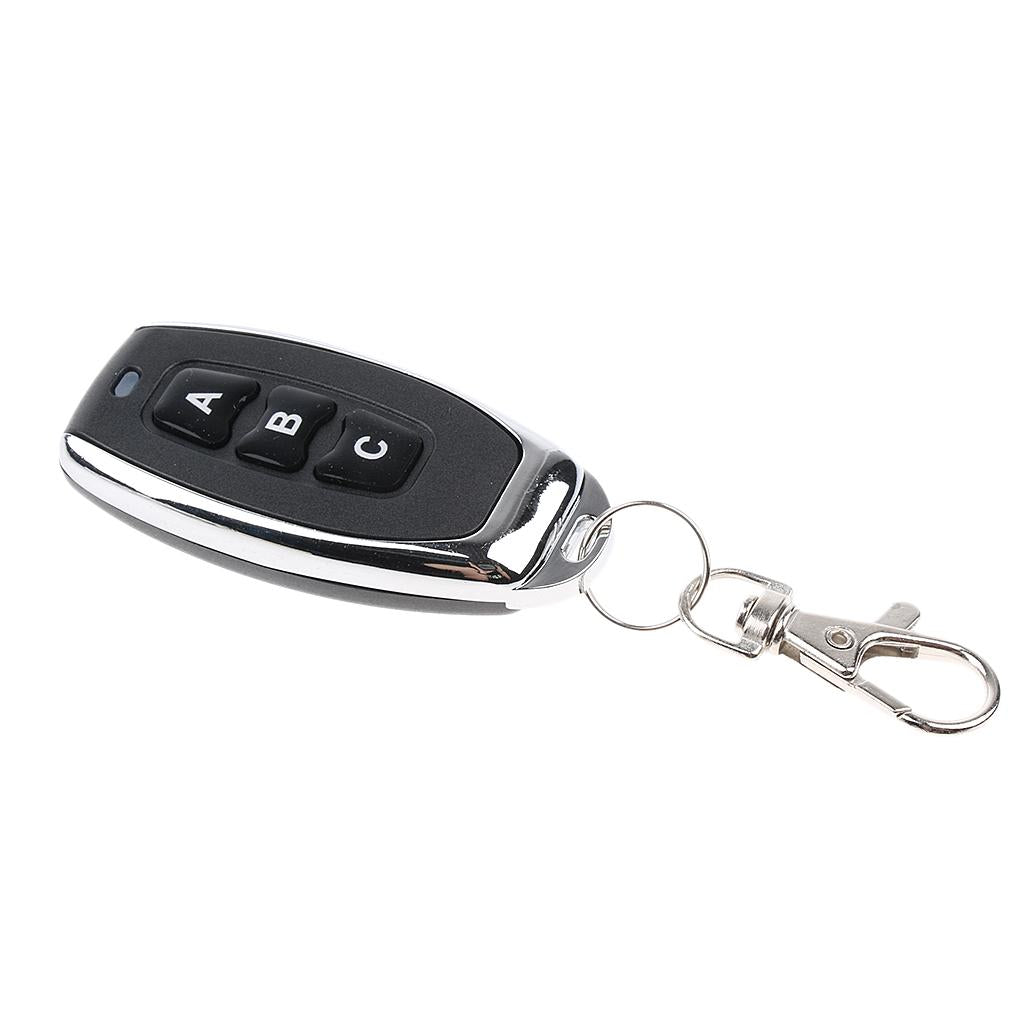

1 Piece Controller

Note:

Item is tested before shipping.
