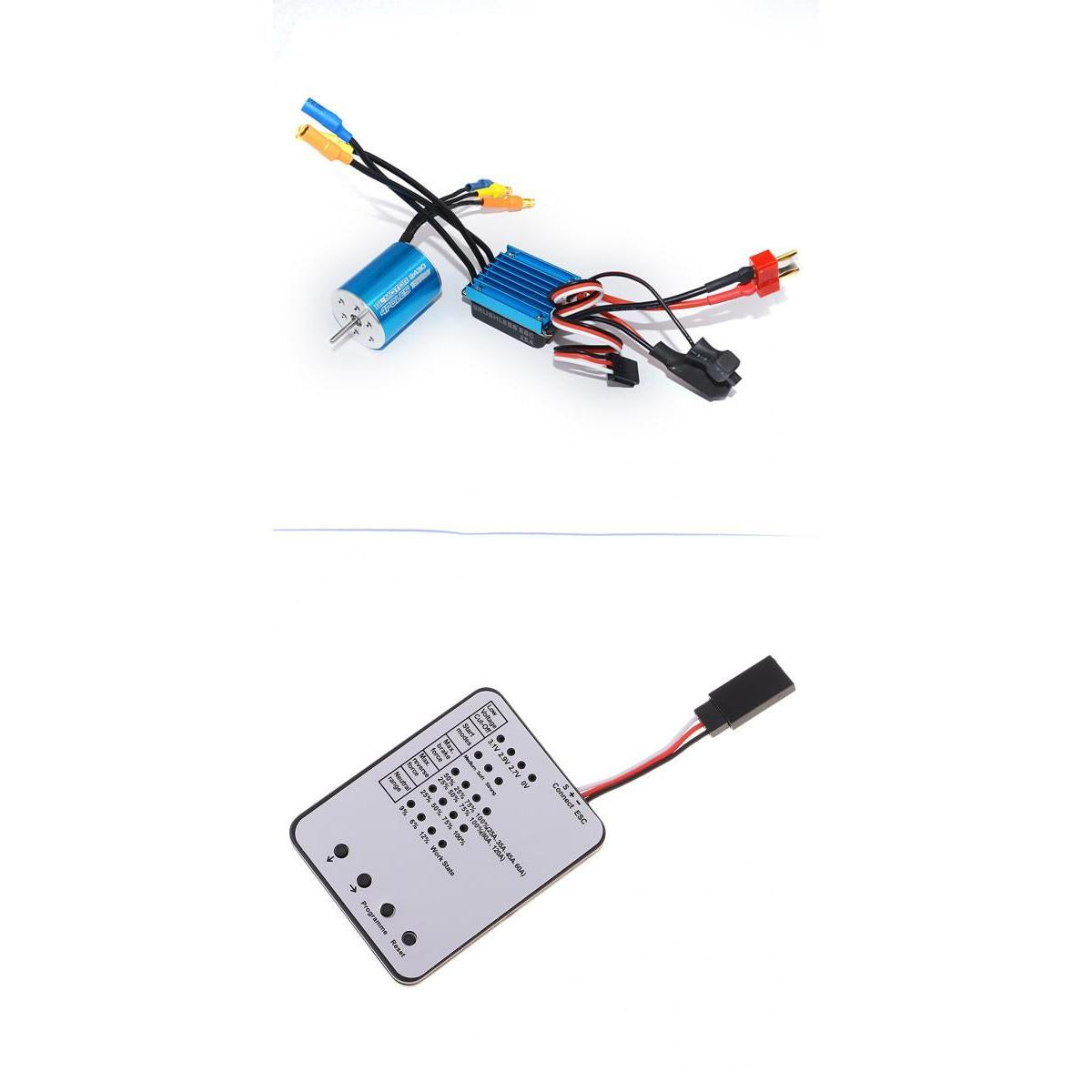

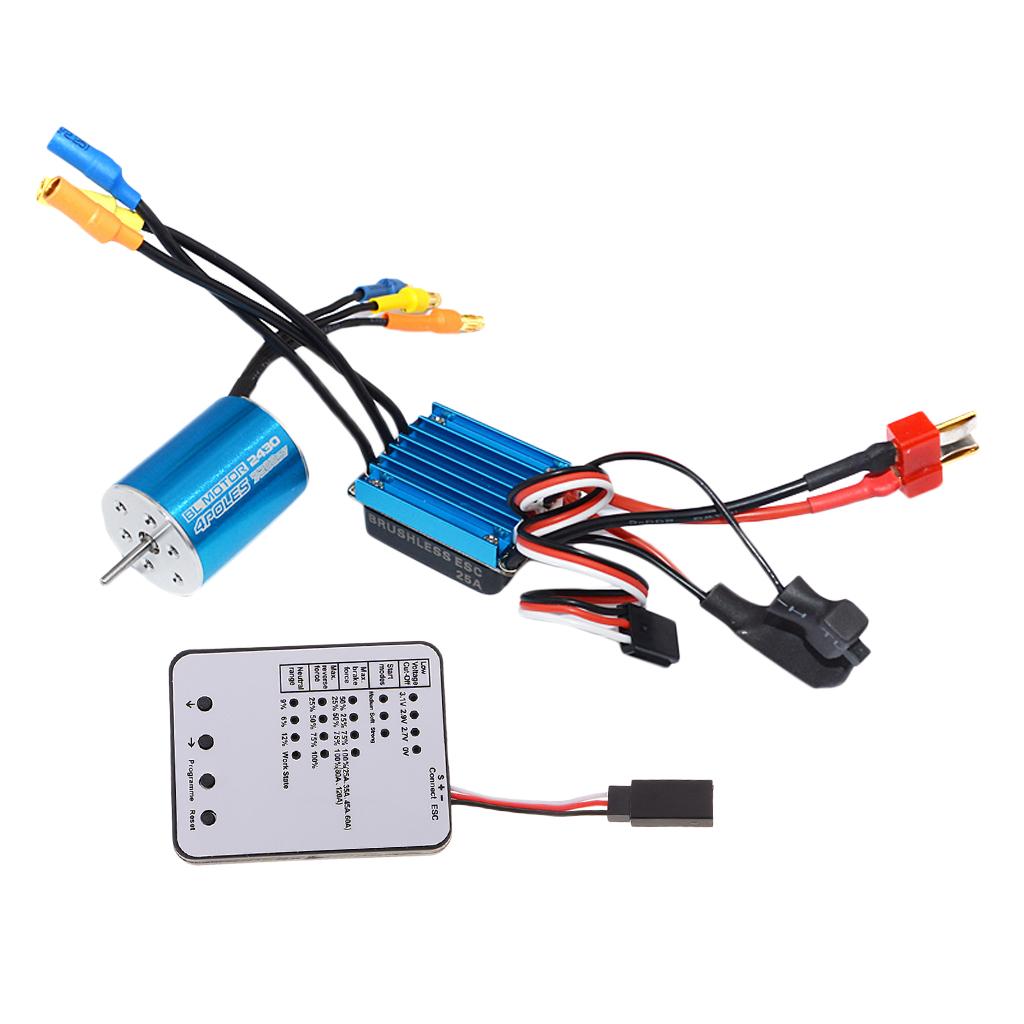

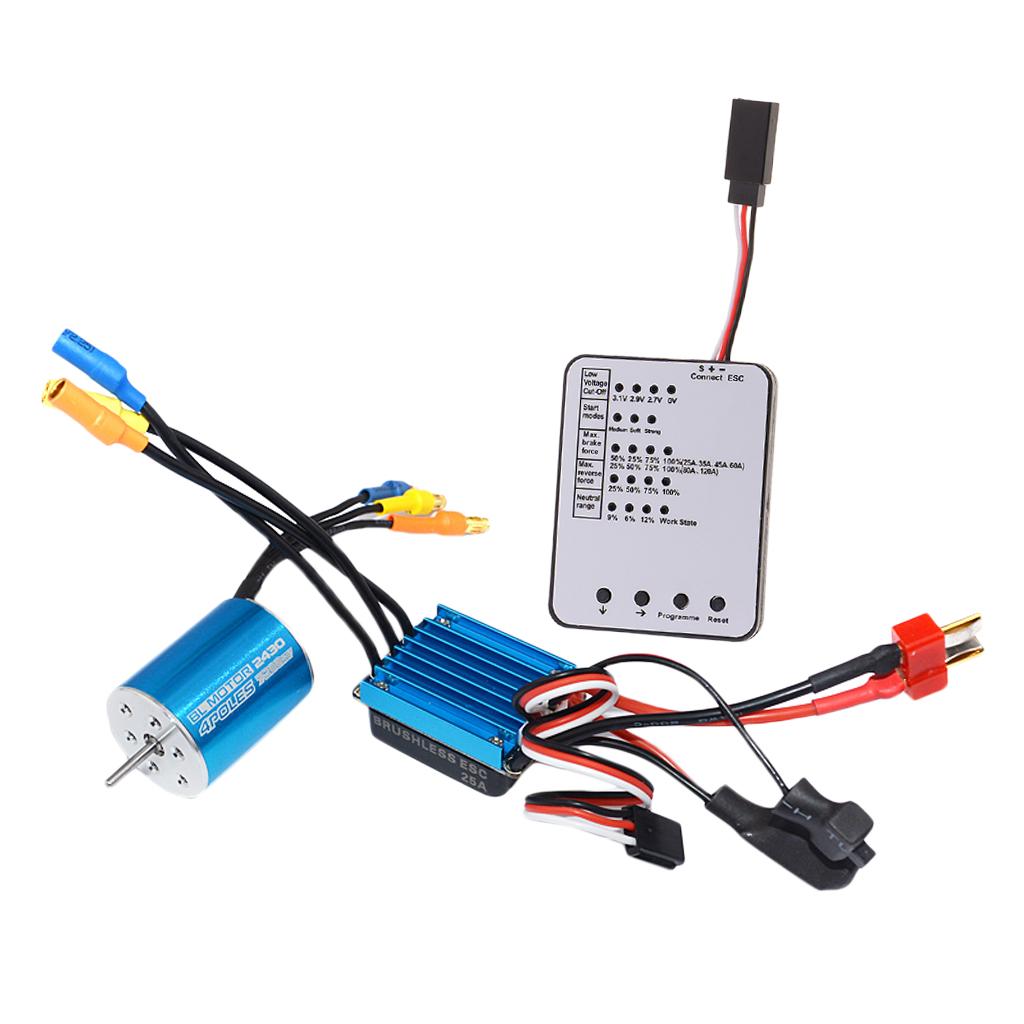

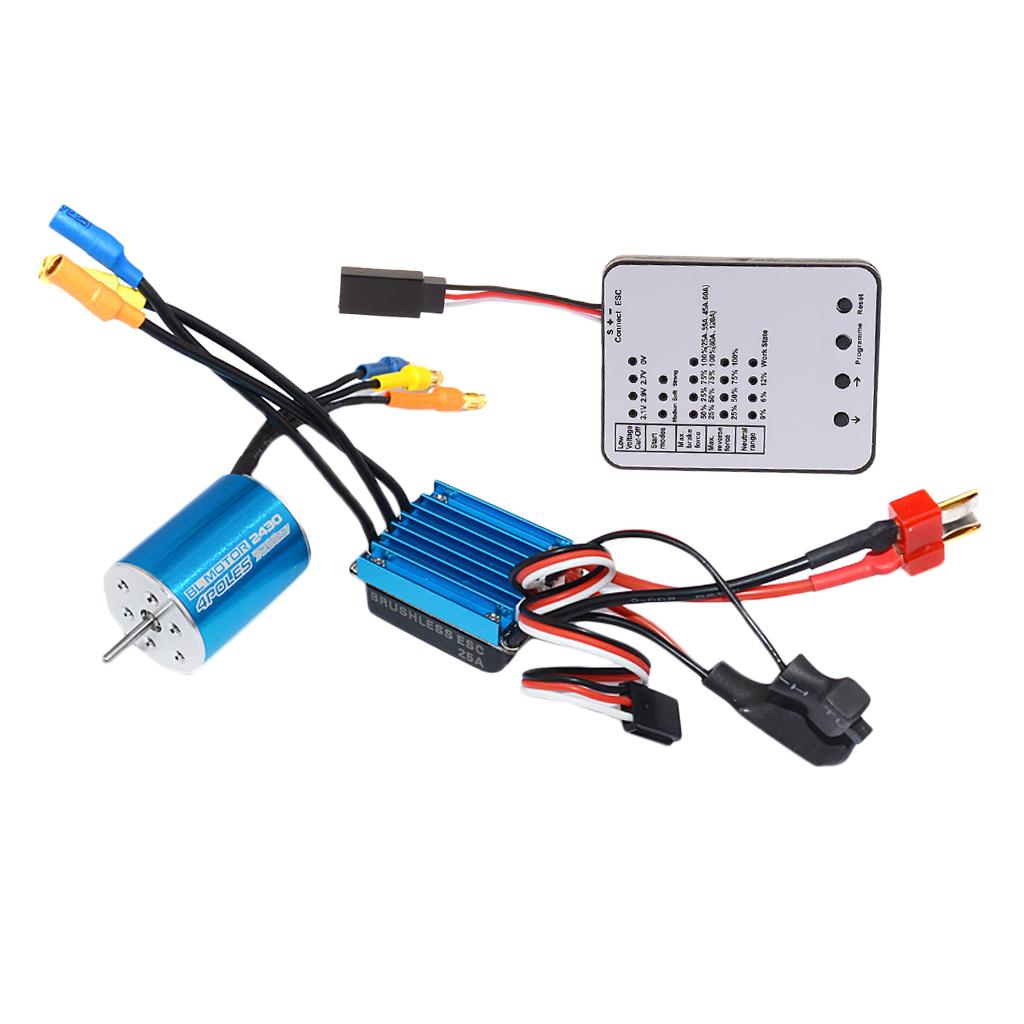

2430 7200KV Motor+25A Brushless ESC+LED Programing Card for 1/16 1/18 RC Car

Description:

LED Programing LED Car with 2430 7200KV Sensorless Brushless Motor 4Pole and 25A Brushless ESC Electric Speed Controller Combo Set for 1/16 1/18 RC Car Truck Buggy Parts
Motor Features:
4 poles Hi-torque motor design.
CNC machined 6061 T6 billet alumium heatsink can.
High purity copper windings maximizes efficiency.
High RPM ABEC5 oversized bearings.
Universal fits 1/16 1/18 brushless cars-multi-mounting system for M2.5 screws.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Stator - Super Thin (0.35mm) laminations.
Removable/replaceable.
Precision engineered for maximum energy conversion.
Electric Speed Controller Features:
Compatible with sensorless brushless motors.
High anti-interference capability.
Using advanced software interface to set up or update the software.
Super smooth and accurate throttle linearity.
Fast response to throttle input.
Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection
LED Programming Card:
3 strat modes: Strong soft Medium
Material: Plastic, Metal

Specification:

Motor:
RPM: 7200KV
Max Current: 24A
Max Watts: 200W
Can Size: 2430
Sensored: No
Can Diameter: 24mm
Can Length: 30mm
Shaft Diameter: 2mm
Shaft Length: 12mm
Bullet Connector: 3.5mm
Max voltage: 7.4V(2S)
ESC:
Cont. Current: 25A
Burst Current: 90A/10sec
Battery: 2 Cell Lipo / 4-6 Cell NiMh
BEC: Yes
BEC Output: 5V/1A
Power Supply Plugs: T Male
Motor Plugs: Female 3.5mm Bullet Connector
Size: 40*27*15mm
LED Card:
Low voltage cut voltage: 3.1V/ Cell 2.8V/ Cell 3.3V/ Cell
Strength maximum braking: 25%, 50%, 75%, 100%,
Maximum reverse force: 25%, 50%, 75%, 100%,
Neutral Range: 6%, 9%, 12% Working Status

Size Chart:

LED Programing Card(LxWxH): Approx. 6x4.7x0.6cm/2.36x1.85x0.24inch

Package Includes:

1 Piece 2430 7200KV 4P Sensorless Brushless Motor
1 Piece 25A Brushless Electric Speed Controller
1 Piece Programing Card
