24mm Carburetor 24AS 4T(A) R2710 for Motorcycles Dirt Bike ATV for Piaggio

Description:

Piston-type throttle valve Independent starting circuit.
Idling system with jet and mixture adjusting screw.
Main circuit with mechanical mixture adjustment by conical needle.
Versions of mixture adjusting screw on the right and/or on the left, Versions with mechanically-operated diaphragm acceleration pump.
Sleeve connection with insulating reducing socket from Ø 31.75 to Ø 28.57 and Ø 31 elastic fitting connection, Air intake connection Ø 38 or Ø M38 x 1.25 for trumpet or joint assembly.

Specification:

Material: Alloy
Model: for PHBL 24AS 4T(A) R2710
Engine: 50-300cc 2-4 stroke
Application: Motorcycles

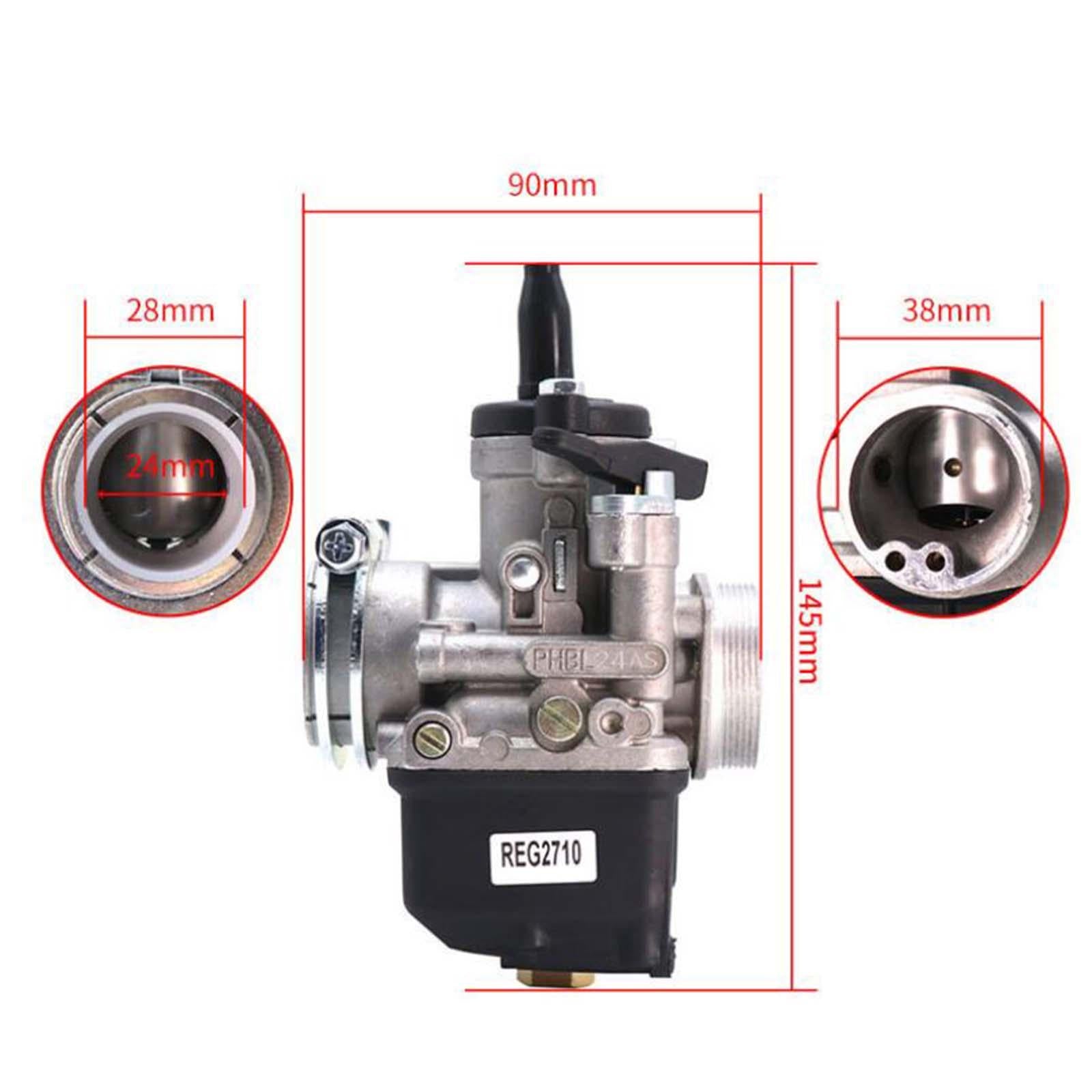

Venturi diameter: 24 mm
Weight: 620g
Item Height: 14.5cm/5.7inch
Item Width: 9cm/3.5inch

Package Includes:

1 x Carburetor

Note:

Please allow slightly 0-1cm difference due to manual measurement.
Colors can appear different depending on light and how the listing is viewed.
Thanks for your understanding and attention. Wish you a pleasant shopping experience!
