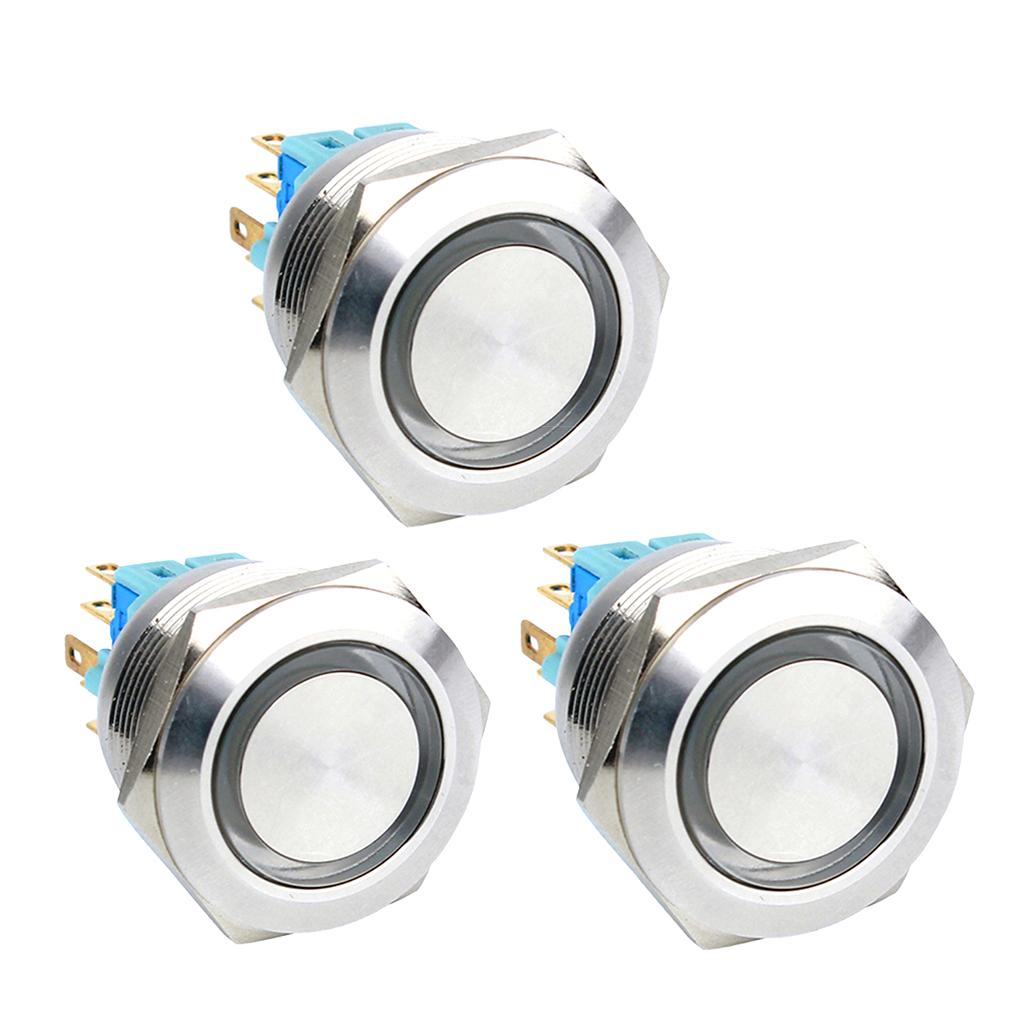

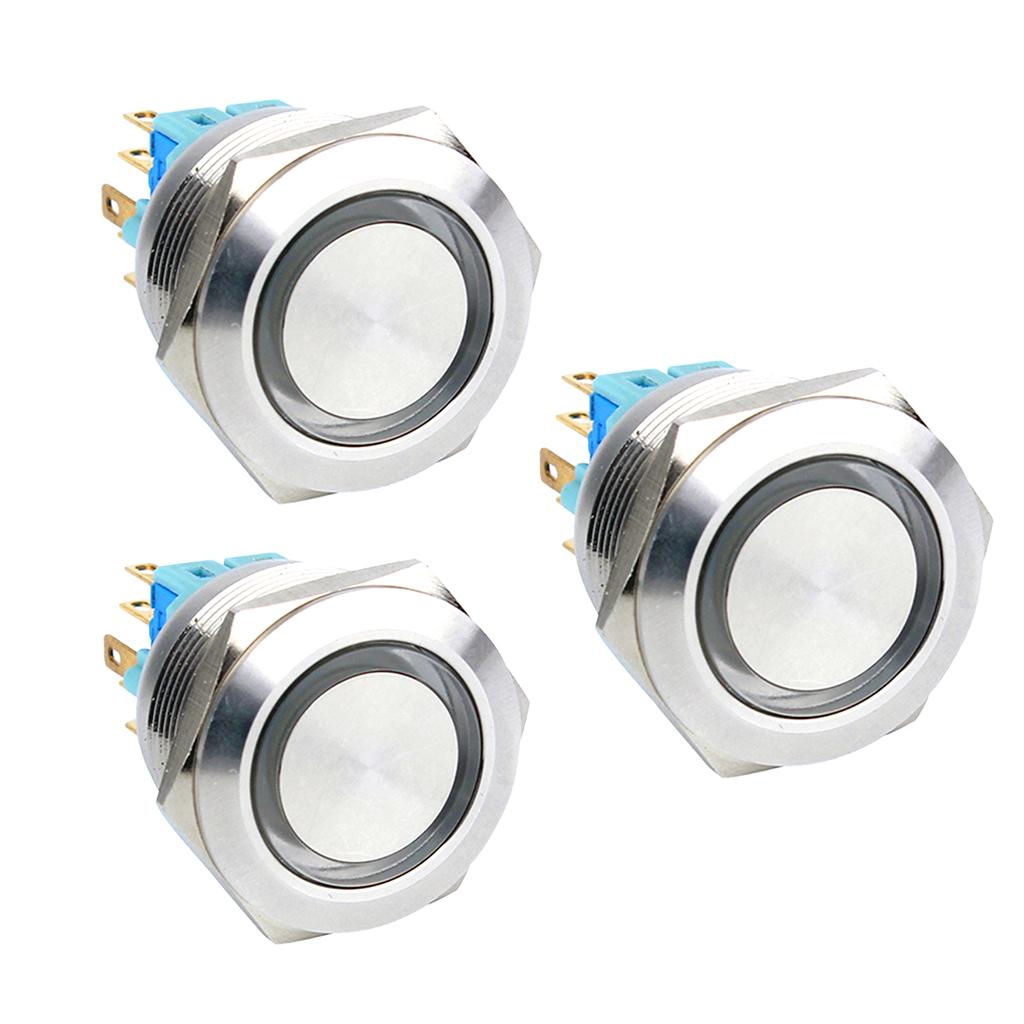

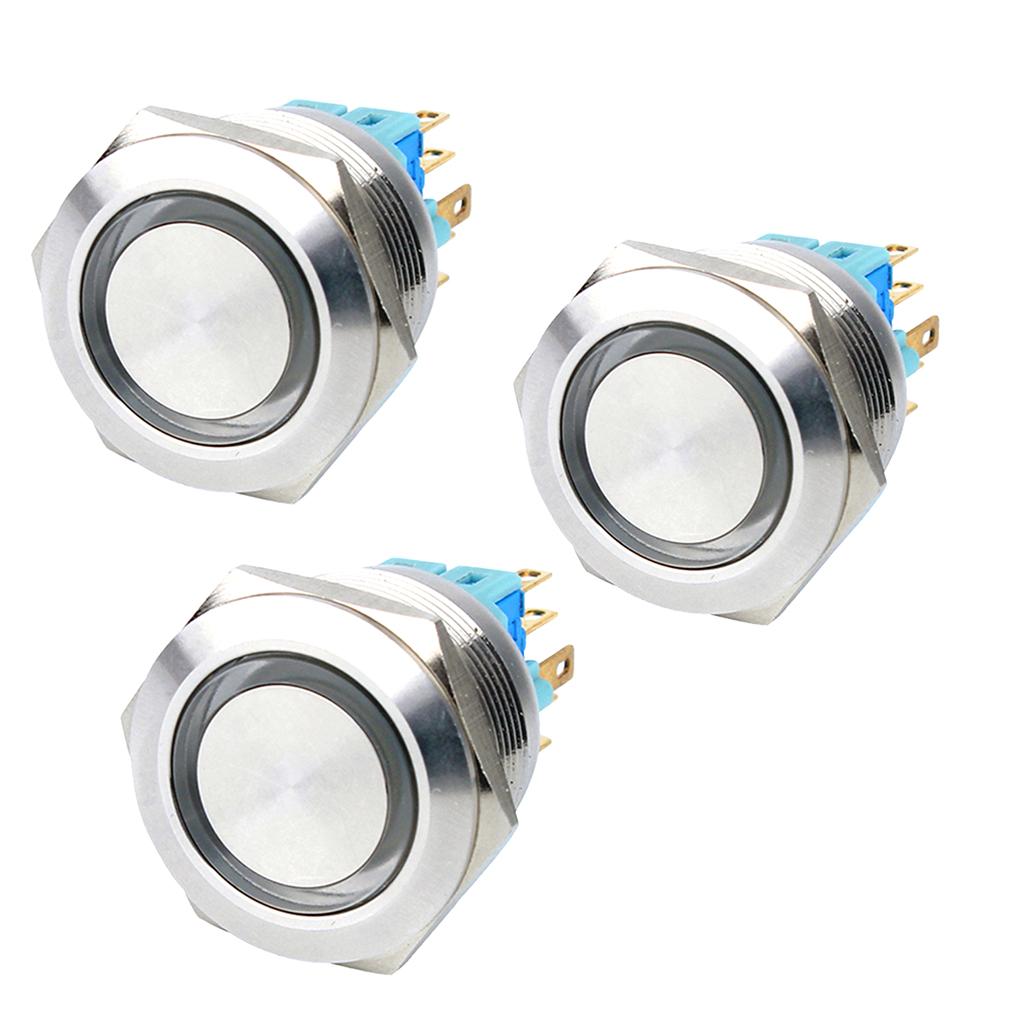

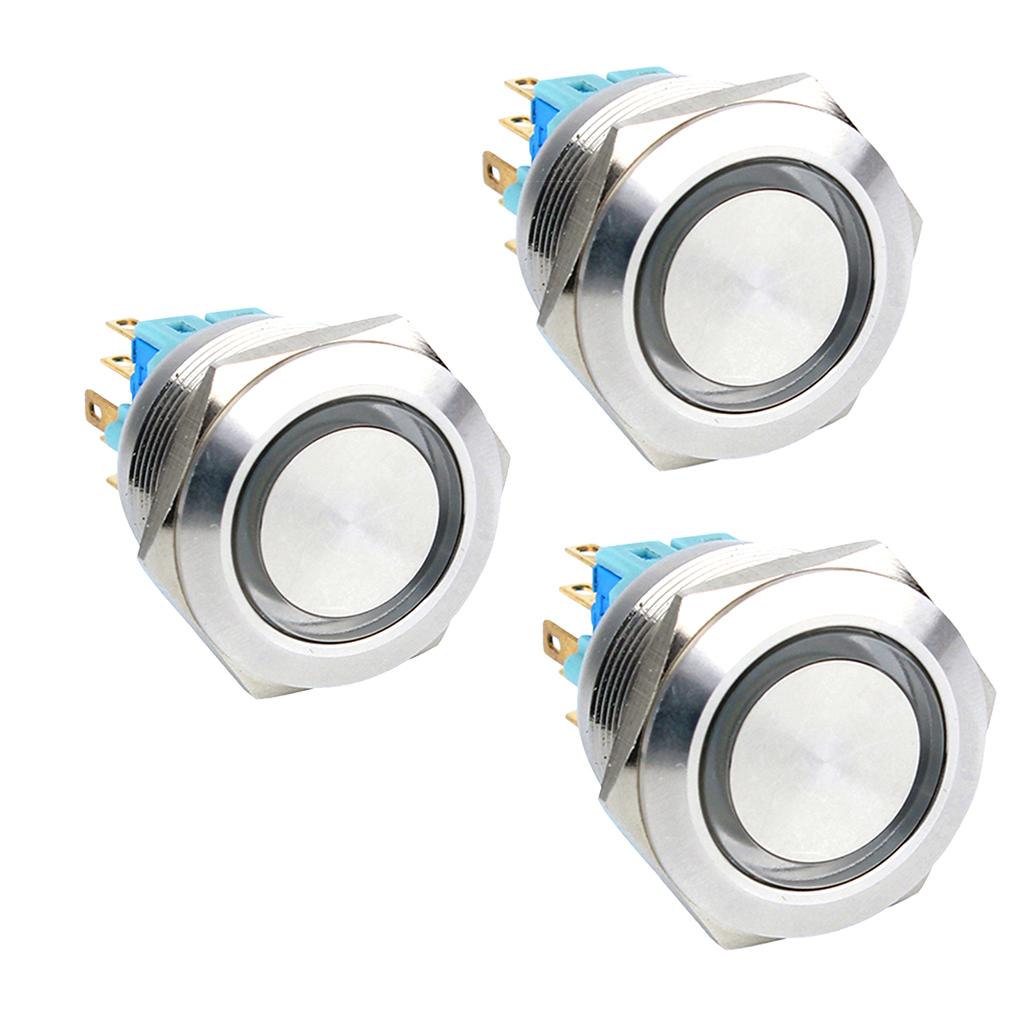

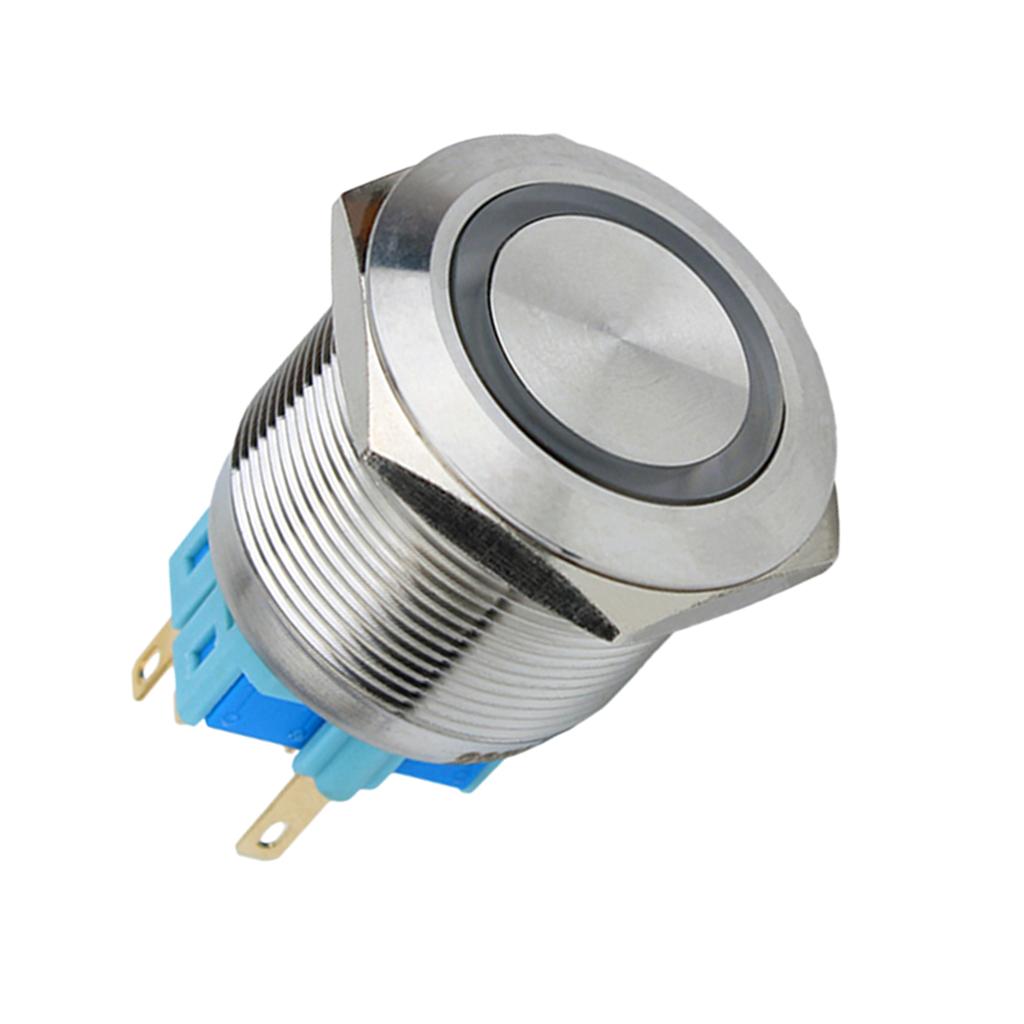

25mm Push Button Switch,Ring Blue LED,1NO 1NC,Flat Head 12V Self-reset

Description:

Item Type: Ring LED Push Button Switch; Material: Stainless Steel; Switch Combination: 1NO 1 NC. LED Type: Ring Illuminated.
Configurable Connector--can be used with patch cord.Stable and reliable performance,long service life.
Stainless Steel shell,with CD grain effect.Harder,waterproof and rust resistant.Better than nickel plated brass.
Hard and small button switch,simple operation,easy to install and disassemble.
Widely applied for all kinds of modifications such as car, motorcycle,computer,access control; home appliance;industrial control instrument,etc.

Specification:

Product Name: Ring LED Push Button Switch
Shell Material: Stainless Steel
Contact Material: Silver Alloy
Overall Size:
12V Self-reset: 38.5mm/1.52inch
12V Self-latching: 41.5mm/1.63inch
24V Self-reset: 38.5mm/1.52inch
Mounting Hole Diameter: 25mm/0.98inch
Nut Torque: 5~14Nm
Switch Combination: 1NO 1NC
Terminal Type: PIN Terminal
Rating: 5A/250V AC
LED Rated Voltage: 12V/24V
Head Shape: Flat
LED Type: Ring Illuminated
LED Color: Blue
Contact Resistance: ≤50MΩ
Insulation Resistance: ≥1000MΩ
Dielectric Intensity: 2000V AC
Ambient Temperature: -20~55℃
Mechanical Life: ≥500,000(cycles)
Electrical Life: ≥50,000(cycles)

Package Includes:

1 Piece Ring LED Push Button Switch

Note:

Please allow 1-3mm error due to manual measurement.
Photo color might be a little different from the actual product due to color display of different monitors.
