2838 3600KV 4P Sensorless Brushless Motor & 35A Brushless ESC Electronic Speed Controller for 1/14 1/16 1/18 RC Car

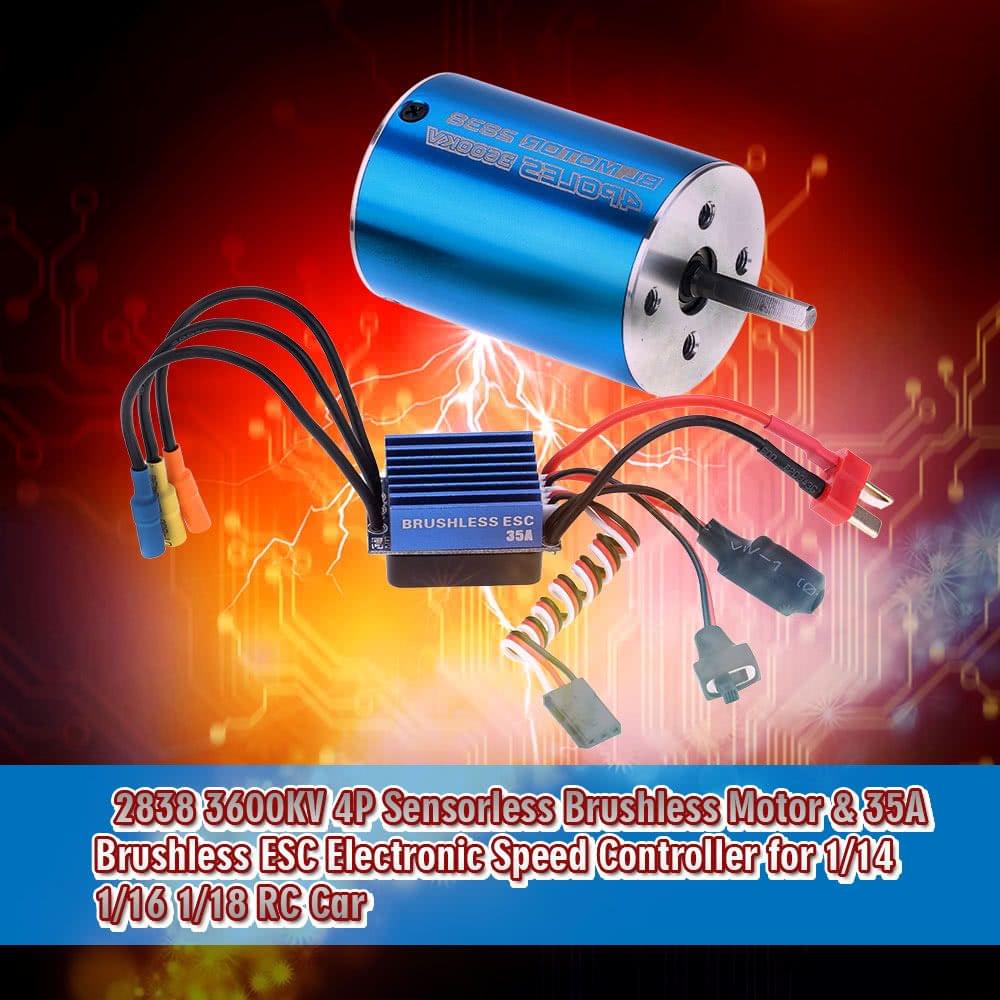

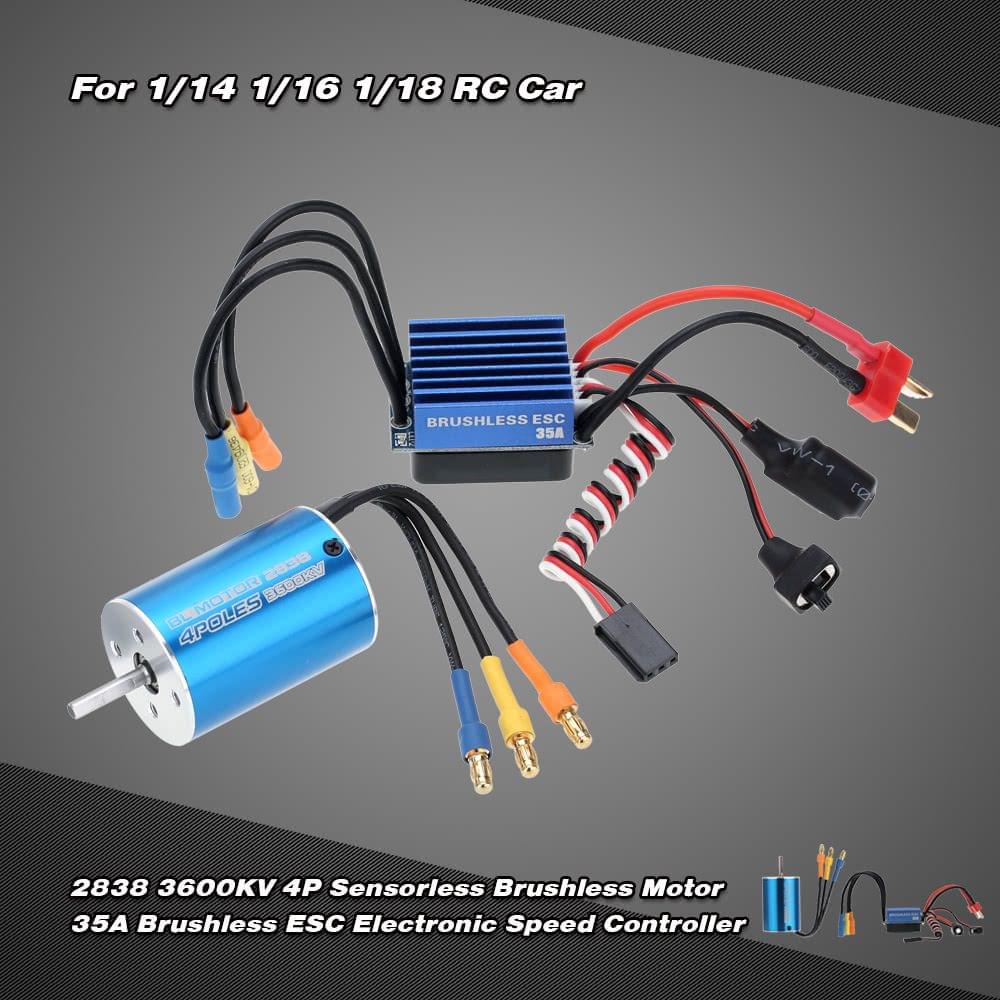

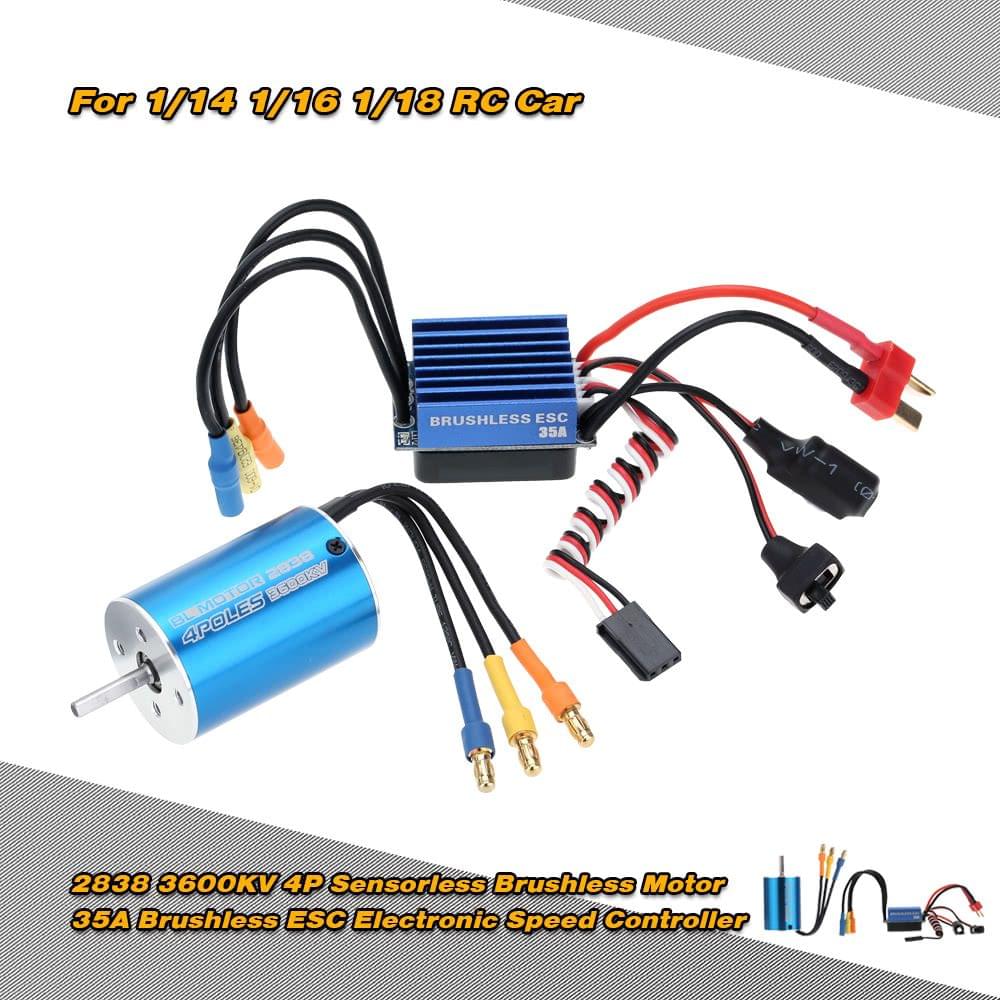

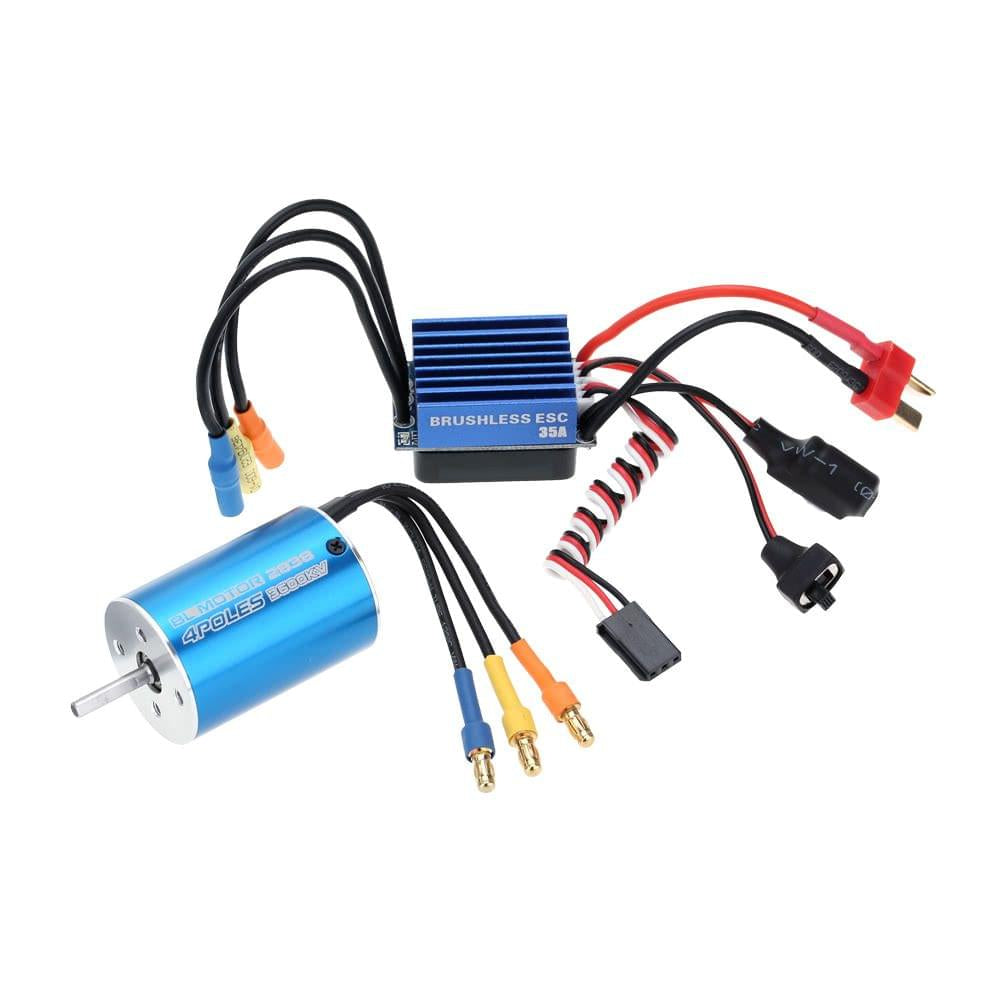

2838 3600KV 4P Sensorless Brushless Motor with 35A ESC Combo

This set includes a 2838 3600KV 4-pole sensorless brushless motor and a 35A brushless ESC, designed specifically for 1/14, 1/16, and 1/18 scale RC cars.

The motor is constructed from high-quality CNC-machined 6061-T6 aluminum alloy, ensuring excellent heat dissipation, durability, and long service life. With high efficiency, strong power output, and high RPM, it delivers longer run time and reliable performance.

The included 35A ESC is built using premium components to ensure smooth and efficient operation. It offers enhanced throttle response, excellent acceleration, strong braking performance, and smooth throttle linearity, making it ideal for various RC car setups.

Motor Features

• 4-pole, 12-slot high-torque motor design

• High-purity copper windings for maximum efficiency

• CNC-machined 6061-T6 aluminum heatsink can

• High-RPM oversized ABEC-5 bearings

• Precision-balanced rotor for smooth operation and reliability

• Short stator design for lower resistance and higher power

• Multi-mounting system compatible with M2.5 screws

• Suitable for 1/14, 1/16, and 1/18 scale brushless RC cars

Motor Specifications

• KV (RPM/Volt): 3600KV

• Max Current: 43A

• Max Power: 600W

• Max Voltage: < 14V

• Idle Current (IO): 1.4A

• Rotor Poles: 4

• Resistance: 0.0415Ω

• Diameter: 28mm

• Length: 38mm

• Shaft Length: 15mm

• Shaft Diameter: 3.175mm

• Weight: 90g

• Sensored: No (Sensorless)

ESC Features

• High-quality components for efficient operation

• Excellent start-up performance and throttle linearity

• Strong acceleration and braking performance

• Multiple programmable parameters for different chassis, tires, and tracks

• Built-in protection:

  • Low-voltage cutoff protection

  • Over-heat protection

  • Throttle signal loss protection

• Adjustable internal timing for compatibility with various motors

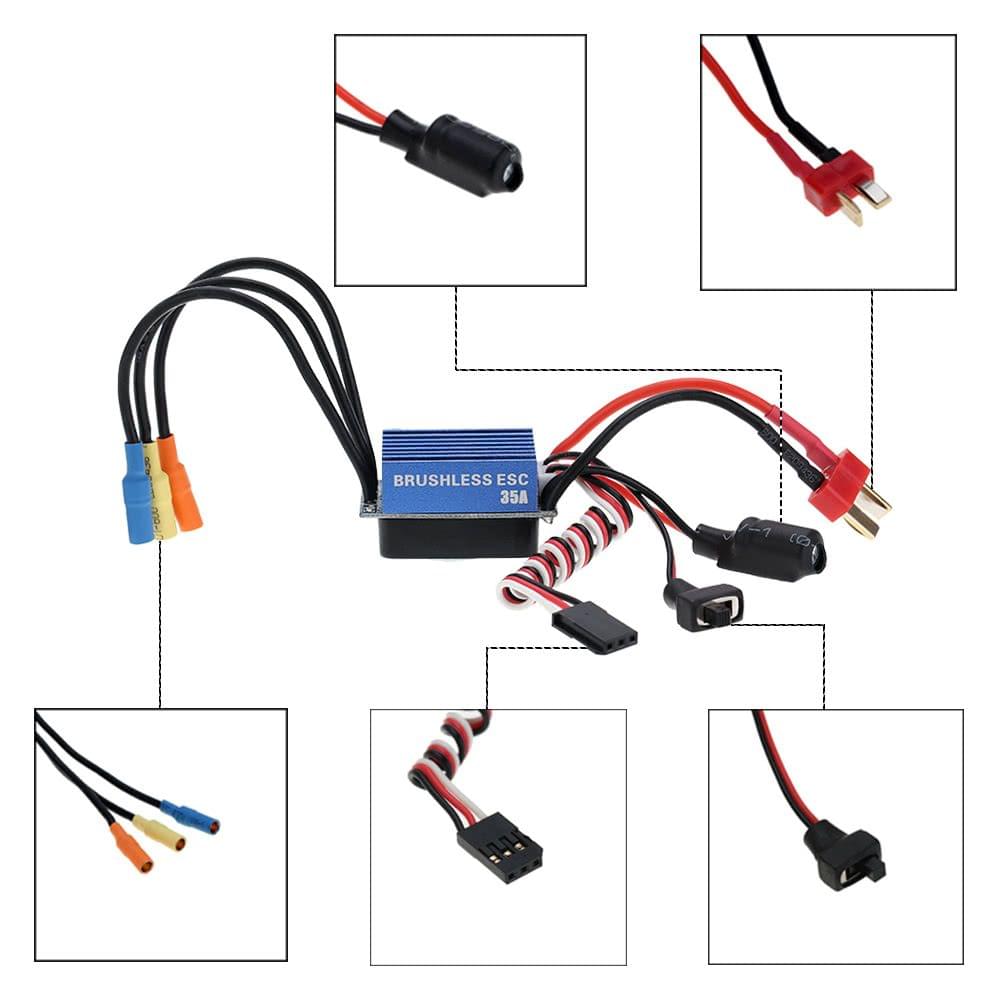

ESC Specifications

• Continuous Current: 35A

• Burst Current: 120A (10 seconds)

• Battery Support:

  • 2–3S LiPo

  • 4–6S NiMH

• BEC: 5V 1A (Linear)

Package Information

• Package Size: 9.5 × 8 × 6.5 cm

• Package Weight: 153g

• Packaging: White box

Package Includes

• 1 × 2838 3600KV 4-Pole Sensorless Brushless Motor

• 1 × 35A Brushless ESC
