2838 4500KV Brushless Motor+35A Brushless ESC for 1/12 1/14 1/16 RC Car DIY

Description:

1/12 1/14 1/16 Scale RC Car Model 2838 4500KV Brushless Motor with 35A ESC with LED Programing Card

Highest quality components to ensure high efficiency operation
Excellent start-up, acceleration and linearity features
Plenty of programmable items, suitable for various of chassis's, tires and tracks
Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection
Internal timing can be changed easily to make the ESC suitable for various of motors

Specification:

KV(RPM/Volt): 4500KV
Max current: 43A
Max watts: 600W
Max voltage:<14V
Rotor poles: 4
Resistance: 0.0415
Diameter: 28mm
Length: 38mm
Shaft length: 15mm
Shaft diameter: 3.175mm
ESC:
Burst current: 120A (10S)
Power supply: 2-3S LiPo battery / 4-6S NiMh battery
BEC: linear switch 5V 1A

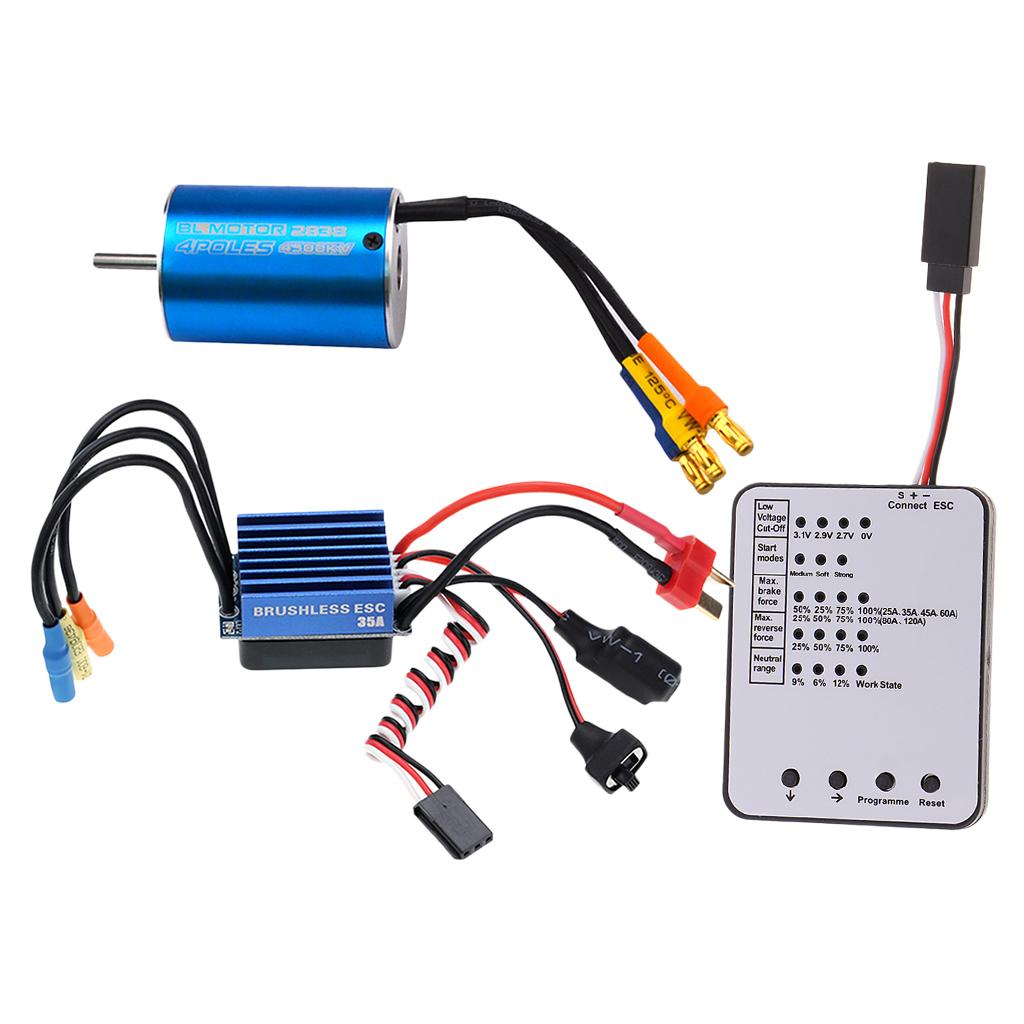

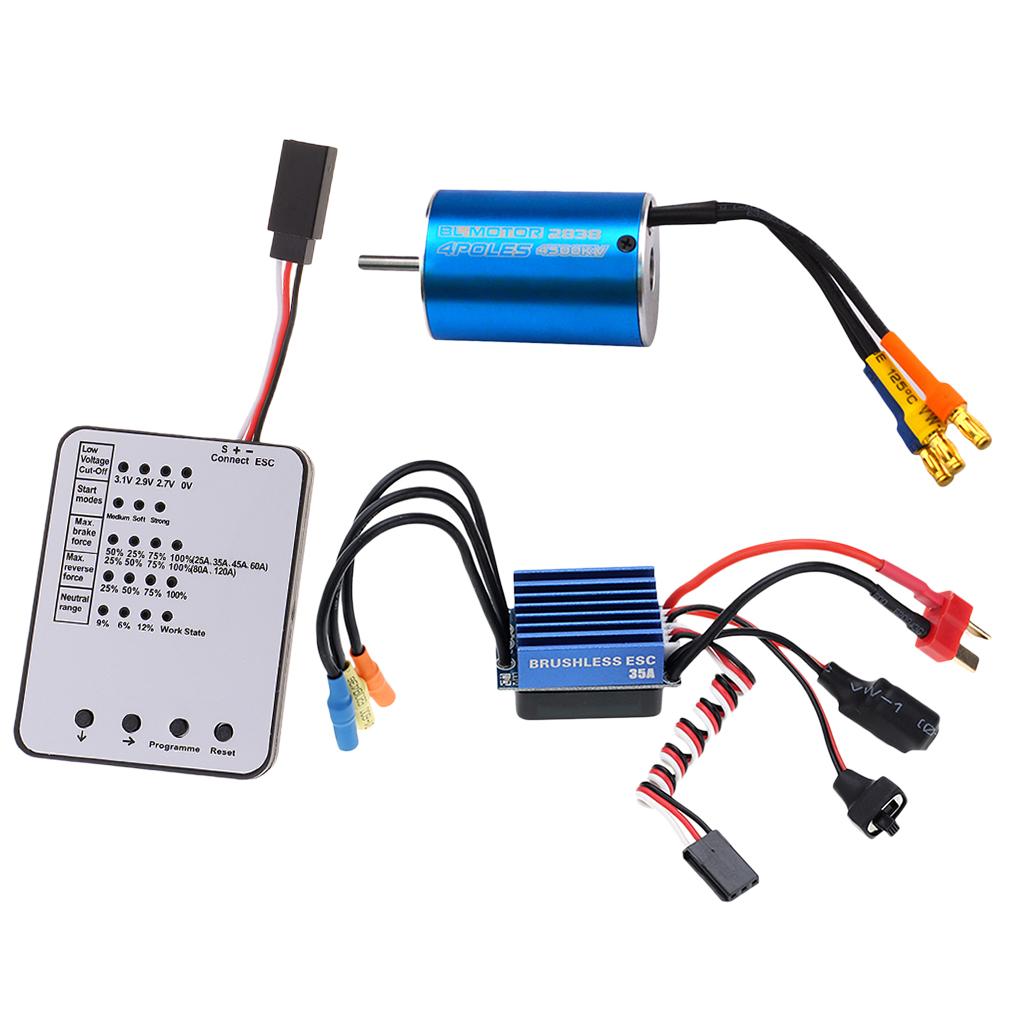

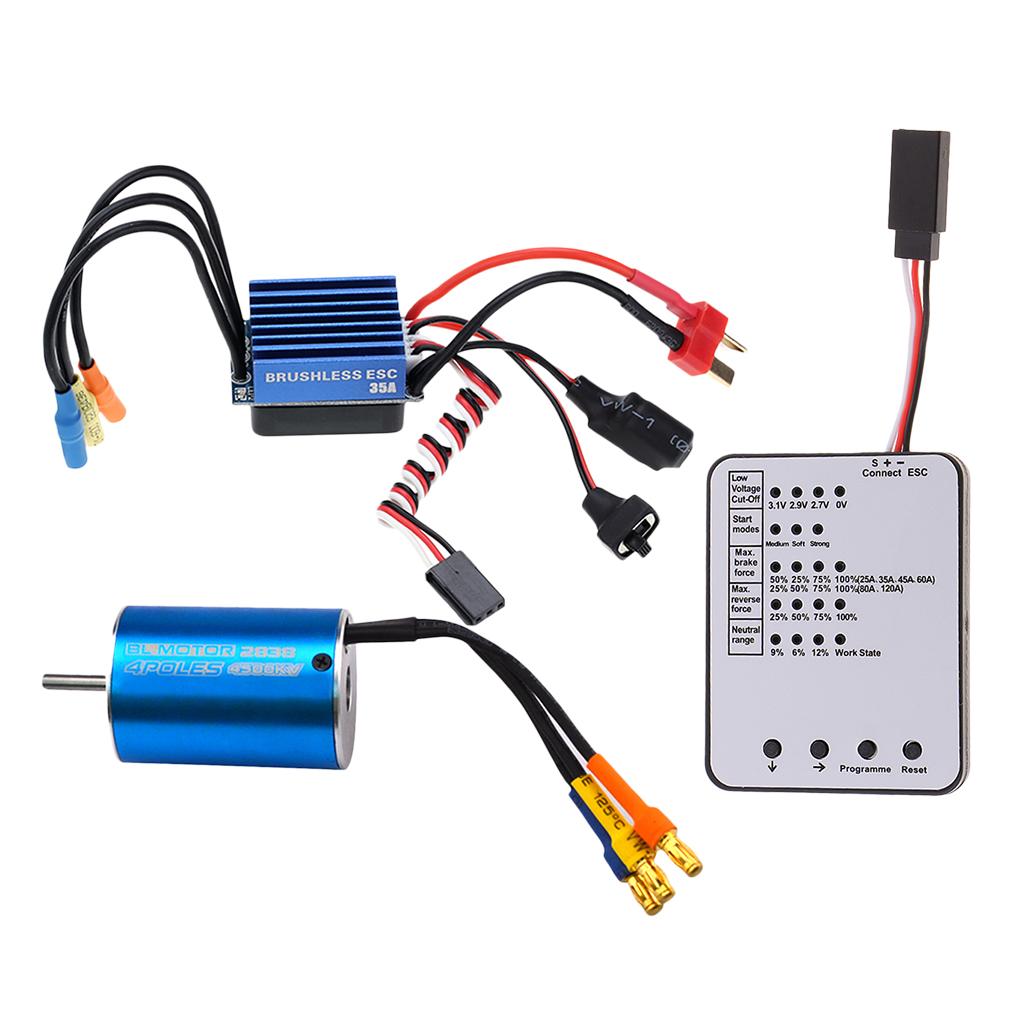

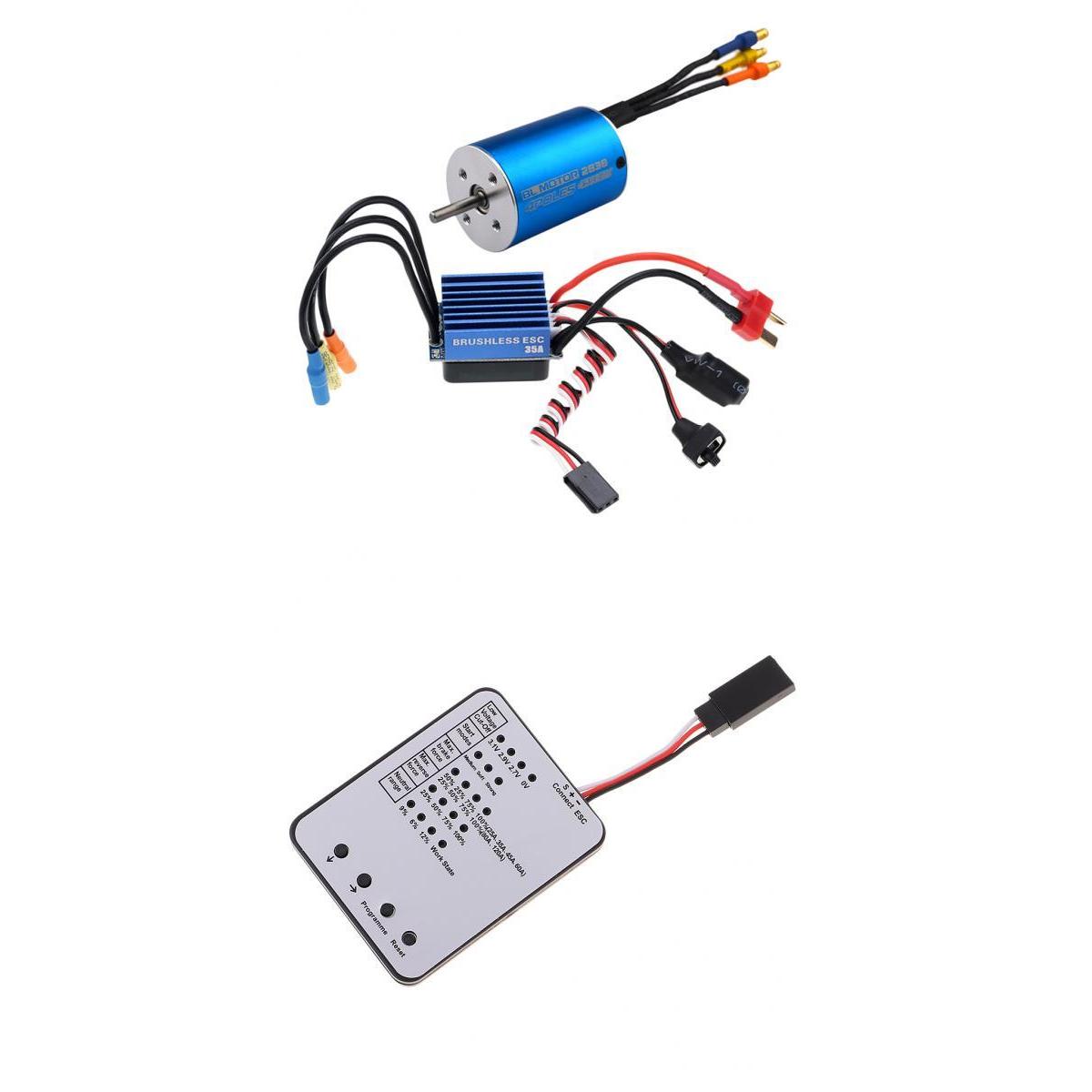

Package Includes:

1 x 2838 4500KV 4P Sensorless Brushless Motor
1 x 35A Brushless ESC
1 x LED Programing Card

Note:

Size for manual measurement, there may be a 0 to 1 cm error, belongs to the normal phenomenon.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, Thank you!
