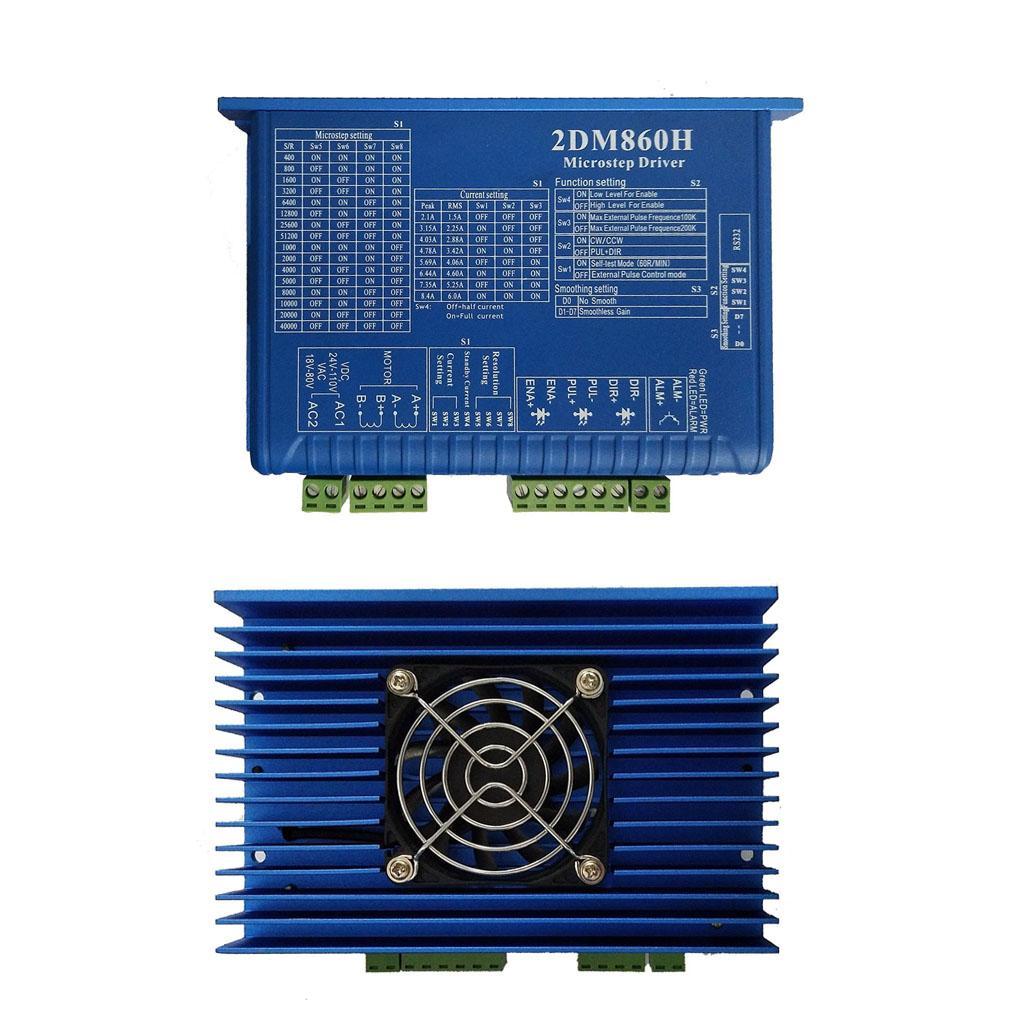

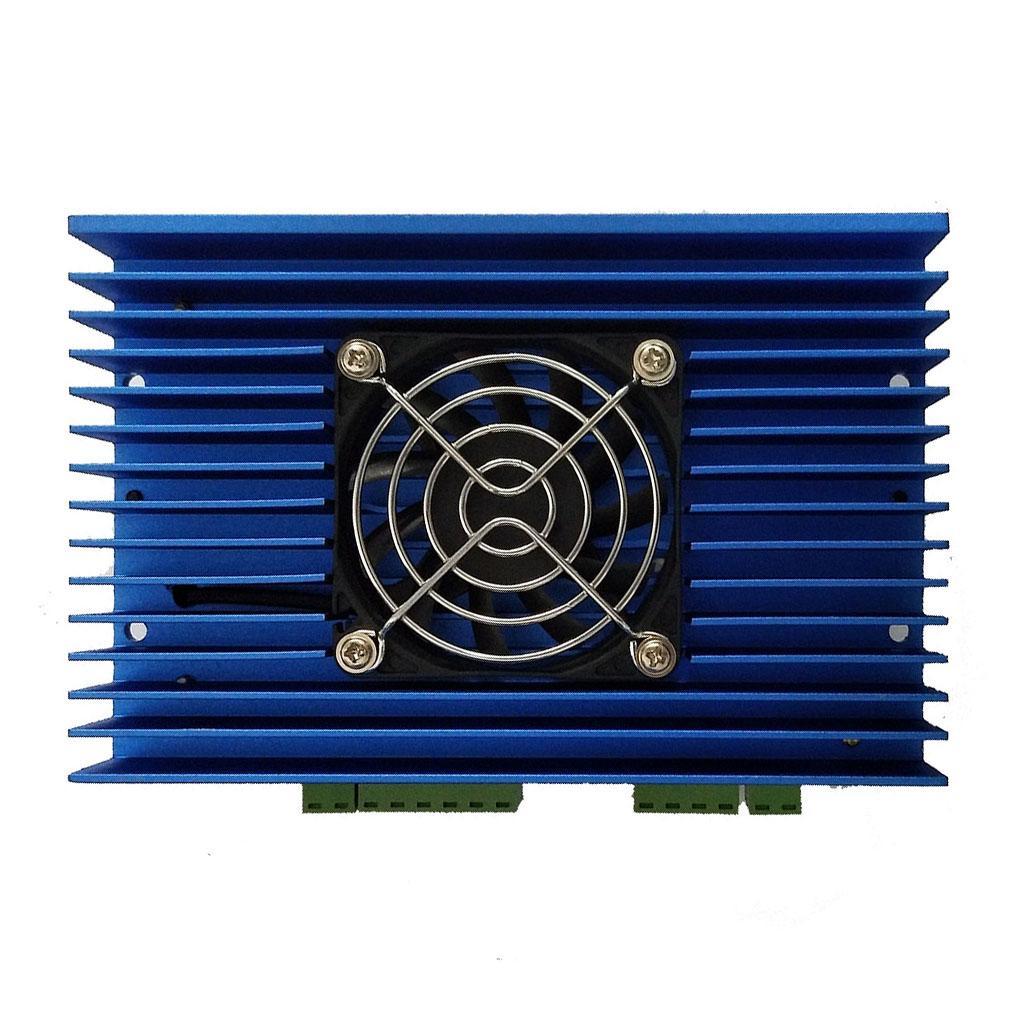

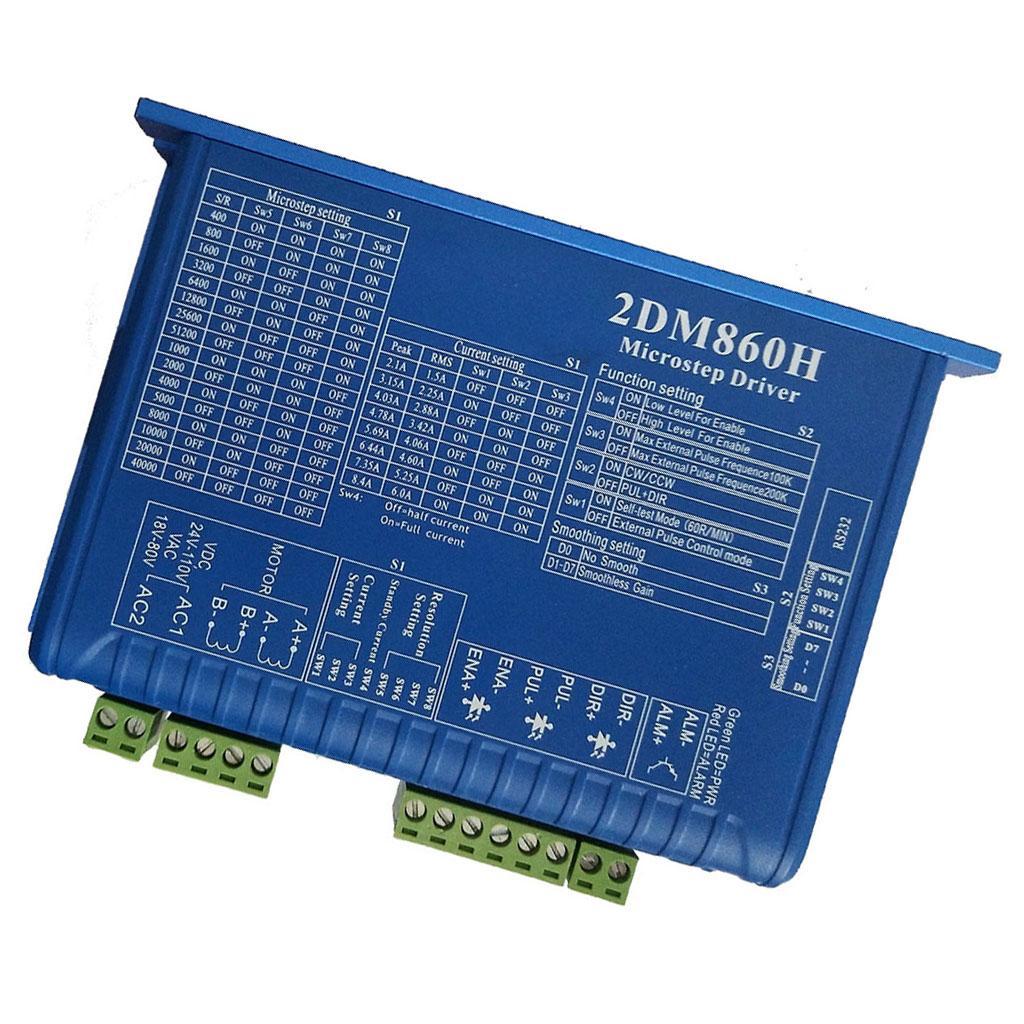

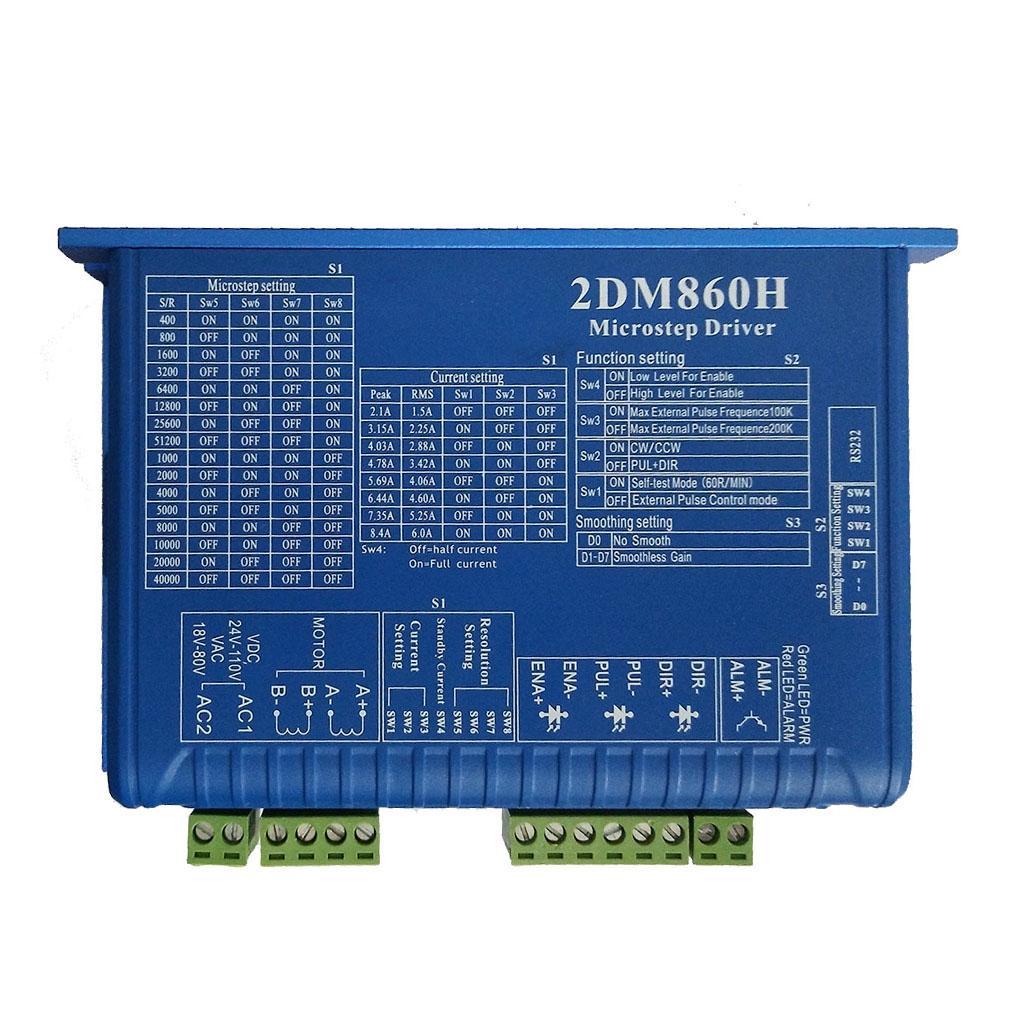

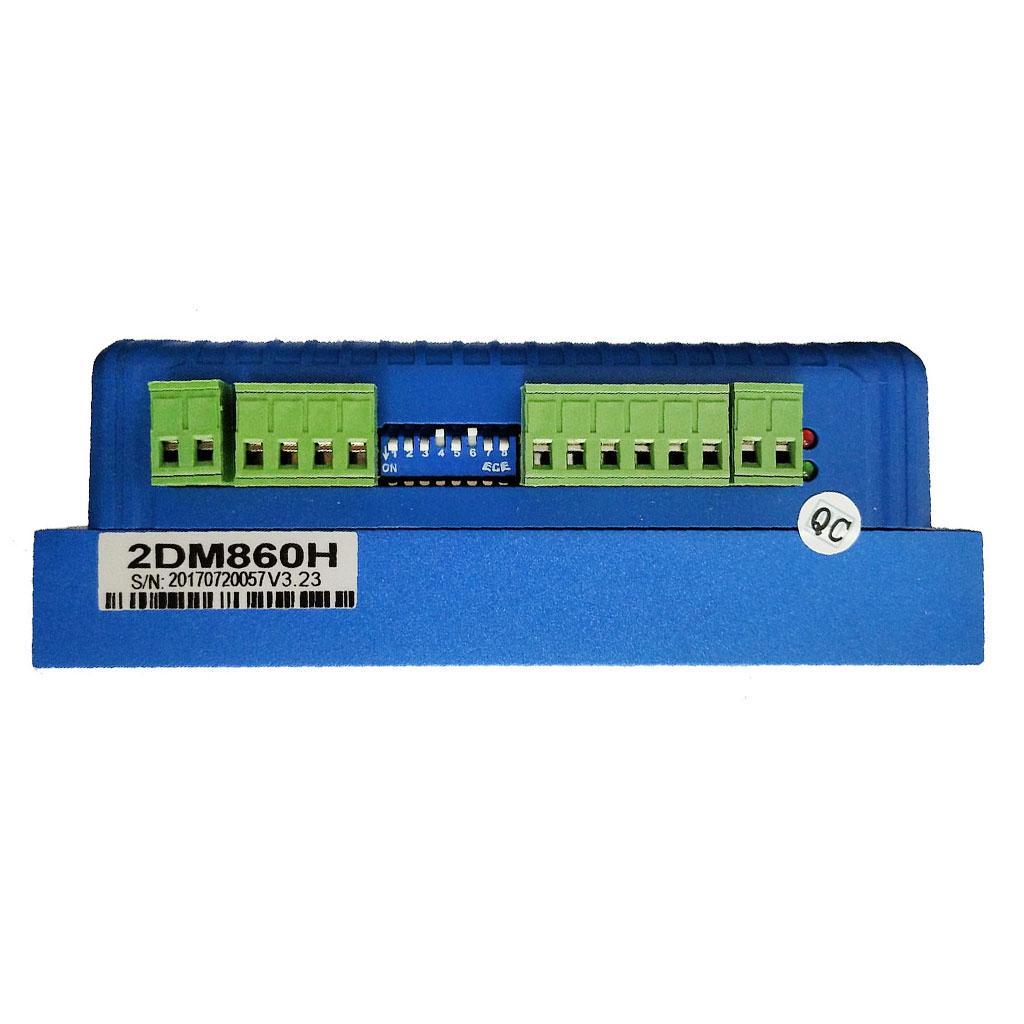

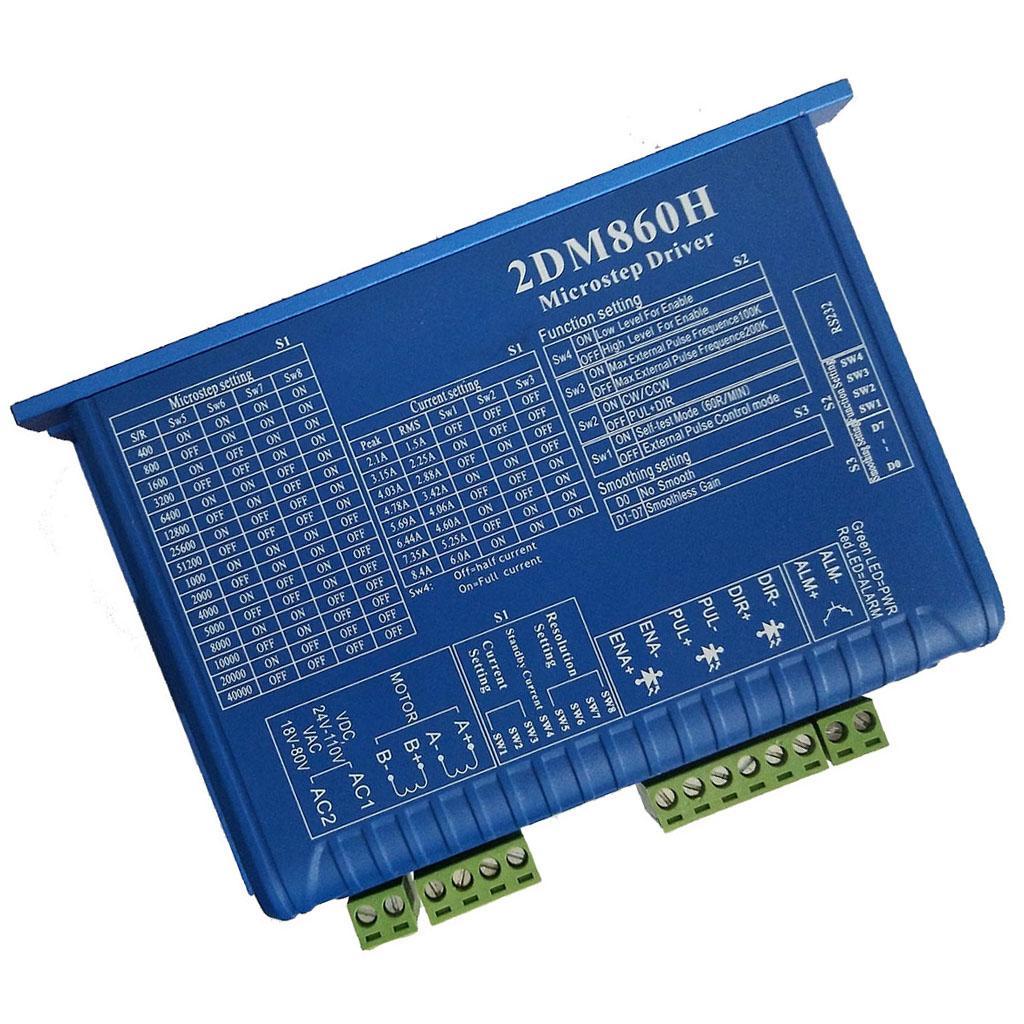

2DM860H digital step driver 86 two-phase stepper motor driver

Description:

1: New 32-bit DSP technology, optically isolated differential signal input (26LS32), ultra-low vibration noise
2: Subdivision setting range is 2-128, built-in 500 octave high segment (selected subdivision value)
3: drive 4.6.8 line two-phase stepper motor, the current setting can be directly selected at rated
4: static current automatically halved, the response frequency up to 250KHZ
5: with overvoltage, undervoltage, short circuit protection, alarm output function I / O port, alarm clear input ENA

Specification:

Electrical indicators
1: Supply voltage 30VAC (DC40V) ~ 80VAC (DC110V)
2: normal working output current 2.1 -8.4A
3: Logic input current 10mA
4: step pulse corresponding to the maximum frequency of 250KHZ

Package Includes:

1 Piece 2DM860H stepper motor driver
