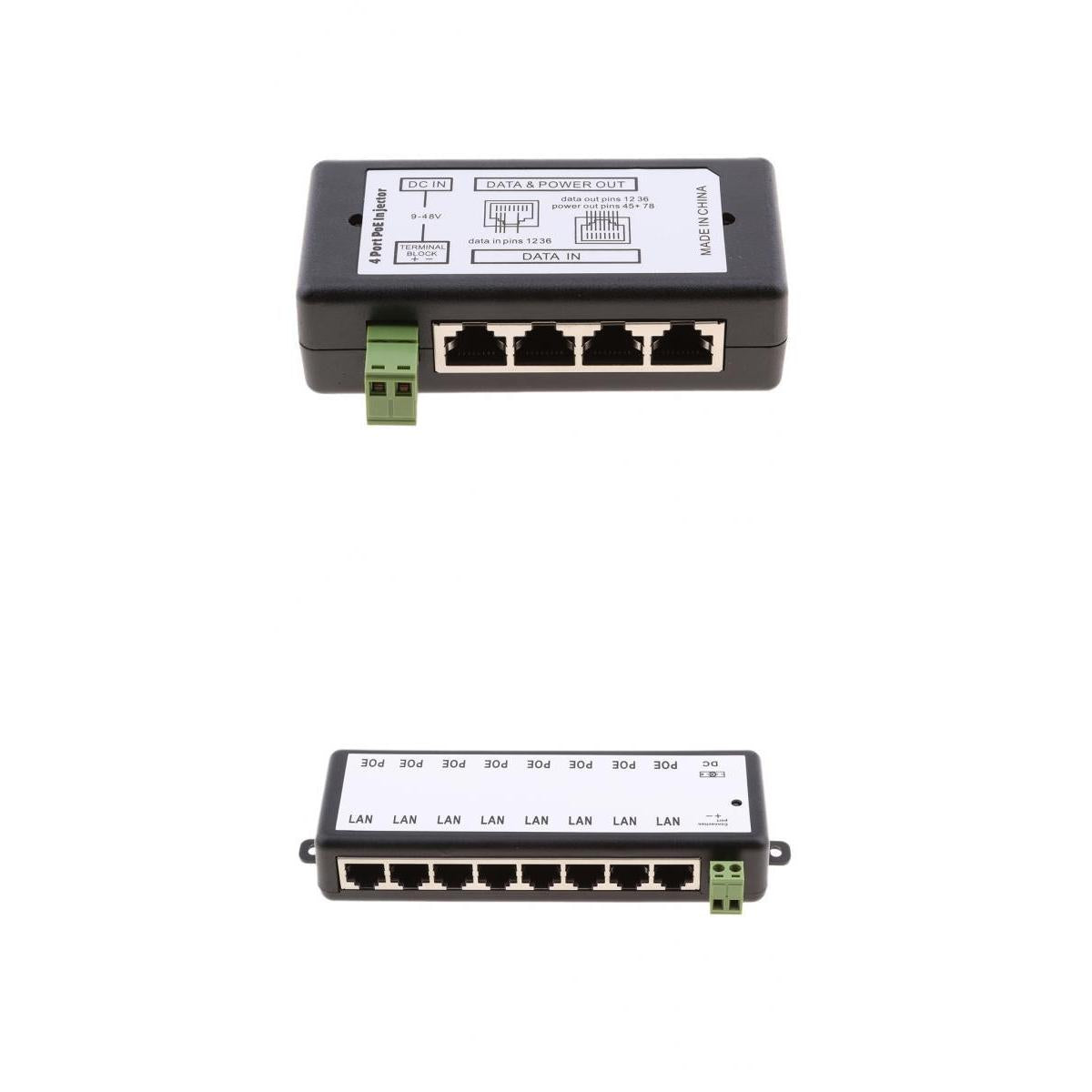

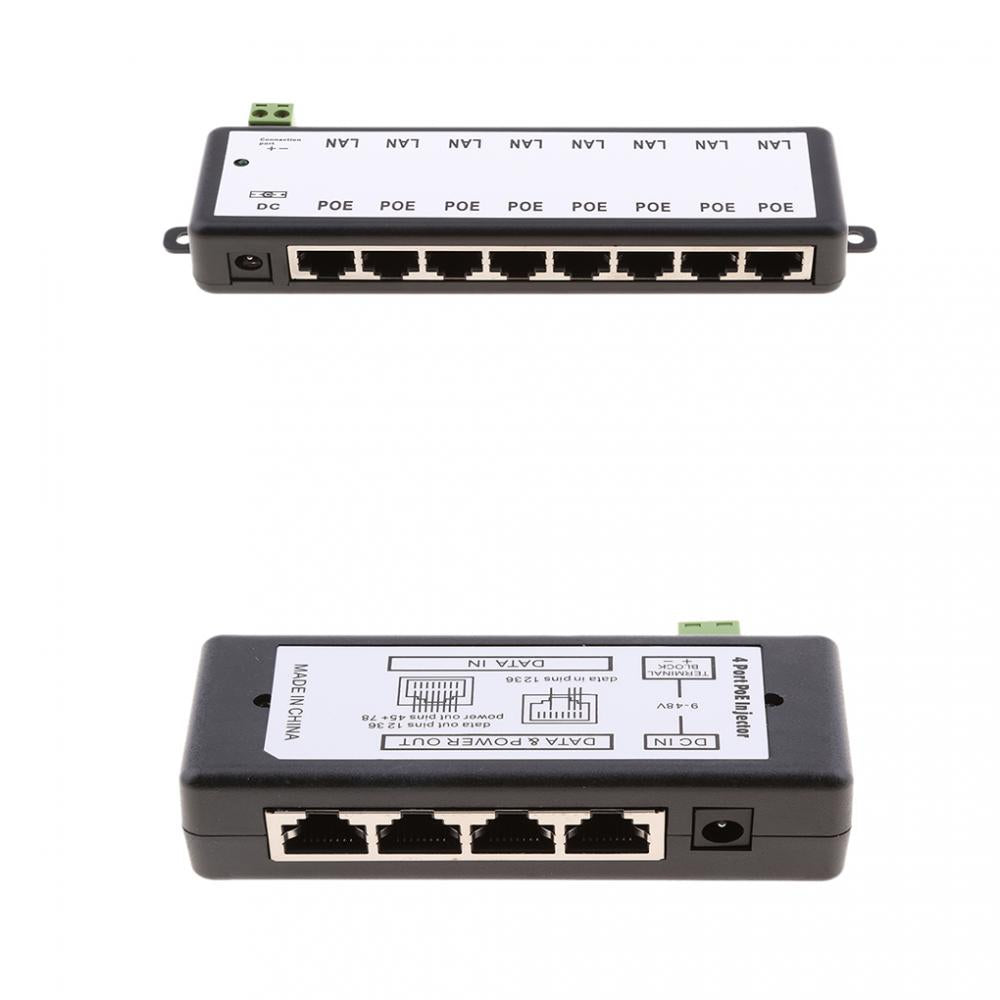

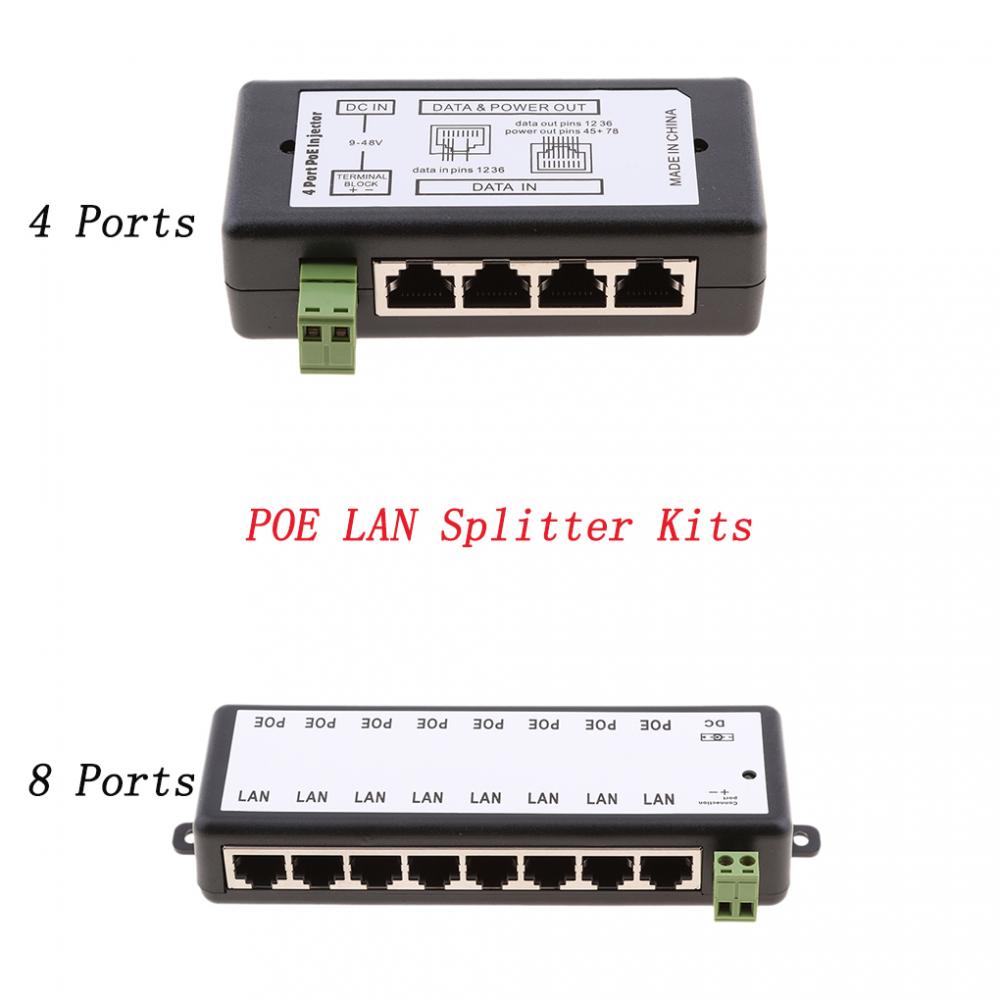

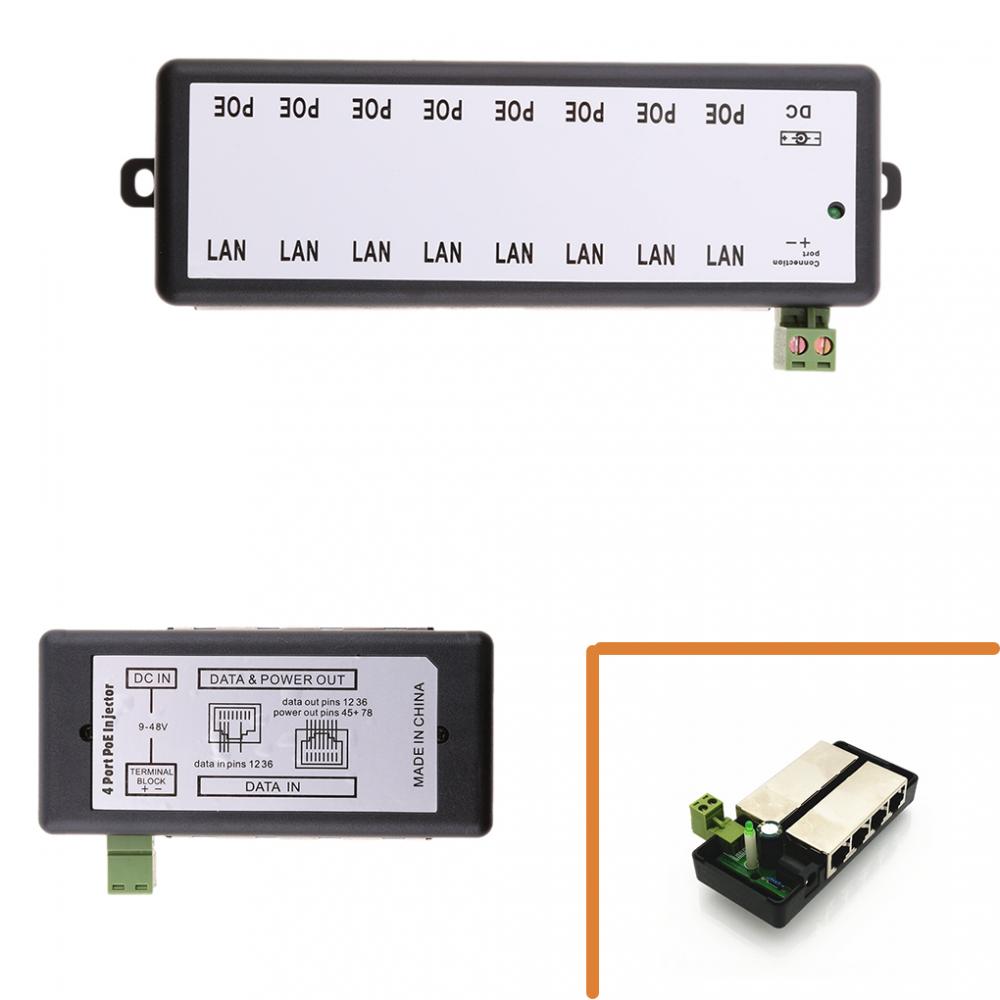

2Pcs 12-48V 4 POE Ports Injector Switch Module + 8 POE Ports Injector Module

Description:

This is a combo item which included 2 pieces 12-48V 4 POE ports injector and 8 POE ports injector.

DC socket: outside -5.5mm * within +2.1 mm / outside -0.22 inch * within + 0.08 inch.Product Operating Voltage 12-48V.

POE port = 4 5-pin positive pole， 7 8-pin negative pole， 1 2 3 6-pin data. POE Port: Connect Bridge AP CPE device WAN interface (use with POE separation line).

LAN port = 1 2 3 6-pin data. LAN port: Connect to a router Switch or directly connect to the host computer network interface.

Used for wireless AP,Security CCTV IP camera,IP telephone,wireless bridge,IP print server etc.

Specification:

4 POE Ports Injector:
Material: Plastic
Size：110 * 50 * 40 mm/ 4.33 * 1.97 * 1.57 inch
8 POE Ports Injector:
Material: Plastic
Size：170 * 60 * 30 mm/ 6.69 * 2.36 * 1.18 inch

Package Includes:

1 Piece 4 Poe Ports Power Separator
1 Piece 8 Poe Ports Power Separator

Note:

Product Operating Voltage 12-48V
The green terminal and DC power supply voltage are connected.
Due to manual measurements, the measurement result may have a difference of 10mm.
