2pcs HiFi MX50 SE 2.0 dual channel 2x100W Stereo Power amplifier DIY KIT

Description:

--MX50 SE version is designed to improve the new version of the classic with thousands of users on the basis of the fifth edition of the MX50.
--Lower distortion, better control and resolving power. A single differential input, single-ended voltage amplifier stage, three-stage inverted Darlington output.
--The MX50 SE version is a new design version based on the classic MX50 fifth edition with thousands of users.
--Small tube with PHILI-PS production, the output stage using imported KTB817, KTD1047.
--ST, EVOX production CBB capacitor.
--KEMET, TDK monolithic capacitors.
--Japan imported electrolytic capacitors
--All resistors are made of genuine genuine metal film resistance copper feet.

Specification:

Supports voltage DC: + -15V to + -45V
AC double 12V-double 32V rectifier can be obtained.
Power 15-100W, 8 ohms.

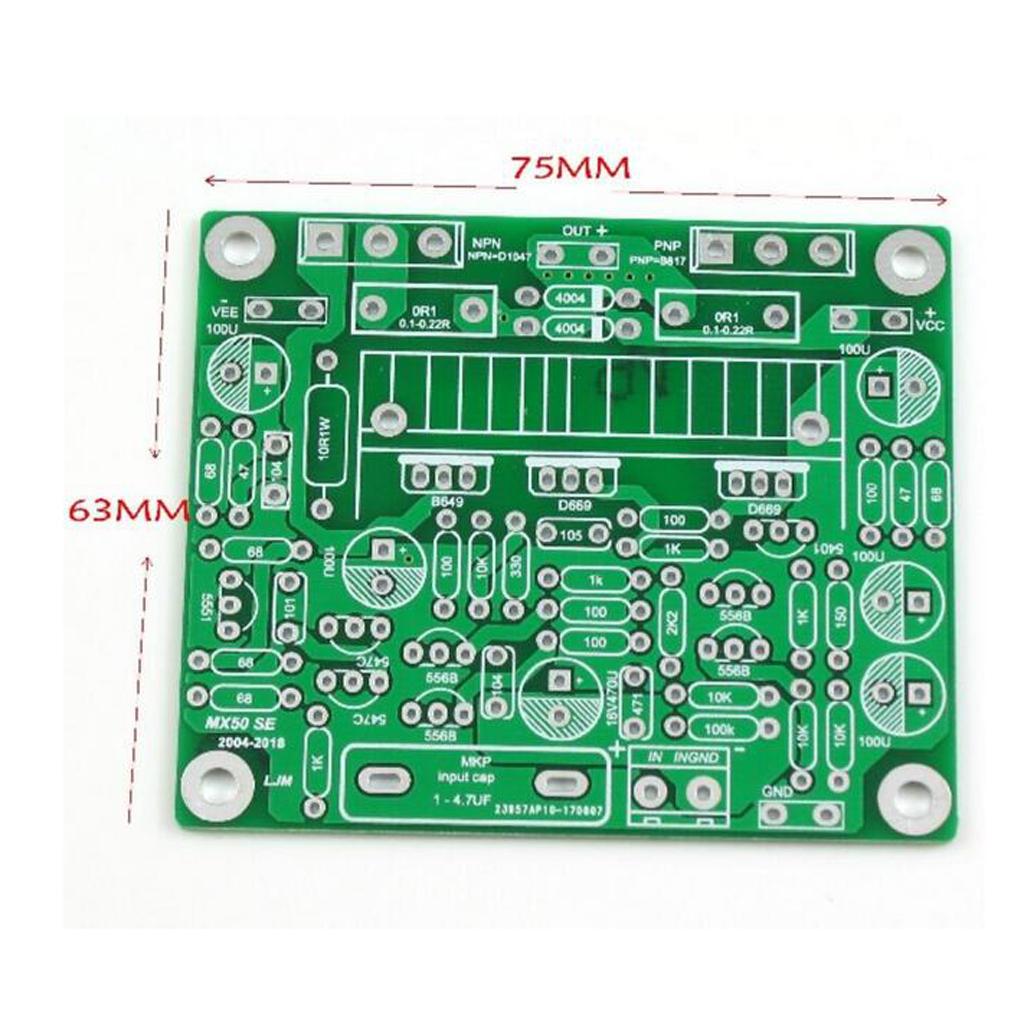

PCB Area 76 * 73 mm Version Number V7 (MX50SE)
Installation Note: The 649 669 must be installed on a supplied heatsink.

Package Includes:

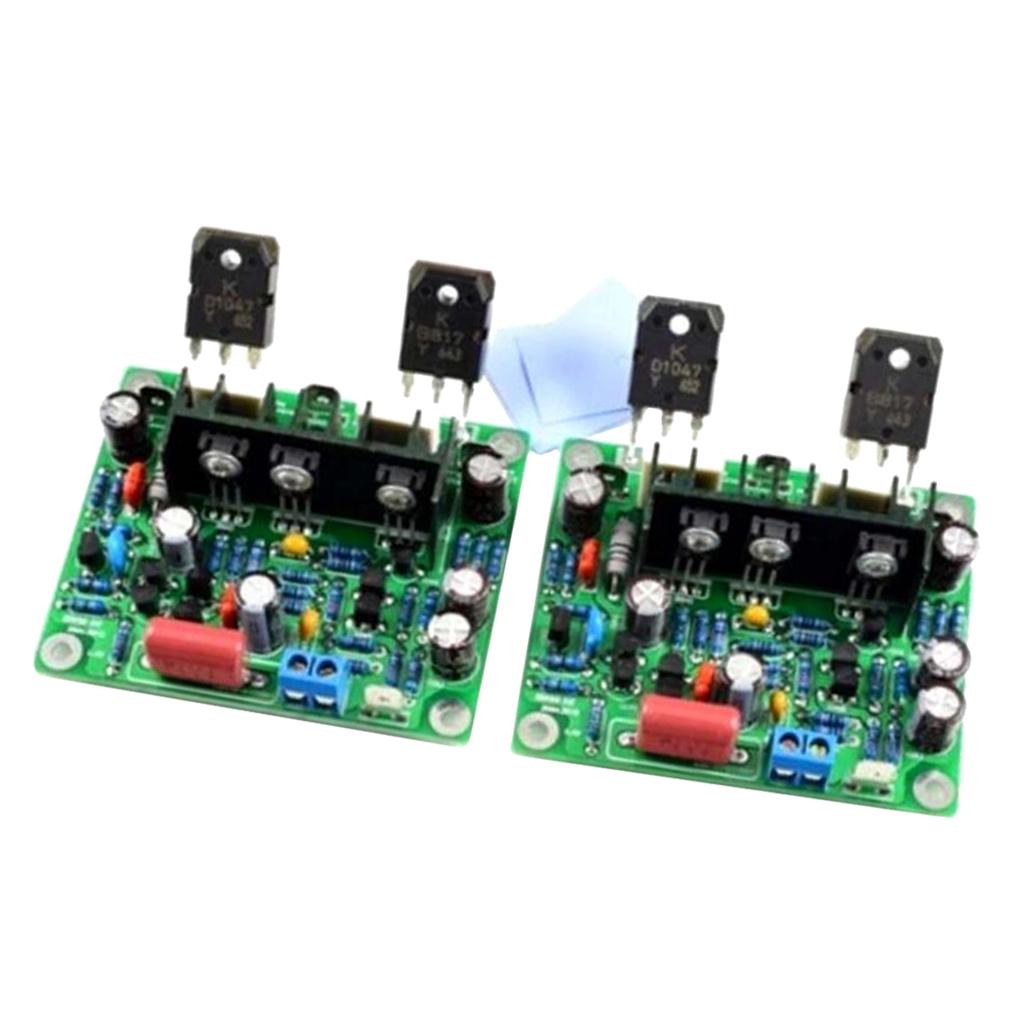

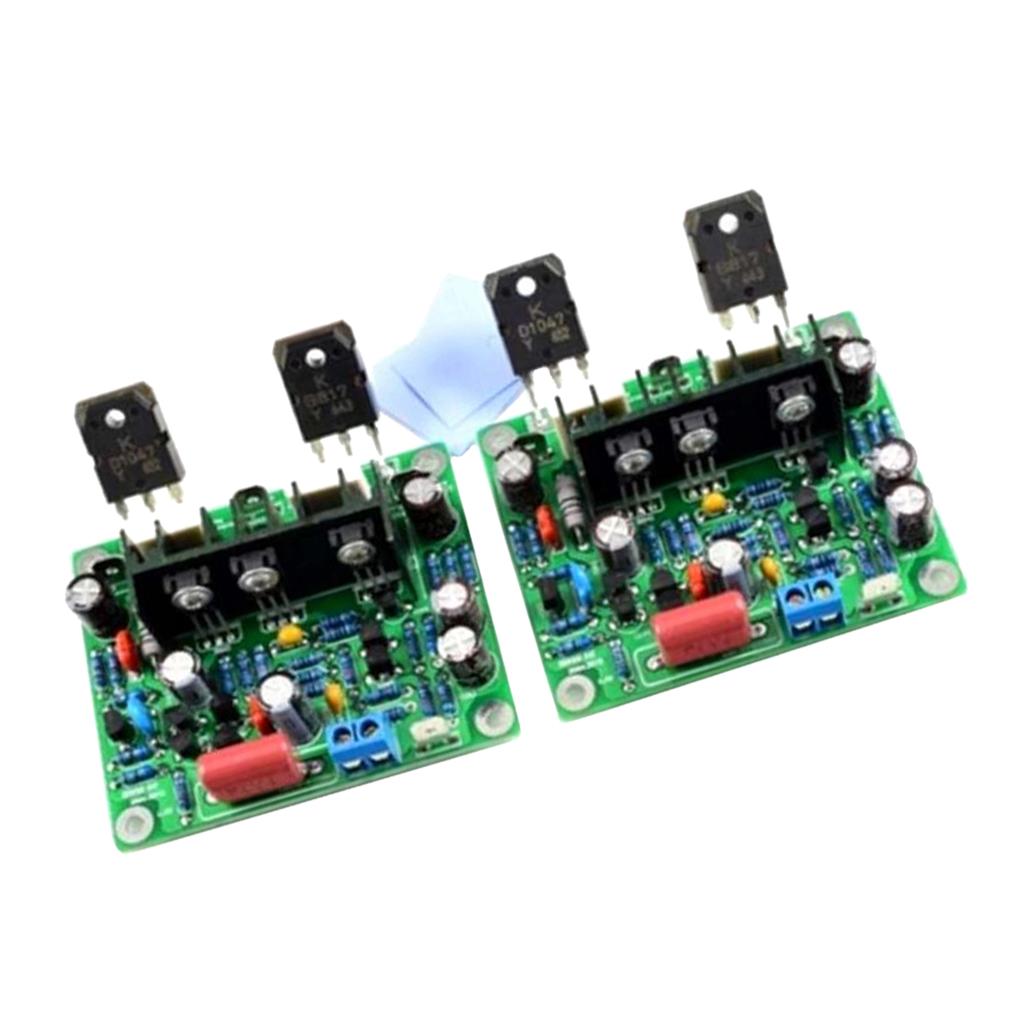

2pcs HiFi MX50 SE 2.0 dual channel 2x100W Stereo Power amplifier boards

Note:

NO SCHEMATIC AND INSTRUCTION (Components values have been marked on the PCB come with the item).
