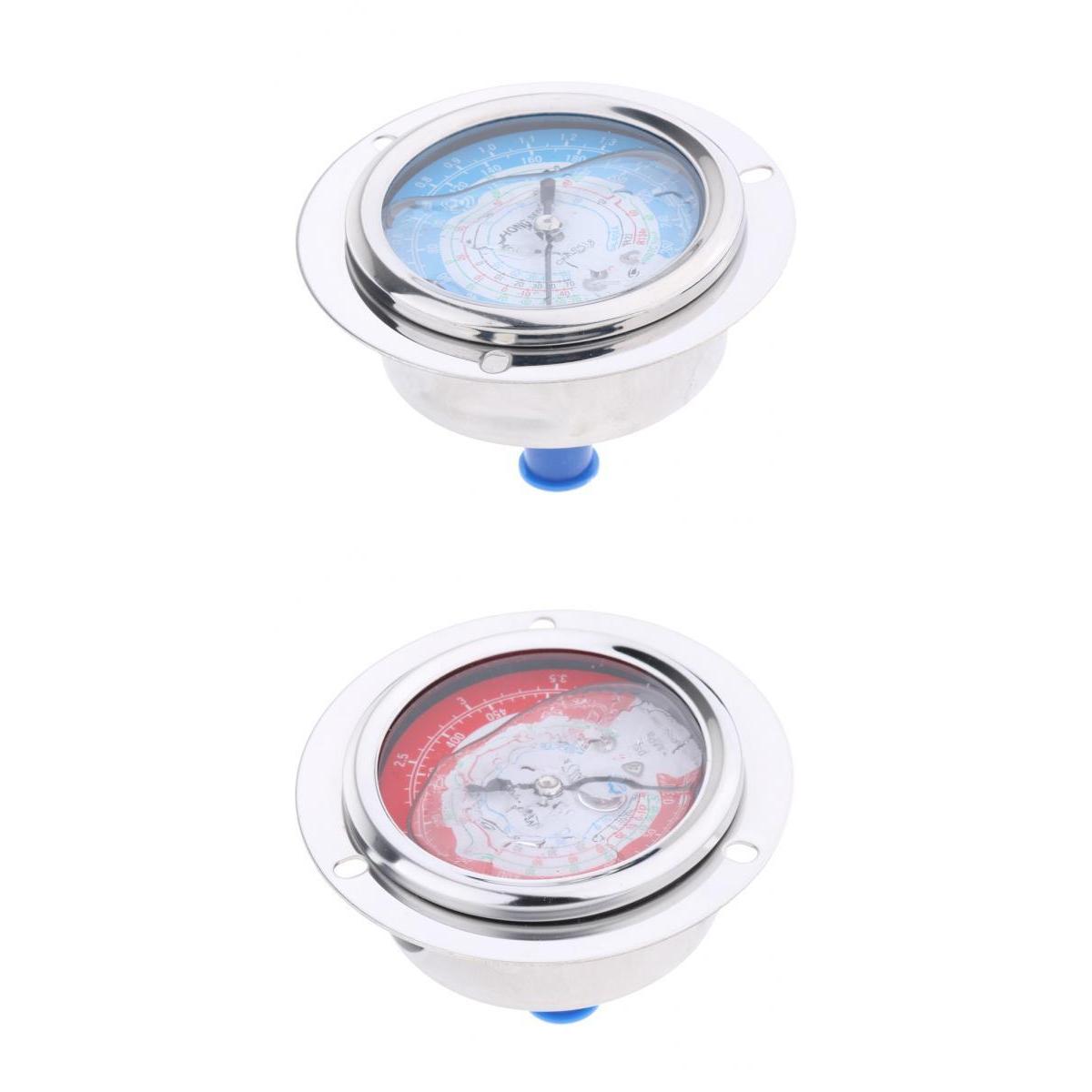

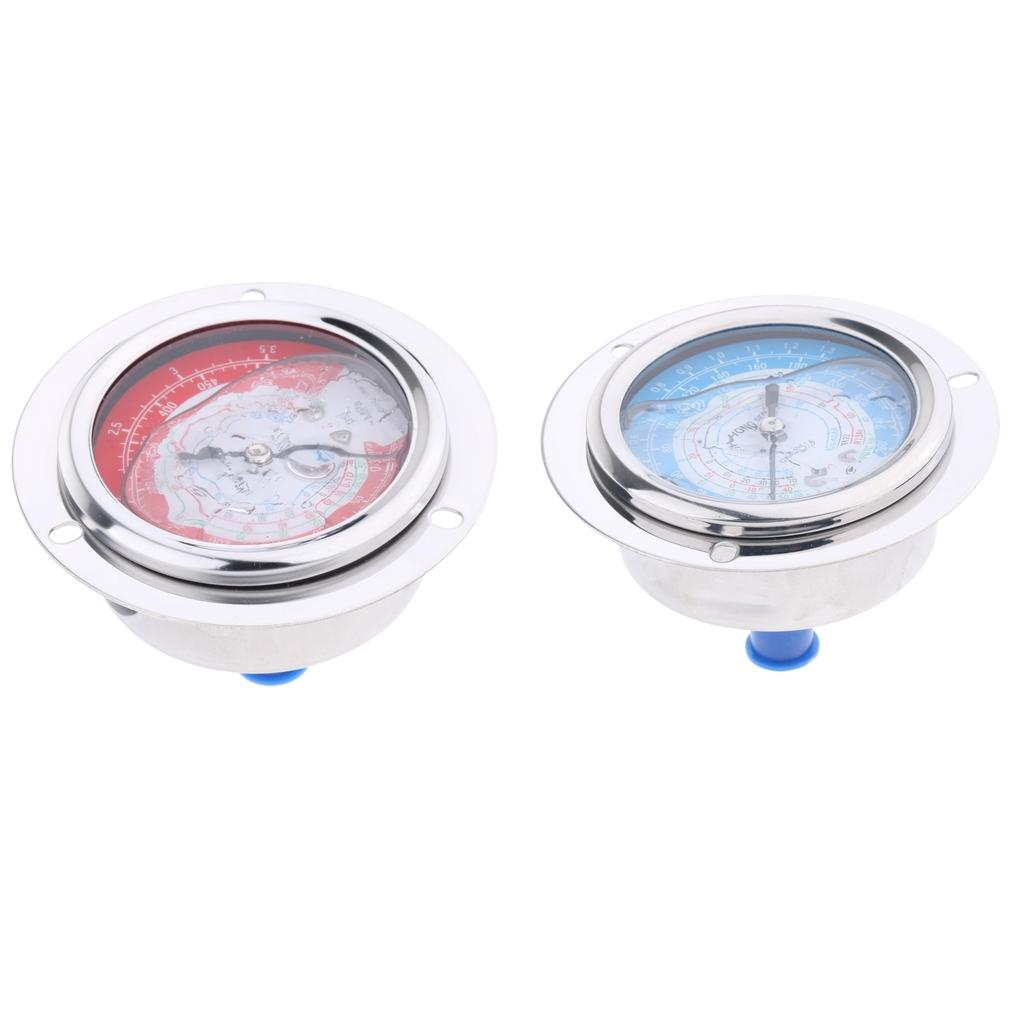

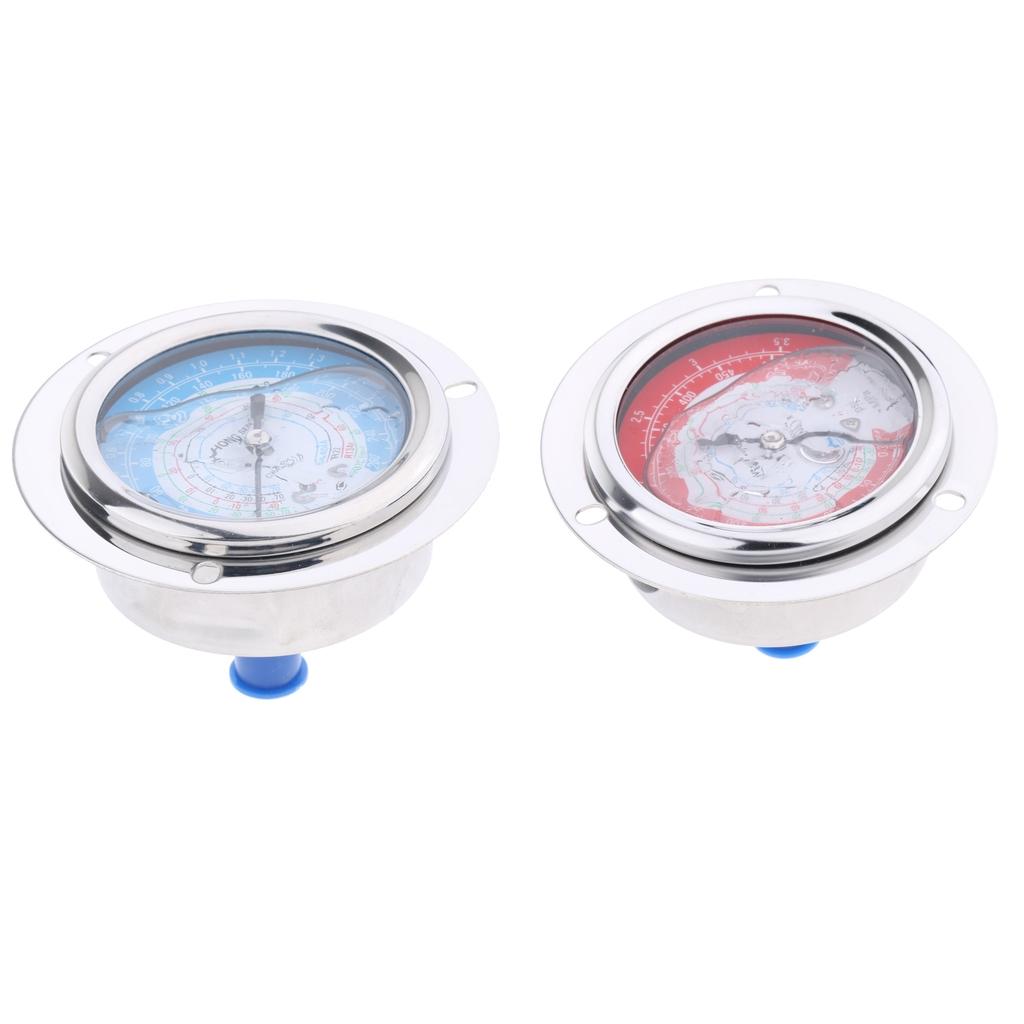

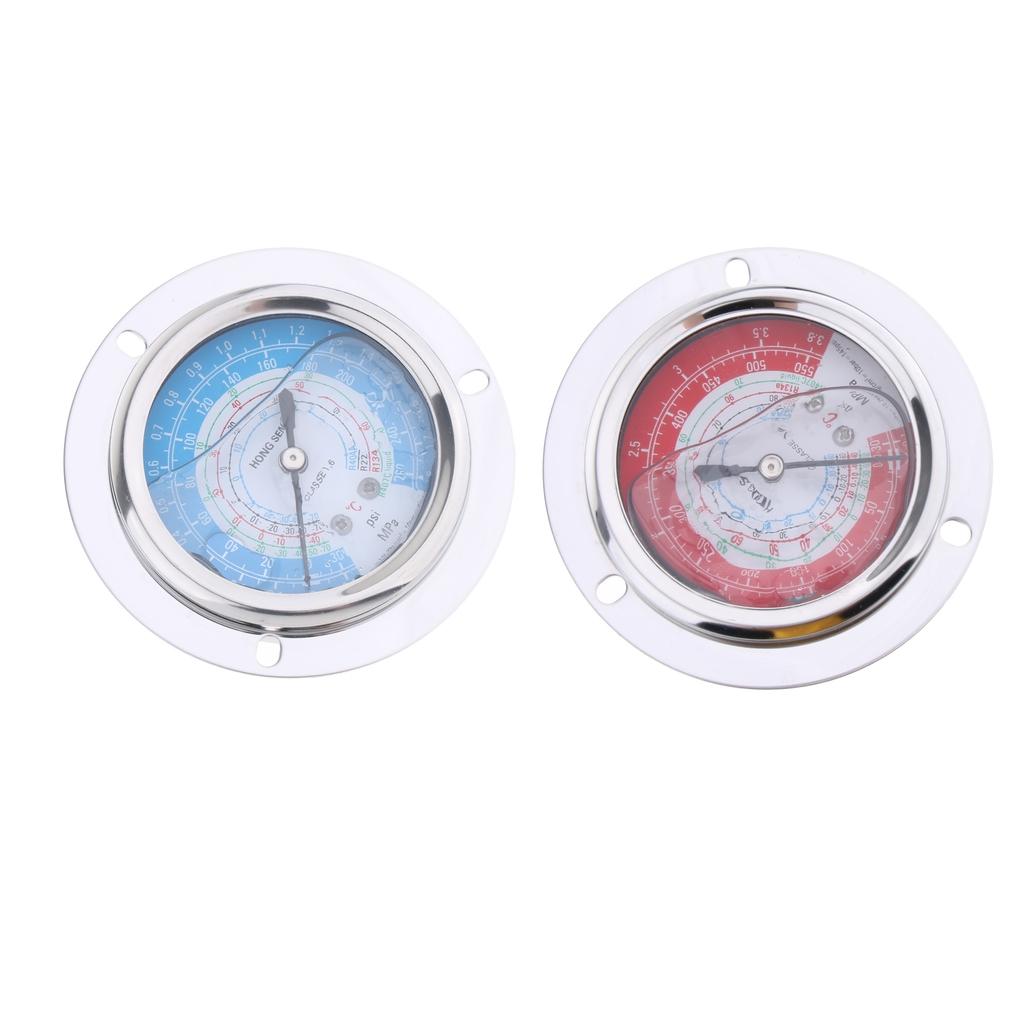

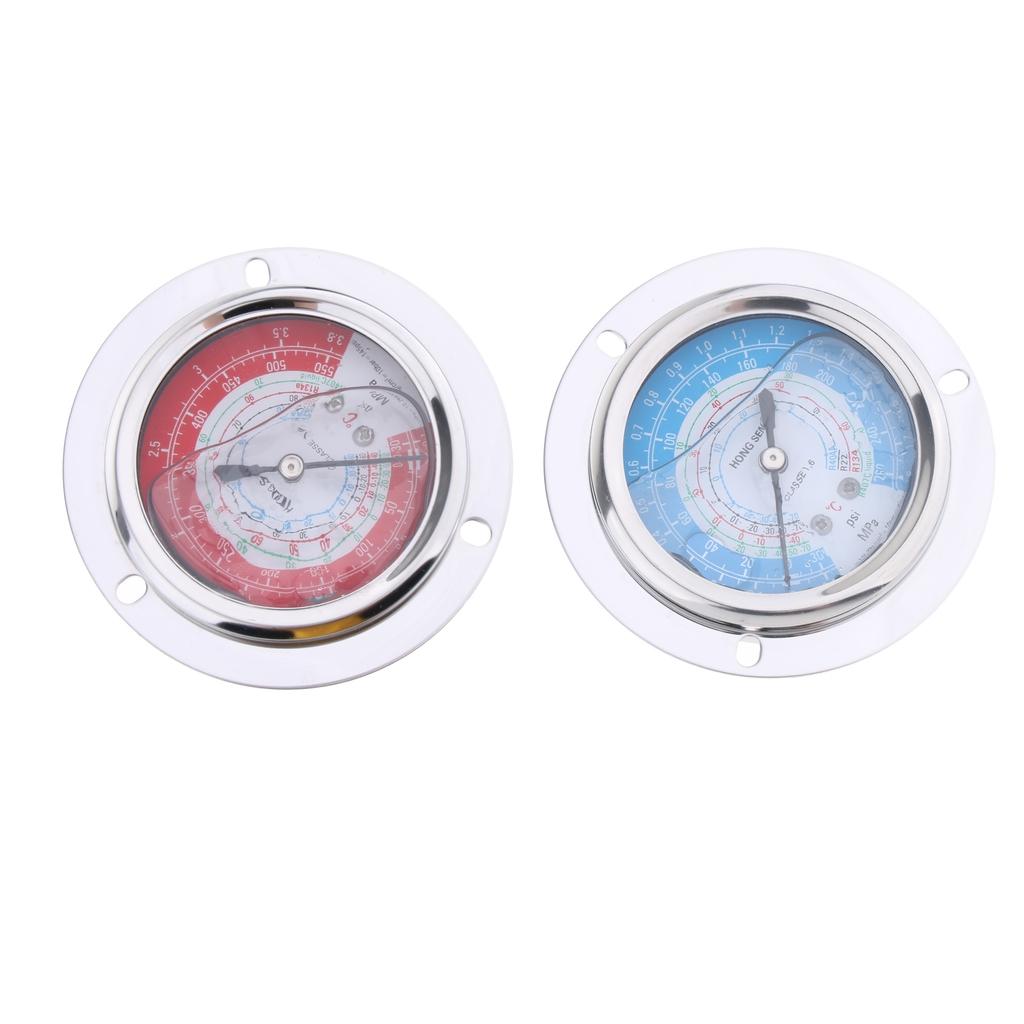

2PCS Liquid Filled Pressure Gauge for Water Oil Hydraulic 3.8MPa 1.8MPa

Description:

Measuring Range: -0.1 - 1.8MPa / -30 - 260 PSI; -0.1 - 3.8MPa / -30 - 550 PSI

Application: Water, Oil, Air & Hydraulic Application, including R22 R134a R404A R407c

Clear and fast reading, dual scale: PSI / MPa; Dial Size: 62mm / 2.4inch in diam.

Made of aluminium for protection in harsh environments

Copper Alloy Center Back Mount; 1/4" NPT (for 2-1/2" dial)

Specification:

Measuring Range:

-0.1 - 1.8MPa / -30 - 260 PSI

-0.1 - 3.8MPa / -30 - 550 PSI

Case: aluminium case for protection in harsh environments

Connection: Copper Alloy Center Back Mount; 1/4" NPT (for 2-1/2" dial)

Application: Water, Oil, Air & Hydraulic Application

Dial Outer Diam: 85mm / 3.3inch

Dial Inner Diam: 62mm / 2.4inch

Dial Full Height: 58mm / 2.3inch

Scale: Dual Scale - PSI / MPa

Movement: Copper Alloy

Package Includes:

1 Piece Liquid Filled Pressure Gauge 1.8MPa

1 Piece Liquid Filled Pressure Gauge 3.8MPa

Note:

This item should be stored in a dust-proof, dry, and non-corrosive environment if it was not used.
