Description:
Single-line system: two lines, with the same manual switch the same way (no need to cloth a line, save money trouble).
The general induction switch can not access the load: energy-saving lamps, incandescent (bulb), the old fluorescent lamp (inductive with a starter), electronic fluorescent, ring lights, T5 lamp, spotlights, small Electrical, solenoid valve, mixed load (a variety of different load together)
Super-wide delay time adjustment: about 10 seconds - 6 minutes adjustable!
Sensitivity adjustable: day or night lights, free choice, more humane!
To effectively prevent power fluctuations, electromagnetic interference, more stable performance, to avoid the switch other electrical appliances and mobile phone signals and other electromagnetic interference caused by accidental switch lamps, and thus more energy efficient and extend the life of the lamp!
protection: special protection device, which can effectively prevent and other instantaneous high voltage damage caused by the switch.
Electrical parameters:
Working voltage: 110V-250V
Load power: 1W ~ 200W
Delay time: 10 seconds to 6 minutes adjustable.
Sensing distance: 0-8 meters
Sensing angle: 110-140 degrees
Connection: single-wire system (two lines, and ordinary manual switch the same wiring, no need to cloth a line, without any peripheral accessories, save money trouble).
Load type: energy saving lamp, incandescent lamp (bulb), old fluorescent lamp (inductive with starter), electronic fluorescent lamp, ring light, T5 lamp, spotlight, transformer, small electrical, solenoid valve, mixed load A variety of different loads together)
Applicable places: automatic lighting such as corridor, corridor, bathroom, basement, warehouse, garage and other places, automatic ventilation of exhaust fan and other automatic control of electrical appliances, and can also be used for anti-theft use
Specification:
Installation Notes:
1. In fact, very simple: direct replacement of ordinary switch, just like the ordinary switch wiring; you can first use the ordinary switch to test well, and then put on the sensor switch is very safe, the two lines were received two pillars, free (Note: can not be connected to the same line with the zero line to the sensor switch)
2. Installed in the wall and the top can be, pay attention to the left and right direction of the induction angle of about 120 degrees, up and down the direction of the induction angle of 100 degrees.
3. If the installation of larger heat (such as incandescent) and the switch should be maintained at a distance of more than 1 meter (such as too close will appear from the open, since the phenomenon). If there is no way away from so far, you can In their spacing between the foam, wood, paper and the like things, blocking the heat of radiation interference
4. The first time the access circuit is initialized for about 1-3 minutes (during which it may automatically turn on / off is normal)
5. When the daytime or around the light is strong, install the sensor switch, because the sensor switch default state, the light is not bright (in the evening or lack of light, someone close will only induction light), you can also use Hand the sensor switch sensor (hemisphere type) to test the sensor switch, so the light will be bright. Sensor switch is the more sensitive the more sensitive the characteristics of light! If you feel sensitive switch is not sensitive, generally around the light affect the sensitivity of the sensor switch, the solution is counterclockwise callback that "sensitivity" potentiometer! The most simple installation: the buyer received, adjustable can not tune, just need to take a good line can be, until the evening, people to light, people go light off! Delay time, sensitivity, The default delay is the shortest, about 15 seconds or so, the sensor default only to open the lights at night (daytime installation, is not lit).
Package Includes:

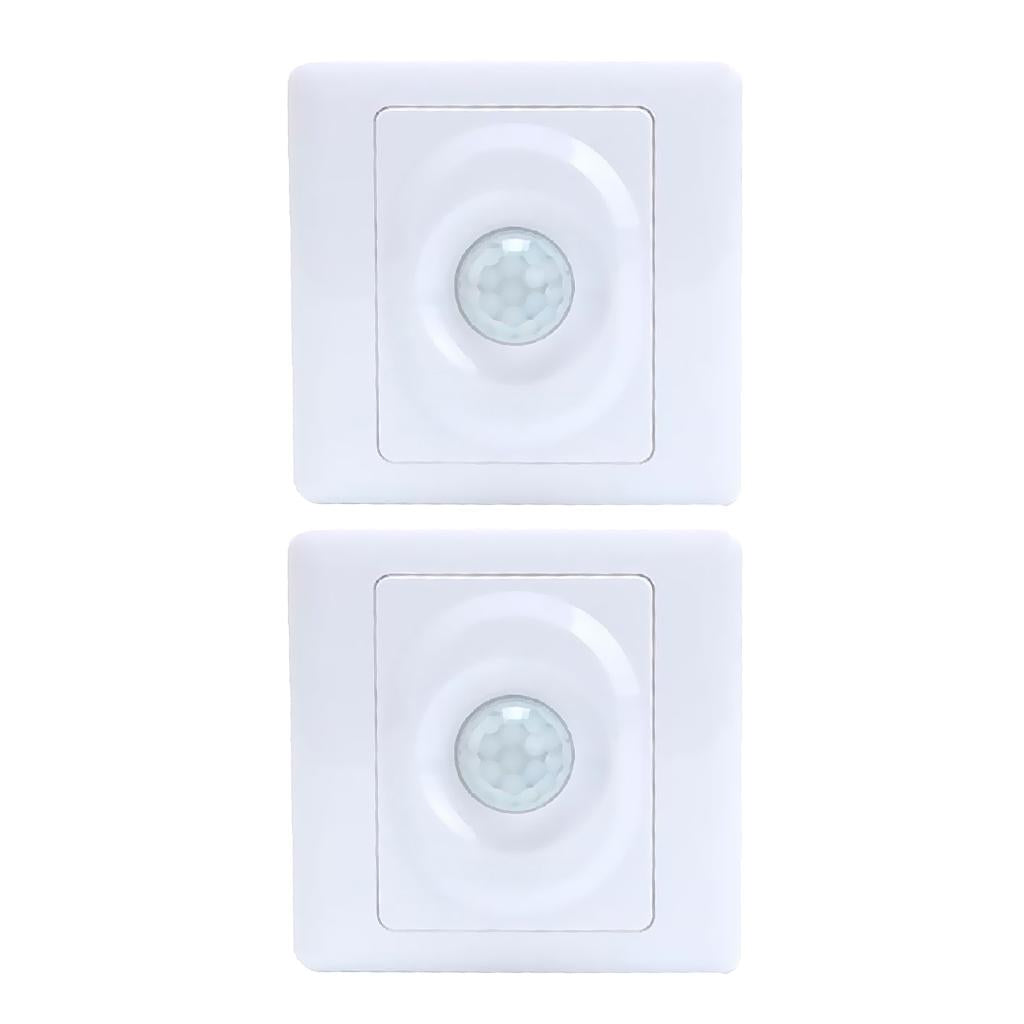

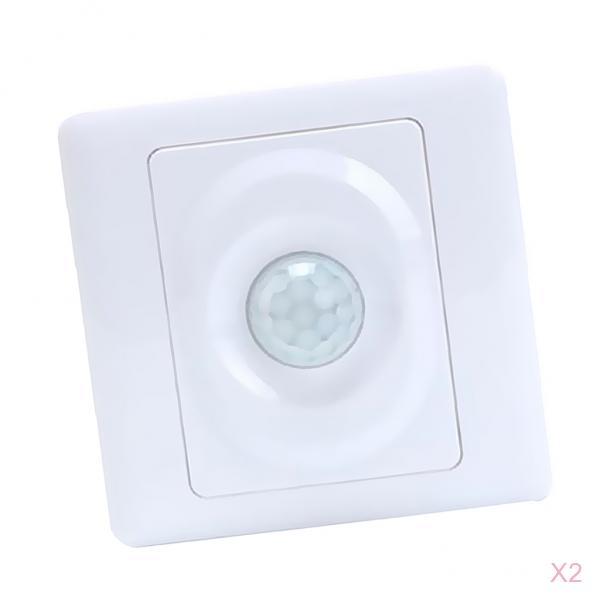

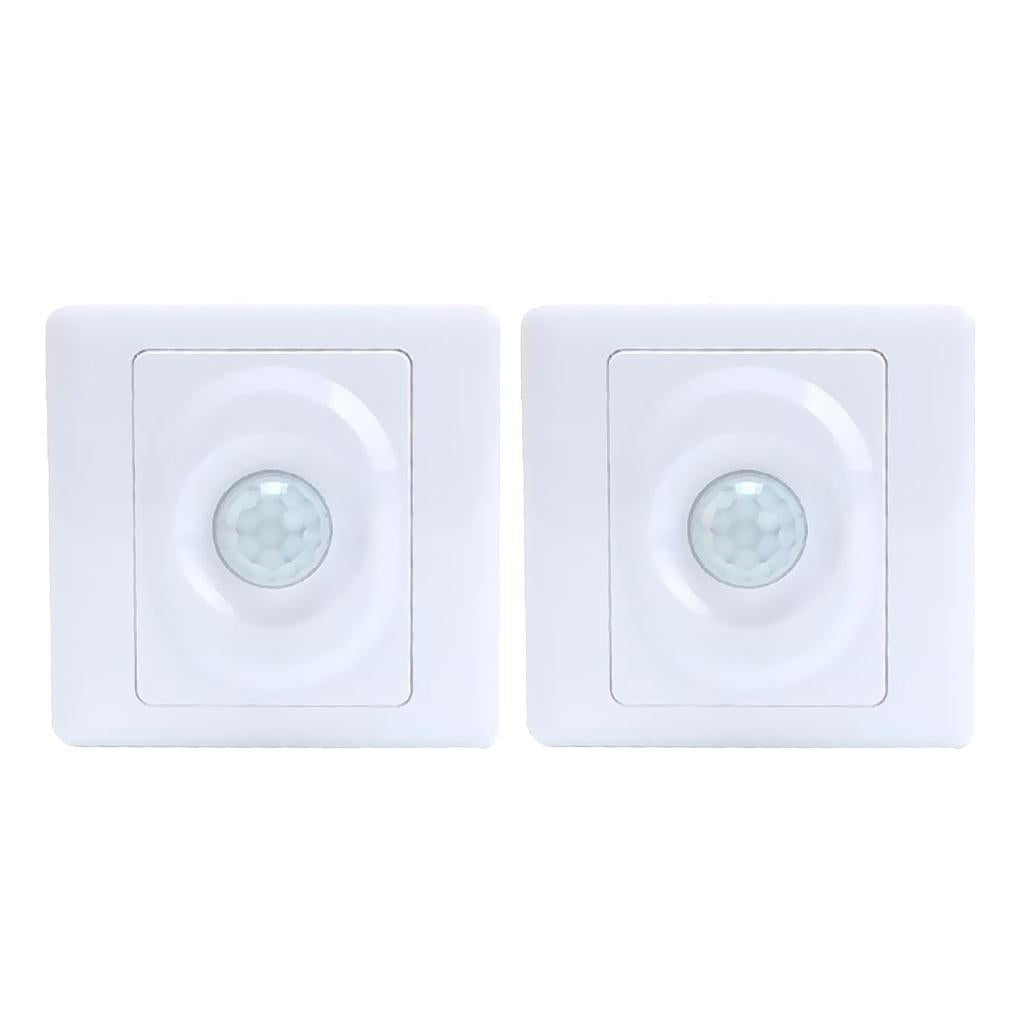

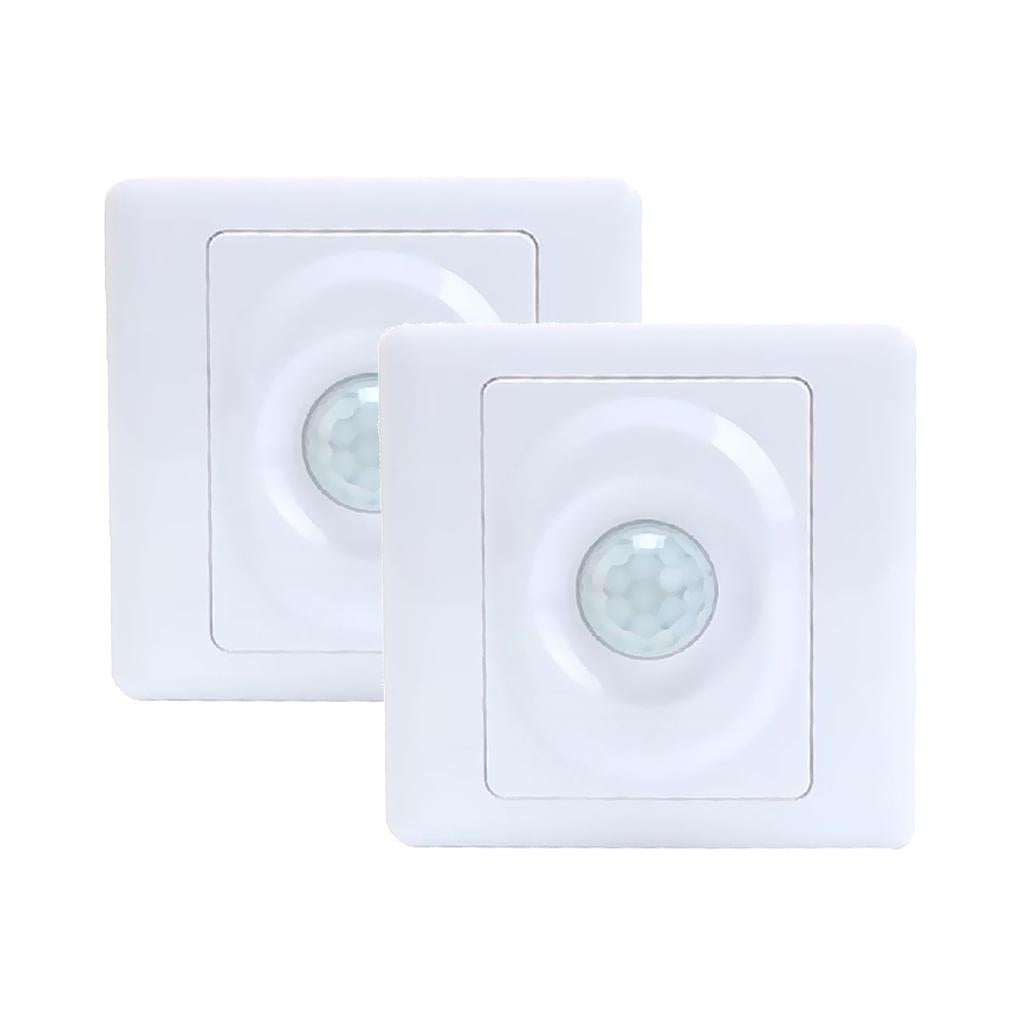

2 Pieces of PIR Motion Sensor Switch Panel
