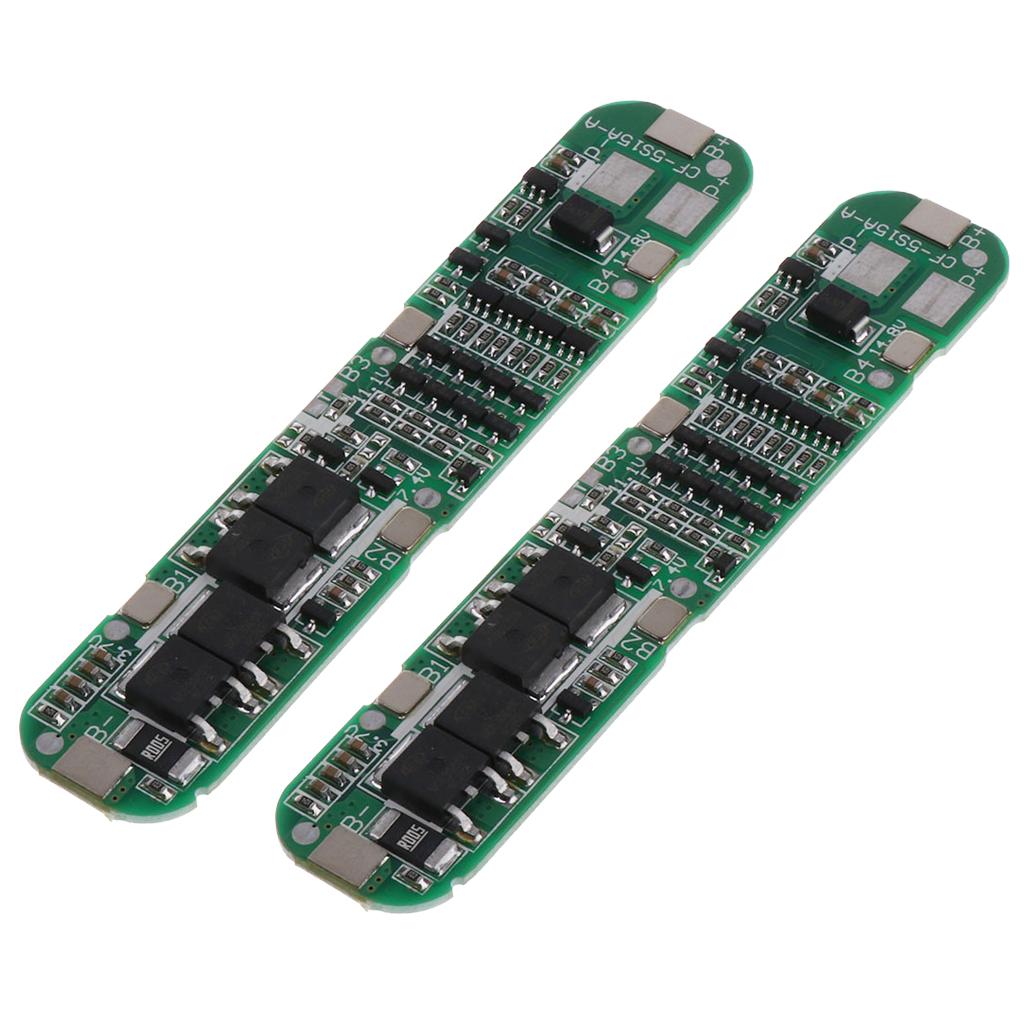

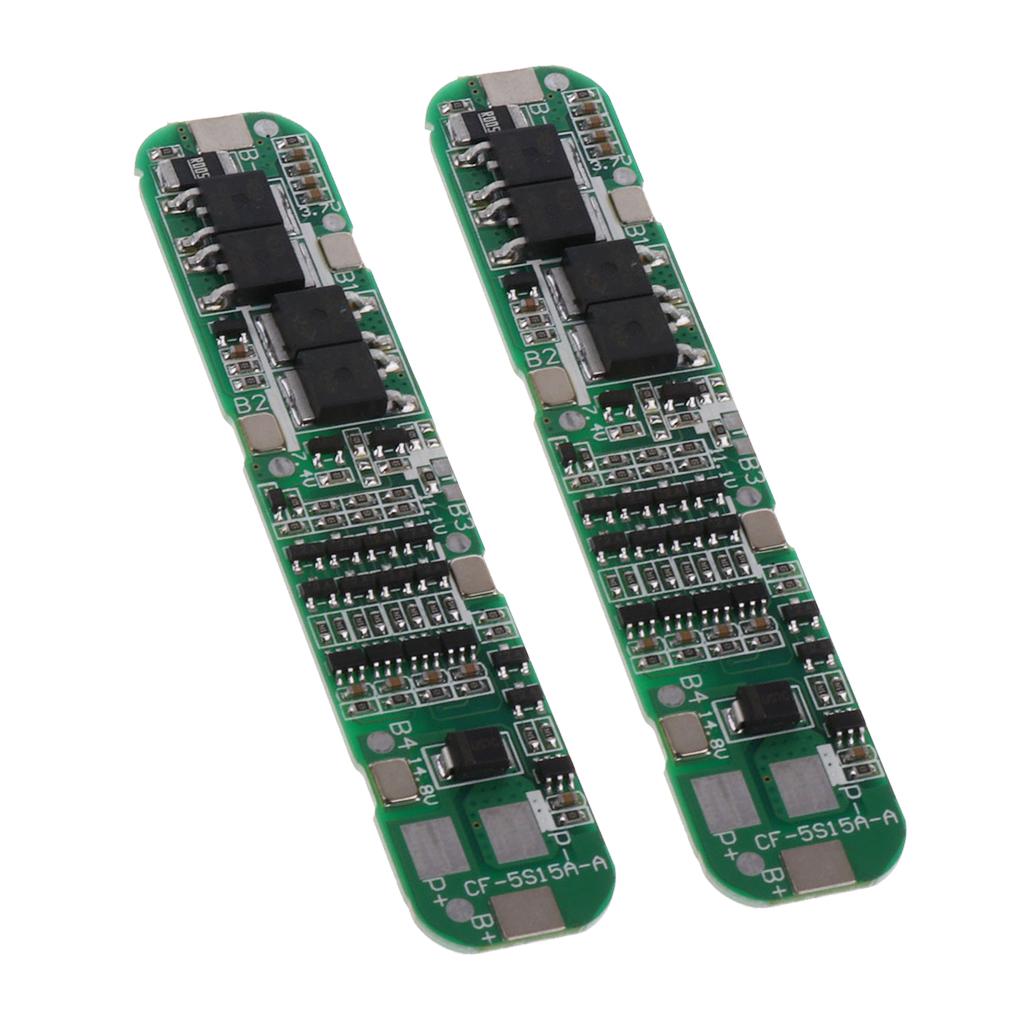

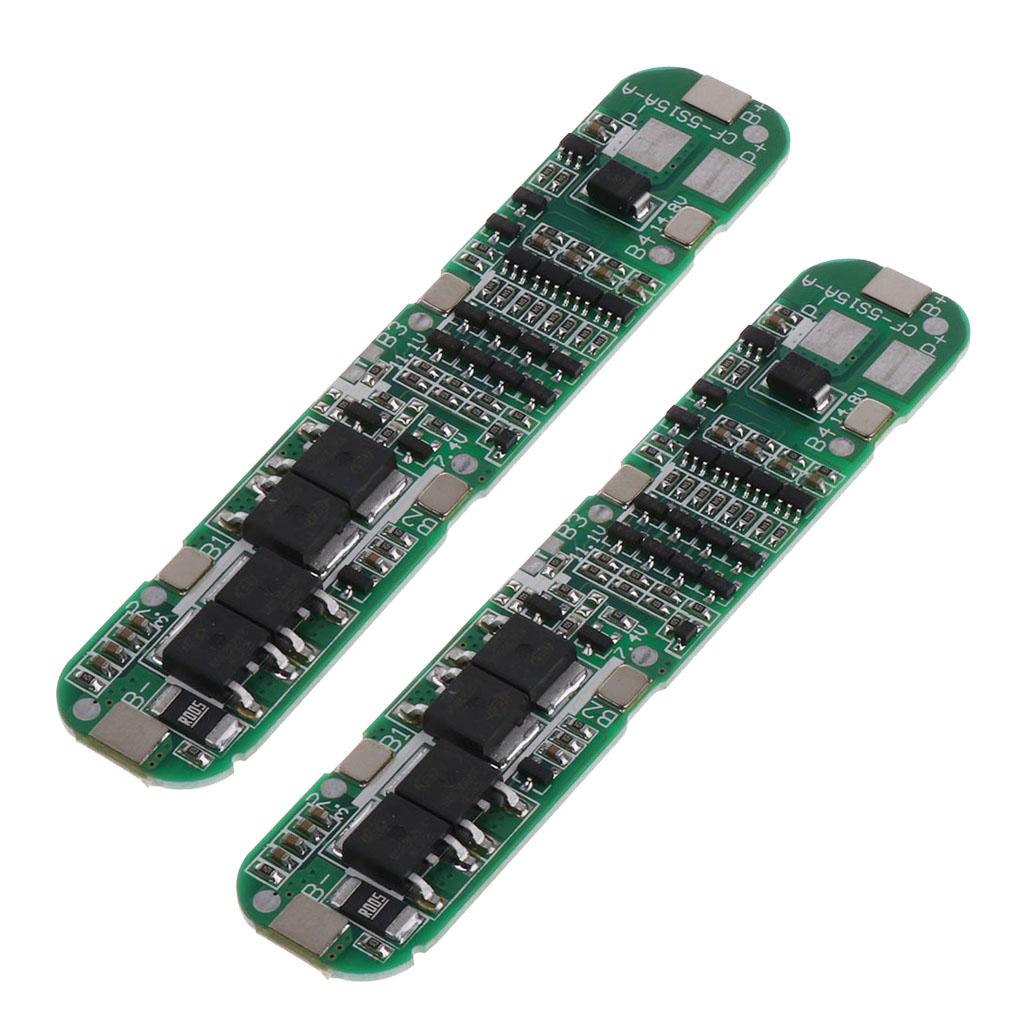

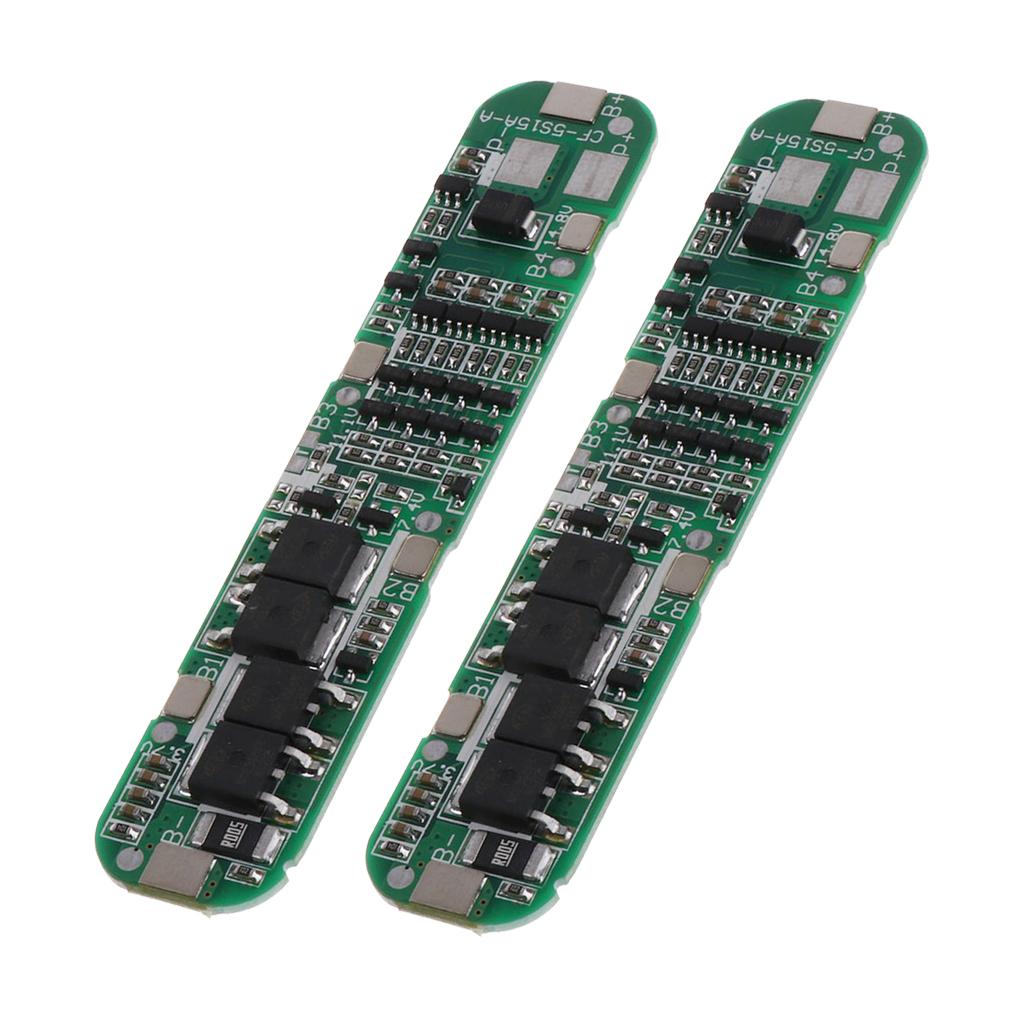

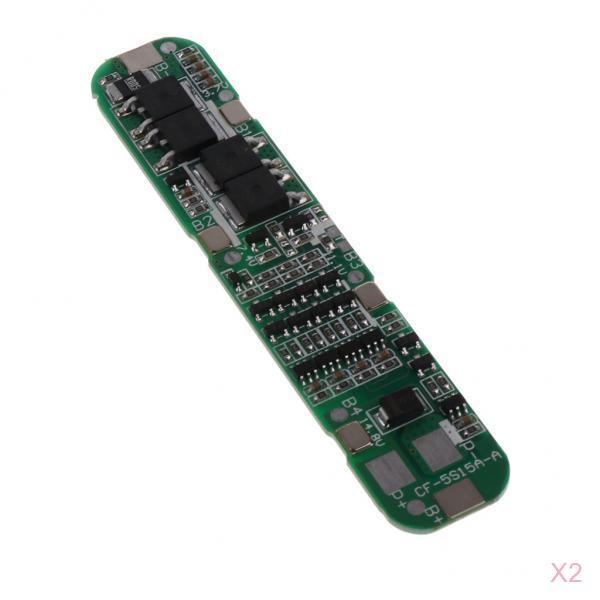

2Piece 5 Series BMS PCB Protection Board For 18650 Lithium Battery

Description:

-5 string 18.5V 21V electric tools/ solar/ lighting/18650/ lithium battery protection board BMS protection board
-Discharge: Continuous discharge current 15A; Instantaneous discharge current 25A. Charge: Charging voltage 21V; Charging current 15 A (MAX)
-Overcharge Protection: Overcharge detection voltage 4.28±0.05V; Overcharge protection delay 0.5S; Overcharge release voltage 4.08±0.05V. Over-discharge Protection: Over-discharge detection voltage 2.55±0.08V; Over-discharge detection delay 0.1s; Over discharge release voltage 2.9±0.1V
-Over current Protection: Overcurrent detection voltage 150mV; Overcurrent detection delay 9MS; Overcurrent protection current 30±3A; Overcurrent protection release condition Cut Load.
-Short circuit Protection: Protection conditions Short-circuit external load; Release condition Cut Load. Protection board size: 88*17*3mm (customized design for 18650)

Package Includes:

2 pieces 18650 5S 15A PCB BMS Protection Board
