2pieces 24/20-Pin ATX PC Power Desktop Power Module Adapter

Description:

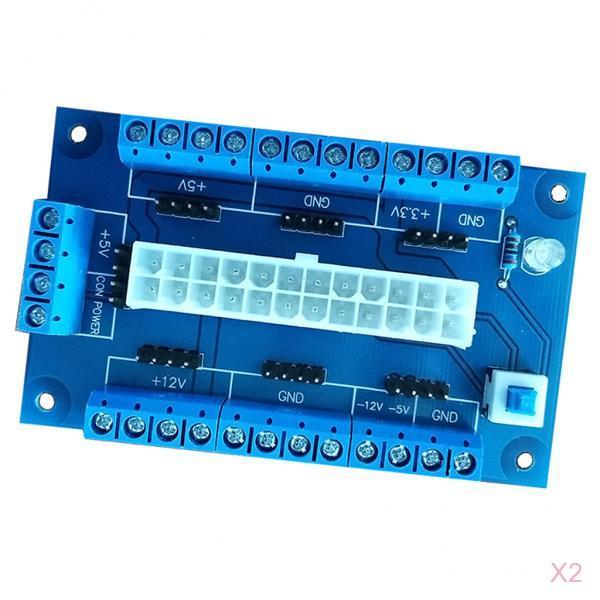

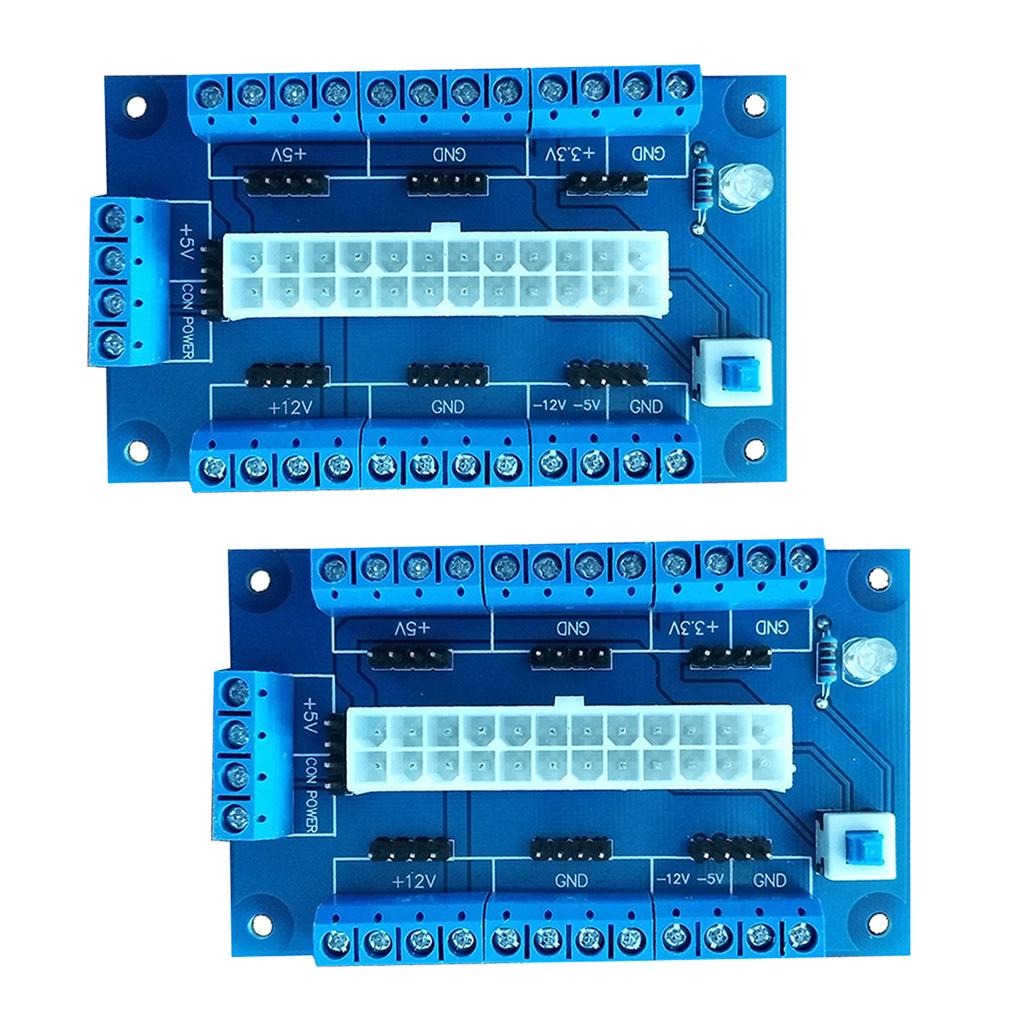

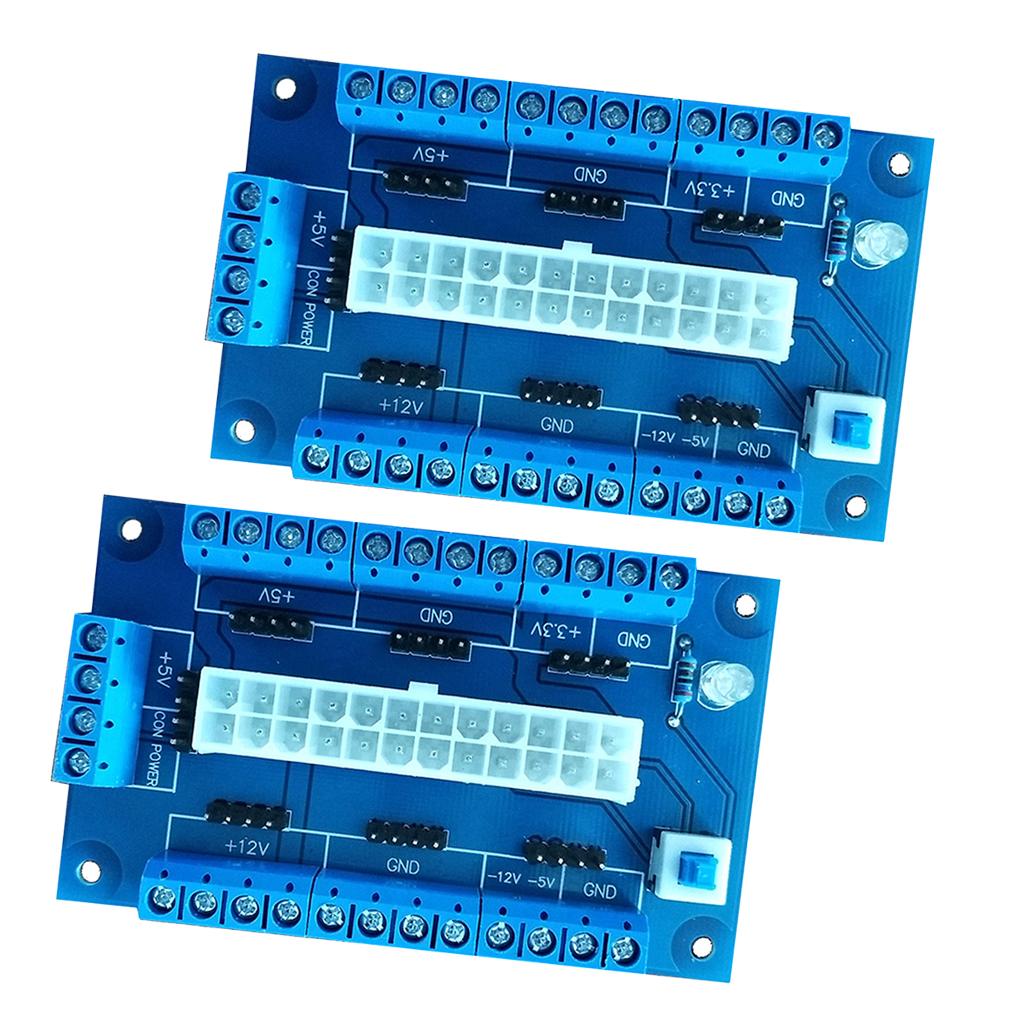

Electronics-Salon 24/20-pins ATX DC Power Supply Breakout Board.
24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header.
Power indicator LEDs.
With latching button switch to control power ON/OFF.
High quality 24Amp(per position) screw terminal blocks.

Specification:

- On / off button
- 6 + 5V / 16A connectors
- 10 GND / 16A connectors
- 1 -12V / 16A connector
- 4 + 12V / 16A connectors
- 3 + 3.3V / 16A connectors
- One -5V / 16A connector (-5V does not exist on each PC's power supply and will often disappear, this output will not provide anything if you do not supply this output)
- 2 connector In the case of the "power connector", want to open / close the button remotely (then just connect the two external buttons). This allows you to access the power button even if the adapter is in the arcade panel.
- 1 x 24-pin ATX connector backward compatible with ATX 20-pin
A variety of output methods, out of the terminal line can also choose pin connection

Package Includes:

2pieces ATX Power Board Module Adapter
