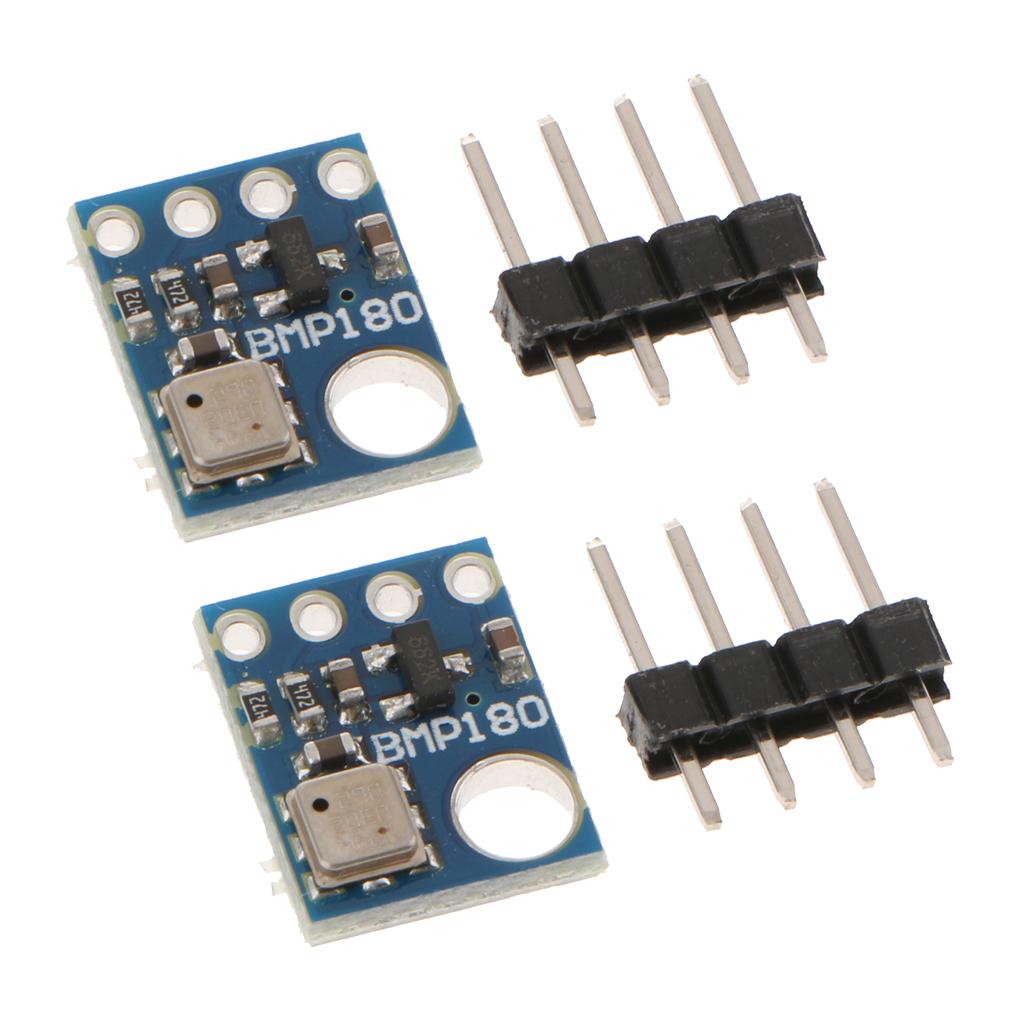

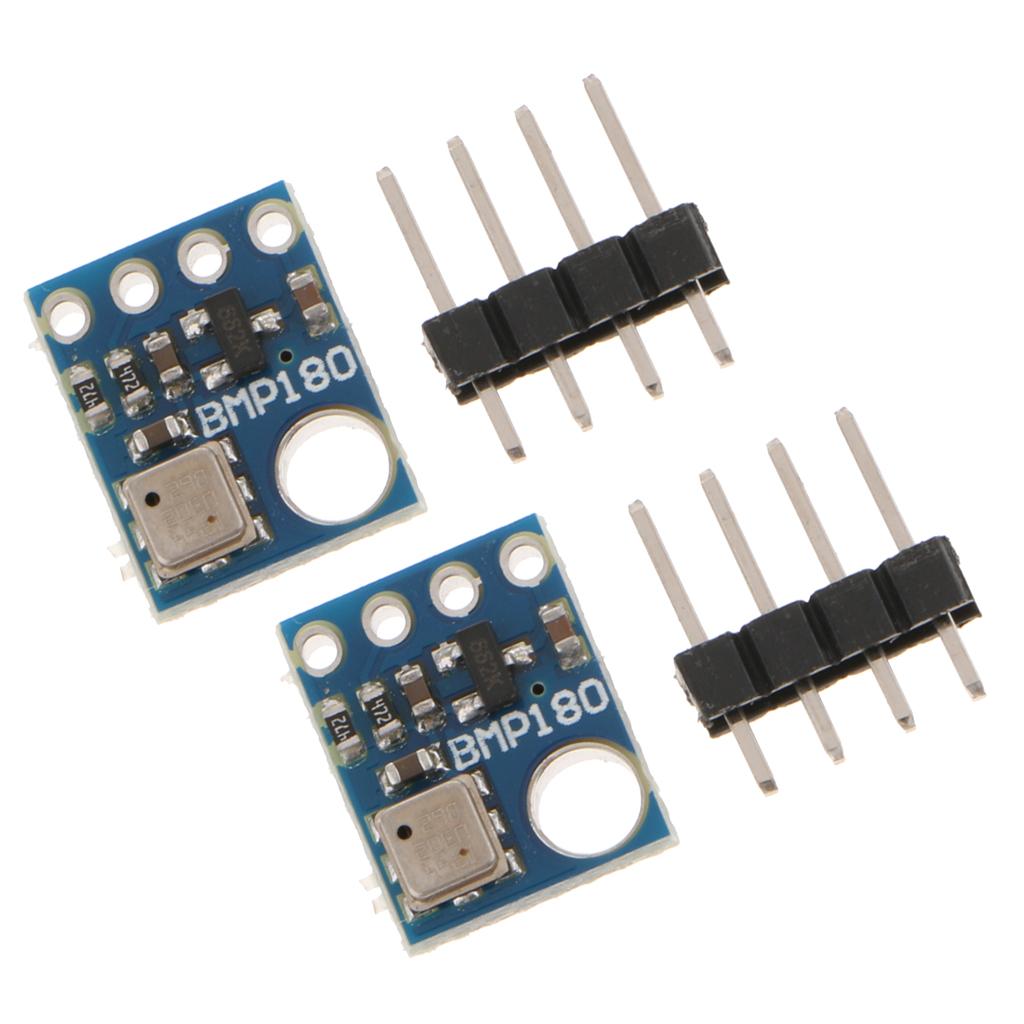

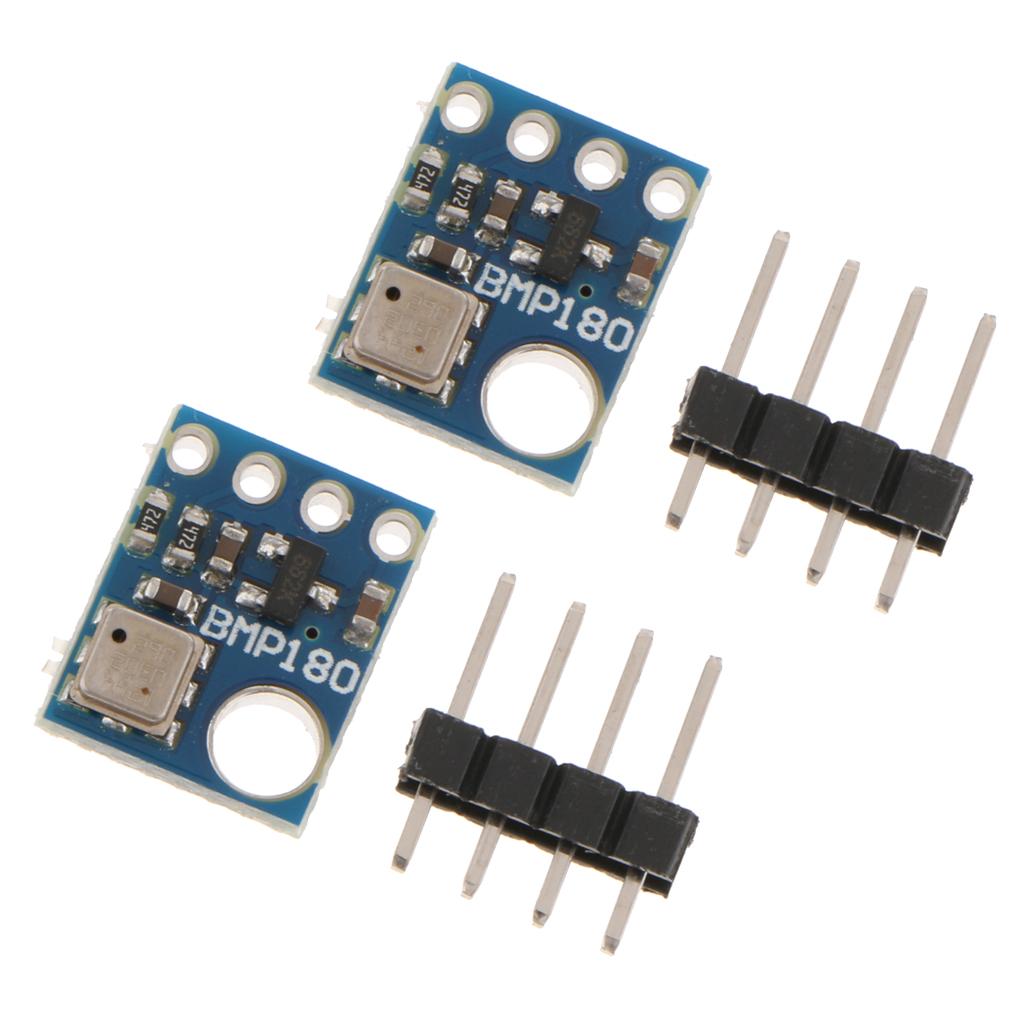

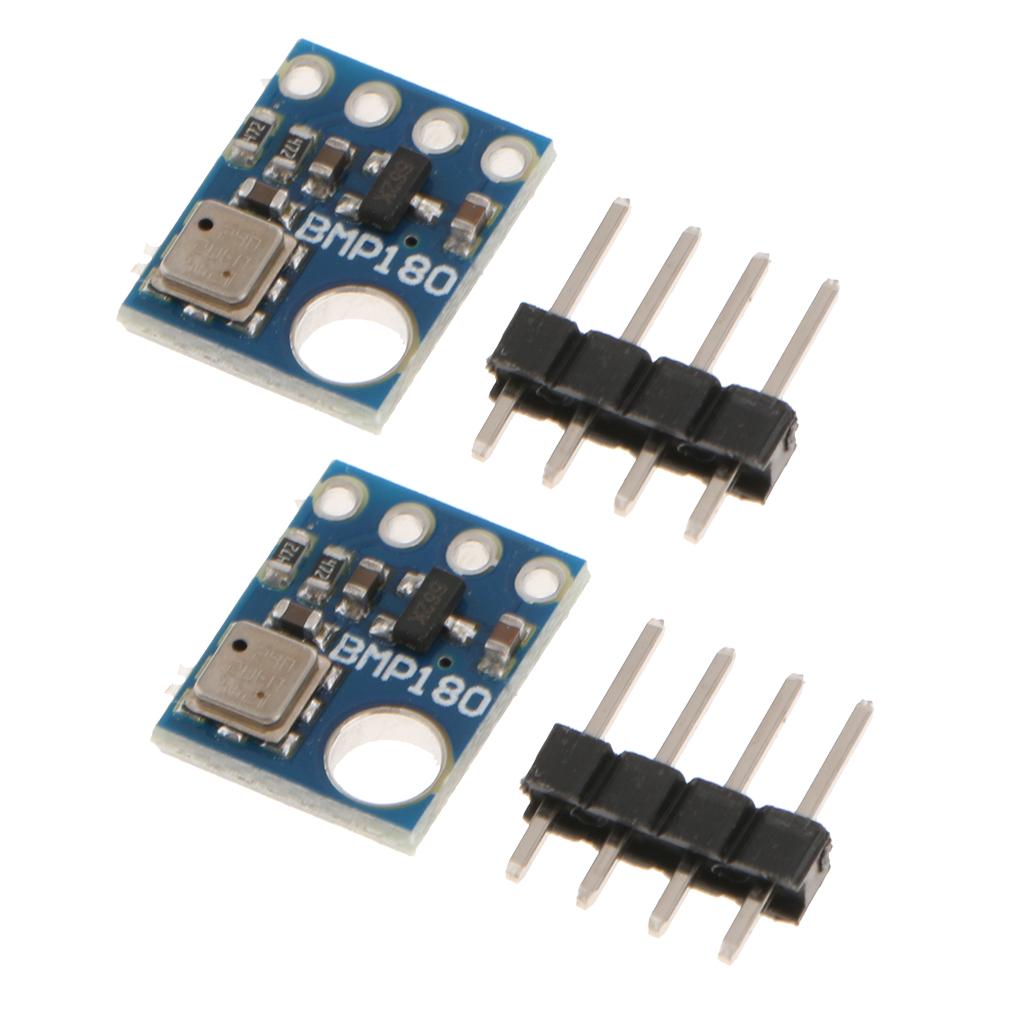

2x BMP180 Sensor Module,Temperature and Air Pressure Sensor,with Pin Header

Description:

is a high-precision, small size, ultra-low power pressure sensor.
GY-68 Temperature Barometric Pressure Module Sensor,measure Temperature, Pressure.
BME180,the precision sensor from ,is soldered onto PCB,connected with a variety of microprocessors through the I2C bus.
-free,RoHS compliant.With temperature output and temperature compensation.No external clock circuit required.
Typical applications: GPS precision navigation,indoor and outdoor navigation, leisure, sports and health monitoring, weather forecasting, vertical speed indication (rising/sinking speed),fan power control.

Specification:

Product: Digital Barometric Pressure Sensor
Material: Plastic + Electronic Component
Overall Size: 12x10mm/0.47x0.39inch
Pressure Range: 300~1100hPa(9000m to -500m above sea level)
Power Supply Voltage: 1.8V~3.6V(VDDA), 1.62V~3.6V(VDDD)
Low Power Consumption: 5μA(in standard mode)
MSL 1 Reaction Time: 7.5ms
Standby Current: 0.1μA
Resolution: 0.06hPa(0.5m)(in low power mode);
0.03hPa(0.25m)(in high linear mode)

Package Includes:

2 Pieces Sensor Module
2 Pieces Pin Header
