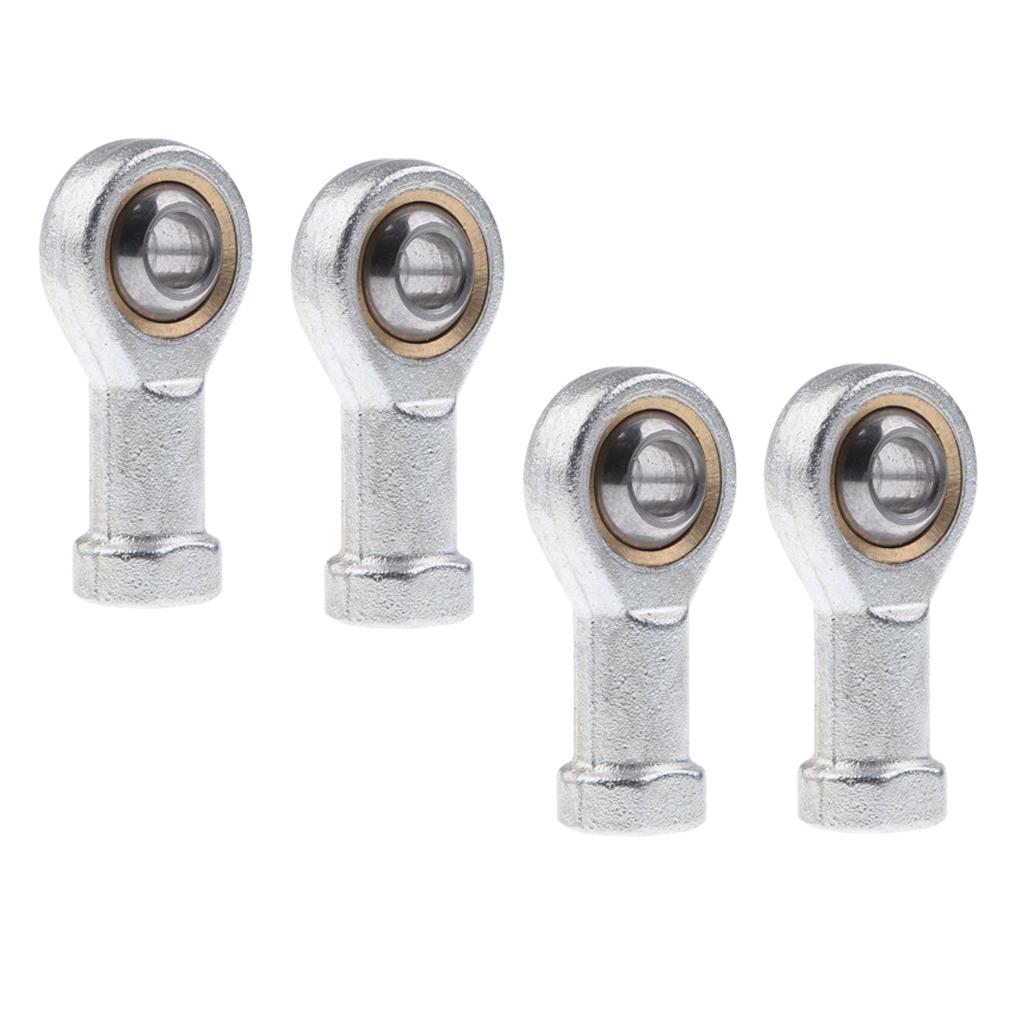

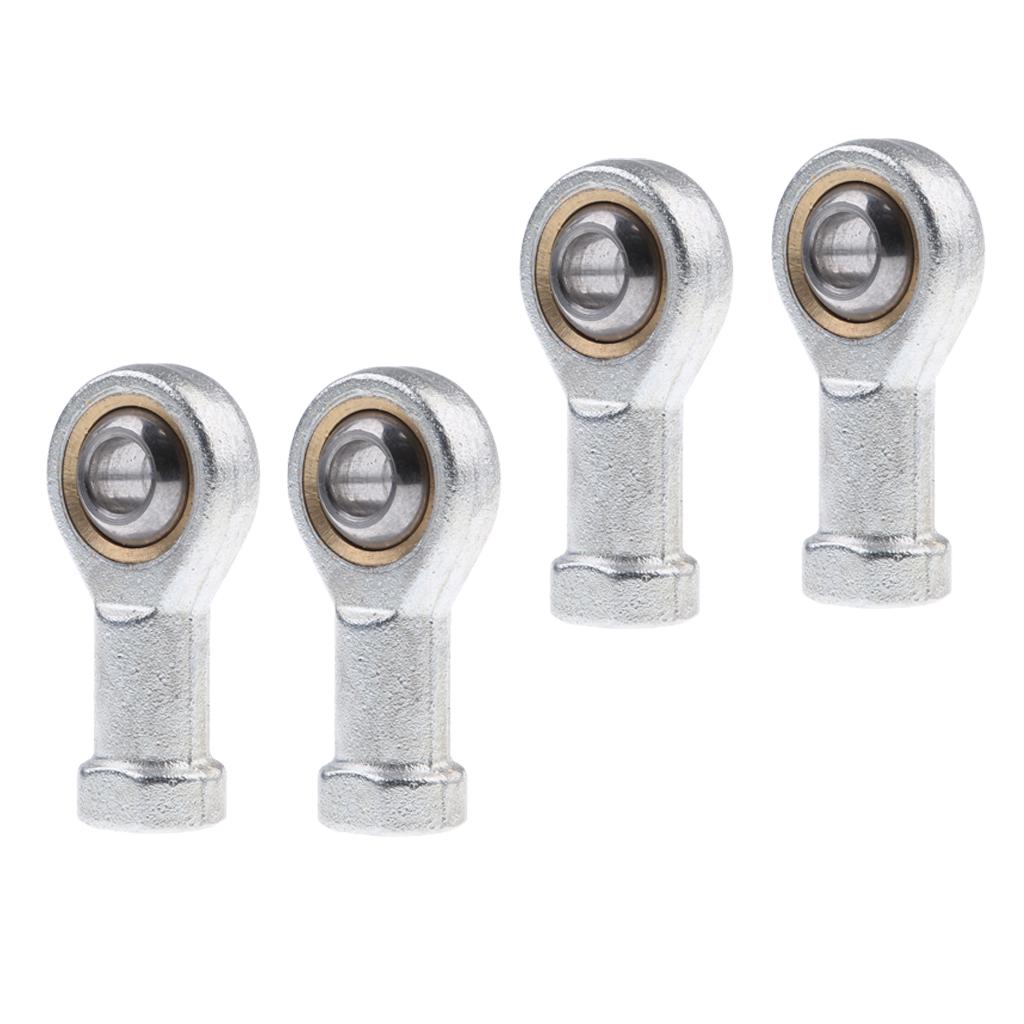

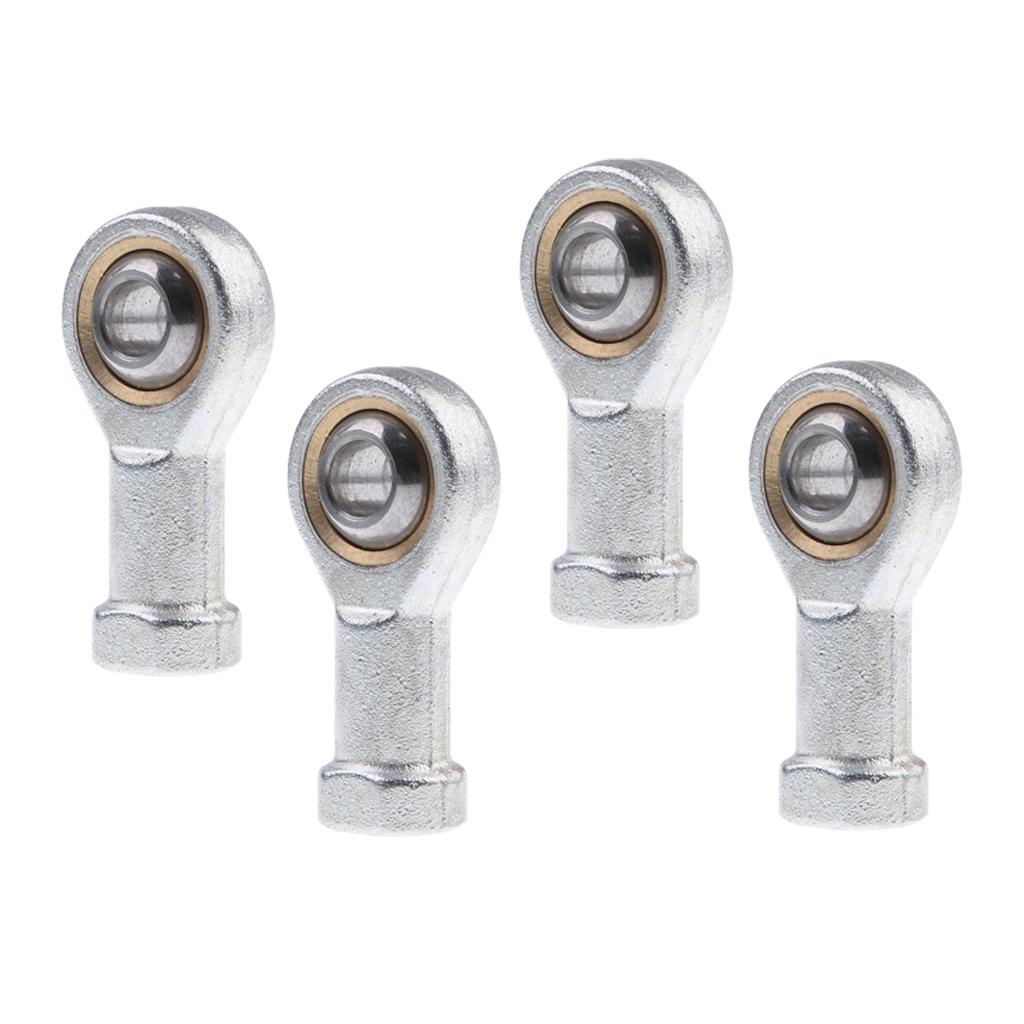

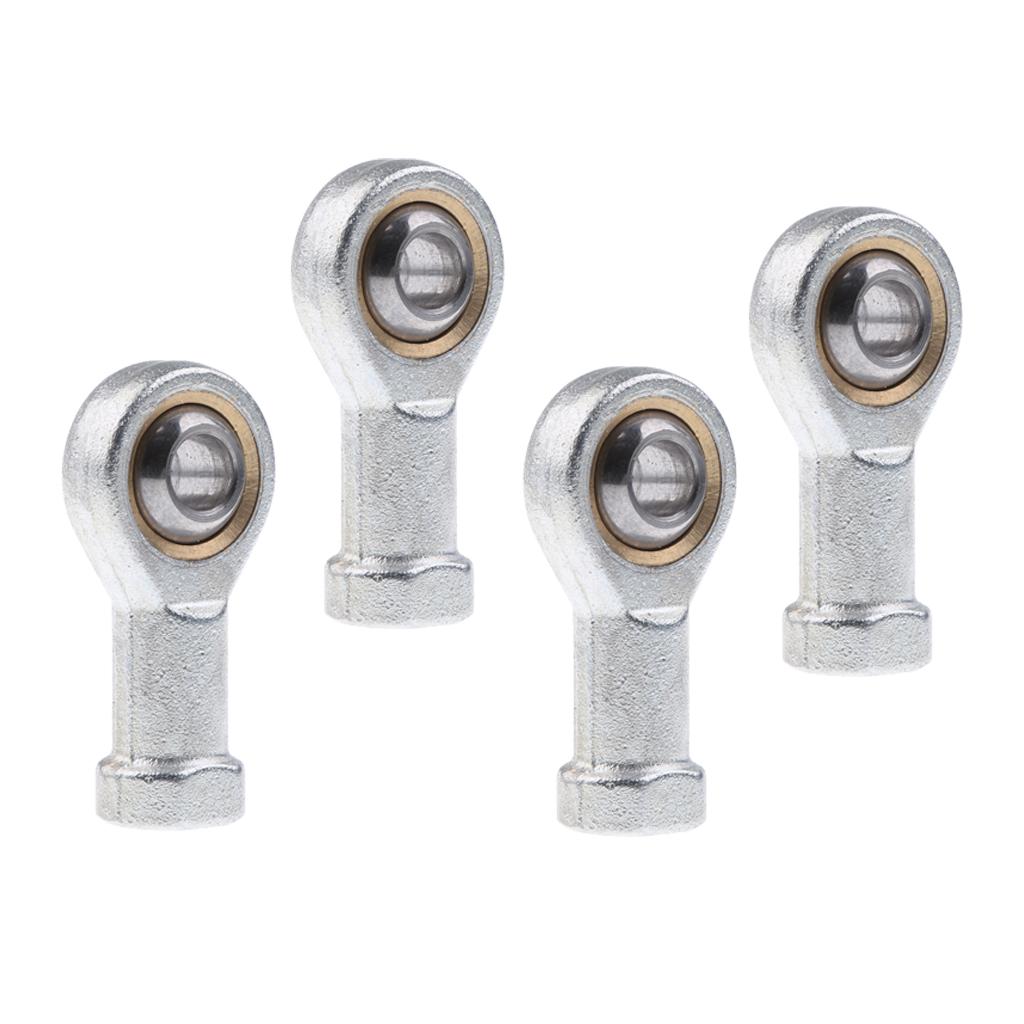

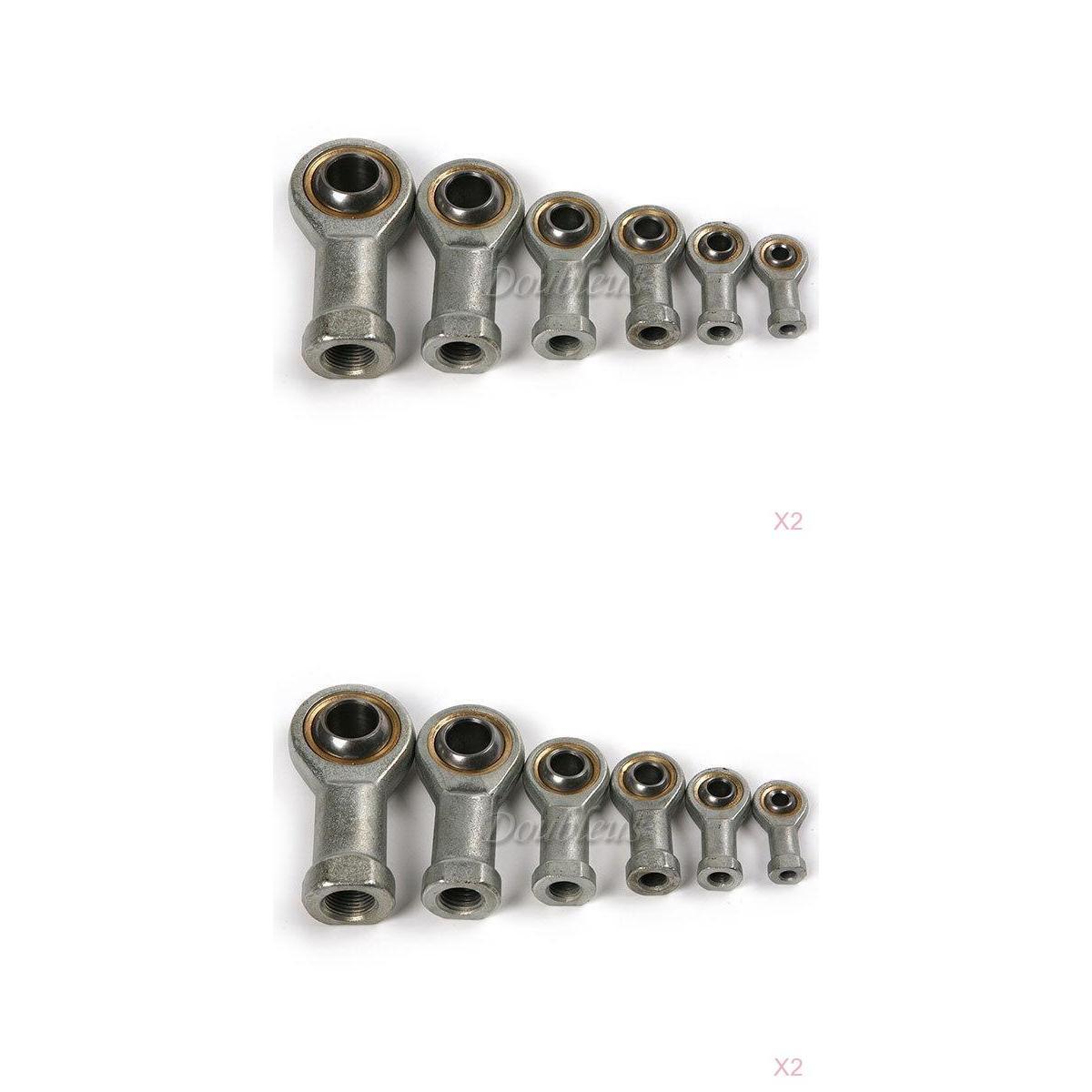

2x M8+2x M10 Ball Joint Rod End Hand Oscillating Bearing Bolt Thread Swivel

Description:

Oscillating bearing.
Widely used in hydraulic cylinder,forging machine,auto damper and other machine.
The bearing can bear great load.
Because the outer spherical inlaid with composite material, so the bearing in the work can generate self lubrication.
Material: Bearing Steel.

Specification:

M8 Joint Bearing
Bearing Diameter: 8mm/0.31inch
The Threaded Hole Diameter: 8mm/0.31inch
Hole Depth: 25mm/0.98inch
Total Length: 48mm/1.89inch
Thread Pitch: 1.25mm/0.05inch
M10 Joint Bearing
Bearing Diameter: 10mm/0.39inch
The Threaded Hole Diameter: 10mm/0.39inch
Hole Depth: 30mm/1.18inch
Total Length: 57mm/2.24inch
Thread Pitch: 1.5mm/0.06inch

Package Includes:

2x M8 Joint Bearing
2x M10 Joint Bearing
