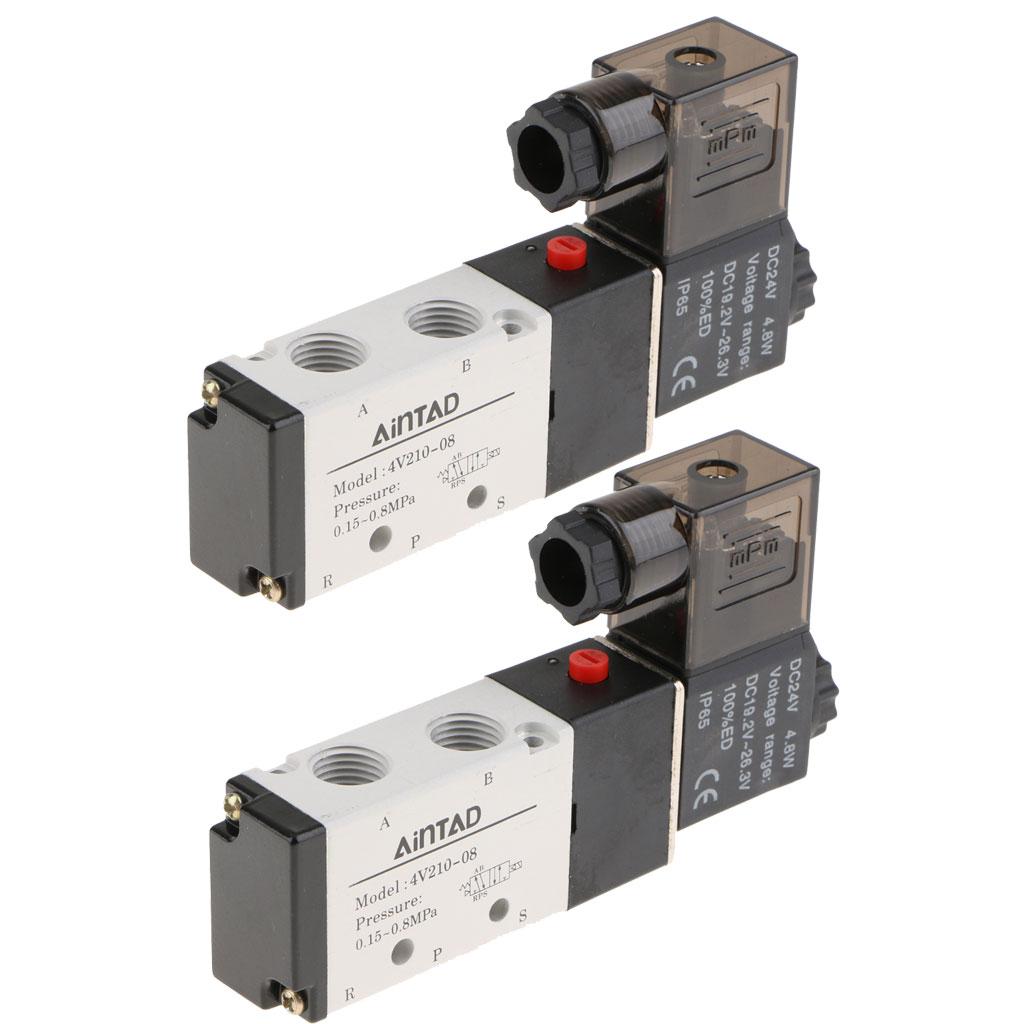

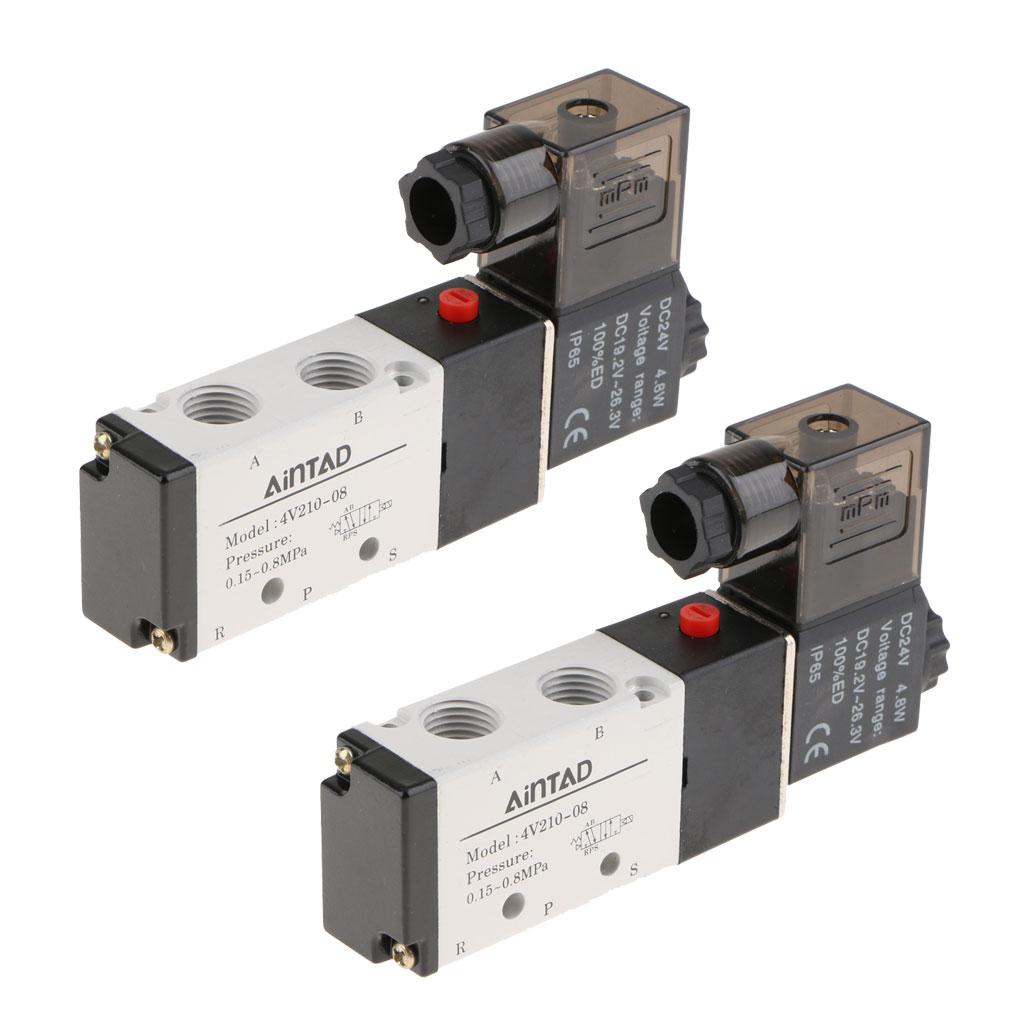

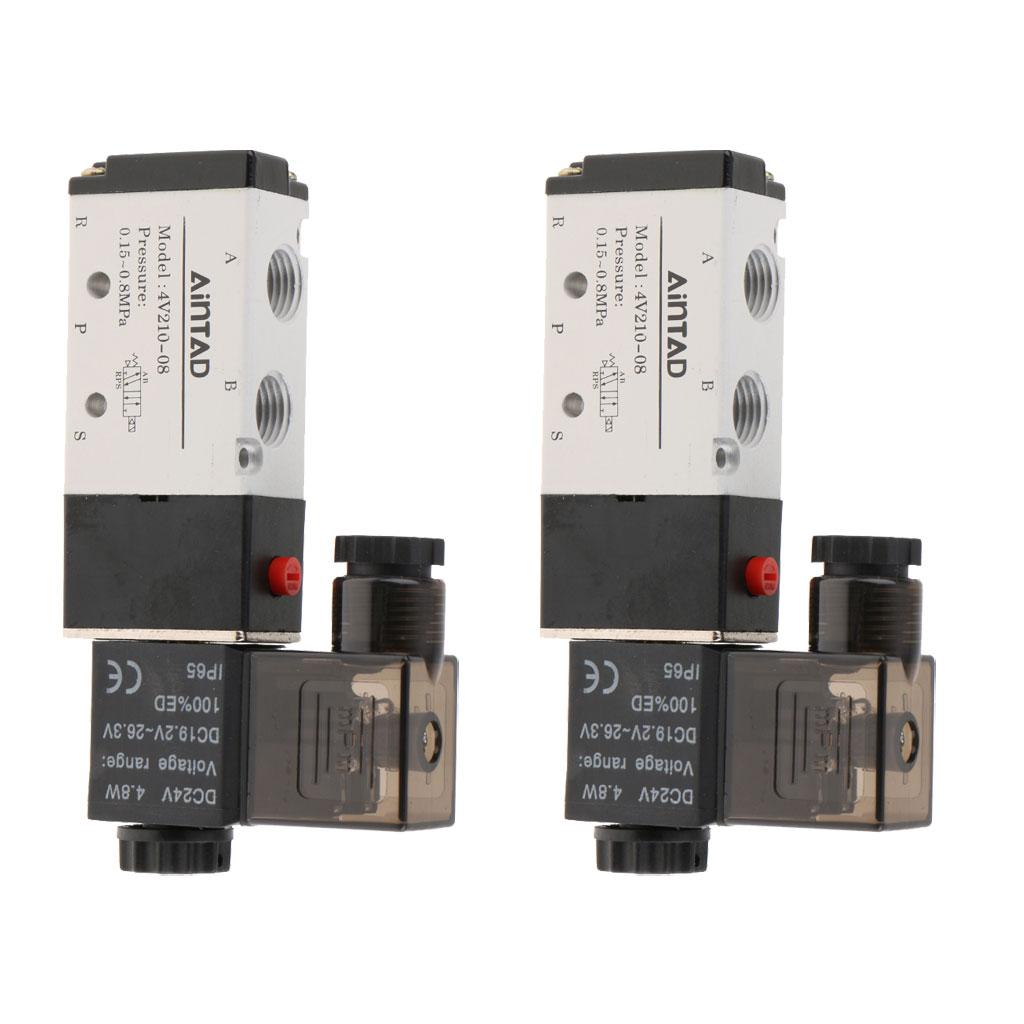

2x1X 4V210-08 Solenoid Valve 5 Way 2 Position Pneumatic Air 1/4 BSPT 24V"

Description:

Category: Pneumatic Valves

Type: 5/2 Way Internally Piloted Acting Type Single Solenoid Valve

Model: 4V210-08

Coil: AC220V LED Light

Port Size: 1/4" BSPT

Effective area: 16mm2

Working pressure range: 0.15~0.8MPa

Proof pressure: 1.5MPa

Operating temperature range:-20~70℃

Working Votage Range: ±15%

Power consumption: AC:3.5VA

Insulation and protection: Class F.IP65

Wiring method: and box

Max.Working Frequency: 5times/s

Response time: 0.05s

Specification:

Material: aluminium alloy

Size(LxWxH): approx.118x64x23mm/4.64x2.52x0.90inch

Weight: 320g

Package Includes:

1 Piece Pneumatic Valve(2 pack)
