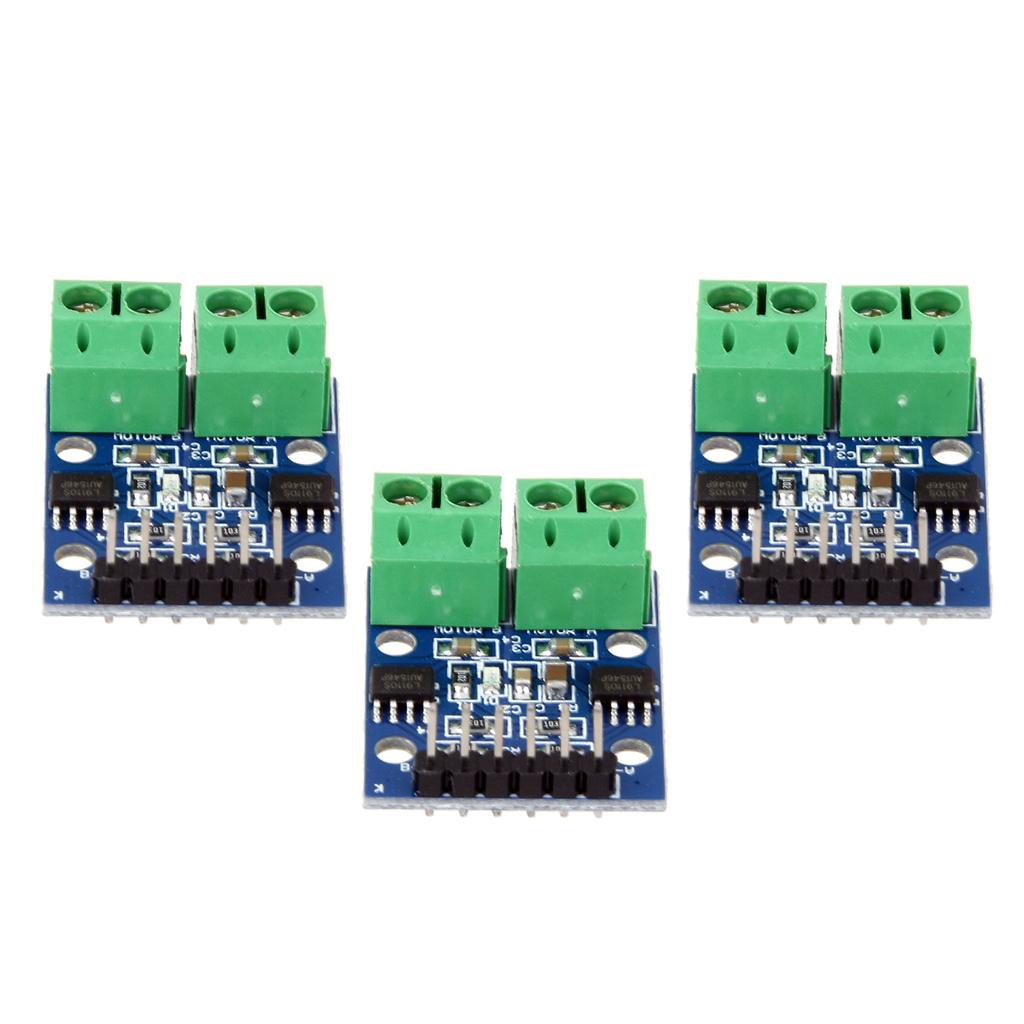

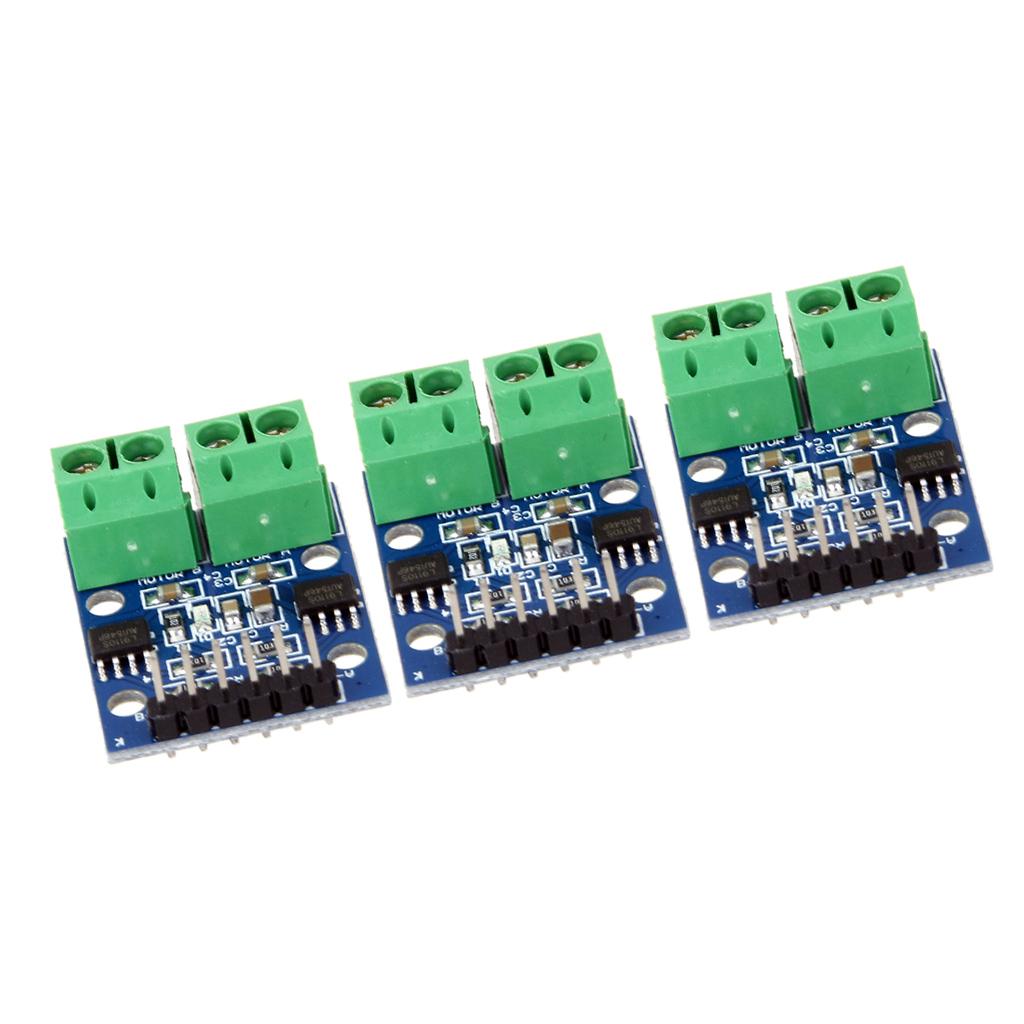

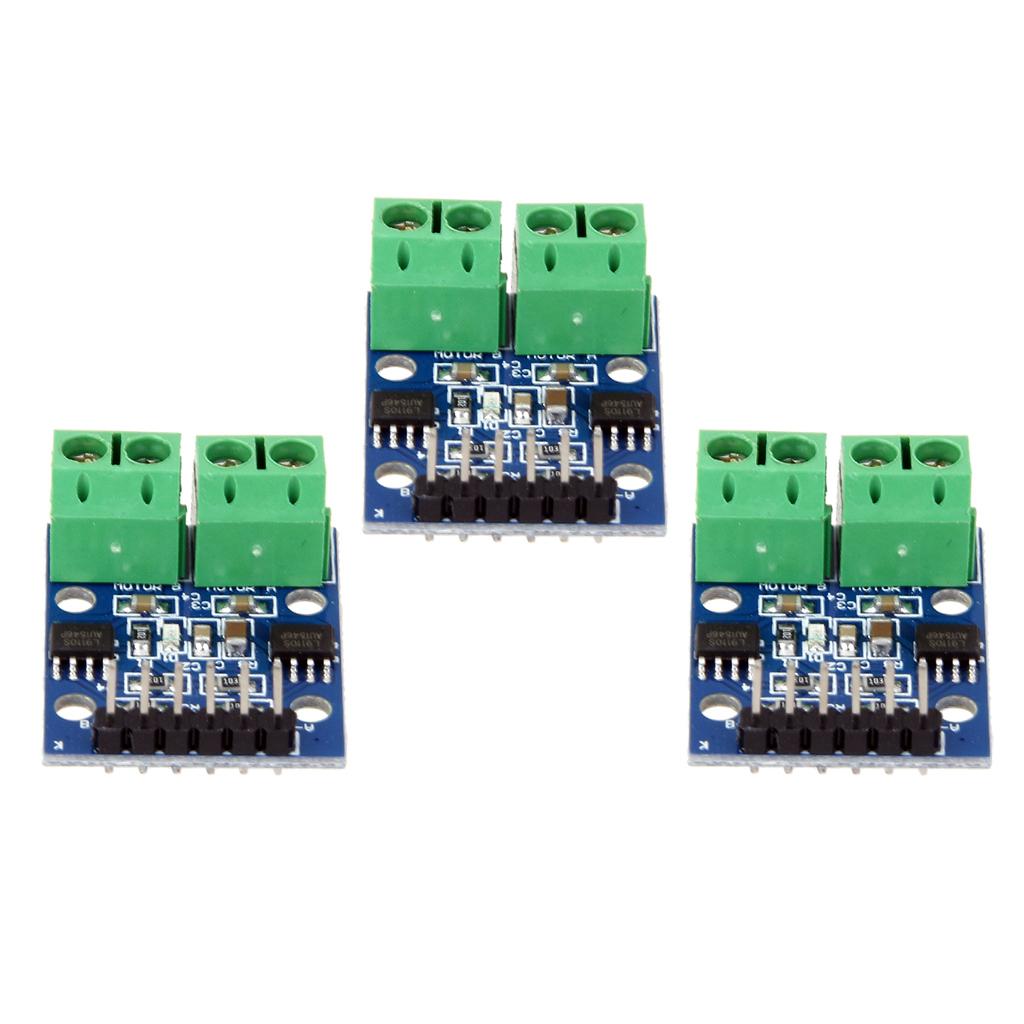

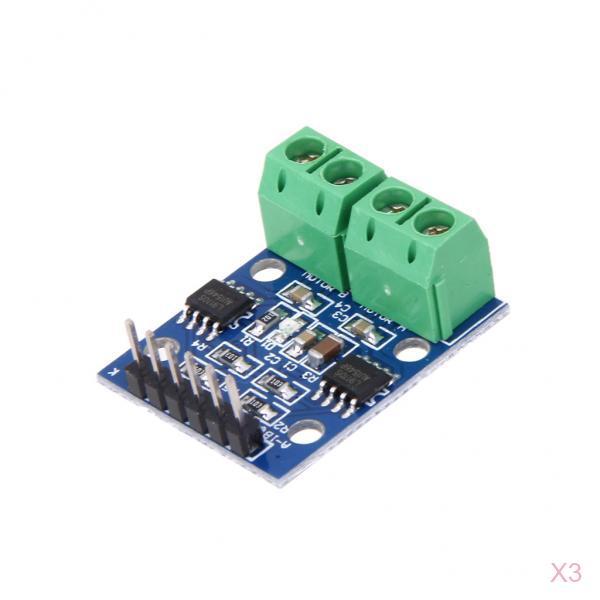

3 Pieces L9110S Dual DC Stepper Motor Driver Controller Board for

Description:

Onboard two L9110S motor control chip

the module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor

Power supply voltage: DC2.5-12V

Each channel has 800mA continuous current output

Low saturation pressure drop

TTL/CMOS output level compatible, can be connected directly to the CPU

Output built-in clamping diode, apply to the perceptual load

Control and drive integrate in IC

Have pin high pressure protection function

Working temperature: 0-80 ℃

Size: Approx. 29.2(mm)x23(mm)

Material: Plastic

Package Includes:

3 Pieces DC Stepper Motor Driver Board
